304 Stainless Coated Wire Rope with Crimp Sleeves, 0.4–6 mm
$4.29
Specifications
Product specifications
Available options
| Construction | 1x7 · 7x7 |
|---|---|
| Diameter | 0.4 mm · 0.45 mm · 0.5 mm · 0.6 mm · 0.7 mm · 0.8 mm · 1 mm · 1.2 mm · 1.5 mm · 2 mm · 3 mm · 4 mm · 5 mm · 6 mm |
| Length & Sleeves | 100 m (328 ft) + 30 Sleeves · 50 m (164 ft) + 30 Sleeves · 30 m (98 ft) + 30 Sleeves · 20 m (66 ft) + 30 Sleeves · 20 m (66 ft) + 20 Sleeves |
Product Details
| Product Name | Black Plastic-Coated Wire Rope |
|---|---|
| Place of Origin | Guangdong |
| Material | 304 Stainless Steel + PVC |
| Common Sizes | 0.4mm - 6mm (Customizable) |
| Common Uses | Widely used for clotheslines, fruit supports, and industrial connections. |
| Features | Waterproof, rust-resistant, corrosion-resistant |
| Thickness options | 0.6 mm, 0.8 mm |
| Thickness | 3 mm (coated) |
| Measurement Tool | Vernier Caliper |
| Available Constructions | 7x7, 7x19 |
Basic Parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Name | Black Plastic-Coated Wire Rope | Brand | Qi Dian |
| Origin | Guangdong | Material | 304 Stainless Steel + PVC |
| Common Sizes | 0.4mm - 6mm | Customization | Customizable |
| Common Uses | Widely used for clotheslines, fruit supports, and industrial connections. |
Note: Slight variations may exist between production batches. Customers with high precision requirements can contact online customer service.
| Specification | Structure | Reference Pull / Breaking Strength | Quantity / Length |
|---|---|---|---|
| Diameter 0.38mm | 1*7 | 4 kg (8.8 lb) | 100m |
| Diameter 0.45mm | 1*7 | 6 kg (13.2 lb) | 100m |
| Diameter 0.5mm | 1*7 | 10 kg (22 lb) | 100m |
| Diameter 0.6mm | 1*7 | 12.5 kg (27.6 lb) | 100m |
| Diameter 0.8mm | 1*7 | 20 kg (44.1 lb) | 50m |
| Diameter 0.8mm | 7*7 | 25 kg (55.1 lb) | 50m |
| Diameter 1.0mm | 7*7 | 40 kg (88.2 lb) | 30m |
| Diameter 1.2mm | 7*7 | 50 kg (110.2 lb) | 20m |
| Diameter 1.5mm | 7*7 | 60 kg (132.3 lb) | 20m |
| Diameter 2mm | 7*7 | 75 kg (165.3 lb) | 20m |
| Diameter 2.5mm | 7*7 | 125 kg (275.6 lb) | 20m |
| Diameter 3mm | 7*7 | 150 kg (330.7 lb) | 20m |
| Diameter 4mm | 7*7 | 250 kg (551.2 lb) | 20m |
| Diameter 5mm | 7*7 | 300 kg (661.4 lb) | 20m |
| Diameter 6mm | 7*7 | 500 kg (1102.3 lb) | 20m |
Product Specification Sheet
| Product Structure | Specification (mm) | Reference Weight (100m/kg) | Minimum Breaking Strength (KN) | Maximum Load Capacity (kg) |
|---|---|---|---|---|
| 7*7 | 1 | 0.4 | 0.637 | 65 |
| 7*7 | 1.2 | 0.65 | 1.2 | 122.4 |
| 7*7 | 1.5 | 0.93 | 1.67 | 170.4 |
| 7*7 | 1.8 | 1.35 | 1.96 | 201.5 |
| 7*7 | 2 | 1.6 | 2.25 | 229.6 |
| 7*7 | 3 | 3.7 | 6.37 | 650 |
| 7*7 | 4 | 6.5 | 9.51 | 970.4 |
| 7*7 | 5 | 10.3 | 14.70 | 1500 |
| 7*7 | 6 | 14.8 | 18.6 | 1898 |
| 7*7 | 8 | 26.3 | 40.6 | 4142 |
| 7*19 | 2 | 1.6 | 2.08 | 212.2 |
| 7*19 | 2.5 | 2.5 | 3.1 | 311 |
| 7*19 | 3 | 3.6 | 4.69 | 478.6 |
| 7*19 | 4 | 6.4 | 10.7 | 1091.8 |
| 7*19 | 5 | 10 | 17.4 | 1775.5 |
| 7*19 | 6 | 14.4 | 23.5 | 2398 |
| 7*19 | 8 | 25.6 | 33.35 | 3403.1 |
| 7*19 | 10 | 40 | 52.12 | 5318.4 |
| 7*19 | 12 | 57.6 | 75.05 | 7658.2 |
| 7*19 | 14 | 78.4 | 102.16 | 10424.5 |
| 7*19 | 16 | 102.4 | 133.43 | 13615.3 |
| 7*19 | 18 | 130 | 168.88 | 17232.7 |
| 7*19 | 20 | 160 | 208.49 | 21274.5 |
| 7*19 | 24 | 230 | 300.23 | 30635.7 |
| 7*19 | 26 | 270 | 352.35 | 35954.1 |
Note: The above data are results from vernier caliper sampling measurements (please refer to the actual product; slight discrepancies may exist!). Unit: mm/g
Product Information

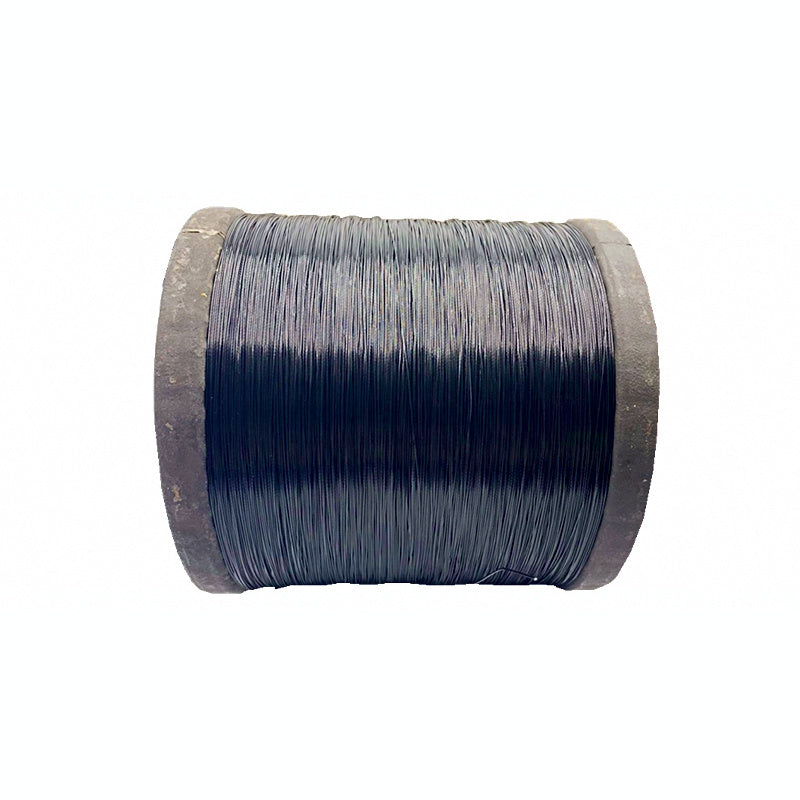

- Black plastic-coated stainless steel wire rope.
- Suitable for clotheslines, fruit supports, and industrial connections.
- Custom sizes available.
Black Coated Wire Rope Details
- Coated surface: Smooth exterior, resistant to scratching hands
304 Stainless Steel Material

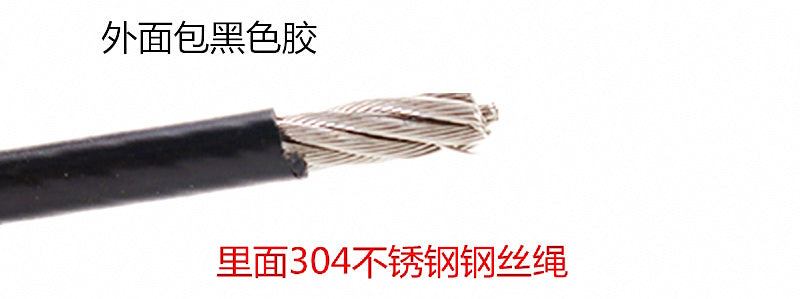

- Plastic-coated line with internal 304 stainless steel wire leader
- Waterproof, rust-resistant, and corrosion-resistant

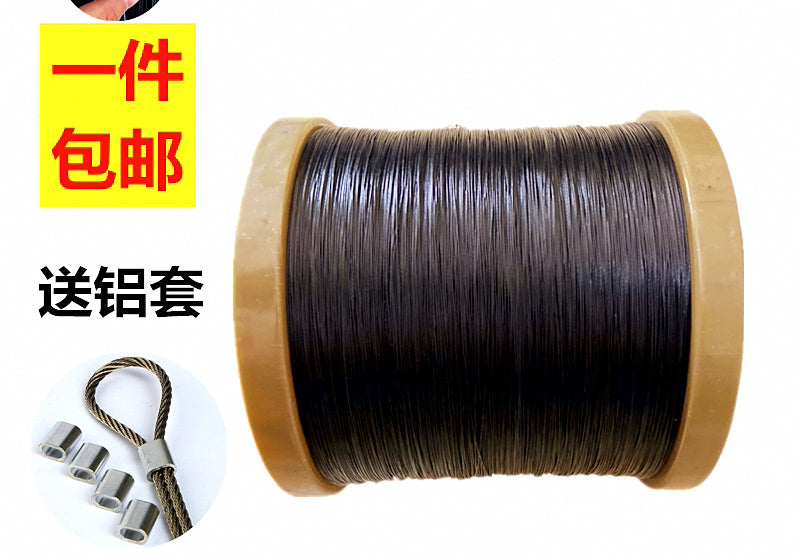

Free Aluminum Sleeves Included
- Includes aluminum crimp sleeves for secure and convenient knotting.
Product Real Shots & Full Range of Specifications
- 0.45 mm thickness

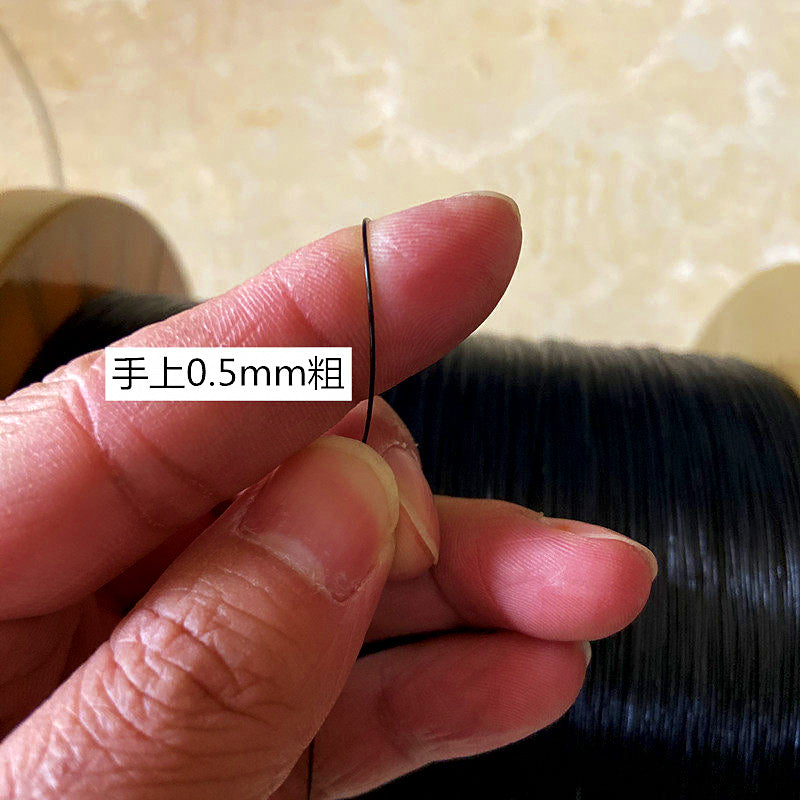

- 0.5 mm thickness
- Thickness: 0.6 mm
- Thickness: 0.8 mm

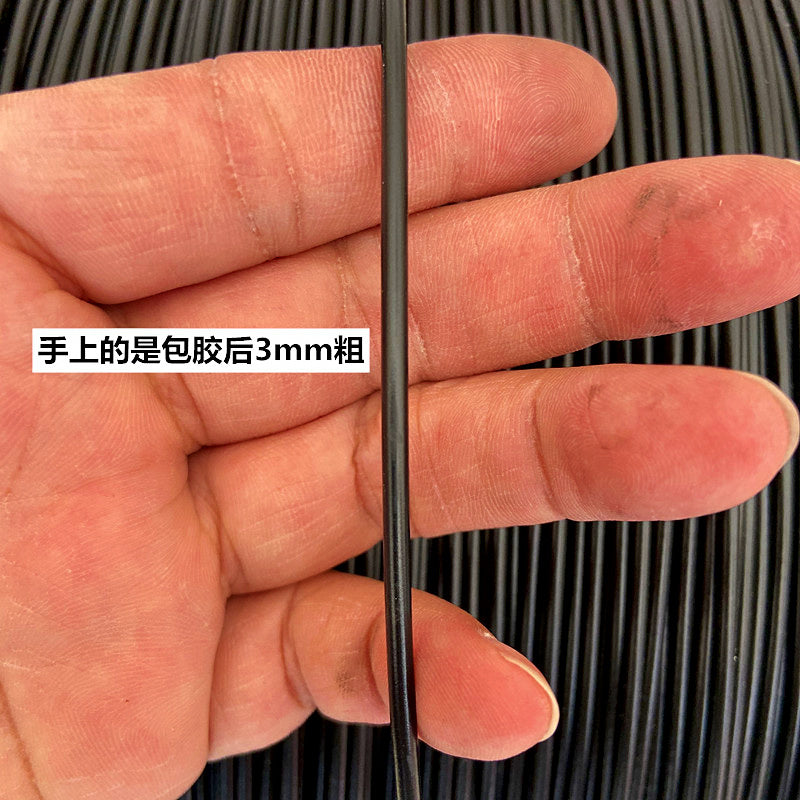

- Thickness: 3 mm after rubber coating
Product Details
- Measurement Tool: Vernier Caliper (Product parameters are for reference only, slight errors may exist).
- Wire Rope Constructions: 7x7 and 7x19 available.
Product Specifications Sheet
- Data is obtained from vernier caliper sampling measurements and is for reference only; slight errors may exist.
- Units: mm / g
Common Questions About Stainless Steel Products
- Why is 304 stainless steel slightly magnetic? Cold working transforms part of the austenite into martensite, which carries magnetism. Thus, 304 stainless steel can be non-magnetic or weakly magnetic.
- How to identify authentic 304 stainless steel: 1. Test with 304 testing reagent (no color change means genuine 304). 2. Chemical composition analysis and spectrum analysis. 3. Salt spray testing.
- Characteristics of common stainless steel grades: 201 stainless steel is suitable for dry environments (rusts easily when exposed to water); 304 stainless steel is suitable for outdoor or humid environments with strong corrosion and acid resistance.
