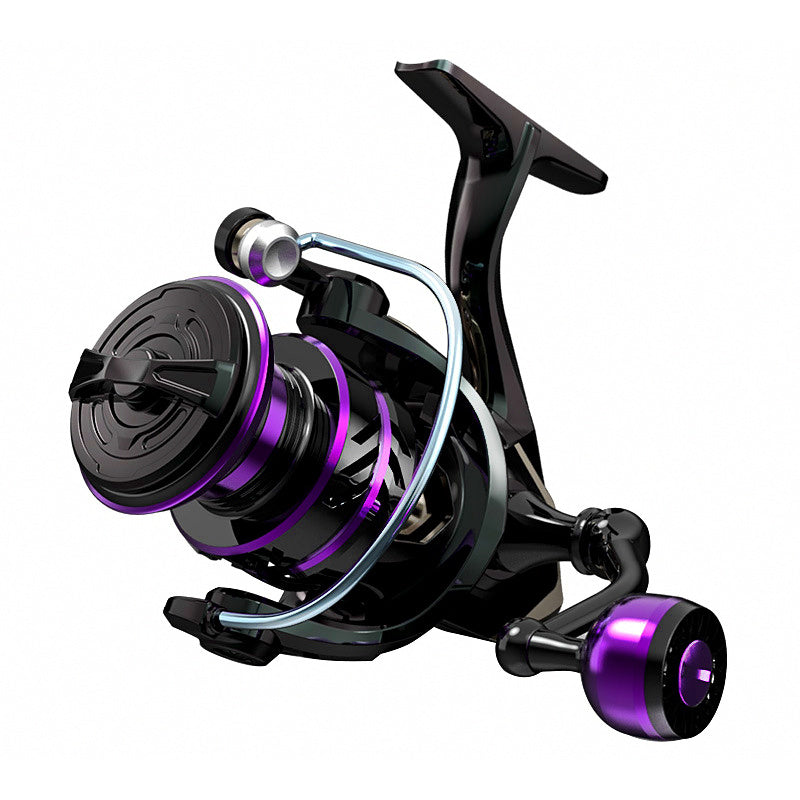

All-Metal Spinning Reel, HP Series Sizes 500–7000

The details Specifications

Specifications

Product specifications

Available options

Size	HP-800 · HP-6000 · HP-7000 · HP-3000 · HP-2000 · HP-5000 · HP-4000 · HP-1000 · HP-500
Handle Knob	EVA Knob · Metal Knob

Product Details

Name	HP Spinning Reel
Gear Ratio	5.2:1
Color	Black Purple
Spool Series	500 - 7000
Max Drag	10 kg (22 lb)
Drag System Material	Wool felt washers

Spinning Reel Specifications

Model	Gear Ratio	Ball-Shaped Knob Weight (g)	EVA Handle Weight (g)	Standard Line Capacity (mm/m)
HP-500	5.2:1	157	153	0.15/140 0.18/120 0.20/85
HP-800	5.2:1	163	158	0.15/160 0.18/140 0.20/100
HP-1000	5.2:1	235	230	0.15/180 0.18/160 0.24/100
HP-2000	5.2:1	238	232	0.15/180 0.18/160 0.24/100
HP-3000	5.2:1	240	235	0.18/240 0.20/200 0.34/100
HP-4000	5.2:1	245	240	0.20/240 0.25/200 0.37/100
HP-5000	5.2:1	345	335	0.30/200 0.35/160 0.40/100
HP-6000	5.2:1	350	340	0.35/200 0.40/160 0.50/100
HP-7000	5.2:1	358	348	0.40/240 0.45/200 0.55/100

* The above data are manual measurements, slight errors may occur, please understand.

Spinning Reel Specifications

Round metal power knob option
Ergonomic EVA handle knob option

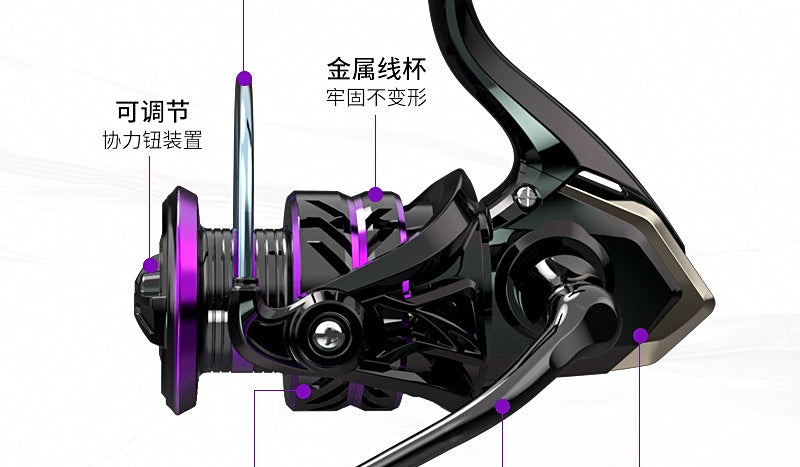

Clear Product Structure

Curved foot pedestal for a secure, non-wobbling fit

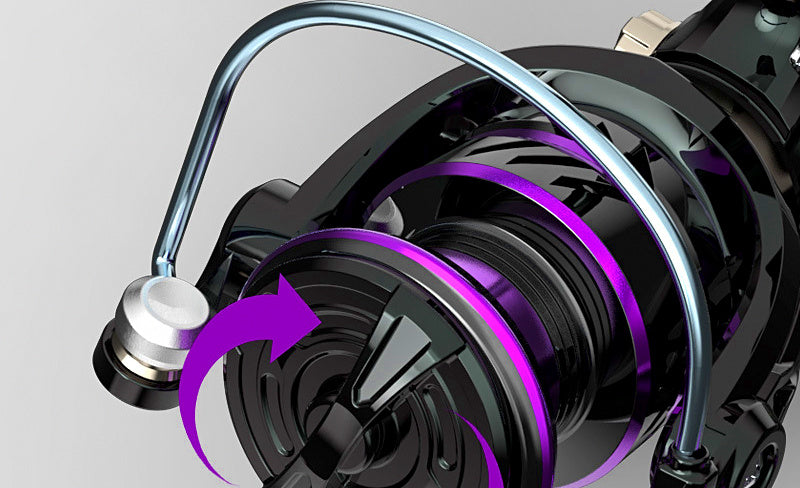

Thick bail wire for low drag and smooth casting
Metal spool for durability without deformation
Adjustable drag knob system and hollowed-out lightweight body

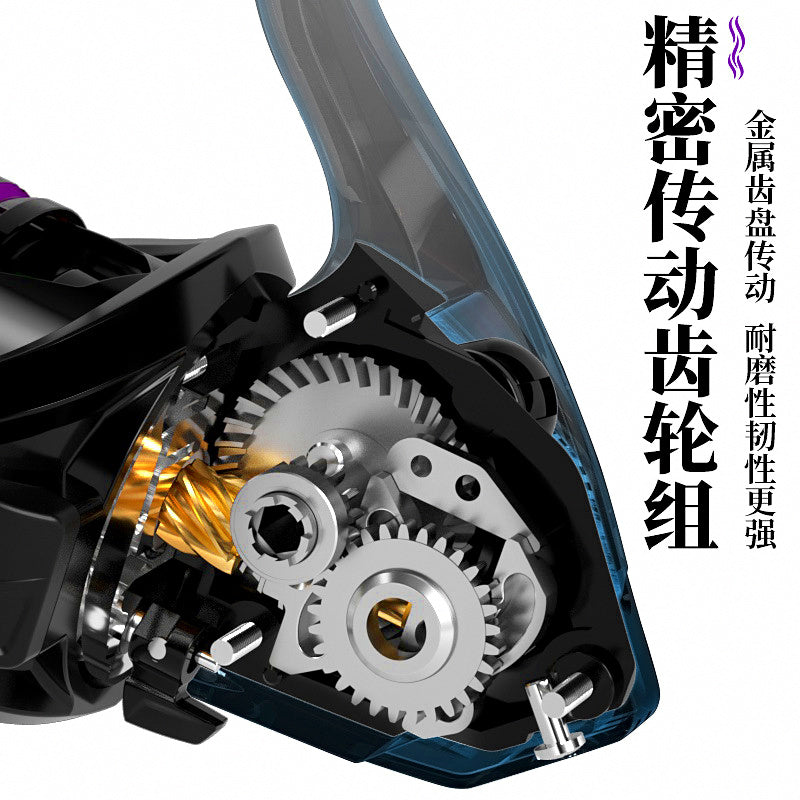

CNC aluminum handle and high-strength gear bearings

Lightweight design
Enlarged drag knob
Interchangeable left/right hand handle
Smooth line roller
Sturdy reel foot
Stainless steel bearings

5.2:1 High Gear Ratio

Fast line retrieval for effortless hookups

Non-Slip Drag Knob

Rotate left or right to adjust drag
Large-diameter drag knob for fast, precise drag adjustments
Designed to handle big game fish with ease

10 kg Max Drag System

Wool felt drag washers provide high stability for big game with zero stress
