Blank VIB Blade Bait, No Hooks, 2.5–20 g | WESTWAKE – WESTWAKE Tackle

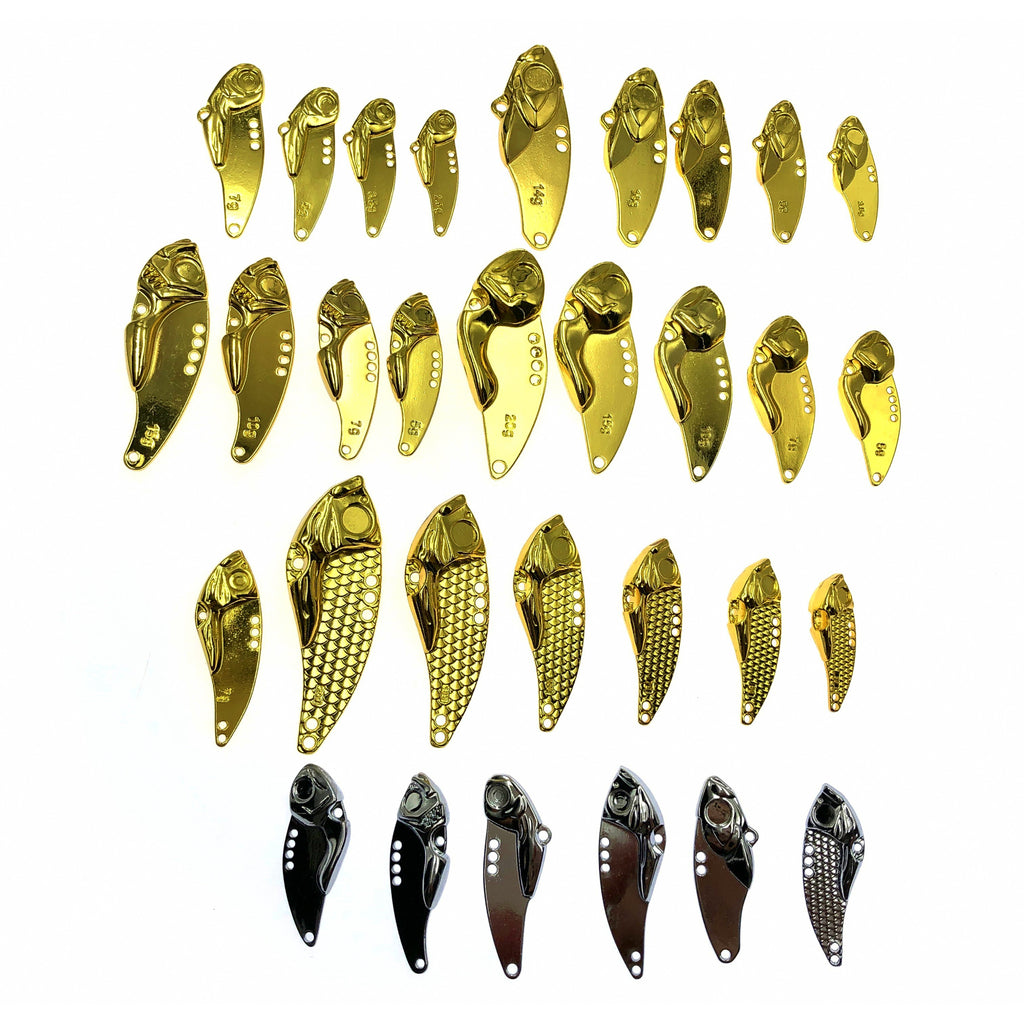

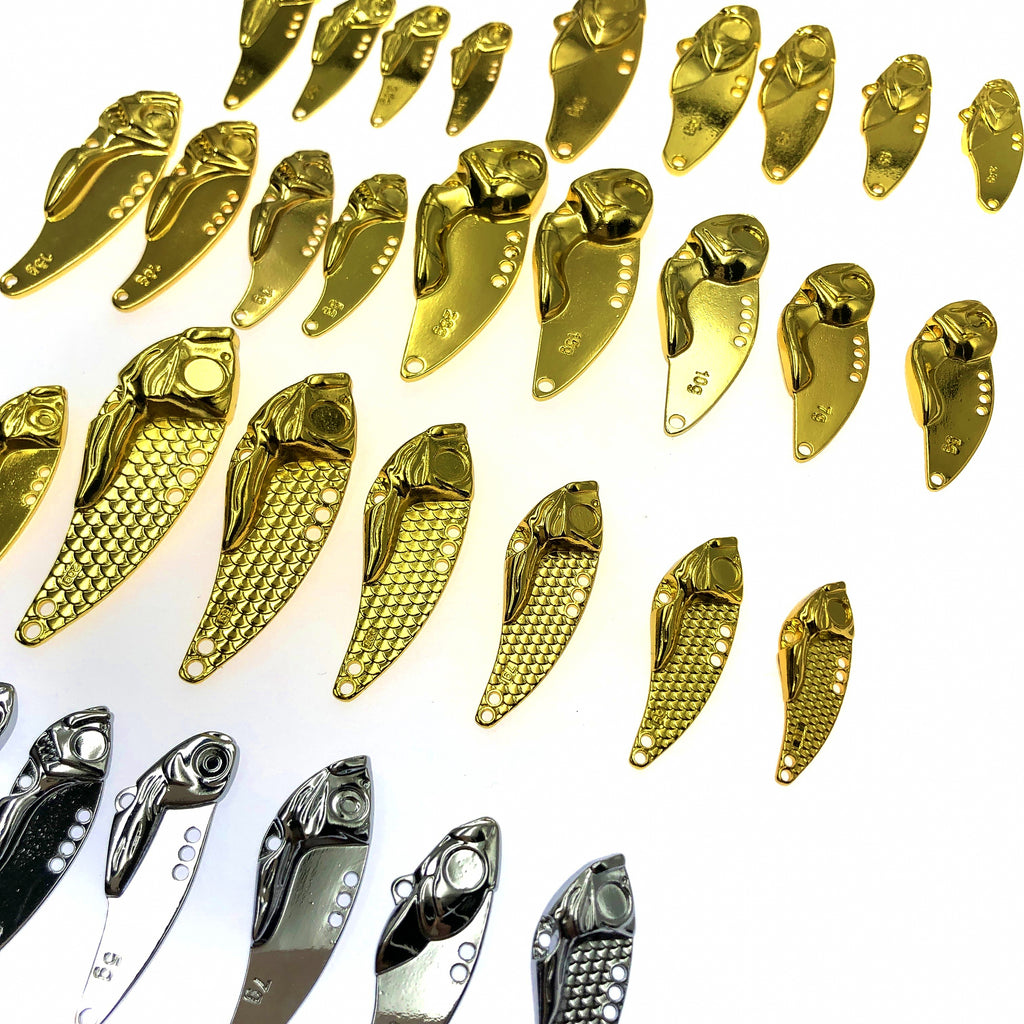

Blank VIB Blade Bait, Unpainted, No Hooks, 2.5–20 g (0.09–0.7 oz)

The details Specifications

Specifications

Product specifications

Available options

Style	War God VIB · Rattlesnake VIB · Dragon Scale VIB · Doudou VIB · Metal VIB · War God King VIB
Color	Unconfirmed Color 1 · Unconfirmed Color 2 · Unconfirmed Color 3 · Gold · Silver · Unconfirmed Color 4
Weight	Weight Unconfirmed · 2.5 g (0.09 oz) · 3.5 g (0.12 oz) · 5 g (0.18 oz) · 7 g (0.25 oz) · 10 g (0.35 oz) · 14 g (0.49 oz) · 3 g (0.11 oz) · 15 g (0.53 oz) · 20 g (0.71 oz)

VIB Weight	Body Dimensions (L x W)	Eye Diameter	Body Thickness	Recommended Split Ring Spec	Split Ring	Recommended Single Hook Size (Gold Flat Ring)
2.5g	3.16cm x 1.1cm	0.4cm	0.78mm	0.5 * 3.0	0.5*3.0	#10 Gold Flat Ring Single Hook
3.5g	3.5cm x 1.23cm	0.4cm	0.82mm	0.5 * 3.0	0.5*3.0	#8 Gold Flat Ring Single Hook
5g	3.9cm x 1.4cm	0.4cm	0.99mm	0.6 * 3.0	0.6*3.0	#6 Gold Flat Ring Single Hook
7g	4.46cm x 1.66cm	0.48cm	1.19mm	0.6 * 3.5	0.6*3.5	#4 Gold Flat Ring Single Hook

Weight	Body Dimensions (L x W)	Eye Diameter	Body Thickness	Rec. Split Ring Spec	Split Ring	Rec. AusGold Treble Hook	Rec. Fine Treble Hook
2.5 g	L 3.16 cm x W 1.1 cm	0.4 cm	0.78 mm	0.5 x 3.0	0.5*3.0	None	None
3.5 g	L 3.5 cm x W 1.23 cm	0.4 cm	0.82 mm	0.5 x 3.0	0.5*3.0	#18 AusGold Treble	#16 Fine Treble
5 g	L 3.9 cm x W 1.4 cm	0.4 cm	0.99 mm	0.6 x 3.0	0.6*3.0	#14 AusGold Treble	#12 Fine Treble
7 g	L 4.46 cm x W 1.66 cm	0.48 cm	1.19 mm	0.6 x 3.5	0.6*3.5	#12 AusGold Treble	#12 Fine Treble

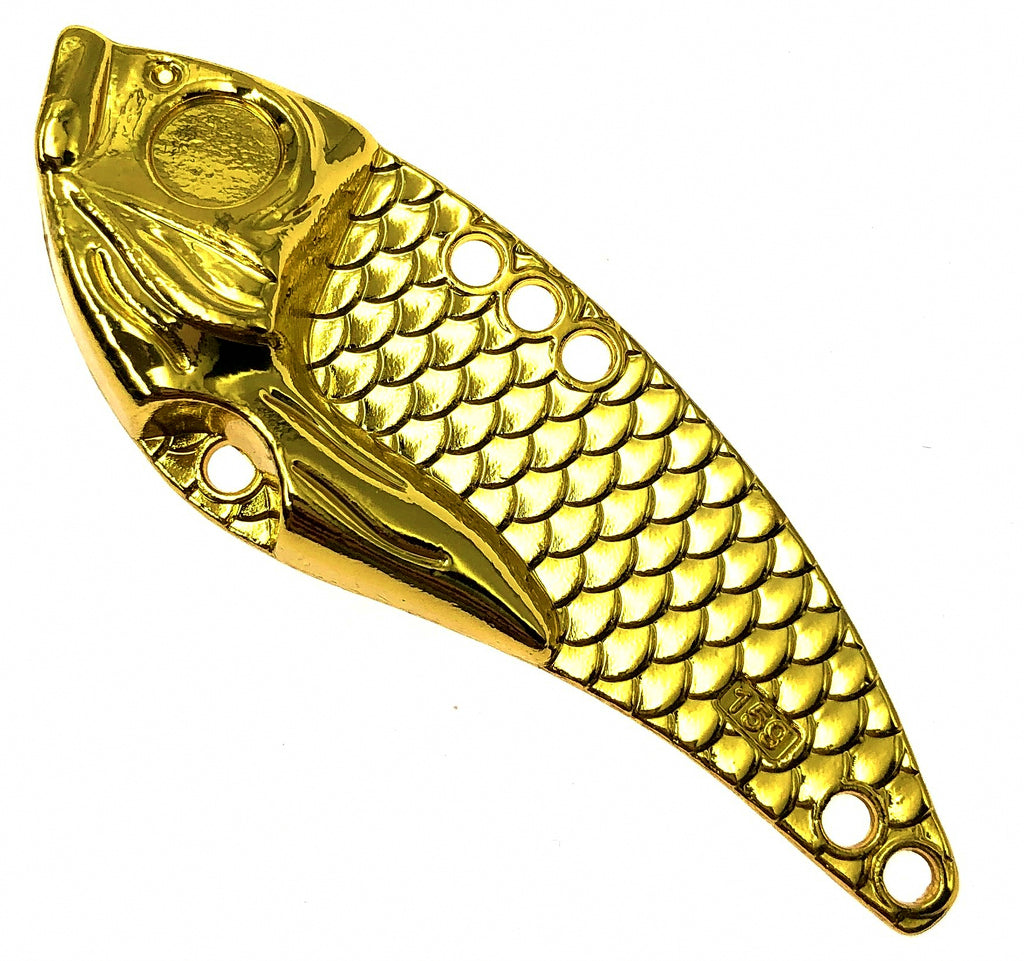

Dragon Scale VIB Lure Specifications

Weight	Body Dimensions (L x W)	Eye Diameter	Body Thickness	Recommended Split Ring Size	Recommended Flat Ring Single Hook Size
3g	2.88 cm x 0.98 cm	0.36 cm	1.23 mm	0.5*3.0	#10 Flat Ring Single Hook
5g	3.51 cm x 1.19 cm	0.39 cm	1.15 mm	0.5*3.0	#8 Flat Ring Single Hook
7g	3.94 cm x 1.33 cm	0.4 cm	1.17 mm	0.6*3.5	#6 Flat Ring Single Hook
10g	4.54 cm x 1.54 cm	0.47 cm	1.17 mm	0.6*3.5	#4 Flat Ring Single Hook
15g	5.31 cm x 1.79 cm	0.54 cm	1.26 mm	0.7*4.0	None
20g	5.92 cm x 1.99 cm	0.6 cm	1.49 mm	0.7*4.5	None

Double hooks have a chance of tangling with each other.

VIB Weight (g)	Body Dimensions (L x W)	Eye Diameter	Body Thickness	Recommended Split Ring	Recommended Treble Hook (Standard)	Recommended Treble Hook (Fine)
3g	L: 2.88cm W: 0.98cm	0.36cm	1.23mm	0.5*3.0	N/A	N/A
5g	L: 3.51cm W: 1.19cm	0.39cm	1.15mm	0.5*3.0	#18 Standard Treble Hook	#18 Fine Treble Hook
7g	L: 3.94cm W: 1.33cm	0.4cm	1.17mm	0.6*3.5	#16 Standard Treble Hook	#14 Fine Treble Hook
10g	L: 4.54cm W: 1.54cm	0.47cm	1.17mm	0.6*3.5	#12 Standard Treble Hook	#12 Fine Treble Hook
15g	L: 5.31cm W: 1.79cm	0.54cm	1.26mm	0.7*4.0	#10 Standard Treble Hook	#10 Fine Treble Hook
20g	L: 5.92cm W: 1.99cm	0.6cm	1.49mm	0.7*4.5	#10 Standard Treble Hook	#10 Fine Treble Hook

Rattlesnake VIB Specifications

Weight	Blade Size (L x W)	Eye Diameter	Body Thickness	Split Ring Spec	Rec. Ojin Flat Single Hook (Risk of tangle)
3.5 g	3.16 cm x 1.1 cm	0.41 cm	1.24 mm	0.5*3.0	#10 Ojin Flat Single Hook
5 g	3.6 cm x 1.26 cm	0.47 cm	1.39 mm	0.6*3.0	#8 Ojin Flat Single Hook
7 g	4 cm x 1.43 cm	0.54 cm	1.47 mm	0.6*3.5	#6 Ojin Flat Single Hook
10 g	4.5 cm x 1.58 cm	0.61 cm	1.88 mm	0.6*3.5	#4 Ojin Flat Single Hook
14 g	5.15 cm x 1.8 cm	0.68 cm	1.83 mm	0.7*4.0	None

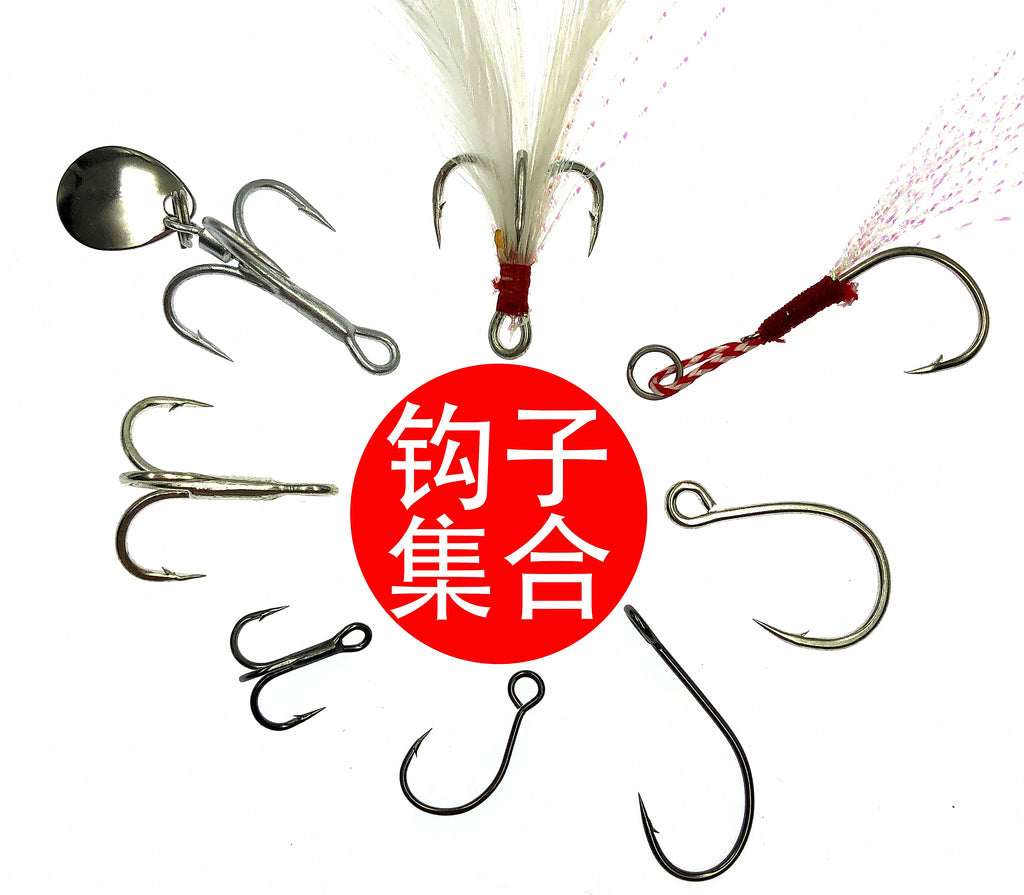

Hook Variety Collection

Assorted hook styles, split rings, and snaps available

VIB Lure Specifications

Detailed dimensions, eye size, body thickness, split ring sizes, and recommended treble hook sizes across multiple weights.

Dragon Scale VIB Lure Specifications

Size and split ring recommendations based on weight options from 3g to 20g.
Recommends single flat ring assist hooks for sizes up to 10g (risk of tangling with double hooks).

Rattlesnake VIB Metal Blade Lure Specifications

Features dimensions, eye diameter, body thickness, split ring size, and recommended hook specifications for each weight option.
