Ir directamente a la información del producto
UT SERIES · DISPONIBLE AHORA

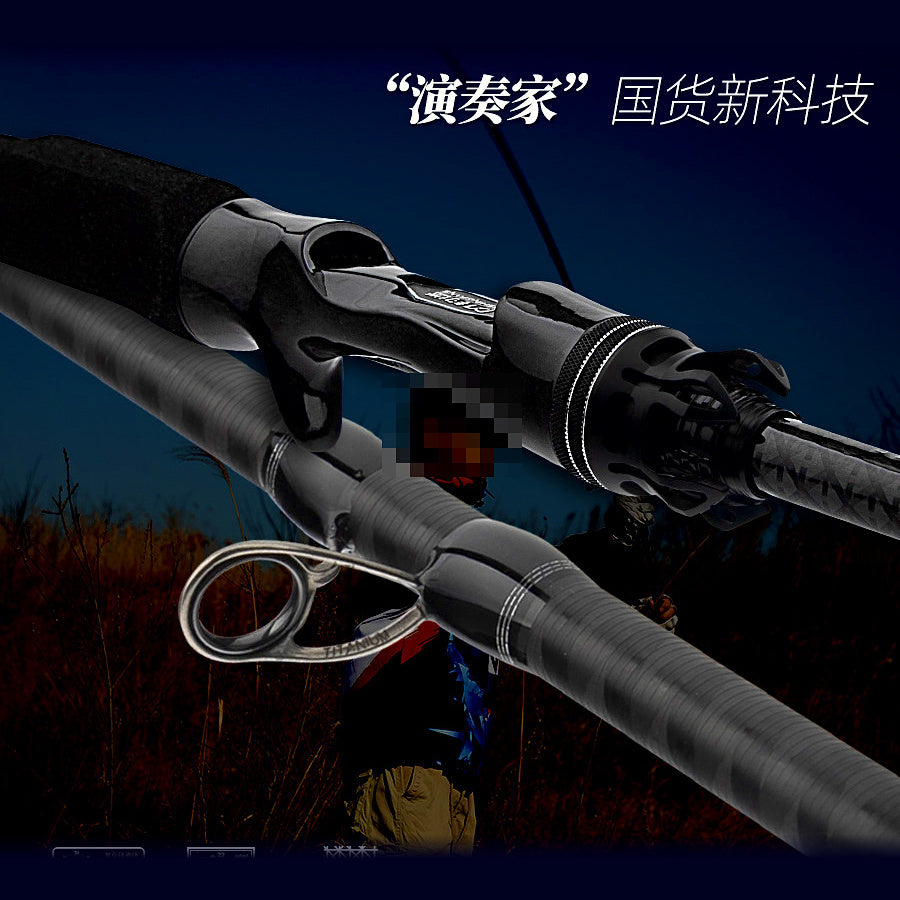

Carbon Fast Action Lure Rod, 1.83–2.43 m (6–8 ft)
$82.09
Specifications
Product specifications
Available options
| Length | 1.83 m (6 ft 0 in) · 1.98 m (6 ft 6 in) · 2.13 m (7 ft 0 in) · 2.28 m (7 ft 6 in) · 2.43 m (8 ft 0 in) |
|---|---|
| Model | 602L · 662L · 662ML · 702ML · 762ML · 802ML |
| Handle | Pistol Grip · Straight Handle |
Product Details
| Guide Ring Material | Silicon Nitride |
|---|---|
| Guide Frame Material | Titanium Alloy |
| Blank Construction | Toray 4-Axis Carbon Cloth |
| Frame Material | Titanium Alloy |
| Features | Lightweight, reduced rod load, stamped titanium mark and logo |
| Titanium + Silicon Nitride Set Weight | 2.8 g |
| Fuji K-Frame (P Silver) + SiC Set Weight | 4.2 g |
| Set Configuration | 16#, 8H, 5.5M, 5#, 14# (x4), 4-1.8 tip top guide |
| Material | Silicon Nitride (SiN) |
| Reel Seat Material | Carbon fiber |
| Mechanism | Self-developed mechanical sound clicker |
Guide Ring Material Specification Comparison
| Property | SiN Ring (Silicon Nitride) | O Ring | ALCONITE | SiC | TORZITE |
|---|---|---|---|---|---|
| Vickers Hardness Hv(GPa) | 15~16 | 12~14 | 13~15 | 22~24 | 13~15 |
| Specific Gravity | 3.23 | 3.8 | 4.2 | 3.2 | 3.3 |
| Thermal Conductivity (W/m·K) | 46.815 | 13 | 11 | 60 | 27 |
| Bending Strength (3PB) (MPa) | 849 | 300 | 440 | 540 | 1020 |
Silicon Nitride guide ring data measured by National Building Material Quality Inspection and Testing Center. Fuji guide ring data sourced from 2024 Fuji Official Catalog.
Titanium Frame with Silicon Nitride Line Guides
- Silicon nitride ceramic guide ring for smooth line flow and durability
- Titanium alloy guide frame for lightweight strength and corrosion resistance
- Toray 4-axis carbon weave construction

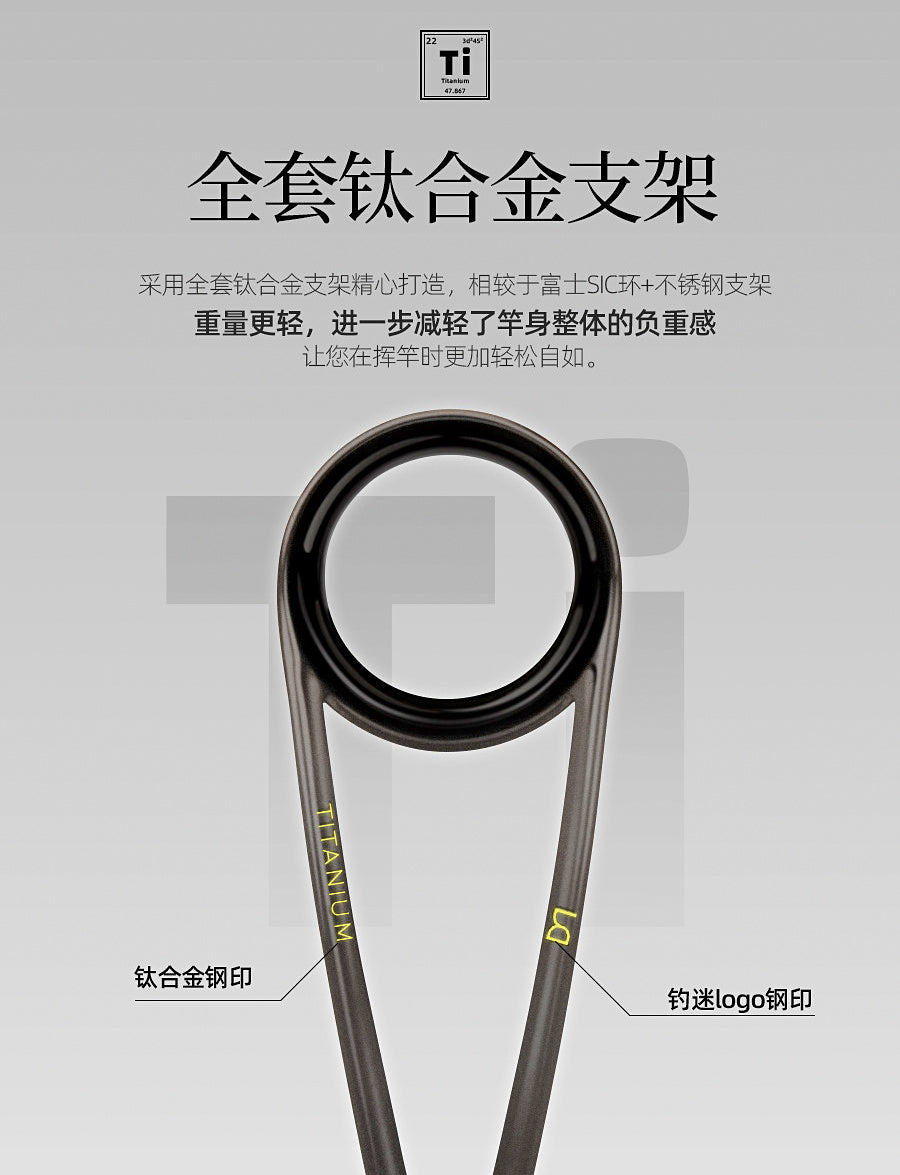

Full Titanium Alloy Guide Frame
- Crafted with a full set of titanium alloy guide frames, making it lighter than Fuji SiC rings with stainless steel frames.
- Reduces overall rod weight and load for smoother, more effortless casting.
- Features 'TITANIUM' and brand logo stamped directly on the guide frame.
Guide Set Weight Comparison
- Titanium Frame + Silicon Nitride Ring Set Weight: 2.8 g
- Fuji K-Frame (P Polished Silver) + SiC Ring Set Weight: 4.2 g
- Measured set includes: 16#, 8H, 5.5M, 5#, 14# (x4), and 4-1.8 tip top guide
- Manual measurements may have slight variations

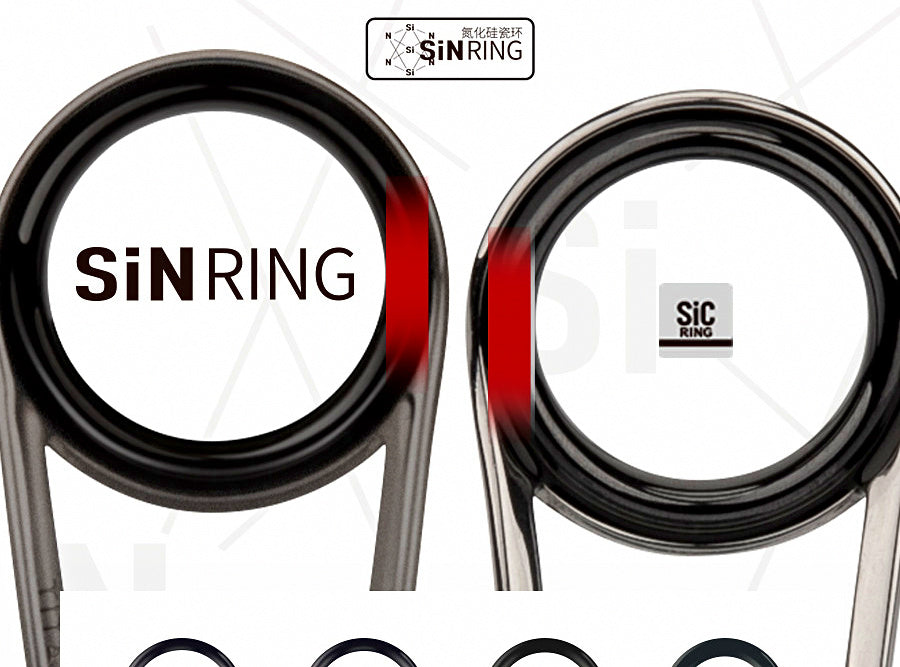

Silicon Nitride (SiN) Guide Rings
- Made of the same material as Fuji TZ guide rings.
- Features thin wall design, high hardness, light weight, excellent heat dissipation, and corrosion resistance.
- Effectively resists wear and scratches from frequent use, ensuring smooth casting and line retrieval.
Silicon Nitride (SiN) Fishing Guide Ring Performance Comparison
- Features high temperature resistance, thermal shock resistance, acid and alkali resistance, corrosion resistance, high hardness, wear resistance, low density, and low thermal expansion coefficient.
Performance Inspection Reports & Production Equipment
- 10MPa gas pressure sintering system
- Precision CNC machining equipment
- Precision ball grinding equipment
- High-purity nano powder preparation
- 300MPa isostatic pressing molding equipment

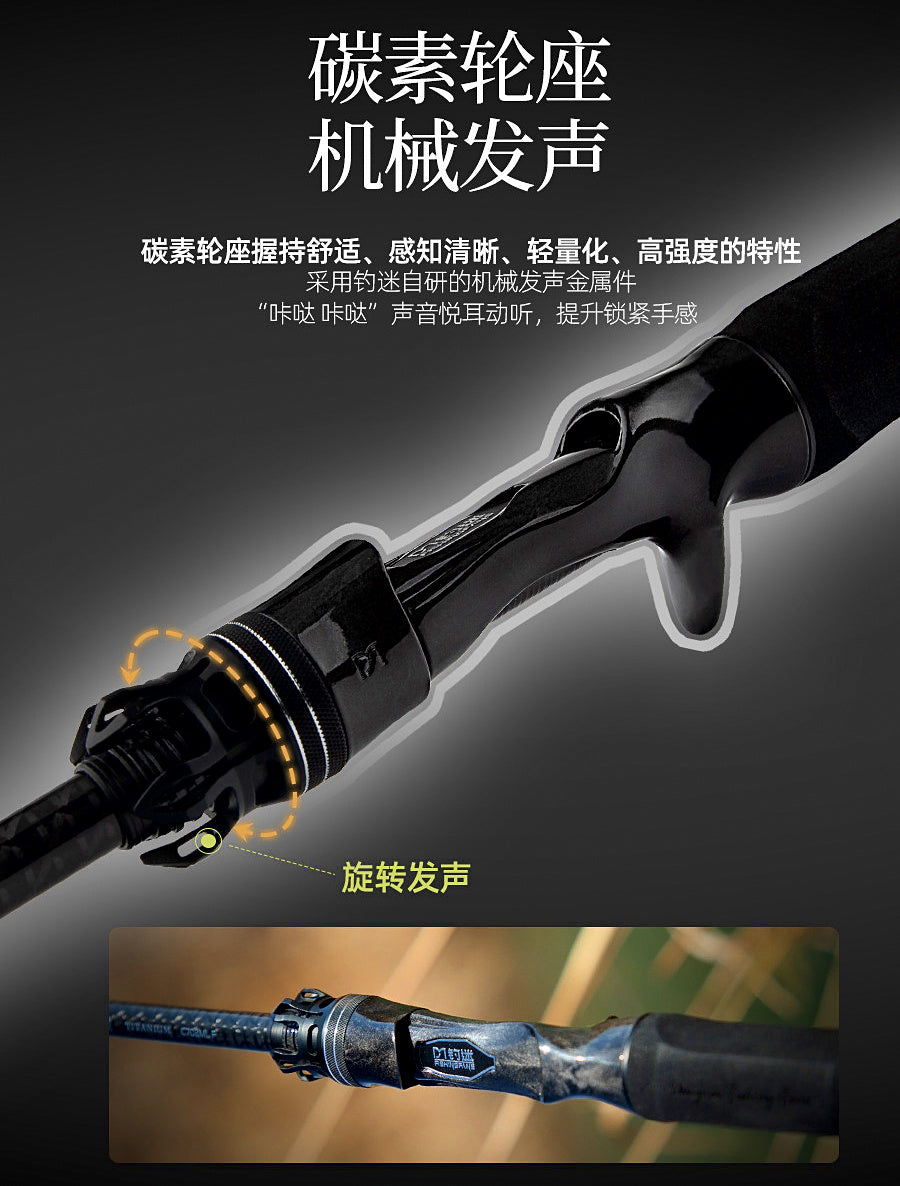

Carbon Reel Seat with Mechanical Clicker
- Carbon fiber reel seat features comfortable grip, high sensitivity, lightweight construction, and high strength.
- Custom-developed mechanical metallic clicker produces a crisp 'click-click' sound when turned, enhancing locking feedback.
Toray Four-Axis Carbon Cloth & Intertwined Carbon Tape
- Features Toray four-axis carbon cloth wrapped with intertwined carbon tape, effectively enhancing rod strength and toughness while maintaining lightweight characteristics.
- Evenly distributes stress under high tensile loads to improve durability and stability.
- Made with high-carbon material and cross-carbon tape technology for a smooth rod bend and reliable performance during fish fighting.
