UT SERIES · DISPONIBLE AHORA
Carbon Fiber Baitcasting Reel Handle, T-Bar Style, 110
$40.53
Specifications
Product specifications
Available options
| Handle Side | Right Hand · Left Hand |
|---|---|
| Bore Size | 8x5 Bore · 7x4 Bore |
| Knob | Carbon Ball Knob #39 · Carbon Ball Knob #48 · No Knob |
Product Details
| Total Length | 110mm |
|---|---|
| Far Axle Distance | 89mm |
| Near Axle Distance | 75mm |
| Axle Shaft Length | 27.5mm |
| Hole Size | 8*5mm (7*4mm with steel adapter ring) |
| Material | High-strength carbon fiber |
| Type | Single power handle |
| Texture | Classic black carbon fiber pattern |
| Accent | Inlaid accent strips and logo design |
| Product Name | Handle Arm Material | Total Weight (g) | Total Length (mm) | Center Distance (mm) | Knob Material |
|---|---|---|---|---|---|
| Black Carbon Fiber Arm (Large) | Carbon Fiber | 39.8 | 110 | 89/75 | Carbon Fiber |
| Black Carbon Fiber Arm (Small) | Carbon Fiber | 29.7 | 110 | 89/75 | Carbon Fiber |
Note: Manual measurement, slight margin of error may exist.

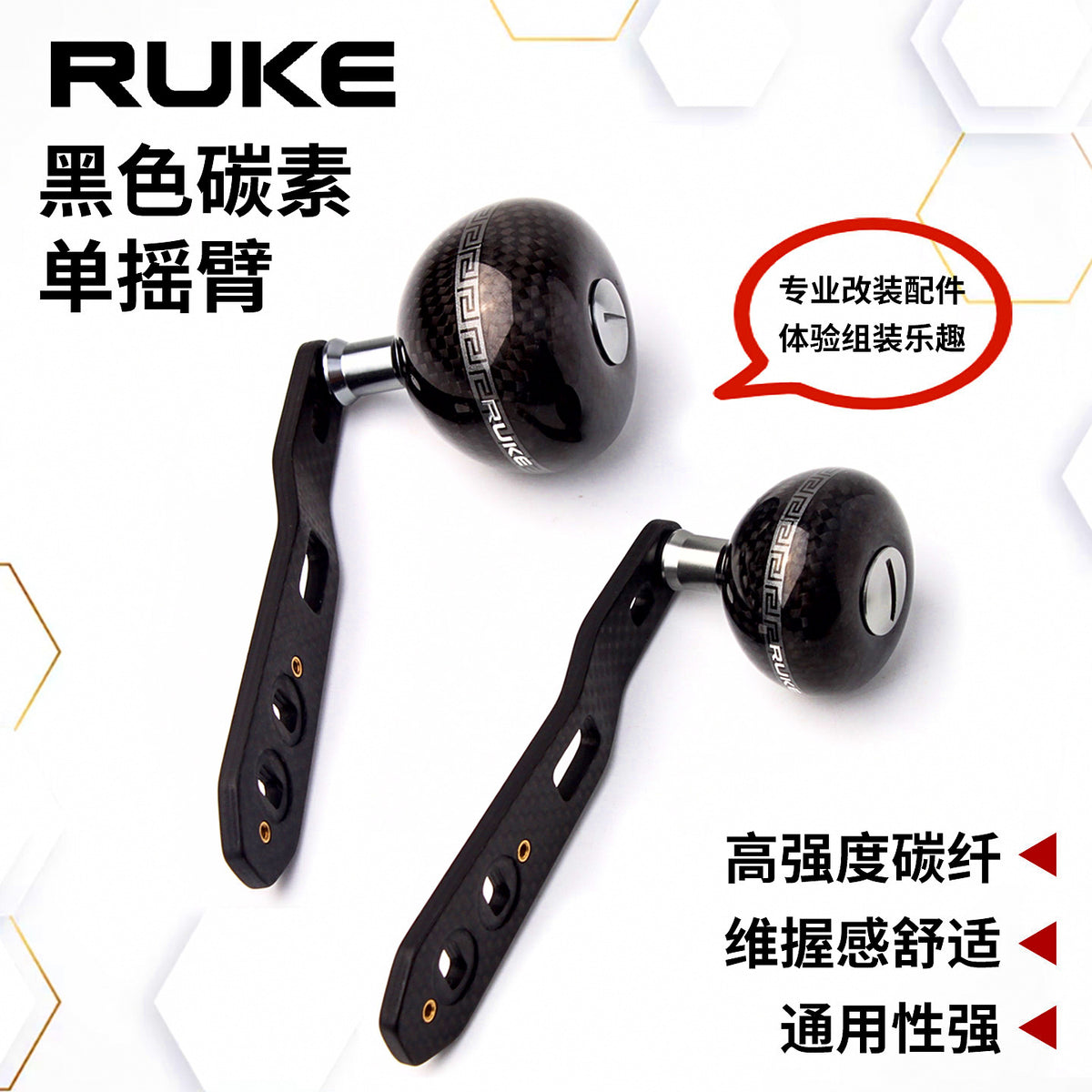

Black Carbon Single Power Handle Arm
- High-strength carbon fiber construction
- Comfortable grip design
- Universal compatibility for custom reel modifications
Reel Model Compatibility Chart
- Shows compatible reel models for popular fishing reels.
- If you need compatibility information for additional lure reel models, feel free to contact us anytime.
Single Power Handle Installation Process
- 1. Remove original nut
- 2. Remove original handle
- 3. Select main shaft for installation
- 4. Install fixing nut
- 5. Place alloy locking plate
- 6. Tighten fixing screw
Product Parameters
- Exploded view shows knob cap, screw, bearings, ball knob,近端 main shaft, 远端 main shaft, stainless steel shaft pin, stainless steel single power handle arm, alloy fixing plate, and fixing screw.

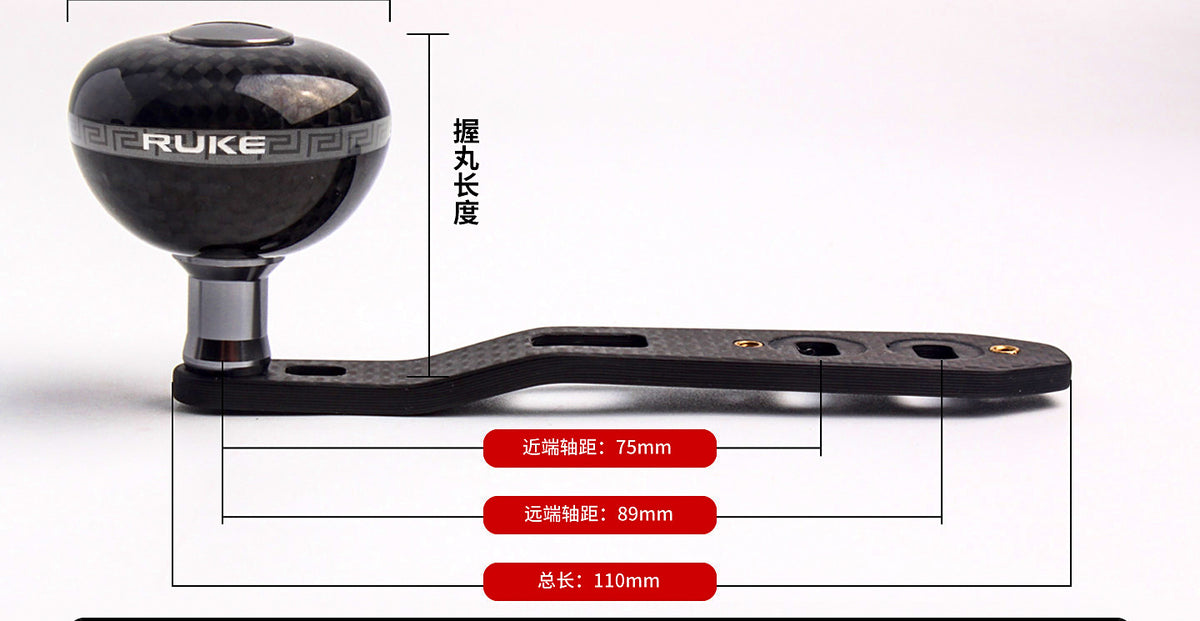

Handle Dimensions & Hole Size Specs
- Total length: 110mm
- Far axle distance: 89mm; Near axle distance: 75mm
- Axle shaft length: 27.5mm
- Original hole size 8*5mm converts to 7*4mm using the included steel ring adapter
- Large Knob: 48 mm width, 55 mm height
- Small Knob: 39 mm width, 43 mm height
- Note: Manual measurement, slight margin of error may exist.
High-Strength Carbon Fiber Material
- Carbon technology offering extreme lightweight design
- Black Knight edition carbon single power handle
Carbon Fiber Aesthetics
- Classic black carbon fiber texture
- Inlaid strip accents with brand design for a stylish look

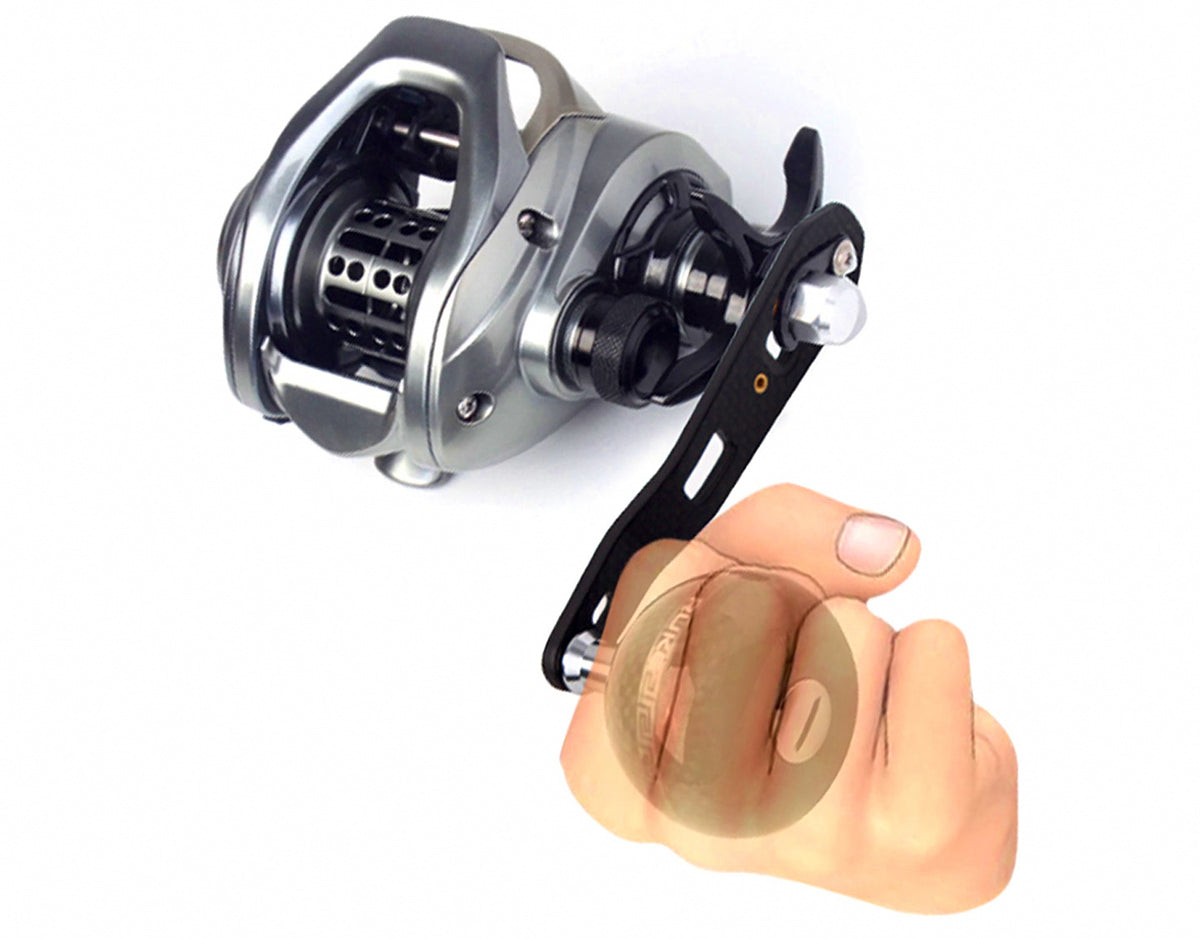

Comfortable Handling
- One-handed easy cranking with smooth rotation
- Spherical knob design for comfortable grip
- Reduces wrist strain
