UT SERIES · DISPONIBLE AHORA
Carbon Fiber Double Handle & Knobs for Baitcasting Reel
$52.90
Specifications
Product specifications
Available options
| Handle Side | Right Hand · Left Hand |
|---|---|
| Handle Spec | 8x5 · 7x4 |
| Knob Size | Small · Medium · Large |
Product Details
| Material | Carbon fiber |
|---|---|
| Type | Double power handle for reel modification |
| Product Name | Carbon Fiber Double Handle |
| Handle Material | Carbon Fiber |
| Total Weight | 61.1 g |
| Total Length | 115.5 mm |
| Shaft Distance | 100 mm |
| Knob Material | Carbon Fiber |
| Hole Size | 8*5 mm |
| Handle Arm Material | Carbon Fiber |
| Center Distance | 100 mm |
| Original Hole Size | 8 * 5 mm |
| Converted Hole Size | 7 * 4 mm (with adapter) |
| Includes | Steel adapter ring, carbon locking plate |
| Product Name | Handle Material | Total Weight (g) | Total Length (mm) | Shaft Distance (mm) | Knob Material | Hole Size (mm) |
|---|---|---|---|---|---|---|
| Carbon Fiber Double Handle | Carbon Fiber | 61.1 | 115.5 | 100 | Carbon Fiber | 8*5 |
Note: The parameters are measured manually, please understand if there are slight errors!
| Product Name | Handle Arm Material | Total Weight (g) | Total Length (mm) | Center Distance (mm) | Knob Material | Hole Size (mm) |
|---|---|---|---|---|---|---|
| Carbon Fiber Double Handle | Carbon Fiber | 61.5 | 115.5 | 100 | Carbon Fiber | 8*5 |
Note: These parameters are manually measured, please understand if there are slight errors!

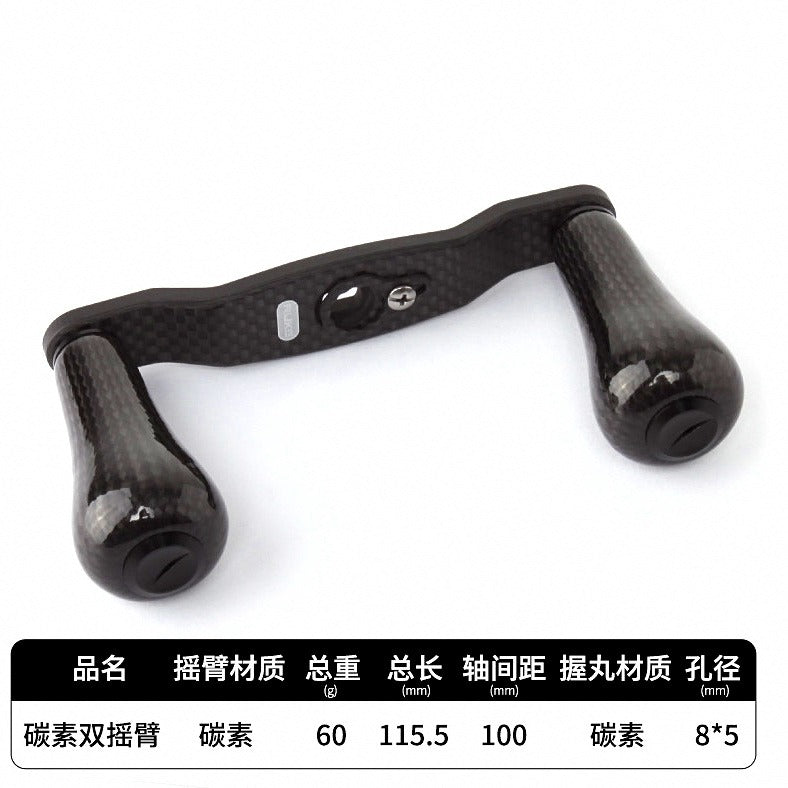

| Product Name | Handle Material | Total Weight (g) | Total Length (mm) | Center Distance (mm) | Knob Material | Hole Size (mm) |
|---|---|---|---|---|---|---|
| Carbon Fiber Double Handle | Carbon Fiber | 60 | 115.5 | 100 | Carbon Fiber | 8*5 |
Note: These parameters are measured manually, please understand if there are errors!
Thickened Carbon Fiber Double Power Handle
- High-strength carbon fiber material
- Lightweight construction for a more comfortable grip
Reel Compatibility Chart
- Compatible fishing reel models list for reel series.
Single Handle Installation Guide
- Step 1: Remove the original nut.
- Step 2: Remove the original handle.
- Step 3: Fit the new handle onto the main shaft.
- Step 4: Install and tighten the retaining nut.
- Step 5: Place the carbon fiber retainer plate.
- Step 6: Tighten the locking screw.
Carbon Fiber Double Reel Handle - Style 1
- Components layout: Knob cap, screw, bearing, knob, washer, bearing.
- Handle dimensions: 100 mm shaft distance, 115.5 mm overall length, 8x5 mm mounting hole, 5 mm thickness.
- Knob dimensions: 30 mm width x 59 mm length; shaft height 26 mm with 4 mm diameter pin.
Carbon Fiber Double Handle - Style 2
- Components include handle cap, screw, bearings, carbon handle knob, washer, and handle assembly.
- Handle center distance: 100 mm; total length: 115.5 mm.
- Mounting hole size: 8*5 mm; handle thickness: 5 mm.
- Pin shaft diameter: 4 mm; shaft height: 26 mm; knob width: 28.8 mm; knob length: 60 mm.
Carbon Fiber Double Handle - Style 3
- Includes components: handle cap, screw, bearings, knob, and washer.
- Mounting hole size: 8*5 mm
- Center-to-center distance: 100 mm; Total length: 115.5 mm
- Handle thickness: 5 mm; Shaft height: 26 mm; Shaft diameter: 4 mm; Knob size: 61 mm x 28.5 mm

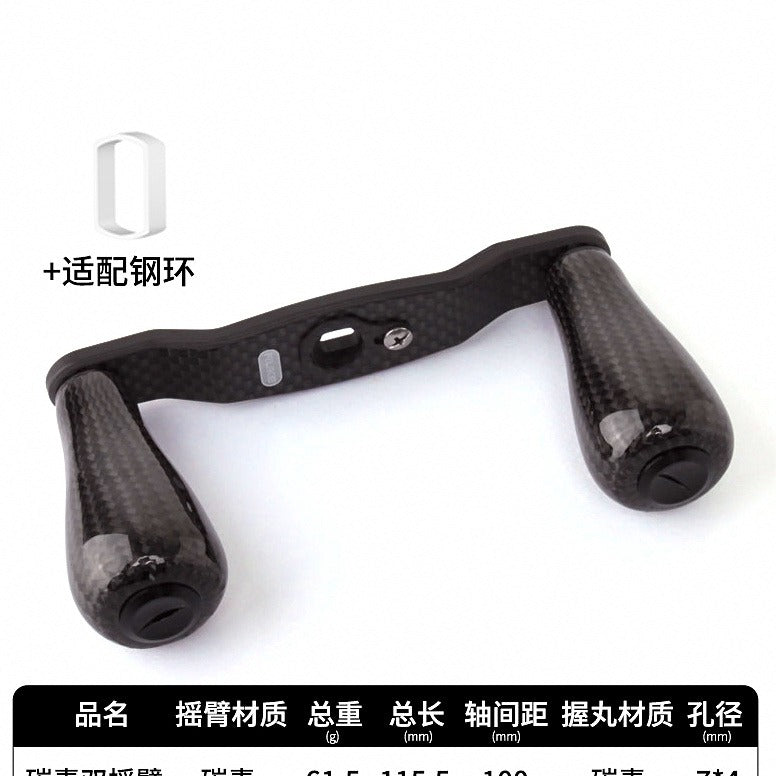

High-Carbon Carbon Fiber Fishing Reel Handle Arm
- Hole size converts from 8*5mm to 7*4mm using the included steel adapter ring
- Clear carbon fiber texture, lightweight yet strong and tough

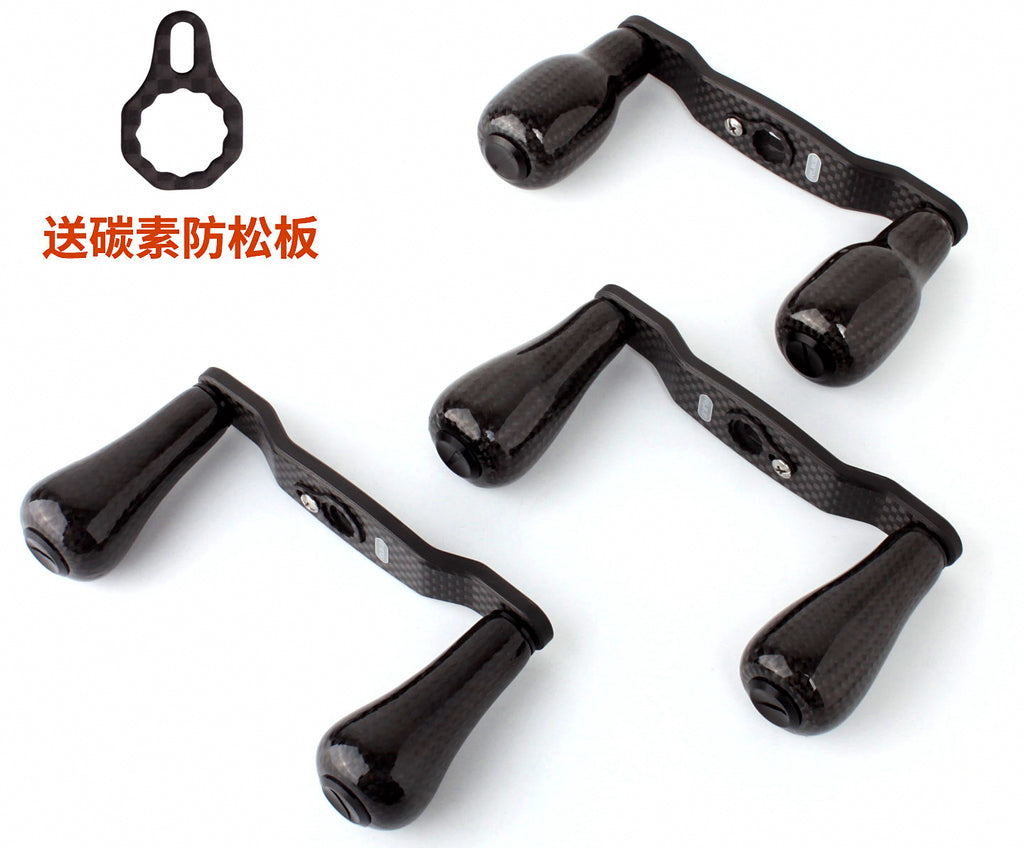

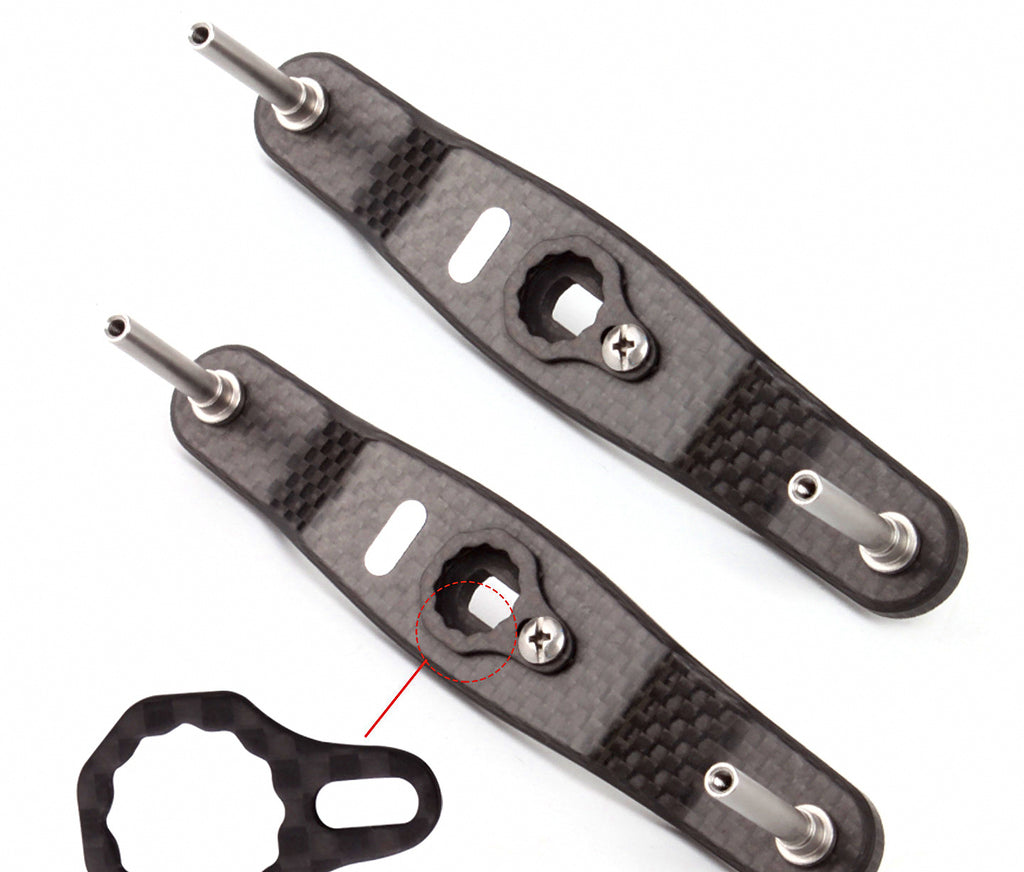

- Includes carbon anti-loosening locking plate

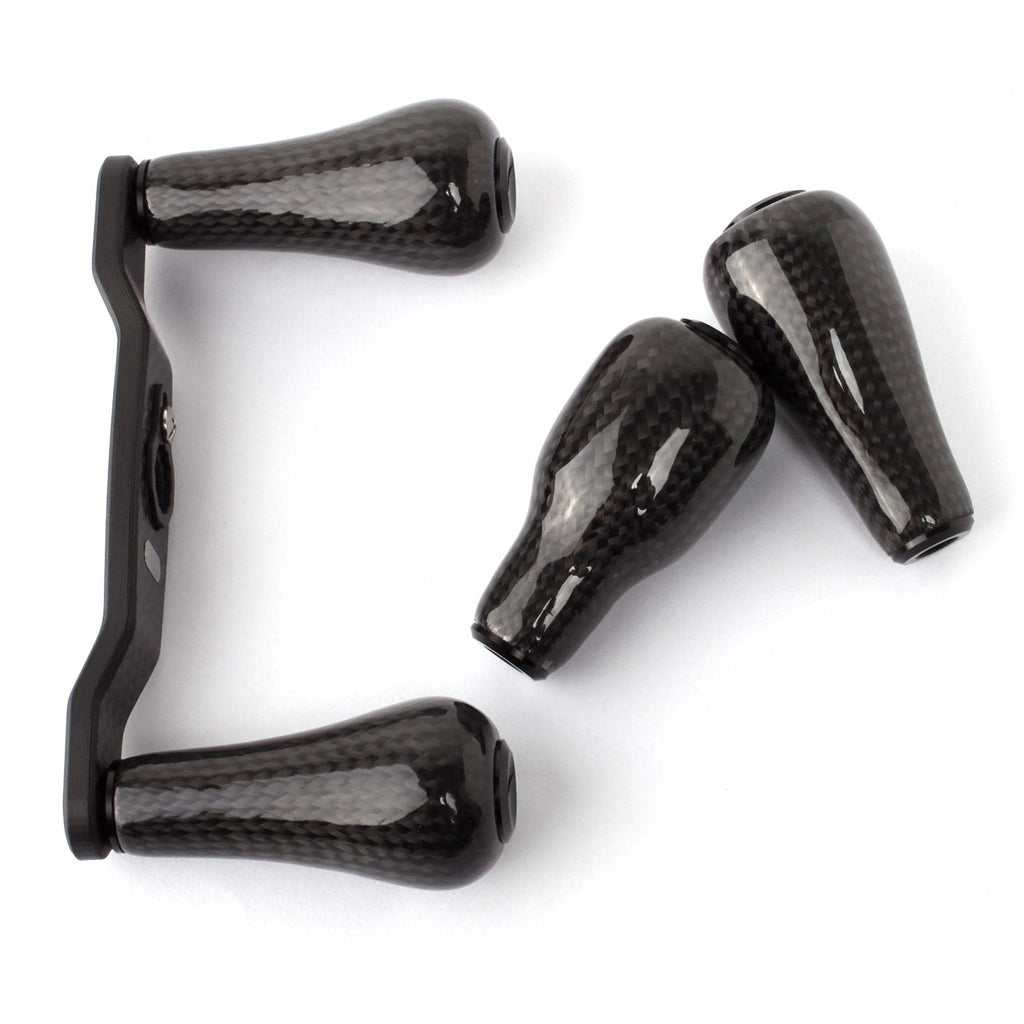

Three Carbon Fiber Reel Handle Knobs
- Three shape options available for a comfortable grip
Simple and Sleek Design with Comfortable Grip
- Ergonomic design provides a more comfortable grip experience.
