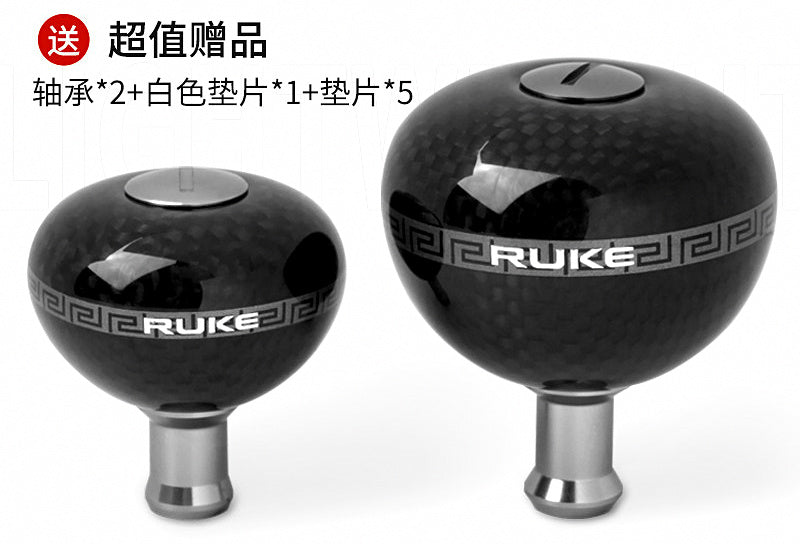

Carbon Fiber Round Reel Handle Knob, 39 mm or 48 mm
$30.51
Specifications
Product specifications
Available options
| Size | 39 mm (1.5 in) · 48 mm (1.9 in) |
|---|
Product Details
| Material | Carbon fiber |
|---|---|
| Compatibility | Universal for various models |
| Key Features | Ultra-lightweight, high strength, comfortable grip |
| Product Name | Spherical Carbon Reel Knob |
| Knob Material | Carbon Fiber |
| Features | Ultra-lightweight, high strength, smooth bearings, anodized finish |
Compatible Spinning Reel Models
| Model Series | Applicable Years | Model Series | Applicable Years |
|---|---|---|---|
| STELLA 1000-5000 | 2014, 2018, 2019, 2022 | STRADIC | 2015, 2016, 2019 |
| SEPHIA 1000-5000 | 2017, 2018, 2019 | Soare bb | 2010, 2013 |
| Vanquish 1000-5000 | 2013, 2016, 2019 | VANFORD 500-5000 | 2020 |
| ULtegra 1000-c5000xg | 2012, 2017 | TWIN POWER 1000-4000 | 2008, 2011, 2015 |
Compatibility / Model Year List
| Model Series | Year | Model Series | Year |
|---|---|---|---|
| 2017 | |||
| EXSENCE 3000-4000 | 2016 | COMPLEX CI4+ 1000-4000 | 2009 |
| 2017 | 2010 | ||
| 2013 | |||
| 2017 | |||
| BB-X DESPINA | 2011 | BB-X Laeissa | 2011 |
| 2016 | 2016 |
Product Detailed Parameters
| Product Name | Knob Material | Specification | Weight (g) | Height (mm) |
|---|---|---|---|---|
| Spherical Carbon Reel Knob | Carbon Fiber | 39 / 48 | 16.4 / 26.5 | 43 / 56 |
Note: Due to manual measurement, there may be slight errors; please refer to the actual product!
Carbon Fiber Ball Power Knob
- Compatible with multiple reel models
- Ultra-lightweight, high strength, and comfortable grip

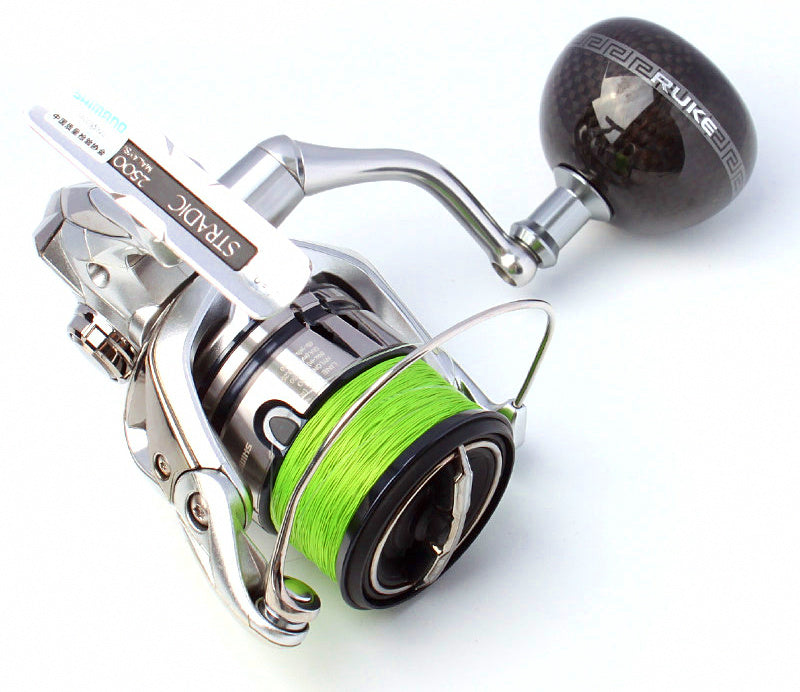

- Reel shown for display purposes only
Compatible Spinning Reel Models
- Compatible with spinning reel models listed including Stella, Sephia, Vanquish, Ultegra, Stradic, Soare BB, Vanford, and Twin Power across various model years.
Compatible Baitcasting Reel Models
- Alphas, Barchetta, CR/CC80 series, FUEGO, Morethan, Ocea Jigger, Ryoga, SALAMANDURA, Steez, TATULA, Zillion
- Aldebaran, ANTARES DC, Bantam, Curado, CQ100-201, Excense DC, Metanium, Scorpion, SLX DC

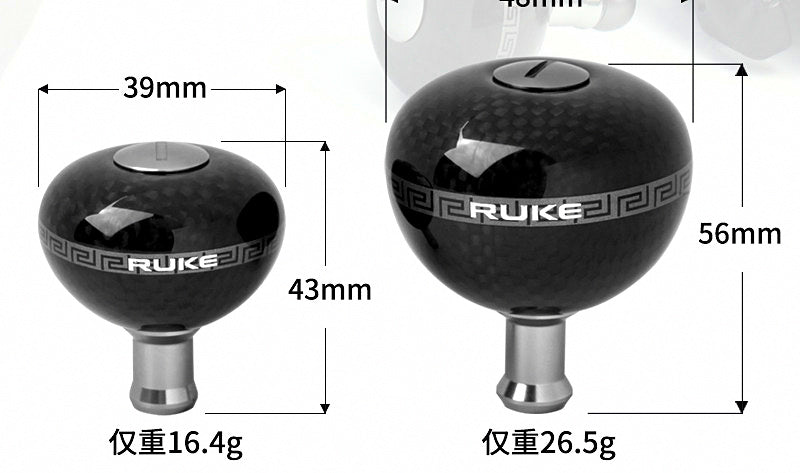

Product Detailed Parameters
- 39mm knob weight: 16.4g, height: 43mm
- 48mm knob weight: 26.5g, height: 56mm

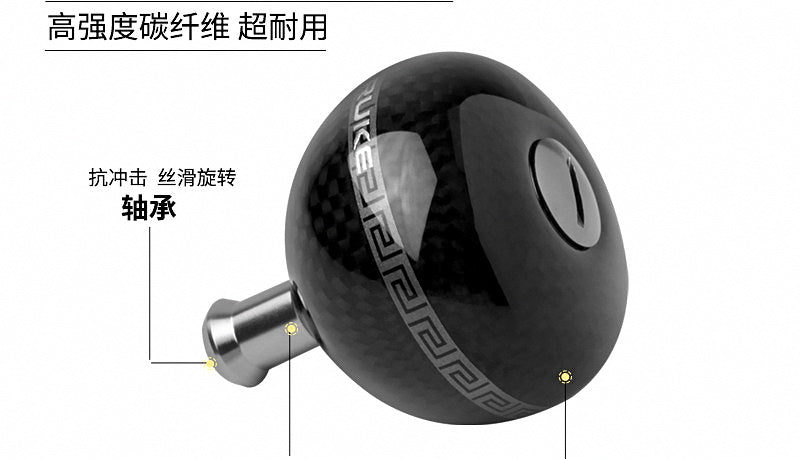

Carbon Reel Knob Features
- Ultra-lightweight material for effortless reel operation
- High-strength carbon fiber construction, highly durable
- Impact-resistant bearing for smooth rotation
- Aluminum alloy fittings with anodized finish that won't fade
- Main body made of high-strength Toray carbon fiber
Reel Handle Shaft Assembly Diagram
- High-step shaft (e.g. type): Shaft diameter 4.0 mm, shaft length 27.5 mm. Components include shaft, washer, bearings, knob, screw, and cap.
- Low-step shaft (e.g. type): Shaft diameter 4.0 mm, shaft length 27.0 mm. Components include shaft, bushing, knob, and screw.
- Diagram showing assembly parts: bearings and end cap/cover.
Equipped with Stainless Steel High-Speed Bearings
- Stainless steel bearing balls provide smooth rotation while improving rust resistance and durability.

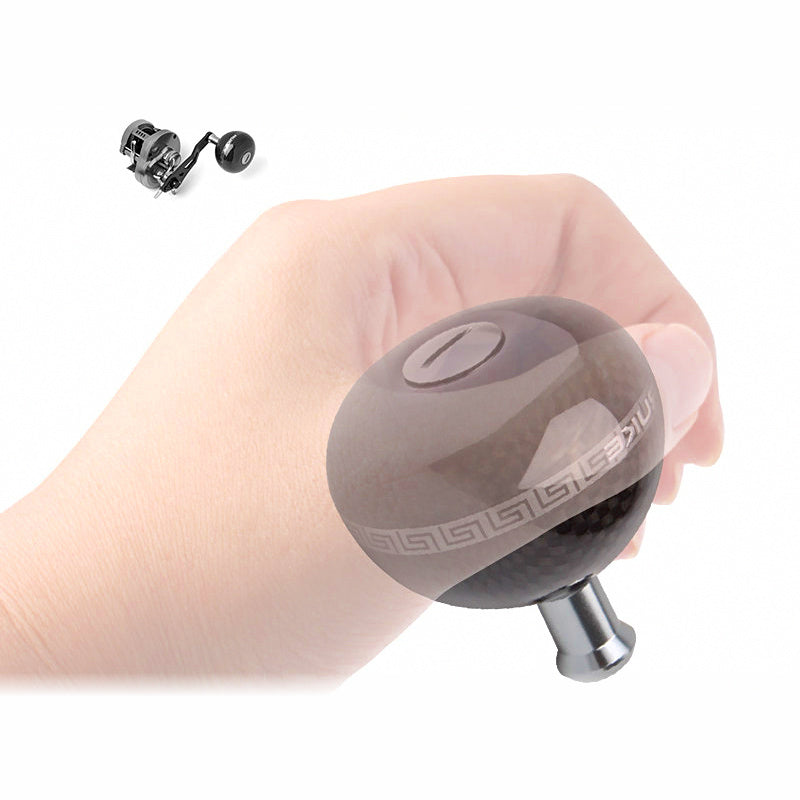

Ergonomic Design
- Spherical knob shape for a comfortable grip
- Saves effort and makes handling big game easier
