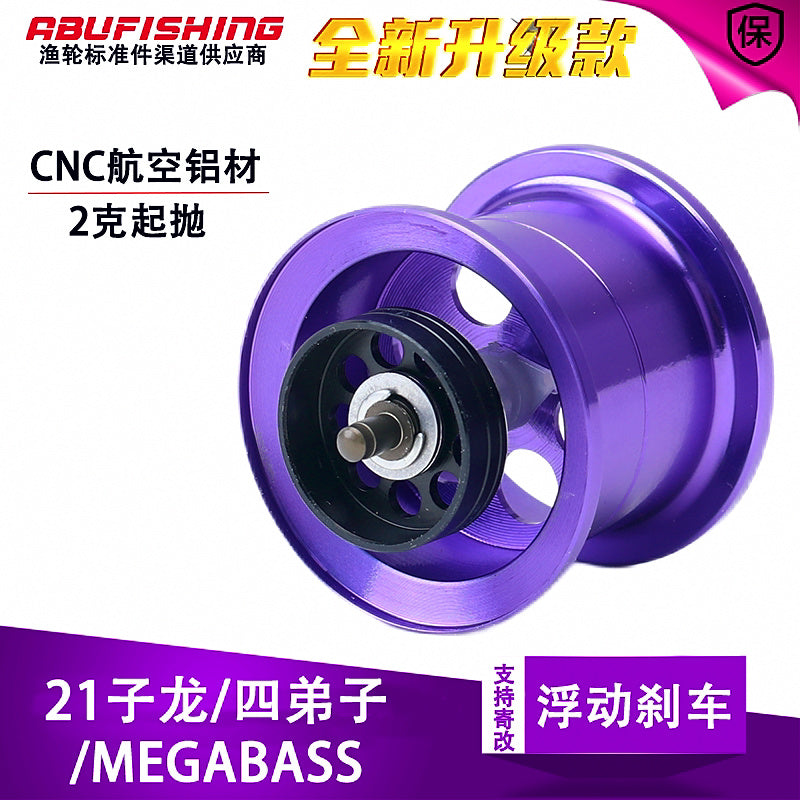

CNC Aluminum Baitcasting Reel Spool, Aftermarket

$23.10

Color

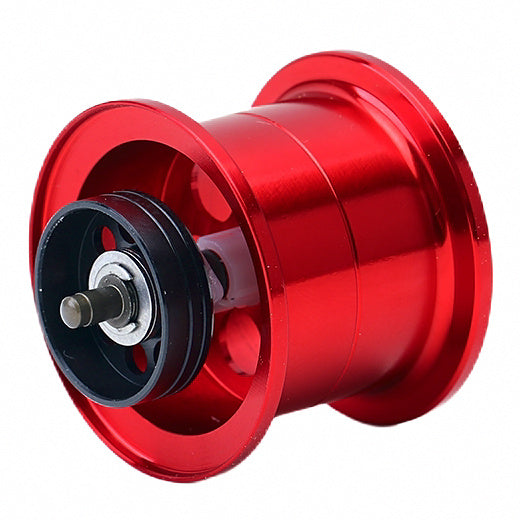

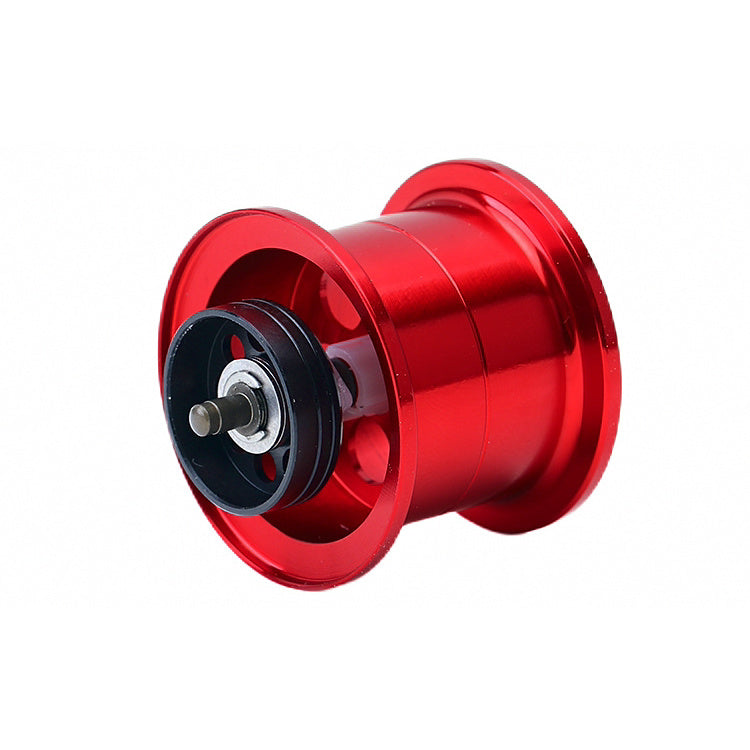

Red

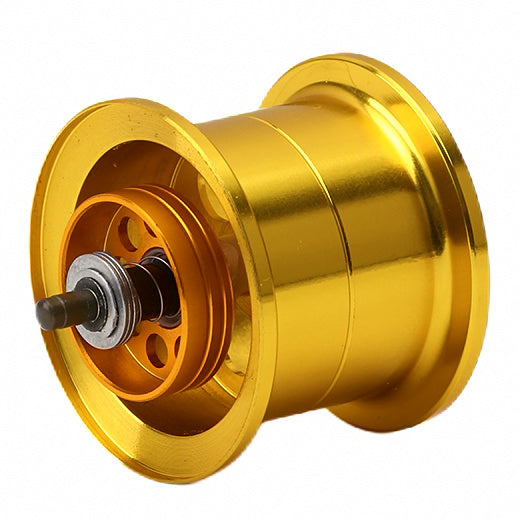

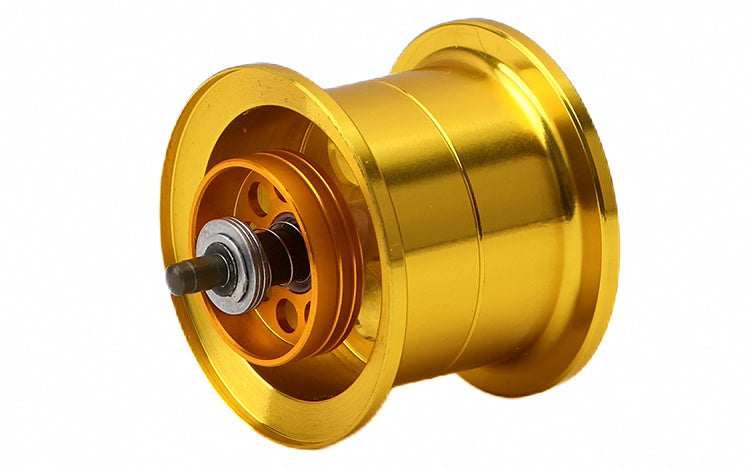

Gold

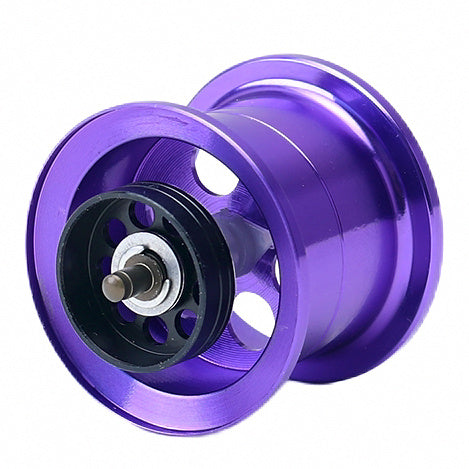

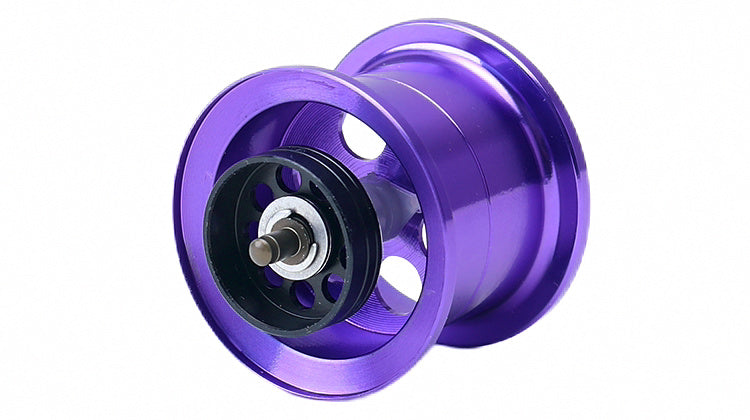

Violet

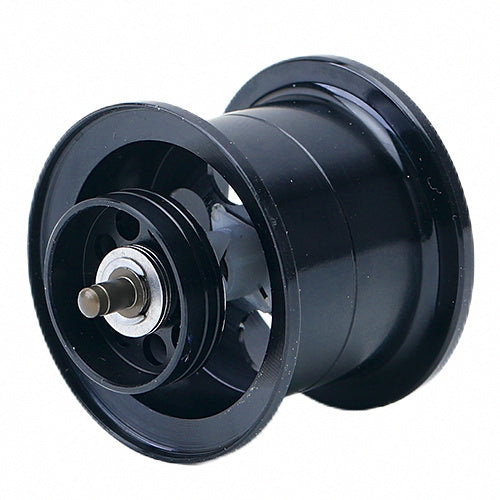

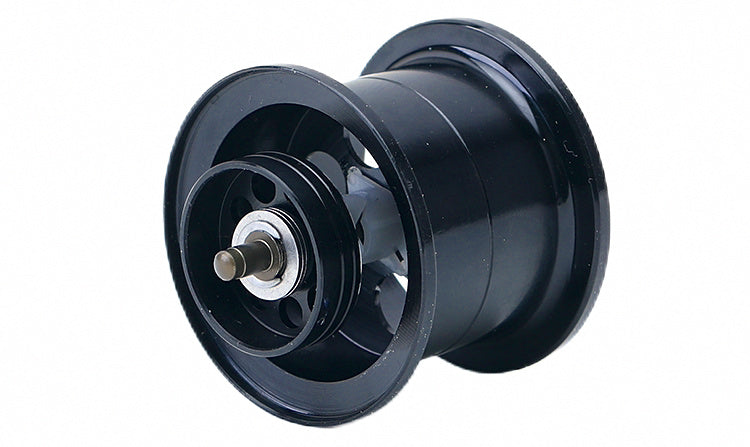

Black

Bearings Spool Only (No Bearings) Hybrid Ceramic Bearings Installed Full Ceramic Bearings Installed

Specifications

Product specifications

Color	Red · Gold · Violet · Black
Bearings	Spool Only (No Bearings) · Hybrid Ceramic Bearings Installed · Full Ceramic Bearings Installed

Bearing Inner Diameter	3 mm
Bearing Outer Diameter	10 mm
Bearing Thickness	4 mm
Surface Treatment	Hard Anodized
Overall length	36.3 mm
Outer diameter	34 mm
Spool width	25.1 mm
Brake ring inner diameter	18.2 mm
Spool body diameter	28 mm
Model	ZL-34
Total Spool Length (with Shaft)	36.3 mm
Spool Diameter	34 mm
Spool Material	7075 Aviation Aluminum
Spool Shaft Material	71 Aluminum + Hard Anodizing
Spool Weight	7.8 g
Braking System	Original reel braking system
Recommended Lure Weight	1.5 g – 20 g
Line Capacity (PE)	#0.6 - 150m / #0.8 - 120m / #1.0 - 100m

Features a DSV dual-end supported floating brake system perfectly compatible with SV systems.
Delivers smooth and stable braking with enhanced wind resistance.
Optionally equipped with an imported high-speed stainless steel bearing (ID 3mm / OD 10mm / Thickness 4mm).
Recommended magnetic brake setting: levels 6–8 for beginners, reduce gradually for advanced anglers.
Hard anodized surface treatment for exceptional smoothness, wear resistance, and quiet performance.

Compatible reel models: STEEZ series (except 19 STEEZ CT & 20 STEEZ AIR), including STEEZ EX, STEEZ LTD, STEEZ LTD TN, STEEZ SV, 2016 STEEZ SV TW, 2017 STEEZ A TW 1016, 2021 STEEZ LTD, 2022 Steez LTD 800S, 2013 Steez A II TW; SS SV (except SS AIR); TD-Z (103H, 103P, 103ML, Type-R versions, 105H); T3 series (except T3 AIR); RYOGA 1016 (silver, red, black); 2016 ZILLION SV 1016; 2016 ALL SV 103; 2018 SV103 (US HLC version); 2019 MORETHAN PE; IS & FX series; 2021 Zillion series (International & JDM versions).
Line capacities with line: #0.6 - 150m, #0.8 - 120m, #1.0 - 100m.
