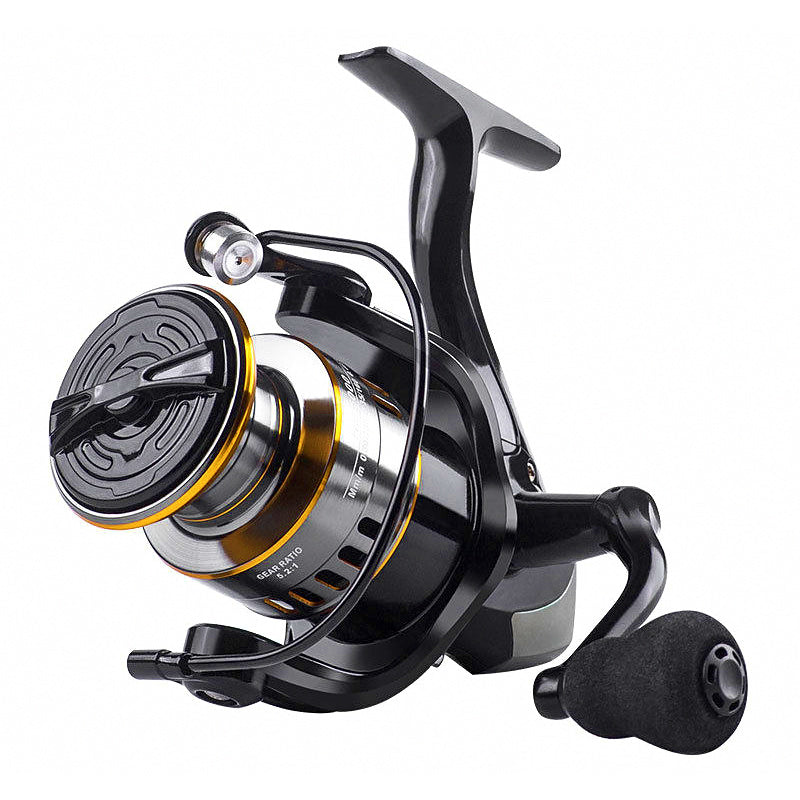

Metal Spinning Reel, HE & HE II Series, Sizes 500–7000
$61.48
Specifications
Product specifications
Available options
| Series | HE · HE II |
|---|---|
| Size | 500 · 1000 · 800 · 2000 · 3000 · 4000 · 5000 · 6000 · 7000 |
| Handle Knob | EVA · Metal |
Product Details
| Model | HE 5000 |
|---|---|
| Gear Ratio | 5.2:1 |
| Line Capacity (mm/m) | 0.30/200, 0.35/160, 0.40/100 |
| Product Name | HE Spinning Reel |
| Max Drag | 10 kg |
| Color | Black Gold |
| Retrieve | Interchangeable Left/Right Hand |
| Suitable Environments | Rivers, Lakes, etc. |
| Suitable Rods | Lure rods, Sea fishing rods, etc. |
| 1st Gen HE Shaft Material | Brass |
| 1st Gen HE Bumper Corner | Yes |
| 2nd Gen HE Shaft Material | Zinc Alloy |
| 2nd Gen HE Bumper Corner | No |
| Max Drag (Rated) | 10 kg (22 lb) |
| Max Drag (Tested) | 10.34 kg (22.8 lb) |
| Drag Washer Material | High-quality felt |
Spinning Reel Specifications
| Model | Bearings | Gear Ratio | Weight | Line Capacity (mm/m) |
|---|---|---|---|---|
| HE500 | 12 | 5.2:1 | 140g | 0.15/120 0.18/100 0.24/60 |
| HE1000 | 12 | 5.2:1 | 202g | 0.15/180 0.18/160 0.24/100 |
| HE2000 | 12 | 5.2:1 | 211g | 0.15/200 0.18/180 0.28/100 |
| HE3000 | 12 | 5.2:1 | 224g | 0.18/240 0.20/200 0.34/100 |
| HE4000 | 12 | 5.2:1 | 265g | 0.20/240 0.25/200 0.37/100 |
| HE5000 | 12 | 5.2:1 | 271g | 0.30/200 0.35/160 0.40/100 |
| HE6000 | 12 | 5.2:1 | 363g | 0.35/200 0.40/160 0.50/100 |
| HE7000 | 12 | 5.2:1 | 380g | 0.40/240 0.45/200 0.55/100 |
Line capacities are for reference based on standard line diameters.
Spinning Reel Parameters
- Max Drag: 10 kg
- Color: Black & Gold
- Hand Retrieve: Interchangeable Left / Right Hand
- Suitable for rivers, lakes, lure fishing rods, surf/casting rods
Generation Comparison
- 1st Generation HE: Brass gear shaft with protective bumper corner
- 2nd Generation HE: Zinc alloy gear shaft without bumper corner
Product Structure Breakdown
- Curved reel seat for a snug fit with no wobbling
- Reinforced main body for stability while fighting fish
- Hollowed-out body design for lighter weight

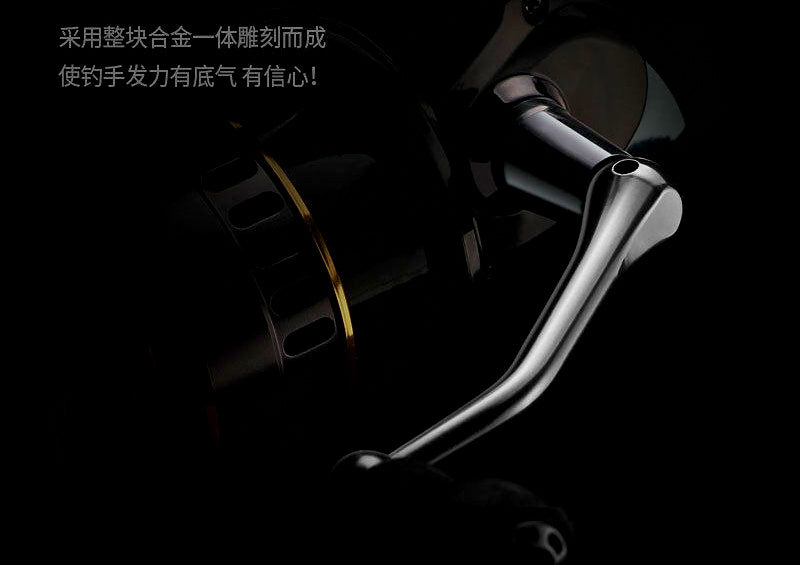

- Adjustable drag knob system, heavy-duty thick bail wire, CNC handle, and comfortable power knob
Lightweight All-Metal Spool
- Lightweight spool reduces overall weight and improves handling feel
- Rear-shifted center of gravity enhances rod-reel balance and integration
- Reduces fatigue during casting and improves rod controllability

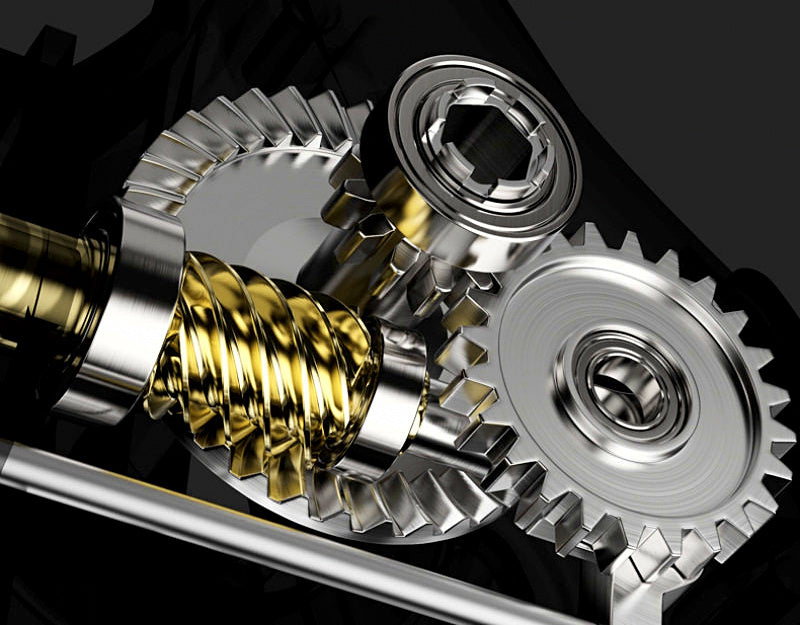

Metal Gears & Brass Main Shaft
- Engineered for a stronger internal drive system
- Optimized drive gear and oscillation gear alignment
Lightweight Main Shaft
- Lightweight and hard main shaft
- Effortless drive
- Deformation resistant
Product Features
- Lightweight design
- Corrosion-resistant material
- High-strength construction
10 kg Powerful Drag System
- Features high-quality felt washers that absorb water without swelling.
- Delivers smooth, consistent drag force without sticking, making it easy to tackle big game.
- Tested drag force reaches 10.34 kg (22.8 lb) with drag knob fully locked.
- Note: Measured drag value is the force required to pull line out when the drag knob is tightened completely; manual measurements may vary slightly.
Smooth Transmission System
- Low centrifugal force during fast line retrieval ensures smoother spool rotation
