SERIE UT · PREVENTA
Reinforced Carbon Fiber Reel Handle Arm, 4x7 / 5x8 Shaft
$43.94
Specifications
Product specifications
Available options
| Retrieve Side | Left-Hand Retrieve · Right-Hand Retrieve |
|---|---|
| Shaft Size | 4x7 Shaft · 5x8 Shaft |
Product Details
| RC-SC EX Carbon Plate Thickness | 5mm |
|---|---|
| RC-SC Carbon Plate Thickness | 3.5mm |
| Material Construction | 45° and 90° carbon fiber layers, semi-cured carbon |
| Design Feature | Torque-suppressing crank structure |
| RC-SC EX Shaft Diameter | 5 mm (SUS stainless steel, saltwater rating) |
| RC-SC Shaft Diameter | 4 mm (freshwater, lightweight design) |
Hardcore Snakehead Carbon Fiber Handle Arm
- Same model featured by Carbon Girl
Carbon Handle Plate Construction

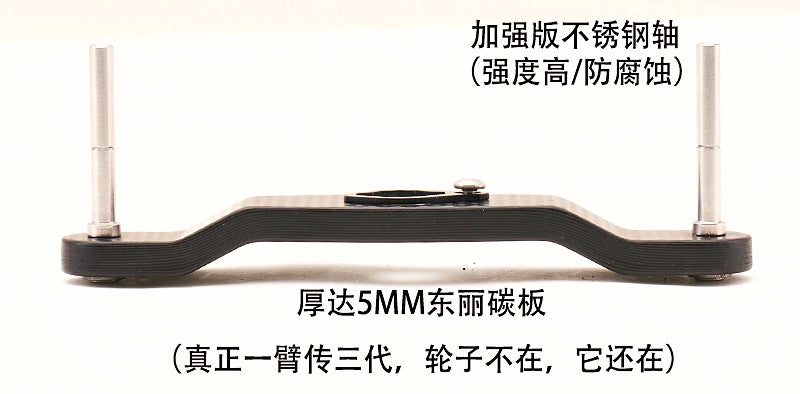

- RC-SC EX features a 5mm high-strength carbon handle plate designed for power cranking.
- RC-SC uses a 3.5mm thick high-strength carbon plate to reduce weight for ultra-light handle operation.
- Constructed from 45° and 90° carbon fiber layers to withstand multi-directional torsional loads and heavy stress.
- Features a torque-suppressing crank structure combined with semi-cured carbon material to achieve unprecedented rigidity and strength.
Shaft Specifications & Design
- RC-SC EX uses a stronger 5mm SUS (stainless steel) shaft designed for saltwater handle arms, replacing the 4mm shaft used for freshwater.
- RC-SC uses a 4mm shaft for lighter weight and more agile operation.
- When using a 5mm thick carbon plate, concentrating load on a standard size shaft can cause damage.
- Increasing shaft load capacity ensures more even force distribution across the handle arm, enhancing overall rigidity.
Installation Diagram
- Note: Upgraded reel handle arm hole size is 8x5 mm.

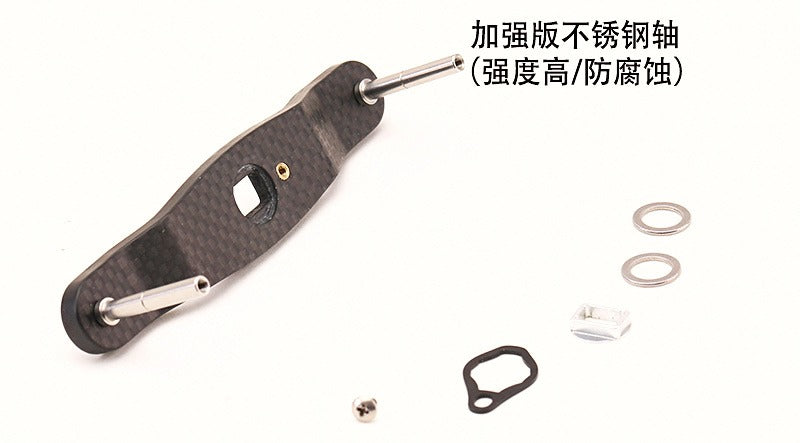

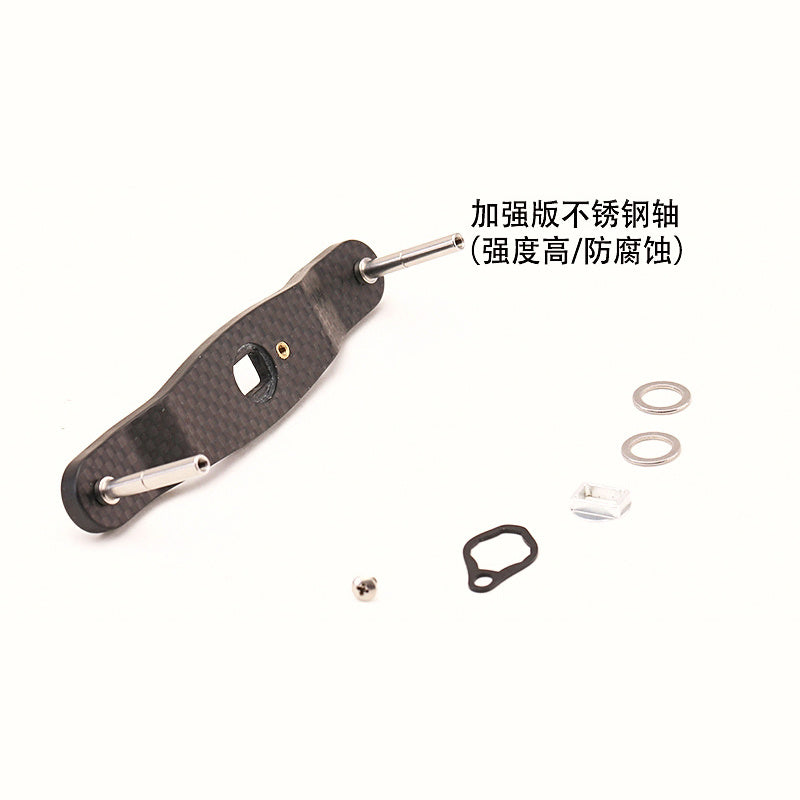

- Setup: Requires installing the conversion washer (1) under the nut (2), followed by the locking plate (3) and screw (4).
- Setup: Be sure to place a thick washer (1) in the recessed groove of the handle arm before installing the nut (2), locking plate (3), and screw (4). Omitting the thick washer may cause over-tightening of the nut by 1/2 to 1 full turn, damaging the nut threads.
