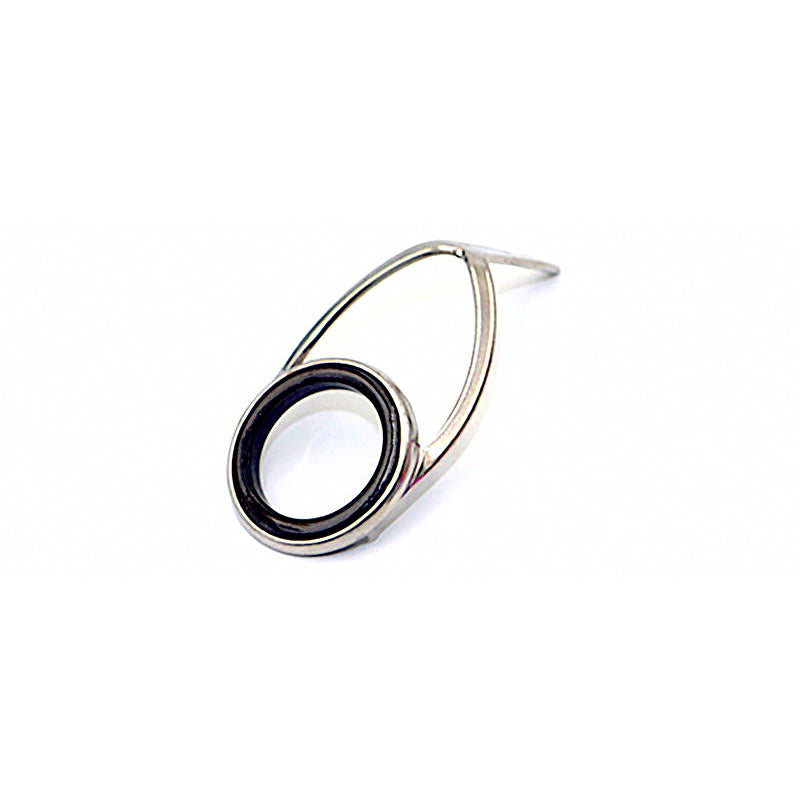

Single-Foot Rod Guides, Sizes #3–#20, Rod Building Parts
$0.43
Specifications
Product specifications
Available options
| Color | All Black · Silver · Multicolor |
|---|---|
| Size | #4 · #5 · #5.5 · #3 · #8 · #6 · #7 · #10 · #12 · #16 · #20 |
Model Specifications
| Model | Ceramic Ring Inner Dia. (mm) | Leg Length (mm) | Total Length (mm) | Height (mm) |
|---|---|---|---|---|
| 3# | 1.6 | 5.5 | 8.5 | 5.1 |
| 4# | 2.1 | 5.6 | 9.3 | 5.3 |
| 5# | 2.9 | 6.0 | 9.7 | 7.1 |
| 5.5# | 3.5 | 6.9 | 11.5 | 7.7 |
| 6# | 3.9 | 7.4 | 12.1 | 8.8 |
| 7# | 5.1 | 8.6 | 12.8 | 9.5 |
| 8# | 5.7 | 8.8 | 13.2 | 11.8 |
| Size | ID (mm) | OD (mm) | Height (mm) | Length (mm) |
|---|---|---|---|---|
| 10# | 7.0 | 9.5 | 16.6 | 14.9 |
| 12# | 8.8 | 12.6 | 23.5 | 20.6 |
| 16# | 11.0 | 14.5 | 27.8 | 26.0 |
| 20# | 14.5 | 16.7 | 37.9 | 34.8 |
| 25# | 18.8 | 19.3 | 38.8 | 45.3 |
| 30# | 23.8 | 19.4 | 41.2 | 60.9 |
Slight tolerances exist. Unit: mm
Fishing Accessories Selection
- Gold Anti-Burst Rings: Small size aluminum alloy ring for rod tip reinforcement and decoration.
- Coated Split Shot Weights: Rubber-coated lead sinkers with clip design for saltwater and lure fishing.
- Interline Rod Guide Rings: Internal line guides and line-through ceramic rings for fishing rod repair/modification.
- Gunmetal Anti-Burst Rings: Large aluminum alloy rings for rod blank repair and decorative reinforcement.
Wrapped-Edge Fishing Rod Tip Guide Rings
- All models and sizes available
- Smooth line output with high density and smooth surface that protects line from damage
Guide Ring Features
- Fast Heat Dissipation: Normal heat release protects the line from damage
- Lightweight Guide Ring: Thin ceramic ring offers comfortable feel
- Lighter weight, less friction, and longer casting distance
Friction-Resistant and Rapid Heat Dissipation
- Rust-resistant K-style guide frames designed to prevent line tangling
- Reduces line twist and tangling issues during casting
Rod Guide Line Parameters
- Angled at approx. 60° for fast line payout and anti-tangling performance.
- Diagram labels include Ceramic Inner Diameter, Leg Length, Total Length, and Height.

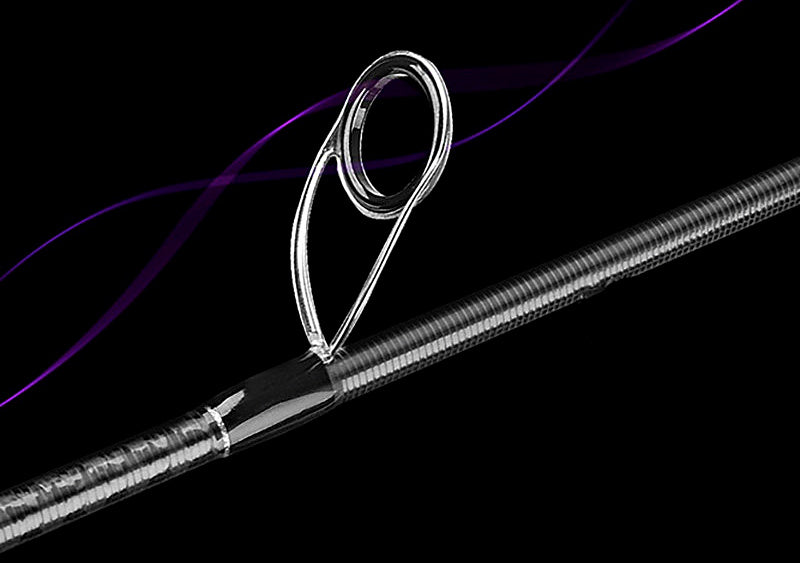

Product Showcase
- Dimensions in mm
- Slight tolerances may exist
