UT SERIES · DISPONIBLE AHORA

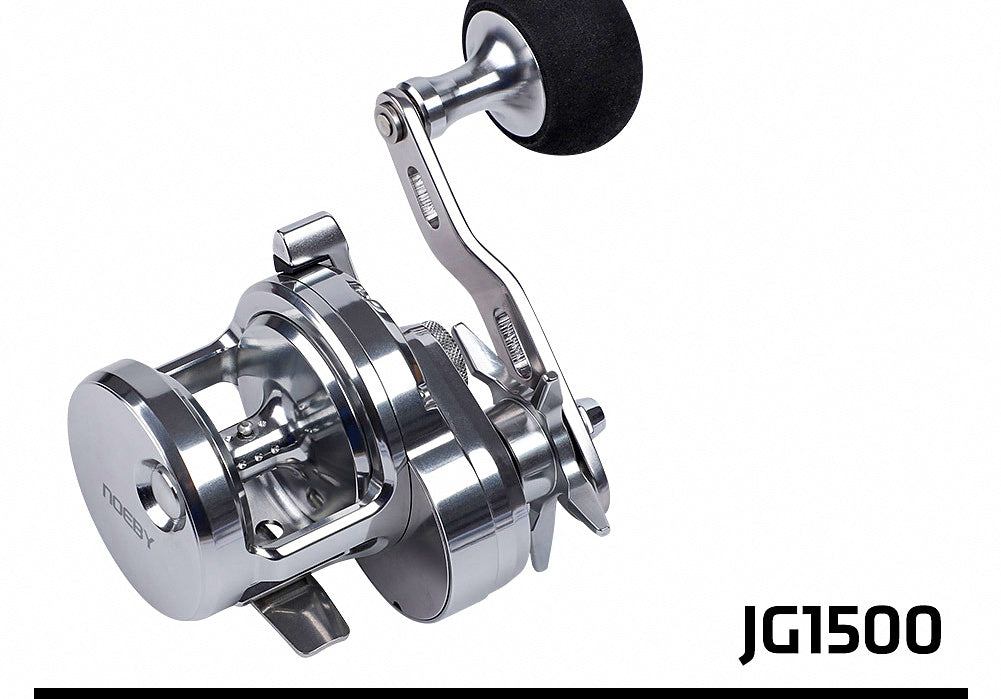

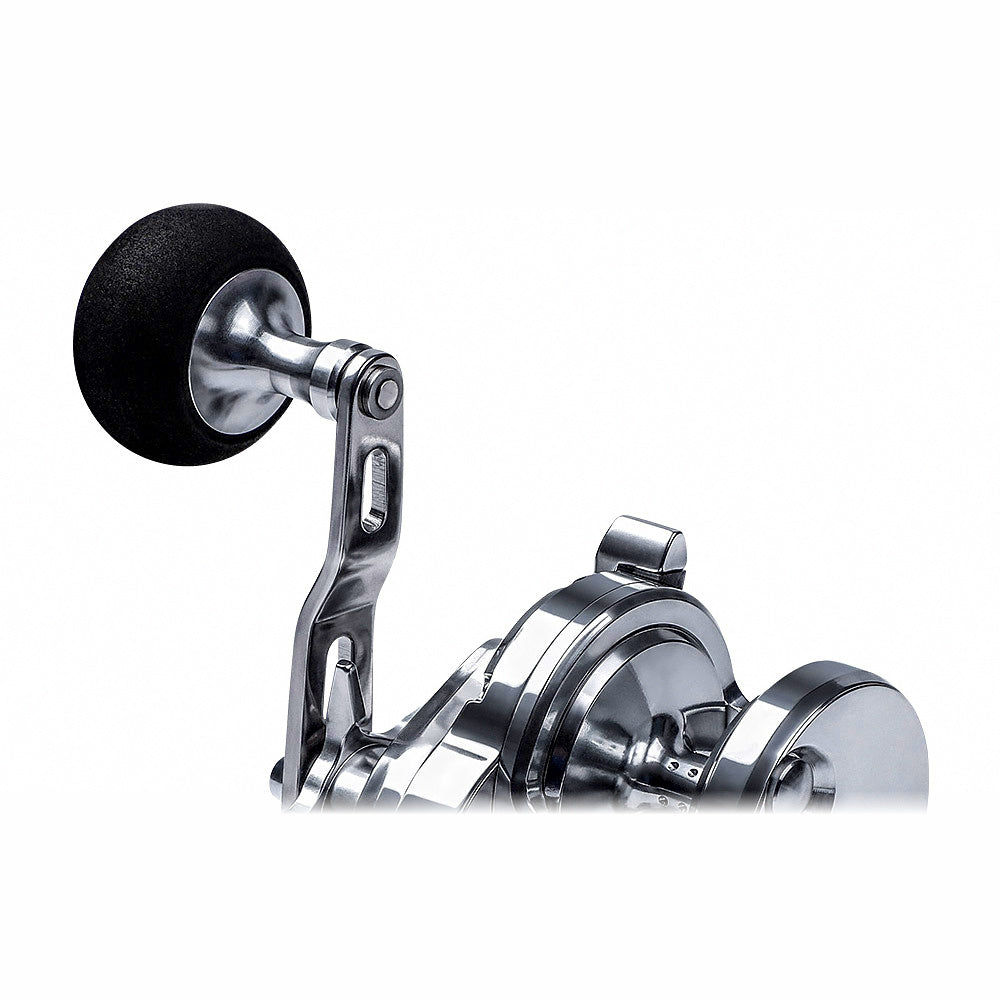

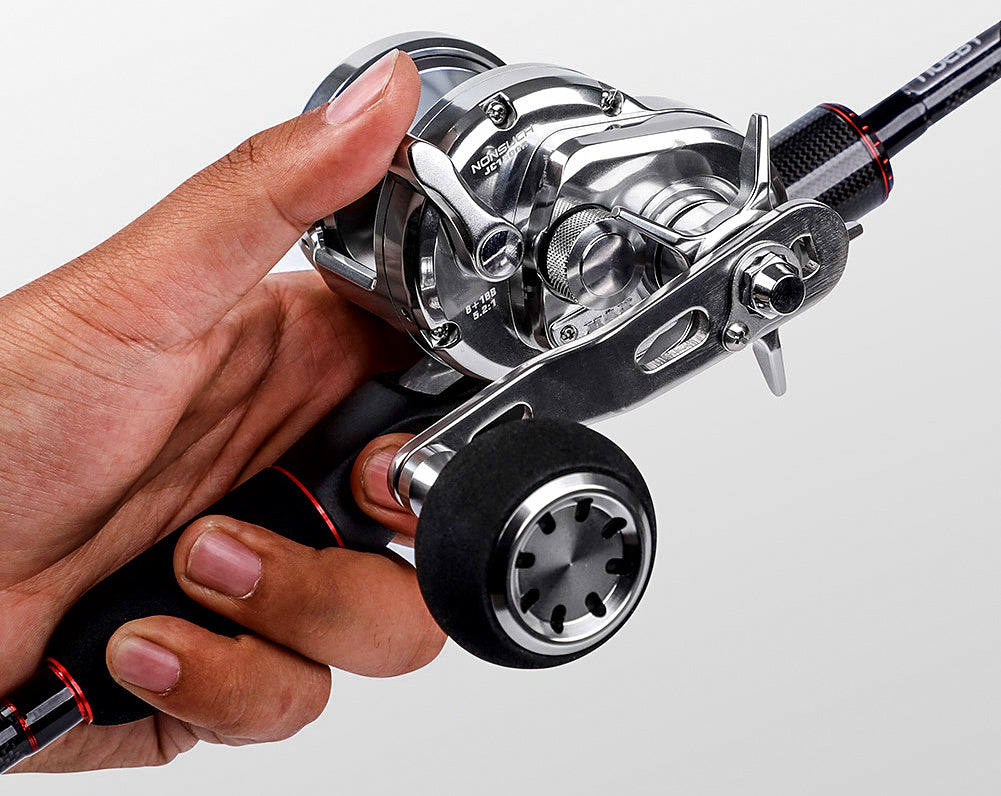

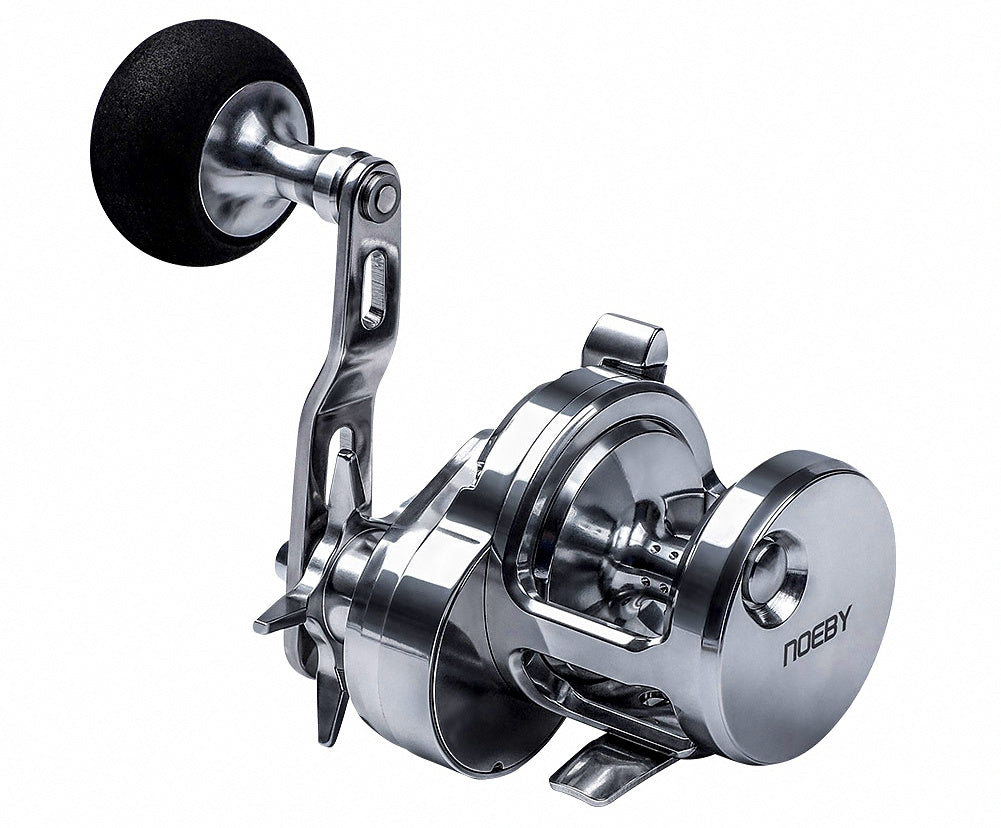

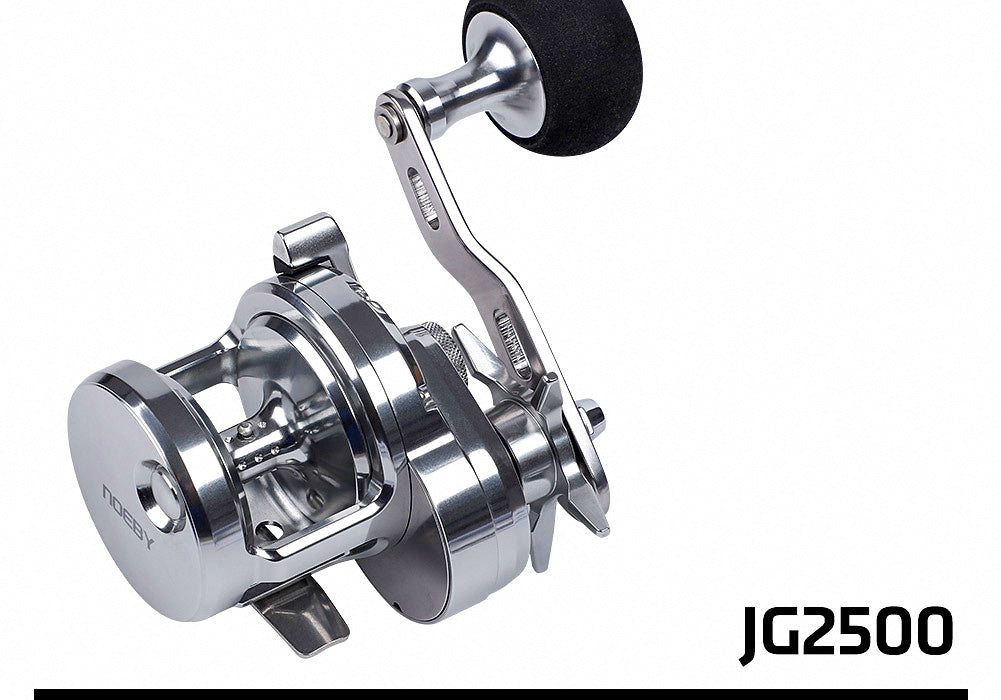

Slow Pitch Jigging Drum Reel, 1500 / 2500, Left or Right Hand
$369.23
Specifications
Product specifications
Available options
| Size | 2500 · 1500 |
|---|---|
| Handle | Right Hand · Left Hand |
Product Details
| Type | Star Drag Jigging Reel |
|---|---|
| Models Available | 1500R/L, 2500R/L |
| Suitable Fishing Methods | Jigging, Slow Pitch Jigging, Bottom Fishing, Boat Fishing, Trolling |
| Model | JG2500R/L |
| Knob Diameter | 45mm |
| Total length | 105mm |
| Seat width | 17.5mm |
| Spool length | 30mm |
| Wheel height | 65mm |
| Material | Aluminum Alloy One-Piece Frame and Side Cover |
| Features | High Strength, Lightweight Design |
| Model | Weight | Line Capacity | Retrieve Speed (cm/turn) | Gear Ratio | Max Drag | Bearings |
|---|---|---|---|---|---|---|
| 1500R | 388g | PE#2-500m PE#3-350m | 77 | 5.2:1 | 15kg | 8+1 |
| Model | Weight | Line Capacity | Retrieve per Turn (cm) | Gear Ratio | Max Drag | Bearings |
|---|---|---|---|---|---|---|
| 2500L | 546g | PE#3-400m PE#4-300m | 93 | 5.2:1 | 20kg | 8+1 |
| Model | Weight | Line Capacity | Line Retrieve (cm/turn) | Gear Ratio | Max Drag | Bearings |
|---|---|---|---|---|---|---|
| 2500R | 545g | PE#3-400m PE#4-300m | 93 | 5.2:1 | 20kg | 8+1 |
Model Specifications
| Specification | JG1500R/L | JG2500R/L |
|---|---|---|
| Weight | 388g | 545g |
| Gear Ratio | 5.2:1 | 5.2:1 |
| Bearings | 8+1 | 8+1 |
| Line Per Handle Turn | 85cm | 85cm |
| Line Capacity | 30lb/500m 45lb/350m | 45lb/400m 60lb/300m |
The above dimensions are measured manually with slight errors. Please prevail in kind.
Parts List
| Key | Part Name |
|---|---|
| 1 | Click Button |
| 2 | Click Button Washer |
| 3 | Frame |
| 4 | Click Pawl Washer |
| 5 | Click Pawl |
| 6 | Washer |
| 7 | E-ring |
| 8 | Set Plate |
| 9 | Screw |
| 10 | Bearing Washer |
| 11 | Ball Bearing |
| 12 | Retaining Clip |
| 13 | E-ring |
| 14 | Click Gear |
| 15 | O-ring |
| 16 | Spool |
| 17 | Support Plate |
| 18 | Screw |
| 19 | Washer |
| 20 | Ball Bearing |
| 21 | Non-return Washer Bolt |
| 22 | Non-return Washer |
| 23 | Clutch Button |
| 24 | Torsion Spring |
| 25 | Yoke |
| 26 | Yoke Spring |
| 27 | Pinion Gear |
| 28 | Screw |
| 29 | Interlink |
| 30 | Clicker Pawl |
| 31 | Torsion Spring |
| 32 | Screw |
| 33 | Clutch Plate |
| 34 | Anchor Washer |
| 35 | Torsion Spring |
| 36 | Main Cover |
| 37 | Washer |
| 38 | Clutch Button |
| 39 | Label |
| 40 | Screw |
| 41 | Washer |
| 42 | Screw |
| 43 | Ball Bearing |
| 44 | Crankshaft Keeper |
| 45 | Screw |
| 46 | Crankshaft |
| 47 | Clutch Disc |
| 48 | Drag Friction Disc |
| 49 | Drive Gear |
| 50 | Drag Friction Disc |
| 51 | Big Washer |
| 52 | Drag Friction Disc |
| 53 | Double Ear Washer |
| 54 | Drag Friction Disc |
| 55 | Clicker Ring |
| 56 | Guide Clamp Spring |
| 57 | Packing Washer |
| 58 | Fixed Washer |
| 59 | Screw |
| 60 | Anti-Reverse Ball Bearing |
| 61 | Ball Bearing |
| 62 | Bearing Retainer |
| 63 | O-ring |
| 64 | Cast Control Metal Washer |
| 65 | Cast Control Rubber Washer |
| 66 | Cast Control Knob |
| 67 | Ball Bearing |
| 68 | Small Washer |
| 69 | Flat Washer |
| 70 | Drag Spring Washer |
| 71 | Clicker Spring |
| 72 | Star Drag Handle |
| 73 | Handle Spring Washer |
| 74 | Handle |
| 75 | Handle Nut |
| 76 | Latch Keeper |
| 77 | Screw |
- Jigging reel specifications for model JG2500 / 2500R
Nonsuch Star Drag Jigging Reel
- Suitable for jigging, slow pitch jigging, bottom fishing, boat fishing, and trolling
- Features an aluminum one-piece main body frame, side cover, and drag power knob for high strength and lightweight performance.
Swept Aluminum Star
- High precision CNC machining and refined parts are smoothly joined to guarantee stable performance.
Carbon Friction System
- Provides maximum pulling power and consistent drag heat displacement for an efficient drag system.
- Made with high-temperature resistant carbon fiber composite drag washers for smooth, durable, and stable braking performance.
