UT SERIES · DISPONIBLE AHORA
Spinning Reel, Front Drag, Metal Spool, Sizes 1000–5000
$105.43
Specifications
Product specifications
Available options
| Size | 1000 · 2000 · 2000S Shallow Spool · 2500 · 2500S Shallow Spool · 3000C Compact Body · 4000C Compact Body · 5000C Compact Body |
|---|---|
| Gear Ratio | Standard · XH High Gear Ratio |
Product Details
| Rotor Feature | Airdrive Rotor |
|---|---|
| Material | Carbon resin composite |
| Key Benefits | Reduced weight, enhanced feedback and responsiveness |
| Bearing Count | 3+1 |
| Drive Gear Material | Zinc Alloy |
| Main Gear Technology | Tough Digigear |
| Spool Type | Long Cast-ABS (LC-ABS) |
| Available Shallow Spool Models | LT2000S, LT2500S, LT2500S |
| Spool Compatibility | Compatible with SLPW LT TYPE-BETA SPOOL 2(CS) |
| Bearing | One-way bearing |
| Handle Type | Plug-in handle, left/right interchangeable |
| Knob Type | I-shaped or T-shaped depending on model |
| Features | No-anti-reverse switch design, waterproof and rust-resistant |
Product Specifications
| Model | Weight (g) | Retrieve / Crank (cm) | Gear Ratio | Nylon Line Capacity (#-m) | PE Line Capacity (#-m) | Max Drag (kg) | Bearings (Ball/Roller) | Knob Type |
|---|---|---|---|---|---|---|---|---|
| 1000 | 220 | 64 | 5.2 | 0.8-150 | 0.4-200 | 5 | 3/1 | I-Type |
| 1000-XH | 220 | 77 | 6.2 | 0.8-150 | 0.4-200 | 5 | 3/1 | I-Type |
| 2000 | 225 | 68 | 5.2 | 1-150 | 0.6-200 | 5 | 3/1 | I-Type |
| 2000-XH | 225 | 81 | 6.2 | 1-150 | 0.6-200 | 5 | 3/1 | I-Type |
| 2000S | 225 | 68 | 5.2 | 0.8-150 | 0.4-200 | 5 | 3/1 | I-Type |
| 2500 | 250 | 75 | 5.3 | 1.5-150 | 0.8-200 | 5 | 3/1 | I-Type |
| 2500-XH | 250 | 87 | 6.2 | 1.5-150 | 0.8-200 | 5 | 3/1 | I-Type |
| 2500S | 250 | 75 | 5.3 | 1-150 | 0.6-200 | 5 | 3/1 | I-Type |
| 2500S-XH | 250 | 87 | 6.2 | 1-150 | 0.6-200 | 5 | 3/1 | I-Type |
| 3000-C | 260 | 80 | 5.3 | 2-150 | 1-200 | 10 | 3/1 | I-Type |
| 3000-CXH | 260 | 93 | 6.2 | 2-150 | 1-200 | 10 | 3/1 | I-Type |
| 4000-C | 290 | 82 | 5.2 | 3-150 | 1.5-200 | 12 | 3/1 | T-Type |
| 4000-CXH | 290 | 99 | 6.2 | 3-150 | 1.5-200 | 12 | 3/1 | T-Type |
| 5000-C | 290 | 87 | 5.2 | 5-150 | 2-300 | 12 | 3/1 | T-Type |
| 5000-CXH | 290 | 105 | 6.2 | 5-150 | 2-300 | 12 | 3/1 | T-Type |
LT Series Reel Model Code Guide
| Code Segment | Meaning / Options |
|---|---|
| Spool Diameter | LT1000 = φ 40mm LT2000 = φ 42mm LT2500 = φ 45mm LT3000 = φ 48mm LT4000 = φ 51mm LT5000 = φ 54mm LT6000 = φ 57mm |
| Line Capacity | D = Deep Spool None = Standard S = Shallow Spool SS = Extra Shallow Spool |
| Body Size | C = Compact Body |
| Gear Ratio | P = Under 4.9 None = 5.0–5.4 H = 5.5–5.9 XH = 6.0 or higher |
Nylon / Fluorocarbon Line Diameter Conversion Table
| Line Size (#) | #0.6 | #0.8 | #1 | #1.2 | #1.5 | #1.7 | #2 | #2.5 | #3 | #3.5 | #4 | #5 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Strength (lb) | 2.5 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | 20 |
| Diameter (mm) | 0.128 | 0.148 | 0.165 | 0.185 | 0.205 | 0.218 | 0.235 | 0.260 | 0.285 | 0.310 | 0.330 | 0.370 |
PE Braid Line Diameter Conversion Table
| Line Size (#) | #0.6 | #0.8 | #1 | #1.2 | #1.5 | #2 | #2.5 | #3 | #4 | #6 | #8 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Strength (lb) | 10 | 14 | 18 | 20 | 25 | 30 | 35 | 40 | 60 | 80 | 100 |
| Diameter (mm) | 0.06 | 0.1 | 0.13 | 0.16 | 0.19 | 0.2 | 0.215 | 0.23 | 0.28 | 0.35 | 0.42 |

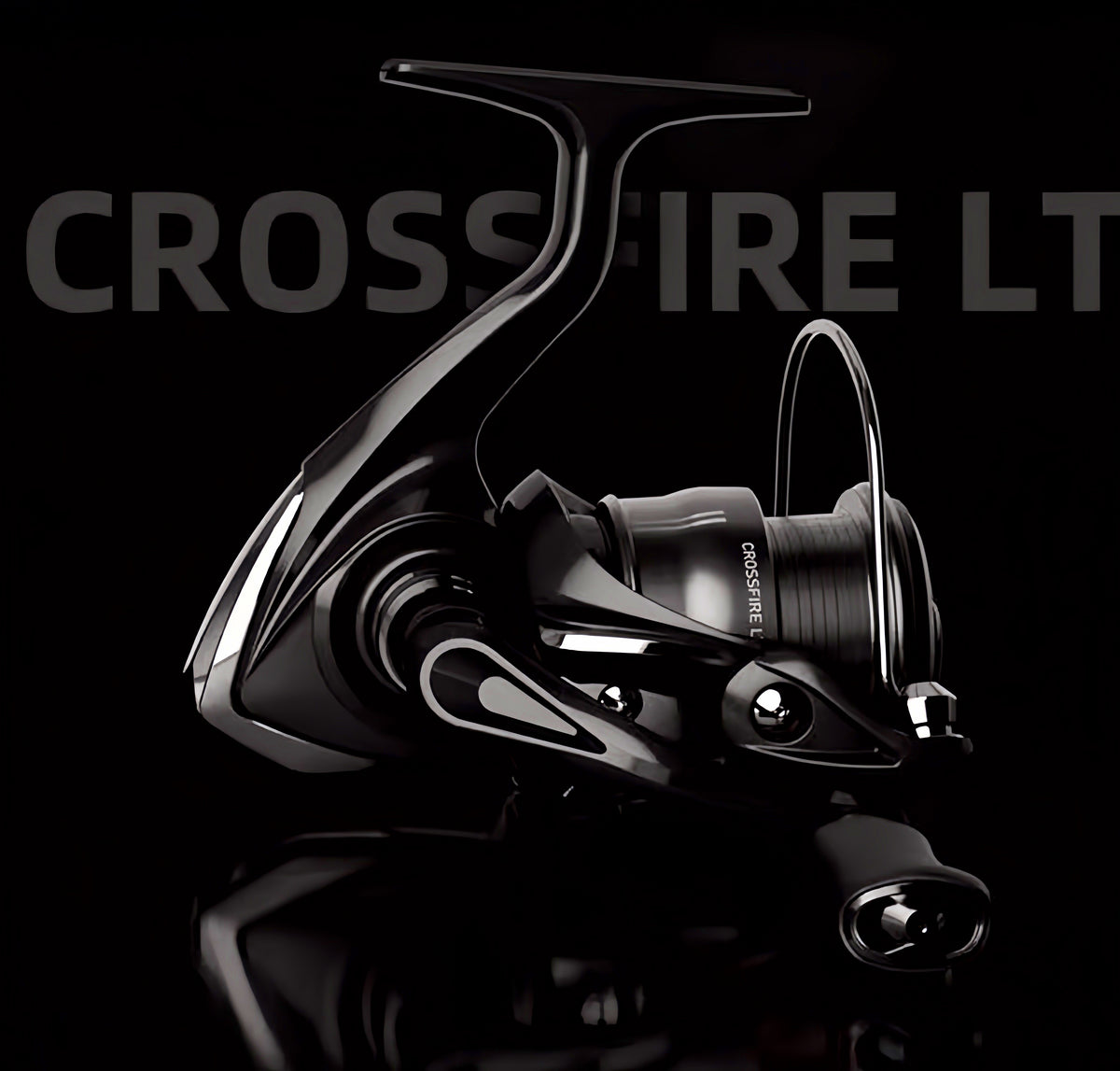

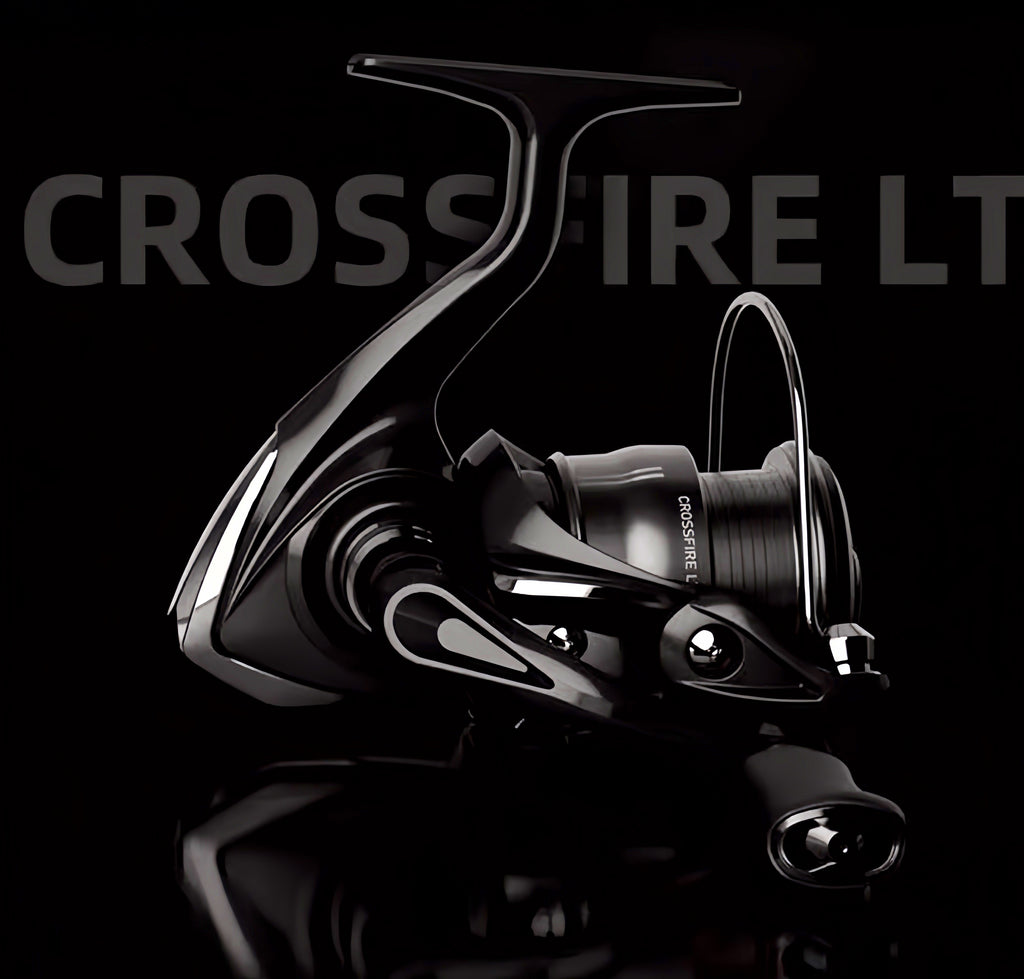

CROSSFIRE LT 2026
- Lightweight and powerful spinning reel
- Weight reduced by approx. 5g compared to the previous generation model (except 3000 model)
Defining the Future of Spinning Reels - AIRDRIVE DESIGN
- Features new lightweight body design based on LT concept for durability and light weight.
- AIRDRIVE DESIGN lightweight drive design significantly enhances operability and durability.

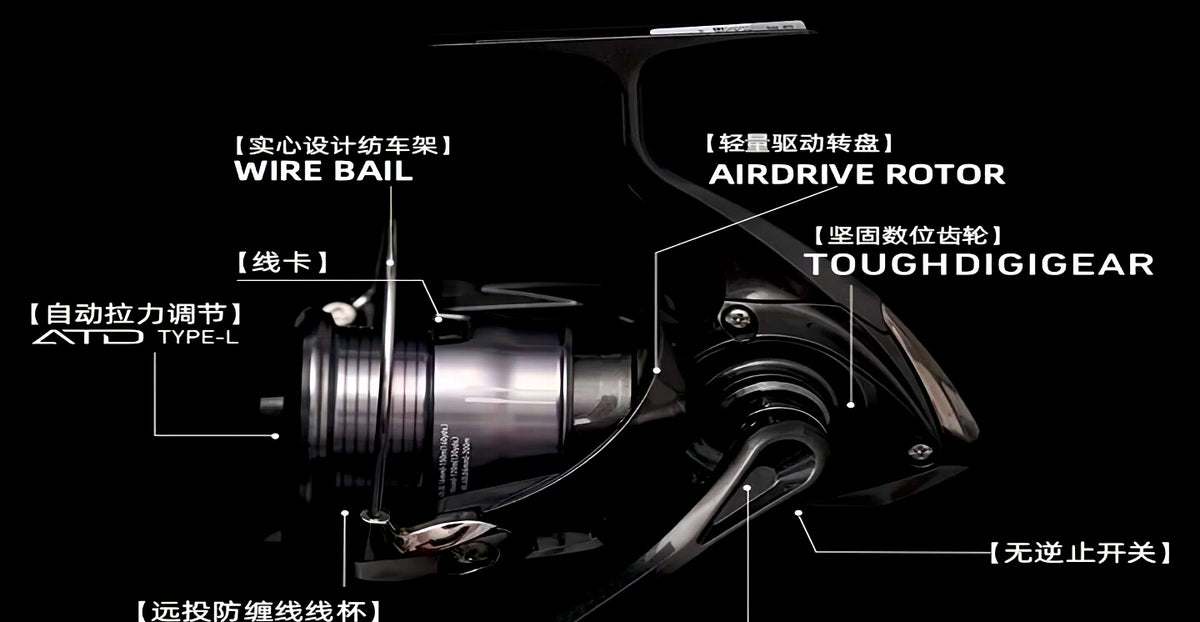

- Callout features include: Solid Wire Bail, AIRDRIVE ROTOR, TOUGH DIGIGEAR, Anti-Reverse Switch, Left/Right Hand Interchangeable, LC-ABS Long Cast Anti-Tangle Spool, ATD TYPE-L Automatic Drag, and Line Clip.
Airdrive Rotor
- Lightweight Airdrive Rotor constructed with carbon resin composite, reducing rotor weight while enhancing sensitivity and responsiveness.
TWIST BUSTER III 3rd Gen Tapered Line Roller
- Features a solid bail frame design to ensure durability while paired with the 3rd generation tapered line roller.
- Effectively reduces line twist and tangles during fishing, especially with thin PE braided lines, providing a smoother experience.
ATD TYPE-L Automatic Drag Adjustment System
- Retains ATD characteristics with smooth operation that adjusts continuously as fish pull the line.
- Improves initial drag response, reducing load on fine fishing lines.
- Allows anglers to land fish faster while minimizing stress and harm to the fish.
Tough Digigear & Long Cast-ABS Spool
- 3+1 Bearing system with zinc alloy Tough Digigear for smooth, durable retrieve feel.
- LC-ABS (Long Cast-ABS) spool design optimizes edge shape to increase casting distance by approximately 5%.
- Available in shallow spool options (LT2000S, LT2500S, LT2500S) for lure fishing and fine-line techniques.
- Features a new horizontal line-clip shape suitable for various line diameters while saving vertical space for a lighter spool.
No-Anti-Reverse Switch Design & Handle with Knob
- No-anti-reverse switch design with a newly designed one-way bearing inside to improve waterproof and rust-resistant performance.
- Plug-in handle arm, interchangeable for left and right-hand use (I-shaped or T-shaped knob depending on model).
Product Specifications
LT Series Spinning Reel Model Naming Guide & Line Conversion Tables
- Guide explains LT series reel model codes (Series, Spool Diameter, Line Capacity, Body/Compact size, Gear Ratio).
- Includes conversion reference tables for Nylon/Fluorocarbon line and PE braid line size, test strength (lb), and diameter (mm).
