UT SERIES · DISPONIBLE AHORA

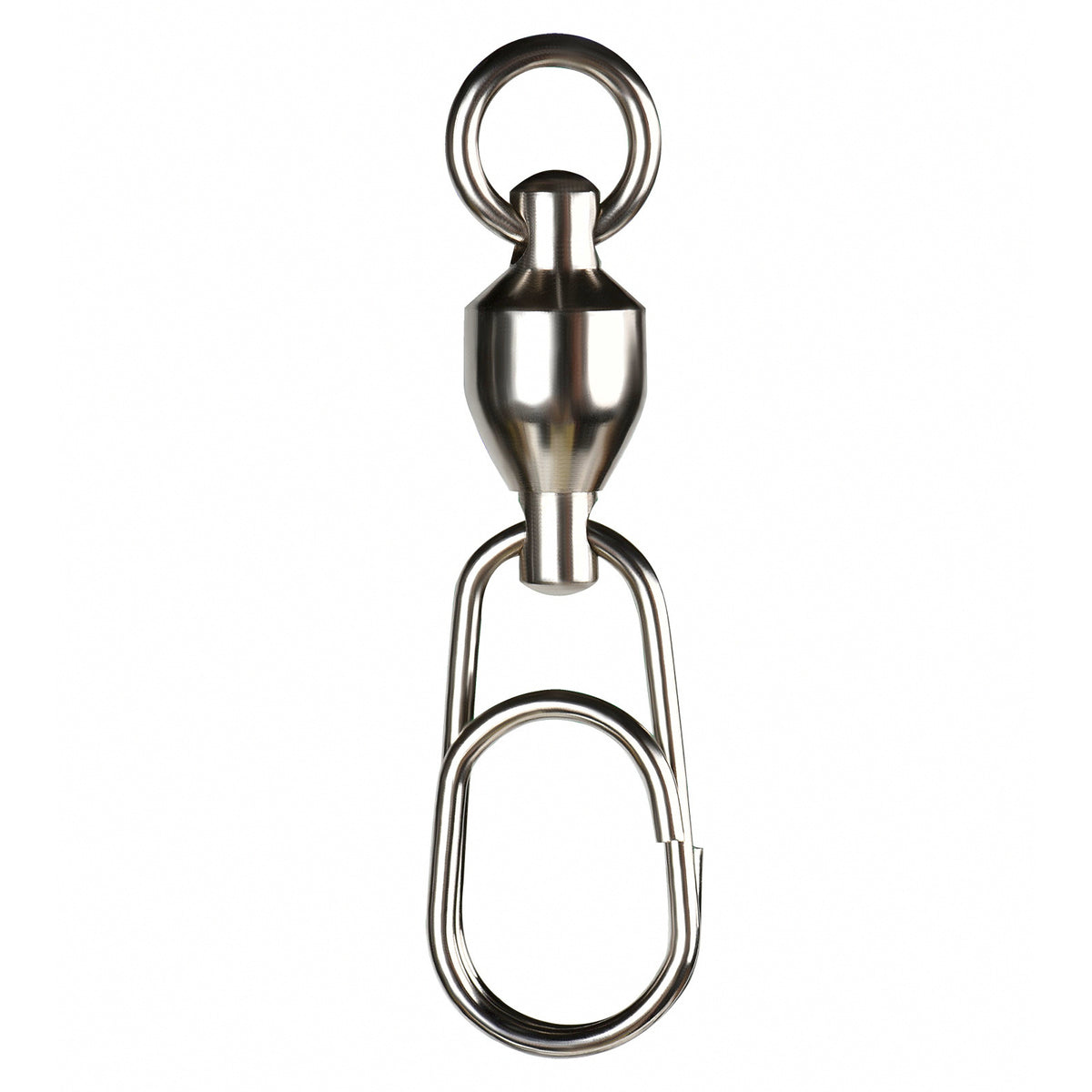

Stainless Ball Bearing Swivel, Oval Double Ring, #0–#8
$3.53
Specifications
Product specifications
Available options
| Size | #0 – 33 lb (15 kg) · #1 – 44 lb (20 kg) · #2 – 55 lb (25 kg) · #3 – 77 lb (35 kg) · #4 – 110 lb (50 kg) · #5 – 143 lb (65 kg) · #6 – 176 lb (80 kg) · #7 – 220 lb (100 kg) · #8 – 331 lb (150 kg) |
|---|---|
| Pack | 10 pcs · 9 pcs · 7 pcs · 6 pcs · 5 pcs |
Product Details
| Target Water | Boat fishing / Saltwater |
|---|---|
| Features | 360° rotation, anti-twist, quick release snap |
| Material | 304 Stainless Steel |
| Type | Ball Bearing Swivel with Quick-Connect Snap |
| Applications | Metal Jigs, Lure Fishing, Saltwater Fishing, Surf Casting, Sabiki Rigs |
| Sizing Recommendation (Freshwater Jigs) | Size #3 or smaller quick snaps |
| Sizing Recommendation (Saltwater Jigs) | Size #4 or larger quick snaps |
| Feature | Saltwater corrosion-resistant |
| Surface Treatment | Electroplated oxidation treatment |
Product Specifications
| Model | Top Eye Inner Dia. (mm) | Snap Length (mm) | Snap Inner Dia. (mm) | Total Length (mm) | Single Weight (g) | Pull Rating (kg) |
|---|---|---|---|---|---|---|
| #0 | 3mm | 11mm | 4mm | 22mm | 0.46g | 15kg |
| #1 | 3mm | 13.5mm | 5mm | 25mm | 0.61g | 20kg |
| #2 | 4mm | 16mm | 6mm | 29mm | 0.97g | 25kg |
| #3 | 4mm | 16.5mm | 6.5mm | 31mm | 1.16g | 35kg |
| #4 | 4.5mm | 19mm | 7mm | 35mm | 1.69g | 50kg |
| #5 | 5mm | 19.2mm | 8mm | 37mm | 2.20g | 65kg |
| #6 | 6.5mm | 22.5mm | 9mm | 42mm | 3.49g | 80kg |
| #7 | 7mm | 25.5mm | 10.5mm | 47mm | 4.81g | 100kg |
| #8 | 8mm | 28.8mm | 11mm | 52mm | 7.24g | 150kg |
Note: Parameters are measured manually; slight errors fall within the normal range. Please refer to the actual product received.

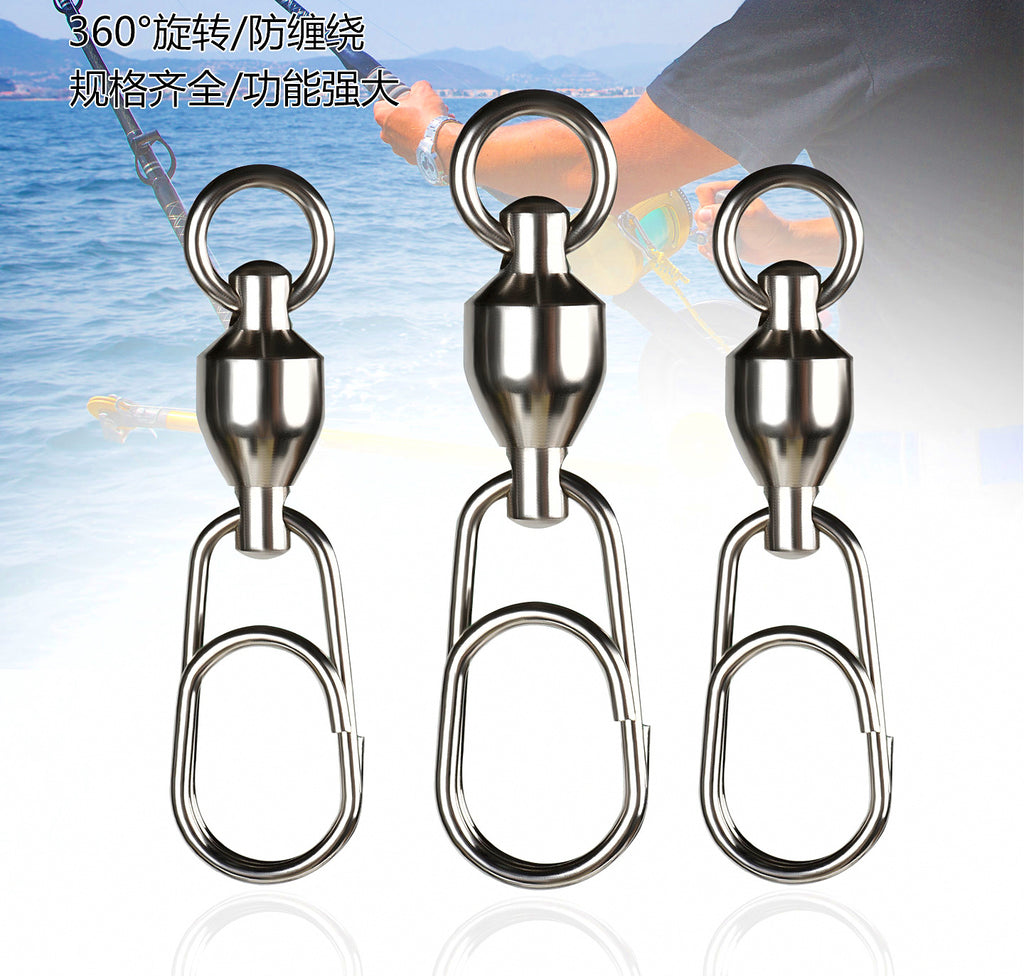

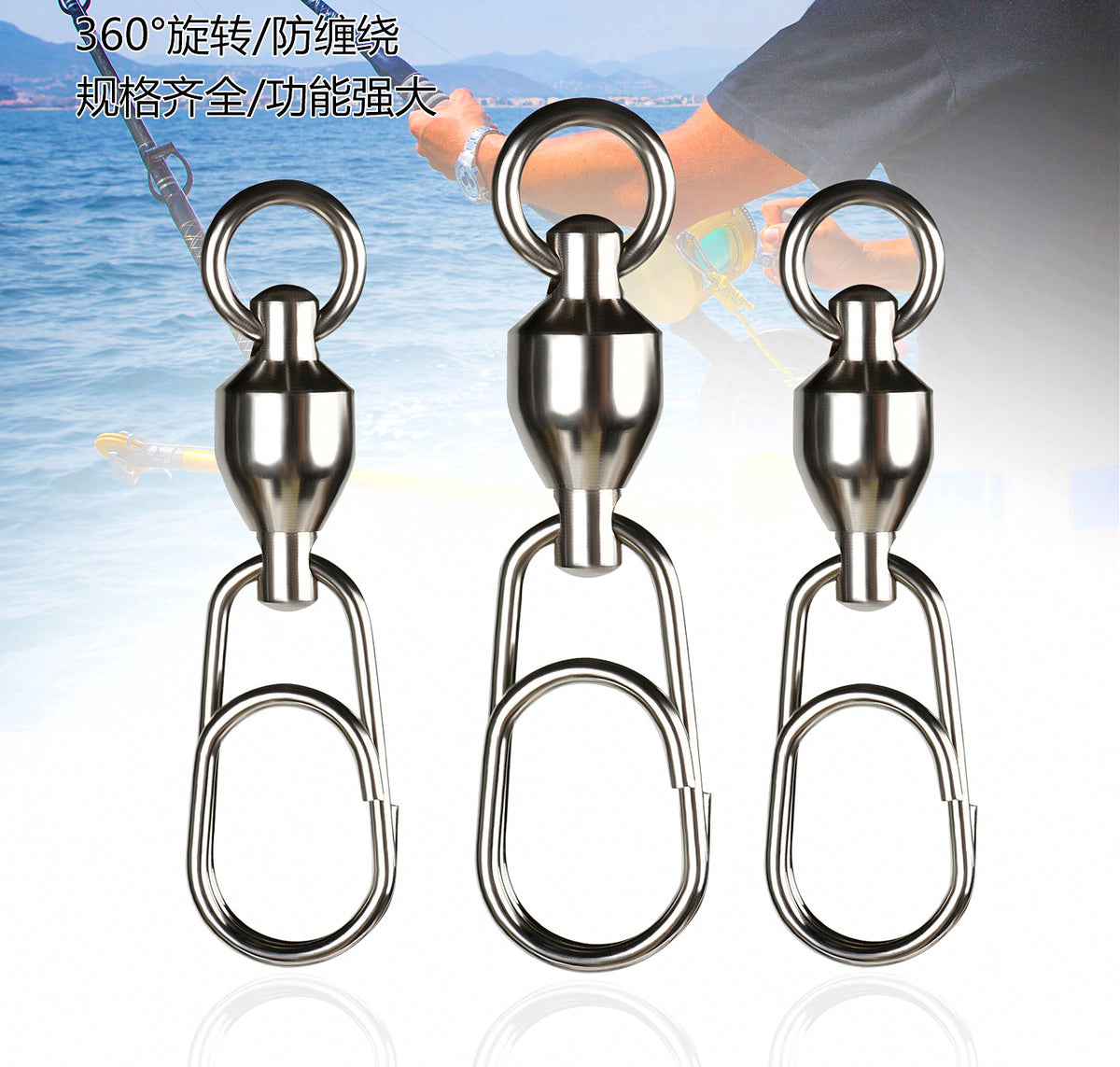

Big Game Metal Jig Quick Snap & Bearing Swivel
- Designed for boat fishing and big game targets
- 360° smooth rotation bearing swivel prevents line twist
- Complete sizes available with high breaking strength
Product Parameters
- Diagram labels indicate upper hole diameter, total length, snap length, and snap inner diameter.

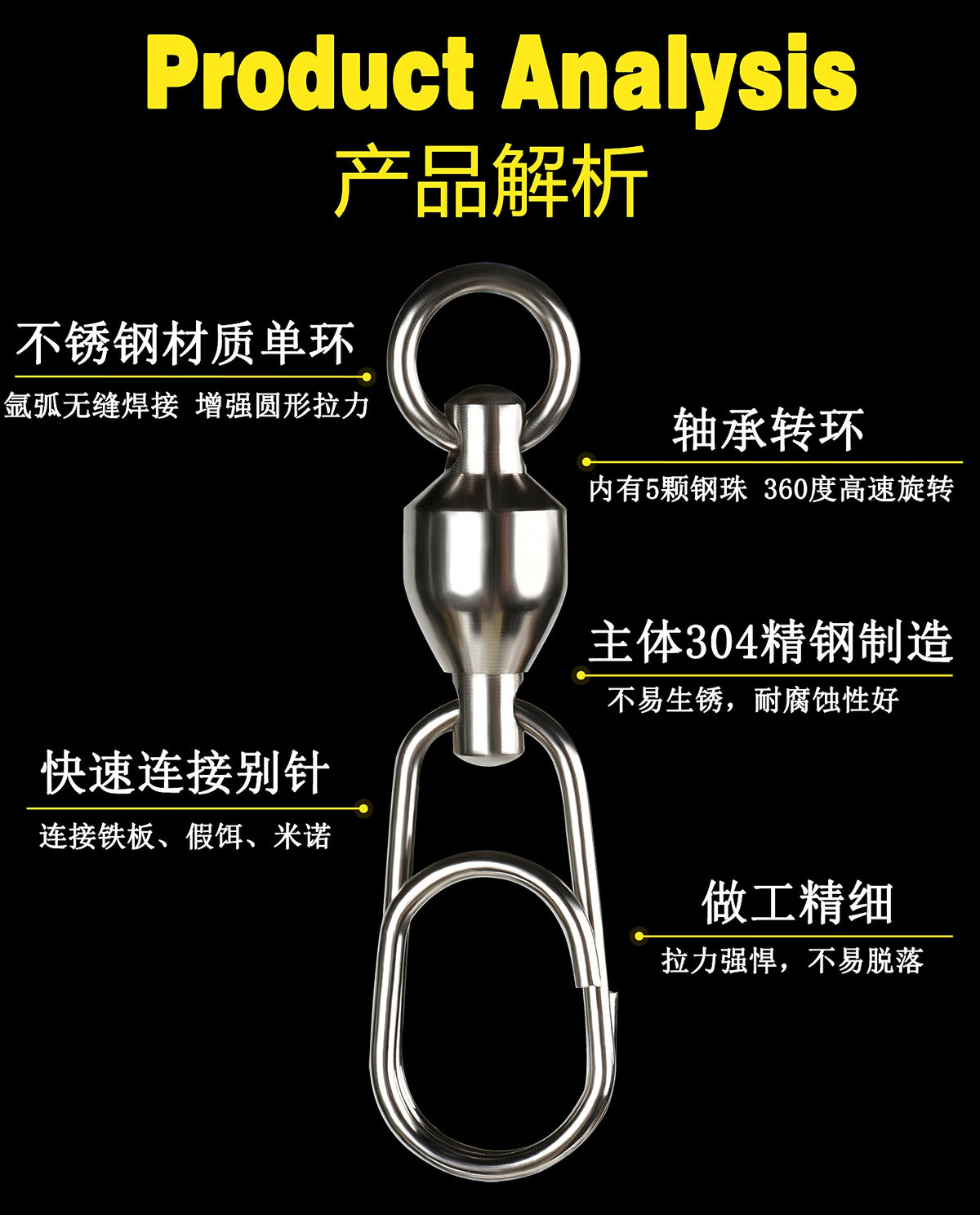

Product Analysis
- Dimensions and weight ratings for sizes #0 to #8.
High-Strength Stainless Steel Ball Bearing Swivel with Snap
- Stainless steel welded solid ring with argon arc seamless welding for maximum strength
- Built-in 5 stainless steel ball bearings for smooth 360-degree high-speed rotation
- Main body crafted from 304 stainless steel, highly rust and corrosion-resistant
- Quick-connect double snap design suitable for metal jigs, hard lures, and minnows
Double Ring Quick-Connect Snap
- Features a double-loop quick-release pin for secure fastening

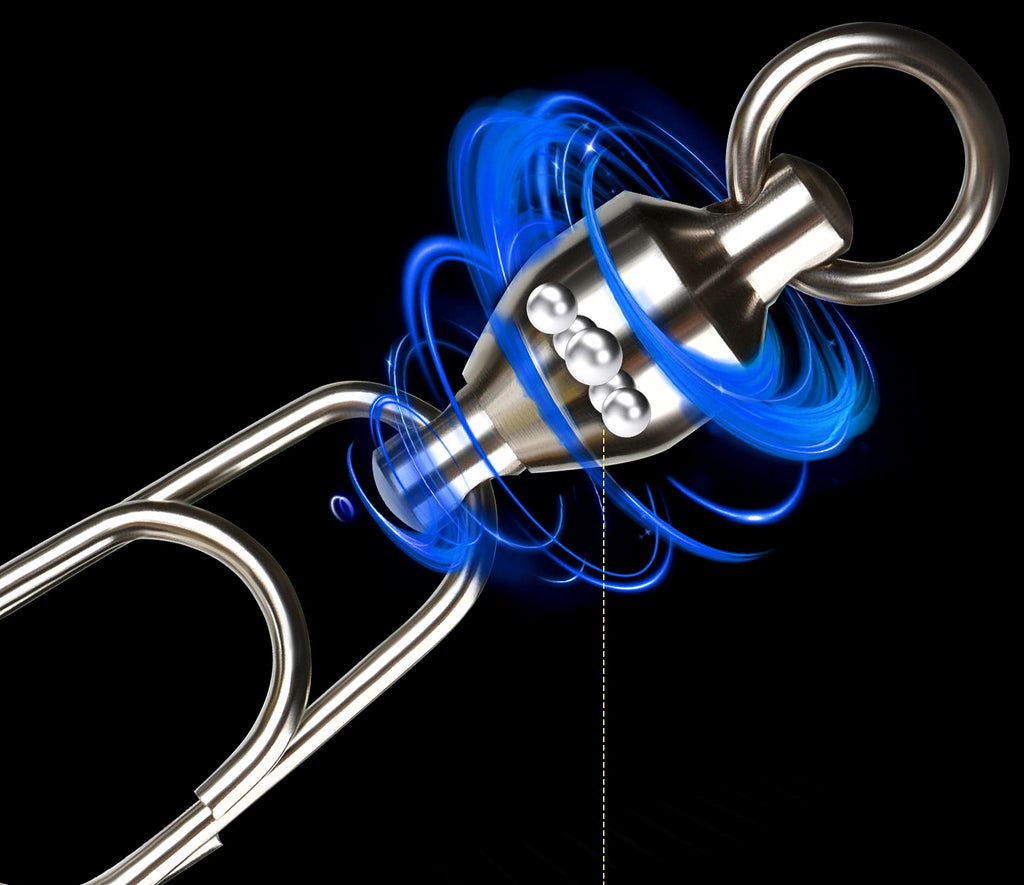

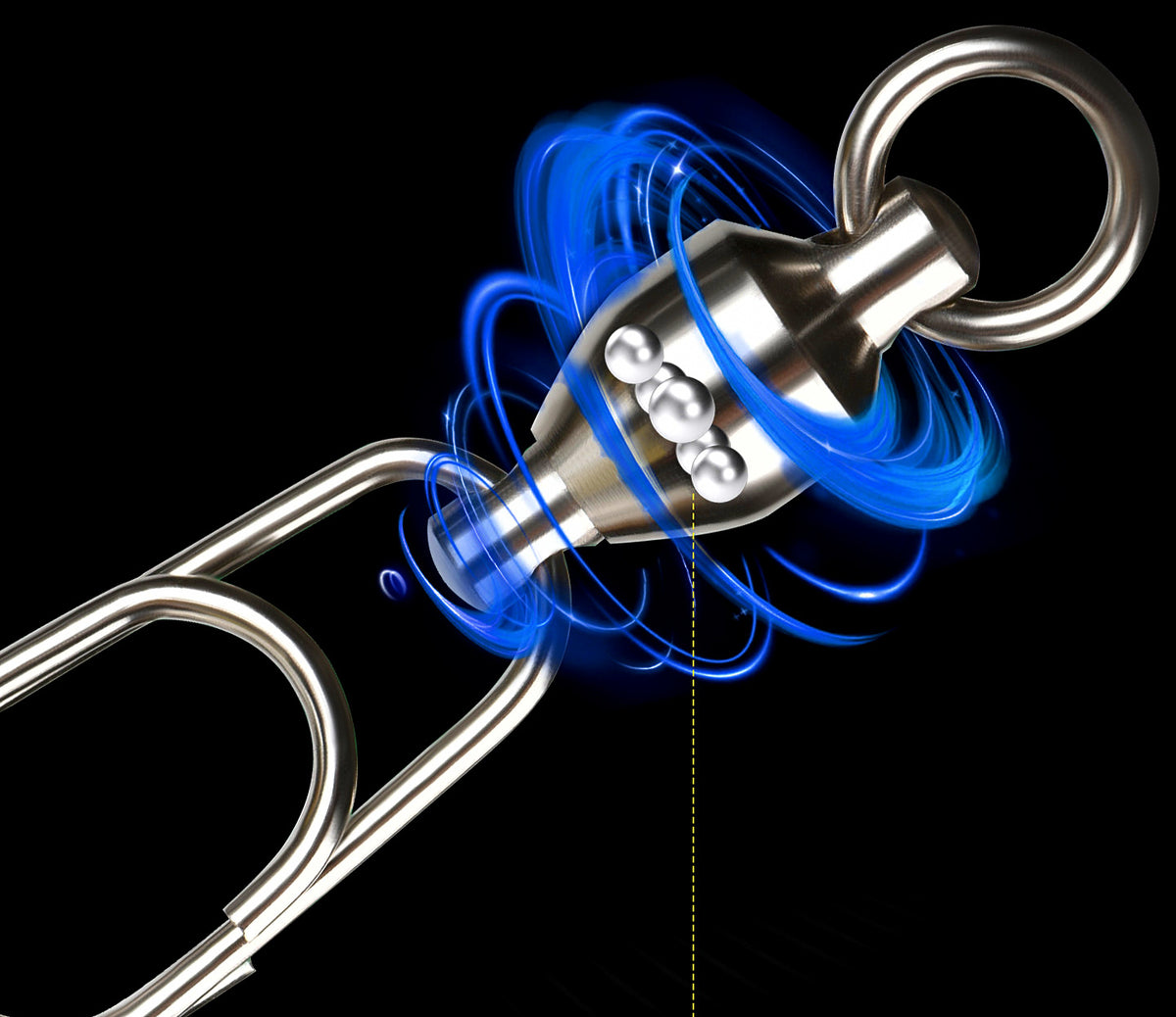

360° High-Speed Bearing Swivel
- High-speed rotation prevents fishing line tangling and knotting
- Built-in 5 steel ball bearings ensure smooth, high-speed rotation
Easy Manual Installation Swivel & Snap for Metal Jigs
- Releases line torque from fish movement to prevent tangles
- Bearing + Quick-Connect Snap design suitable for metal jigs, lures, saltwater fishing, surf casting, and sabiki rigs
- Matching recommendation: For light freshwater jigs, use size #3 or smaller snaps; for heavy saltwater jigs, use size #4 or larger snaps

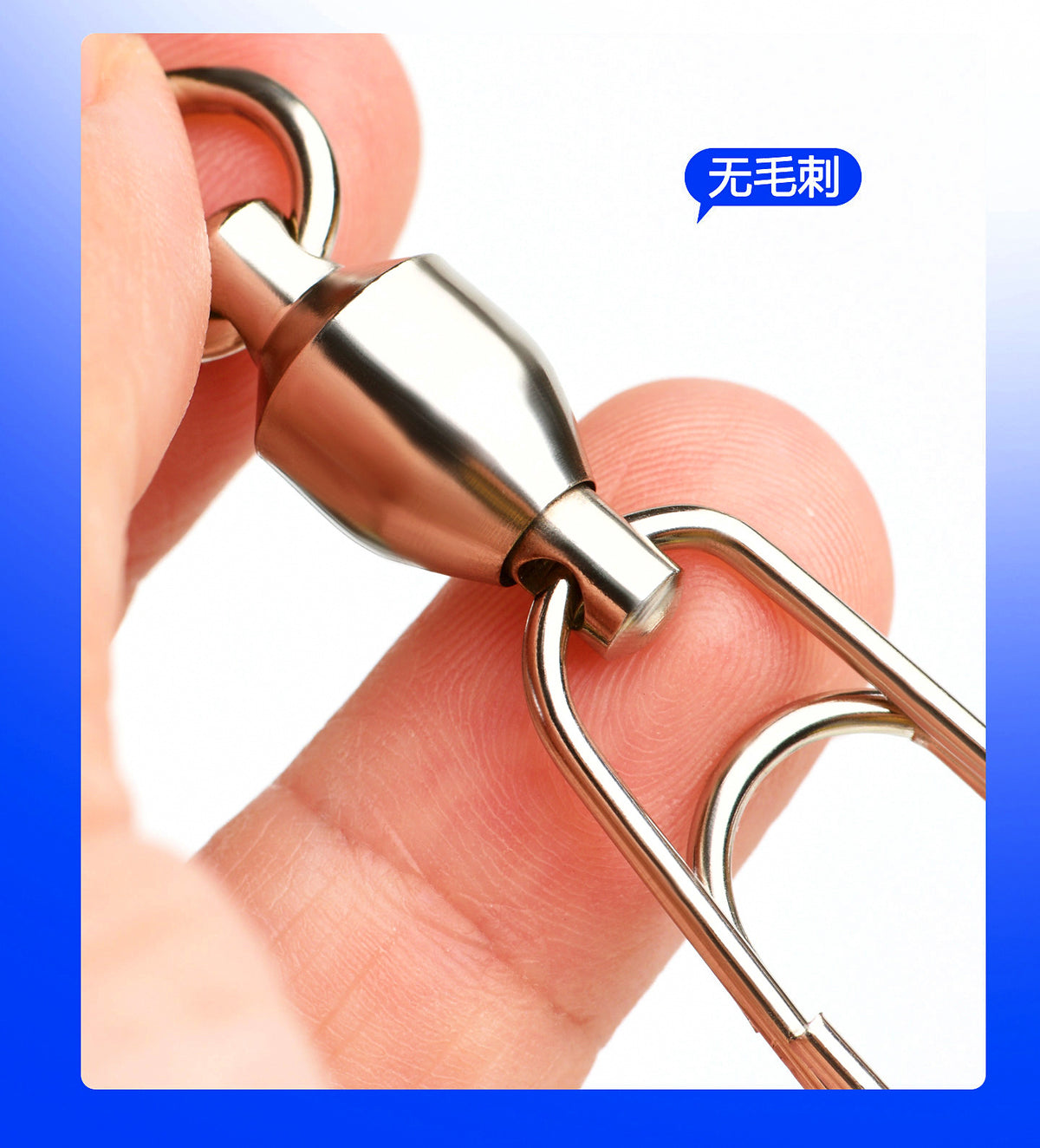

Precision Manufacturing for Smooth, Line-Safe Performance
- Fine polished smooth surface protects fishing line from damage
- Burr-free design with comfortable hand feel and long-lasting durability
Saltwater Corrosion-Resistant
- Electroplated oxidation treatment for durability in ocean environments
304 Stainless Steel Construction
- Precision-crafted from durable 304 stainless steel
- Rust-resistant, long-lasting, and high tensile strength
