Stainless Steel Seamless Solid Rings for Slow Jigging, 4–9 mm
$2.92
Specifications
Product specifications
Available options
| Size | 4 mm · 5 mm · 6 mm · 7 mm · 8 mm · 9 mm |
|---|---|
| Pack Qty | 12 pcs · 10 pcs · 8 pcs · 5 pcs |
Product Details
| Product Name | Seamless Solid Ring |
|---|---|
| Product Number | BCT-513 |
| Usage | Connect jig assist hook |
| Material | 304 Stainless Steel |
| Features | High strength, one-piece stamped, rust and corrosion resistant |
Solid Ring Specifications
| Wire Thickness (mm) | Inside Diameter (mm) | Outside Diameter (mm) | Unit Weight (g) | Pull Rating (kg) |
|---|---|---|---|---|
| 1.0mm | 4.0mm | 6.2mm | 0.11g | 60kg |
| 1.2mm | 5.0mm | 7.4mm | 0.17g | 100kg |
| 1.5mm | 6.0mm | 9.0mm | 0.35g | 150kg |
| 1.5mm | 7.0mm | 10.6mm | 0.45g | 160kg |
| 1.8mm | 8.0mm | 12.2mm | 0.70g | 200kg |
| 2.0mm | 9.0mm | 14.0mm | 1.17g | 260kg |
Due to different production batches and manual measurement, slight variations in product data may occur. Please refer to the actual received product.
Smooth Solid Ring
- Compact and lightweight
- Polished smooth finish
- Seamless welded construction
Product Parameters
- Product: Seamless Solid Ring
- Usage: Connect jig assist hook
Solid Ring Dimensions & Specifications
- Diagram shows Wire Thickness, Inside Diameter, and Outside Diameter measurements for solid terminal rings.
- Available in sizes ranging from 1.0mm to 2.0mm wire thickness with strength ratings up to 260kg.
304 Stainless Steel Solid Rings
- High-strength steel construction
- Made from 304 stainless steel
- One-piece stamped manufacturing for rust and corrosion resistance

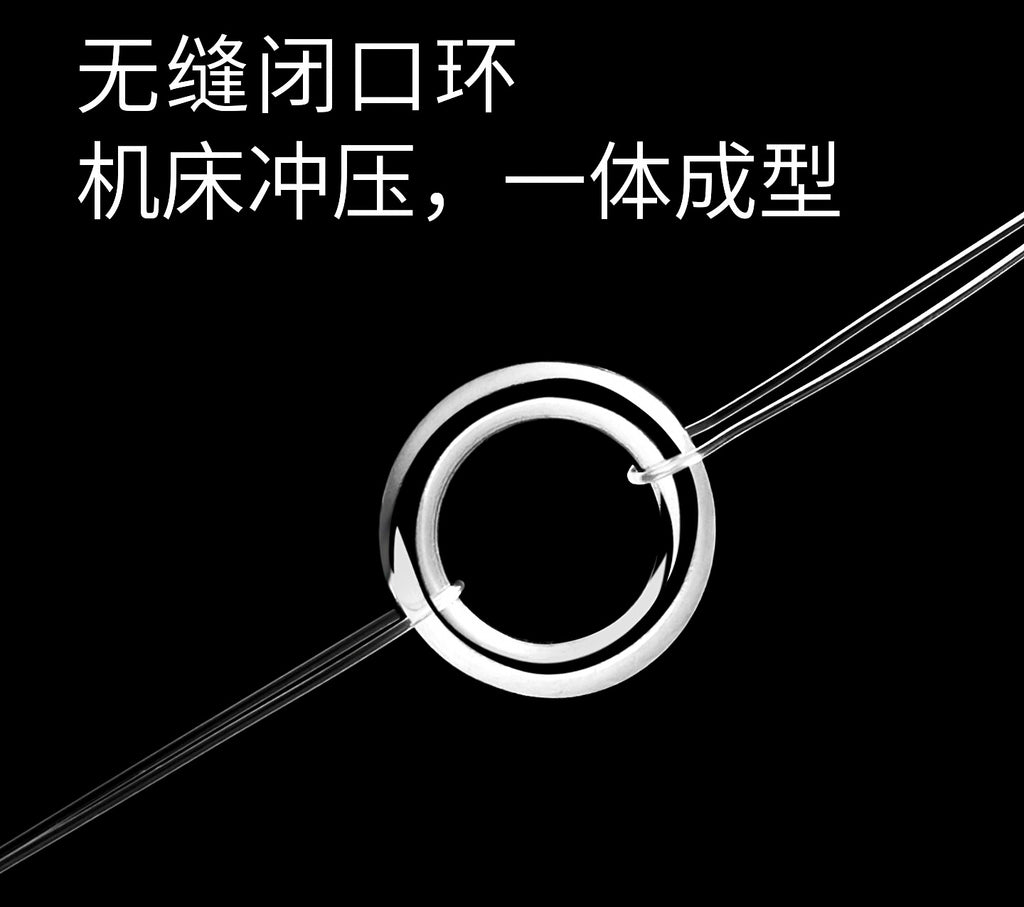

Seamless Solid Ring
- Stamped in one piece by machine press for seamless construction
- No weld points, offering higher strength and greater pulling power

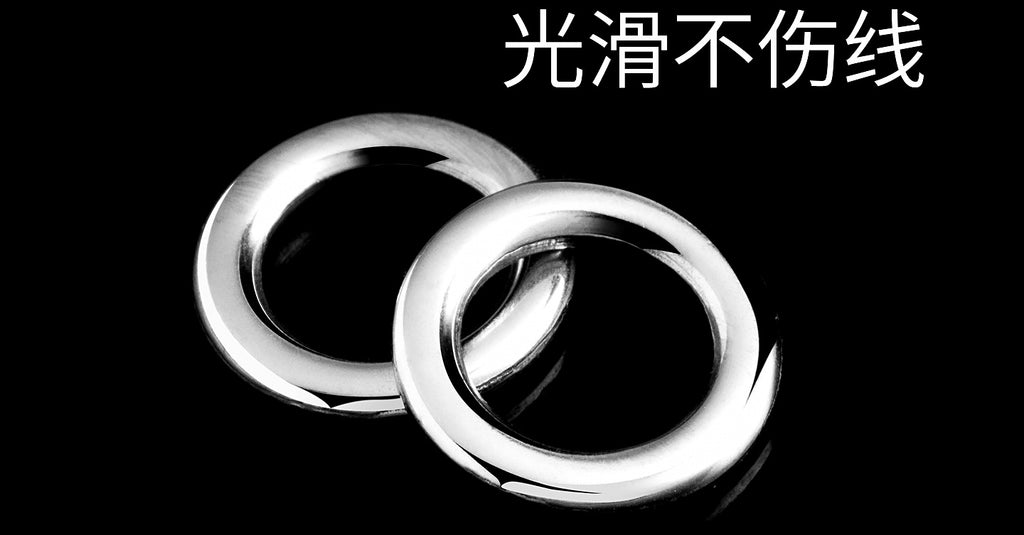

Polished and Ground Finish
- Smooth surface protects line from damage
- Polishing reduces line friction and resistance
- Thin and lightweight yet strong and durable construction

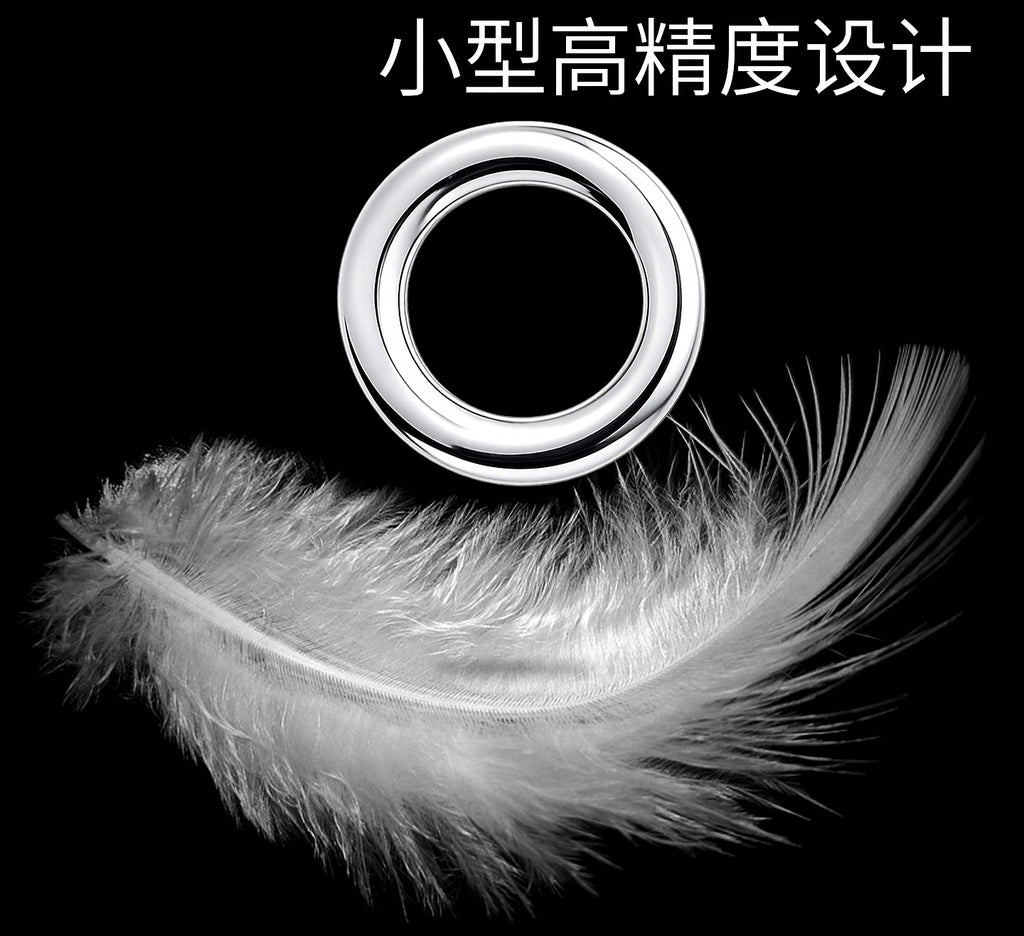

Compact High-Precision Design
- Reduced width and thickness, lightweight and ultra-thin design
