Steel T-Hook with Non-Slip Handle Sleeve, 15–120 cm (6–47 in)
$4.62
Specifications
Product specifications
Available options
| Length | 15 cm (5.9 in) · 20 cm (7.9 in) · 30 cm (11.8 in) · 40 cm (15.7 in) · 50 cm (19.7 in) · 60 cm (23.6 in) · 70 cm (27.6 in) · 80 cm (31.5 in) · 90 cm (35.4 in) · 100 cm (39.4 in) · 120 cm (47.2 in) · 25 cm (9.8 in) |
|---|---|
| Diameter | 8 mm (0.31 in) · 10 mm (0.39 in) · 12 mm (0.47 in) · 14 mm (0.55 in) · 16 mm (0.63 in) · 18 mm (0.71 in) · 20 mm (0.79 in) · 22 mm (0.87 in) |
| Tip | Blunt Tip · Tapered Point · Blunt Tip, No Grip Sleeve |
Product Details
| Rod Material | National standard rebar |
|---|---|
| Handle Type | Thickened 4-point round pipe |
| Hook Point Process | Forged and quenched |
| Hook Bending | Smooth cold-bent tip |
| Material | Hardened Rebar Steel |
| Features | Forged Quenched Tip |
| Length Options | 25, 35, 40, 50, 60, 70, 80, 90, 100 cm |
| Type | Manhole Cover Pull Hook |
| Application | Cement, iron, and sewer manhole covers |
| Handle Feature | Anti-slip rubber sleeve |
| Handle Length | Approx. 15 cm |
| Hook Bend Length | Approx. 5 cm |
| Tip Type | Quenched sharp tip |
Hook & Rod Load Capacity Guidelines
| Rod Thickness | Rod Pull Strength | Hook Head Load Capacity |
|---|---|---|
| 8 mm | 30 kg (66 lb) | 10 kg (22 lb) |
| 10 mm | 80 kg (176 lb) | 25 kg (55 lb) |
| 12 mm | 110 kg (242 lb) | 50 kg (110 lb) |
| 14 mm | 150 kg (330 lb) | 75 kg (165 lb) |
| 16 mm | 175 kg (385 lb) | 90 kg (198 lb) |
| 18 mm | 195 kg (430 lb) | 95 kg (209 lb) |
| 20 mm | 200 kg (440 lb) | 100 kg (220 lb) |
| 22 mm | 225 kg (496 lb) | 120 kg (264 lb) |
Note: Use only for lifting manhole covers directly, do not pry. Ensure the hook fully engages into the cover hole before pulling to prevent bending or breakage.
Usage Guidelines & Thickness Selection Guide
- Light shutter doors/light cargo: 8 mm or 10 mm rod.
- Manhole covers <60 cm: 10 mm or 12 mm rod.
- Manhole covers 60–70 cm (or iron covers <1 m): 12 mm or 14 mm rod.
- Manhole covers >70 cm: 22 mm rod.
- Rod made of national standard rebar
- Handle made of thickened 4-point round pipe
- Hook point forged and quenched; smooth cold-bent tip without sharp points
Hardened Rebar Manhole Cover Hook
- Forged quenched tip for maximum strength and durability
- Equipped with a comfortable non-slip rubber handle cover
- Multiple thicknesses and bar lengths available (25 to 100 cm)
Manhole Cover Pull Hook
- Designed for lifting cement, iron, and sewer manhole covers
- Features anti-slip rubber handle sleeves for improved grip
- Solid rebar rod anchor peg/hook
- Available with flat (no point) or cone point tip

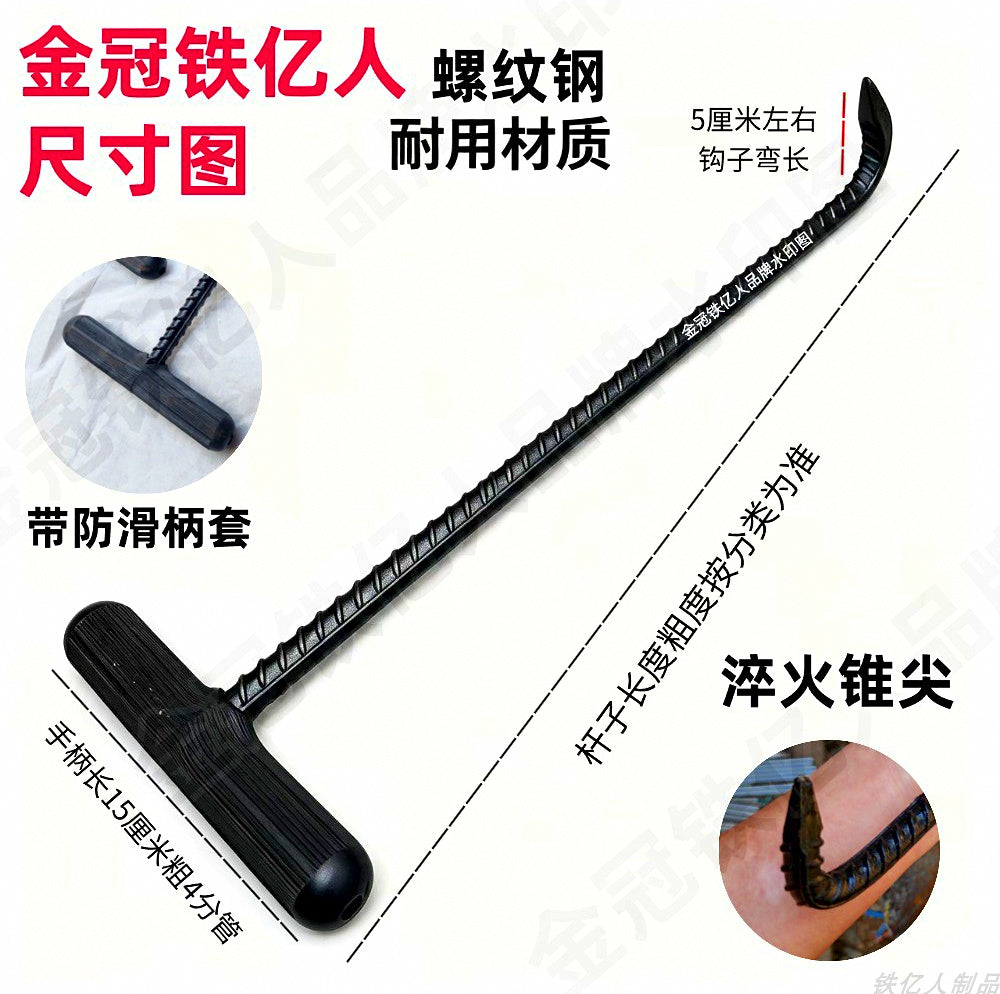

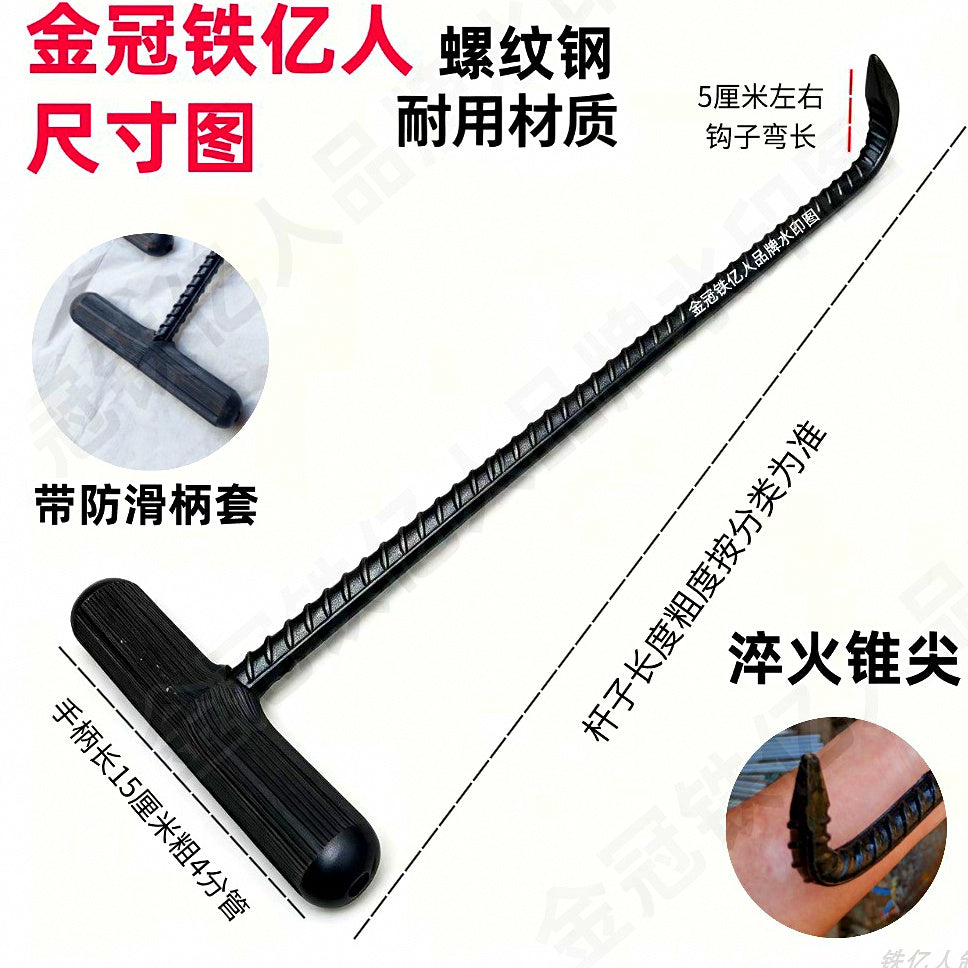

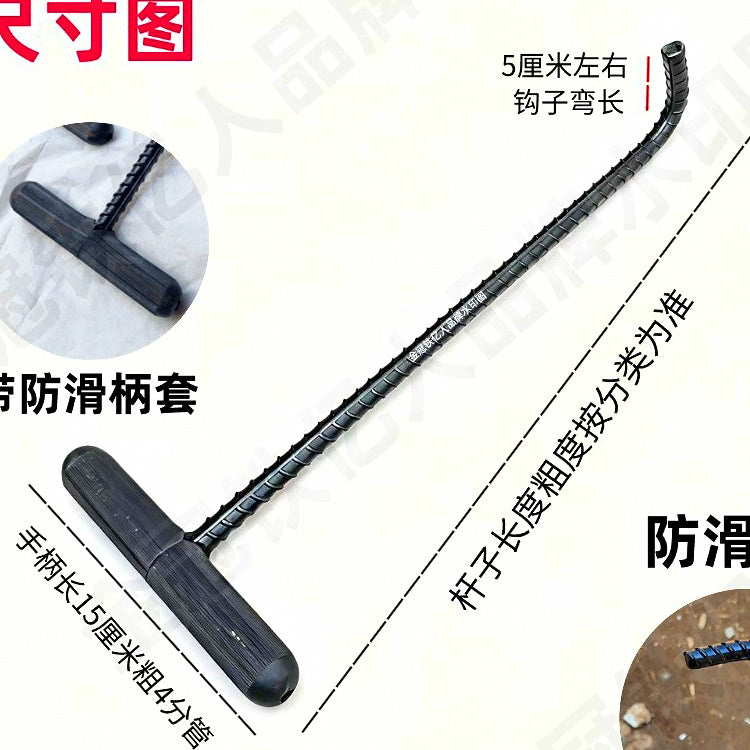

Size Diagram & Key Features
- Quenched/hardened sharp tip
- Non-slip handle sleeve included
- Handle length approx. 15 cm (thick 4-point pipe)
- Hook bend length approx. 5 cm; rod length categorized by size/thickness
