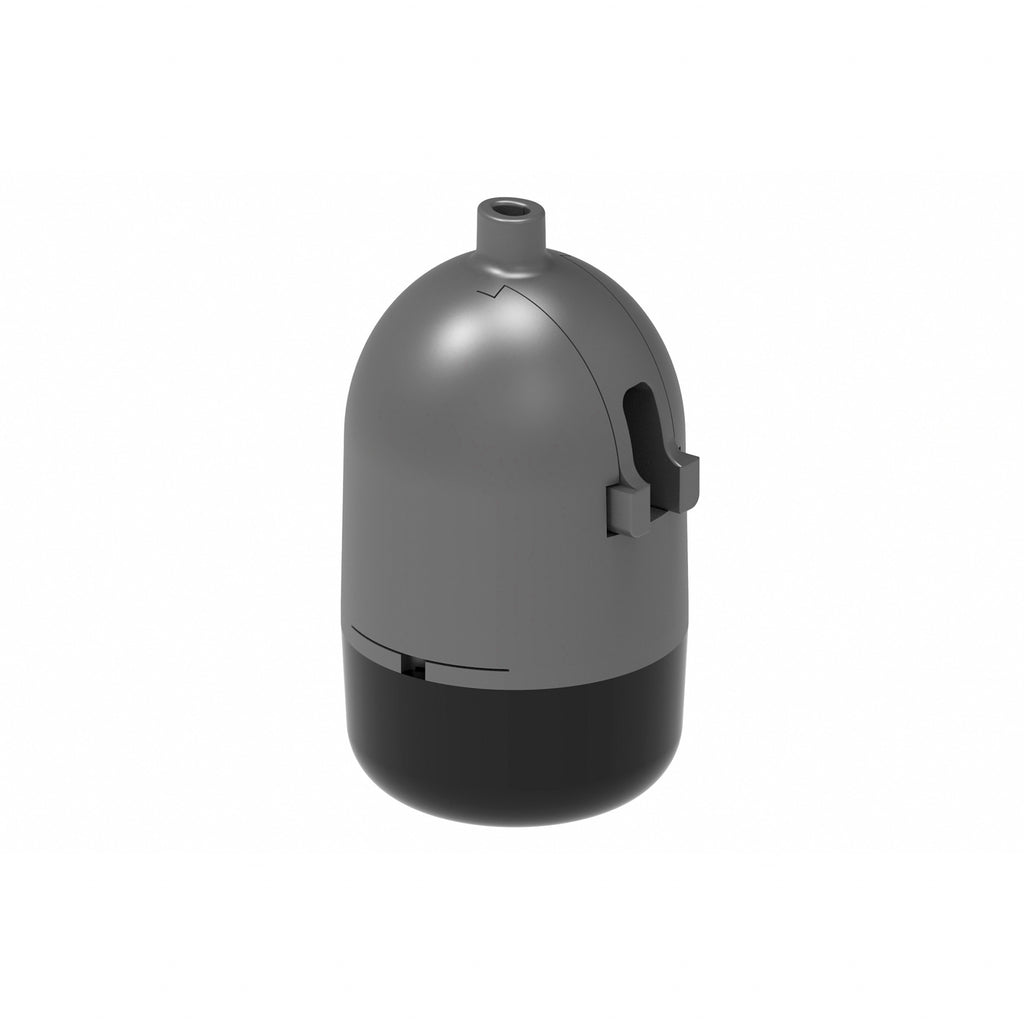

Tumbler Running Sinker Rig, 2–30 g

Specifications

Product specifications

Available options

Weight	0.07 oz (2 g) · 0.11 oz (3 g) · 0.14 oz (4 g) · 0.18 oz (5 g) · Mixed 0.07–0.21 oz (2/3/4/5/6 g) · 0.21 oz (6 g) · Mixed 0.11–0.28 oz (3/4/5/6/8 g) · 0.28 oz (8 g) · 0.35 oz (10 g) · Mixed 0.14–0.35 oz (4/5/6/8/10 g) · Mixed 0.18–0.42 oz (5/6/8/10/12 g) · 0.42 oz (12 g) · Mixed 0.21–0.53 oz (6/8/10/12/15 g) · 0.53 oz (15 g) · Mixed 0.28–0.71 oz (8/10/12/15/20 g) · 0.71 oz (20 g) · 1.06 oz (30 g) · Mixed 0.35–1.06 oz (10/12/15/20/30 g)
Pack Size	5 pcs · 10 pcs

Weight

0.07 oz (2 g) · 0.11 oz (3 g) · 0.14 oz (4 g) · 0.18 oz (5 g) · Mixed 0.07–0.21 oz (2/3/4/5/6 g) · 0.21 oz (6 g) · Mixed 0.11–0.28 oz (3/4/5/6/8 g) · 0.28 oz (8 g) · 0.35 oz (10 g) · Mixed 0.14–0.35 oz (4/5/6/8/10 g) · Mixed 0.18–0.42 oz (5/6/8/10/12 g) · 0.42 oz (12 g) · Mixed 0.21–0.53 oz (6/8/10/12/15 g) · 0.53 oz (15 g) · Mixed 0.28–0.71 oz (8/10/12/15/20 g) · 0.71 oz (20 g) · 1.06 oz (30 g) · Mixed 0.35–1.06 oz (10/12/15/20/30 g)

Pack Size

5 pcs · 10 pcs

Product Details

Type	Tumbler Running Sinker Rig
Sinker Recommendation	2–6 g heavier than float buoyancy
Feature	Anti-snag, Snag-resistant
Included Accessories	2 Snap Clips per sinker
Unit of Measurement	cm
Features	Anti-bottom snagging design, includes two clips per sinker
Height	3.4 cm
Note	Manual measurement; slight variations may occur.

Available Models

Sinker Weight (g)	2g	3g	4g	5g	6g	8g	10g	12g	15g	20g	30g
Rec. Main Line	#1.2	#1.5	#2.0	#2.5	#3.0	#3.5	#4.0	#5.0	#6.0	#7.0	#8.0
Rec. Fish Weight	0.5–0.75 kg (1.1–1.65 lb)	0.75–1.0 kg (1.65–2.2 lb)	1.0–1.25 kg (2.2–2.75 lb)	1.0–1.5 kg (2.2–3.3 lb)	1.0–2.0 kg (2.2–4.4 lb)	1.5–2.5 kg (3.3–5.5 lb)	2.0–3.0 kg (4.4–6.6 lb)	2.5–4.0 kg (5.5–8.8 lb)	3.0–5.0 kg (6.6–11 lb)	2.5–7.5 kg (5.5–16.5 lb)	4.0–9.0 kg (8.8–19.8 lb)

Sinker Dimensions & Specifications

Weight (g)	Height (cm)	Width (cm)
2g	3.4	0.8
3g	3.4	0.9
4g	3.4	0.96
5g	3.4	1.04

Dimensions are measured manually; please refer to the actual product if slight variations exist.

Sinker Specifications

Weight (g)	Height (cm)	Width (cm)
15	3.4	1.5
20	3.4	1.7
30	3.6	2.0

All dimensions are measured manually; please refer to the actual product if there is a slight error.

Self-Standing Running Sinker Rig

Tumbler-style design that automatically stands upright underwater
Double-buckle quick-install design, compatible with pre-tied rig lines
Smooth line pass-through without sharp angles for maximum sensitivity

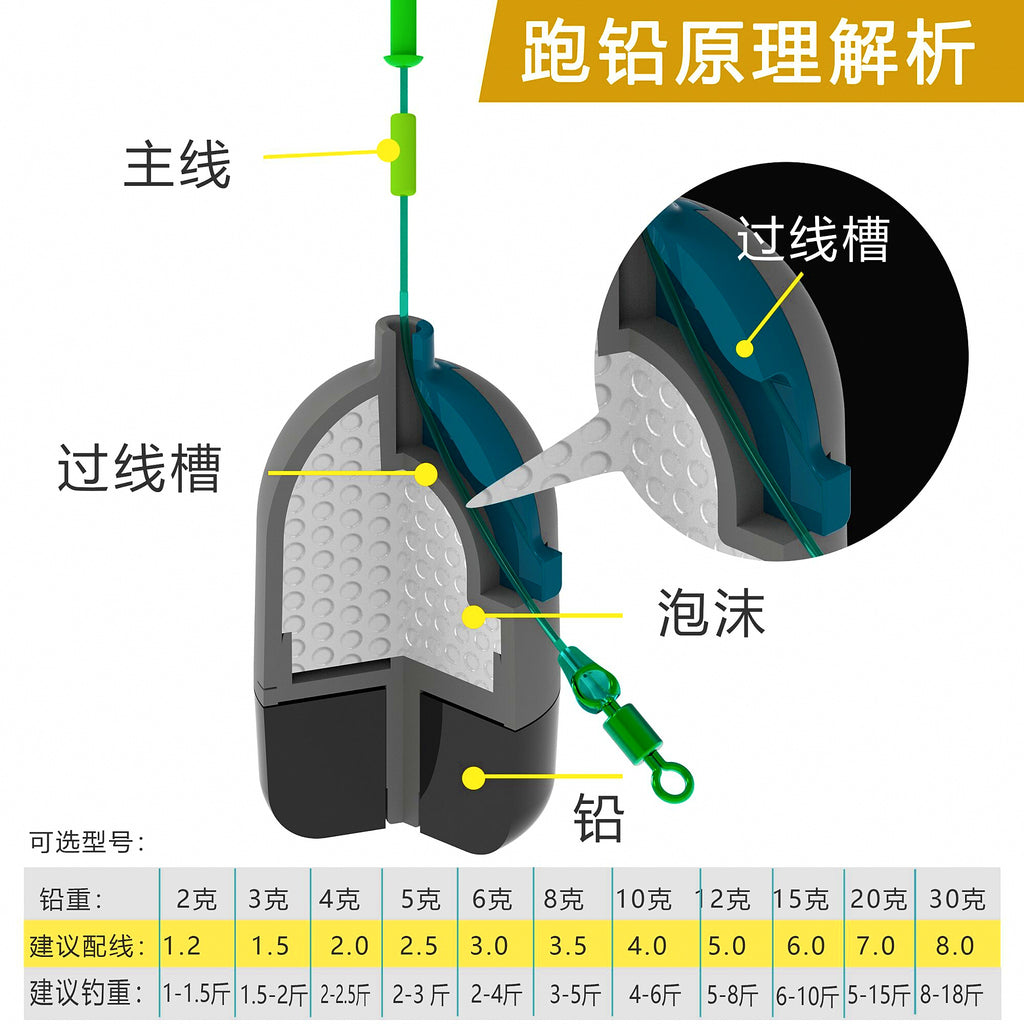

Running Lead Sinkers Structure & Line Guide Diagram

Features a smooth inner line channel for friction-free movement.
Internal foam core for buoyancy balance and protective lead weight construction.
Main line connects through the sinker to a barrel swivel for quick rig setup.

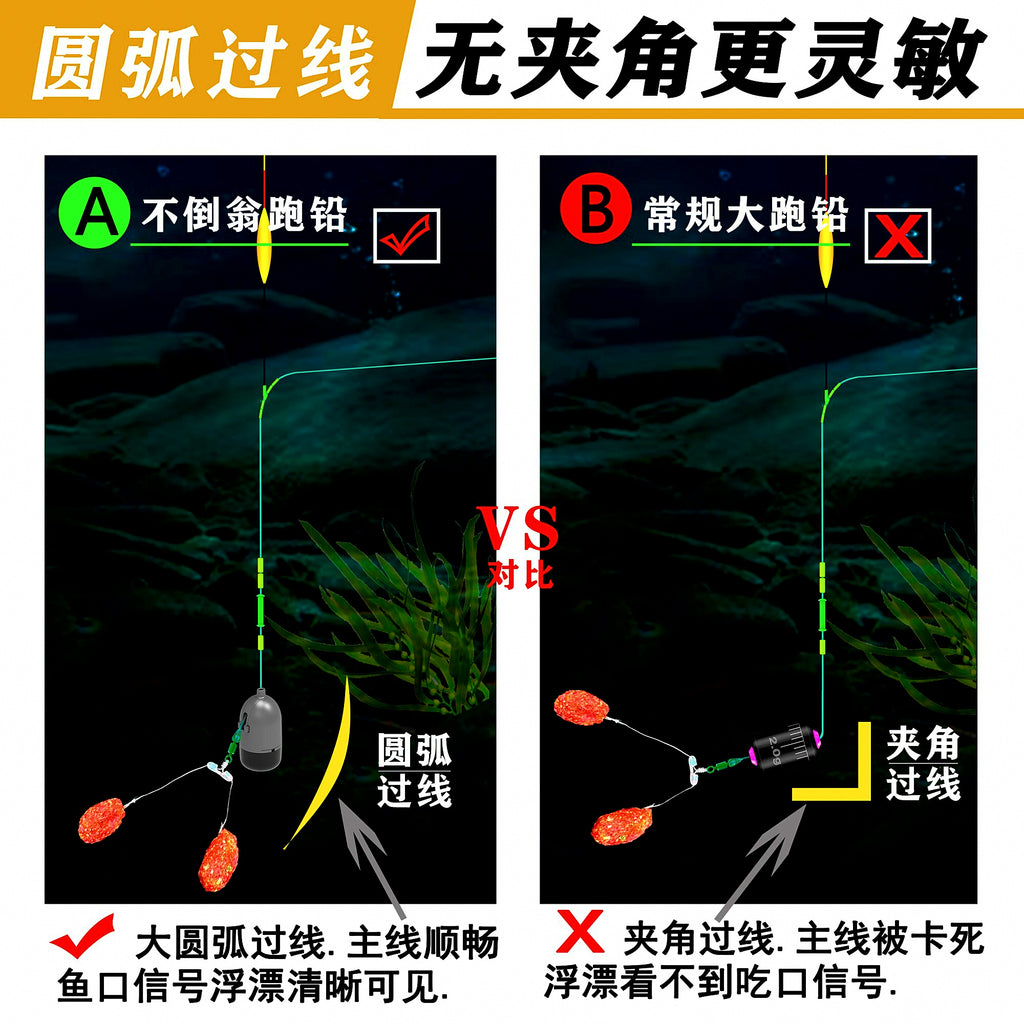

Smooth Arc Passing vs. Angle Crossing

Option A (Tumbler Running Sinker): Large smooth arc line passing allows smooth main line movement and highly sensitive float signals.
Option B (Conventional Running Sinker): Angle line crossing causes the main line to stick, preventing bite signals from showing on the float.

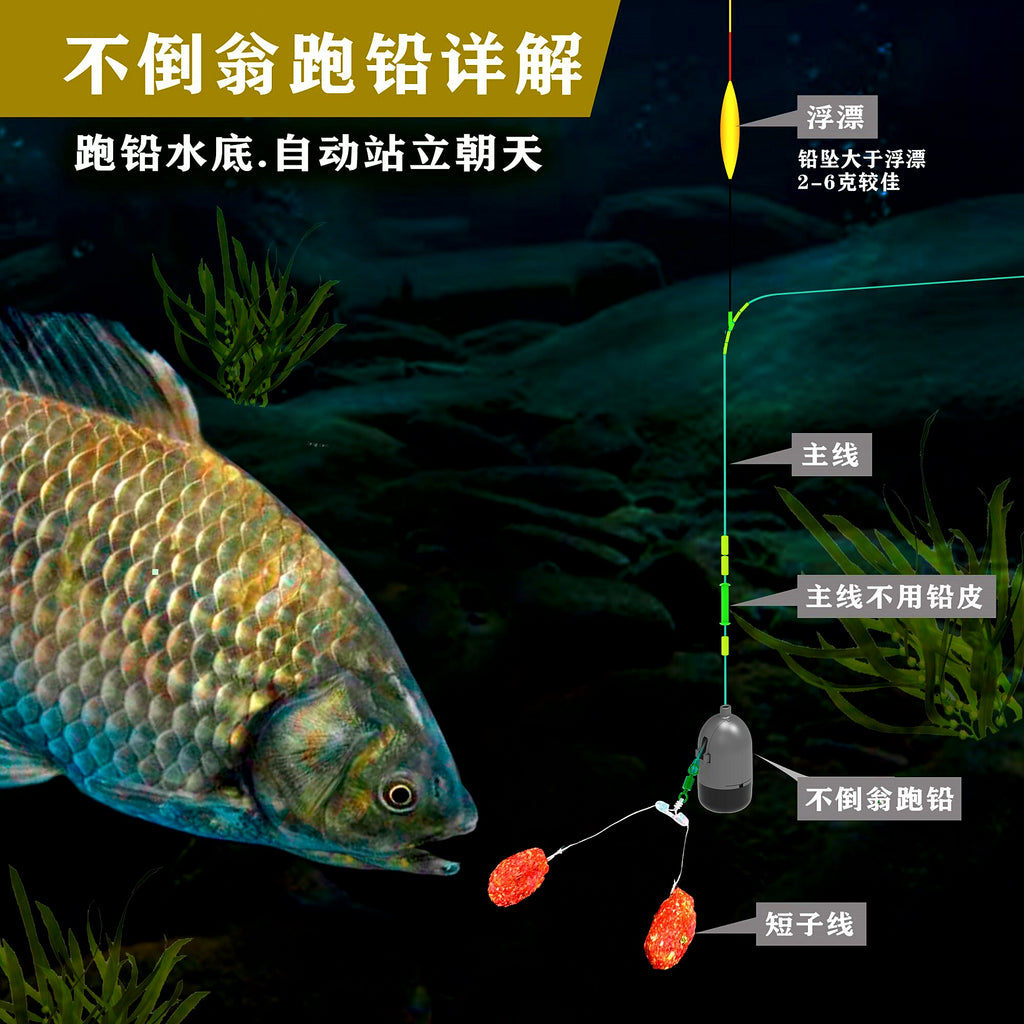

Tumbler Running Sinker Rig Setup

Rig layout features a float, main line, leadless main line section, tumbler running sinker, and short snells.
Float recommendation: Sinker weight should be 2–6 g heavier than float buoyancy.
The tumbler sinker stays upright on the river/lake bed automatically.

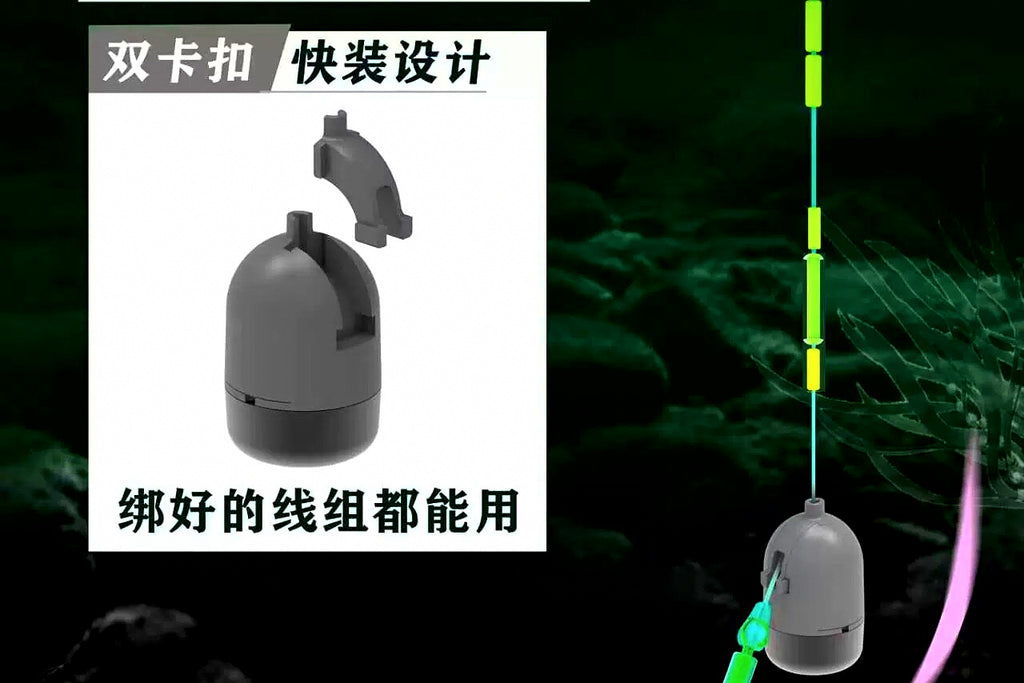

Easy Disassembly and Reusable Sinker Design

Curved line slot allows smooth line movement without damaging the fishing line.
Step 1: Squeeze the clip to insert the line.
Step 2: Align with the T-slot and press tight.
Step 3: Locks securely once it reaches the catch position.
Can be installed and used on both hook leaders and main lines.

Snag-Resistant Detachable Running Sinker Specifications

Features detachable design with two snap clips per sinker
Available weights: 2g, 3g, 4g, and 5g
All weight sizes have a height of 3.4 cm
Width dimensions range from 0.8 cm to 1.04 cm depending on weight

Detachable Anti-Snag Running Sinker

Designed for anti-bottom snagging with detachable structure.
Each running sinker comes with two line clips.
Dimensions in centimeters; height is 3.4 cm across all sizes.
Widths: 6g (1.09 cm), 8g (1.18 cm), 10g (1.27 cm), 12g (1.36 cm).

Detachable Obstacle-Avoidance Running Sinker

Designed for snag-free bottom fishing with detachable quick-change structure.
Each sinker set comes with 2 positioning stops (clips).
Available weights and dimensions: 15g (Height: 3.4 cm, Width: 1.5 cm), 20g (Height: 3.4 cm, Width: 1.7 cm), 30g (Height: 3.6 cm, Width: 2.0 cm).
For mixed weight packs, select directly when purchasing.

Main Line Central Channel Running Sinker

Designed with a central channel for the main line to pass directly through the sinker
Integrated line and sinker structure prevents snell/leader tangling during casting
Eliminates swivel steps that cause line tangles on traditional running sinker setups

Suitable for Multiple Fishing Methods

Quick attachment and easy setup—switch seamlessly between various fishing techniques
Compatible with station fishing, rock fishing, boat lure fishing, raft fishing, bridge fishing, and casting rods
