Wood-Grain Baitcasting Reel Handle Knob, Left or Right Hand
$7.34
Specifications
Product specifications
Available options
| Handle Side | Left Hand · Right Hand |
|---|---|

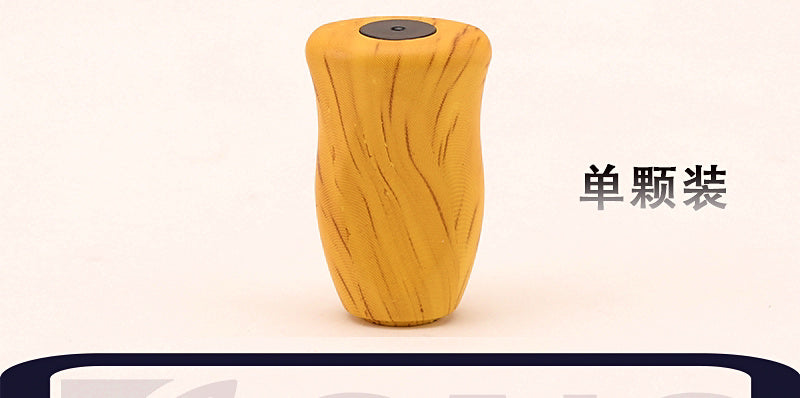

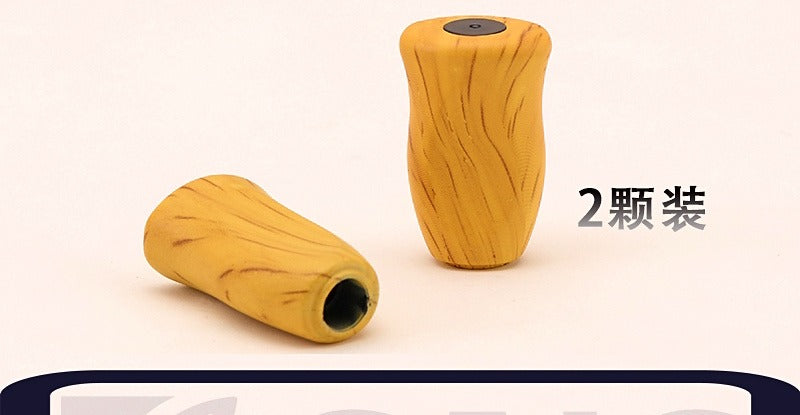

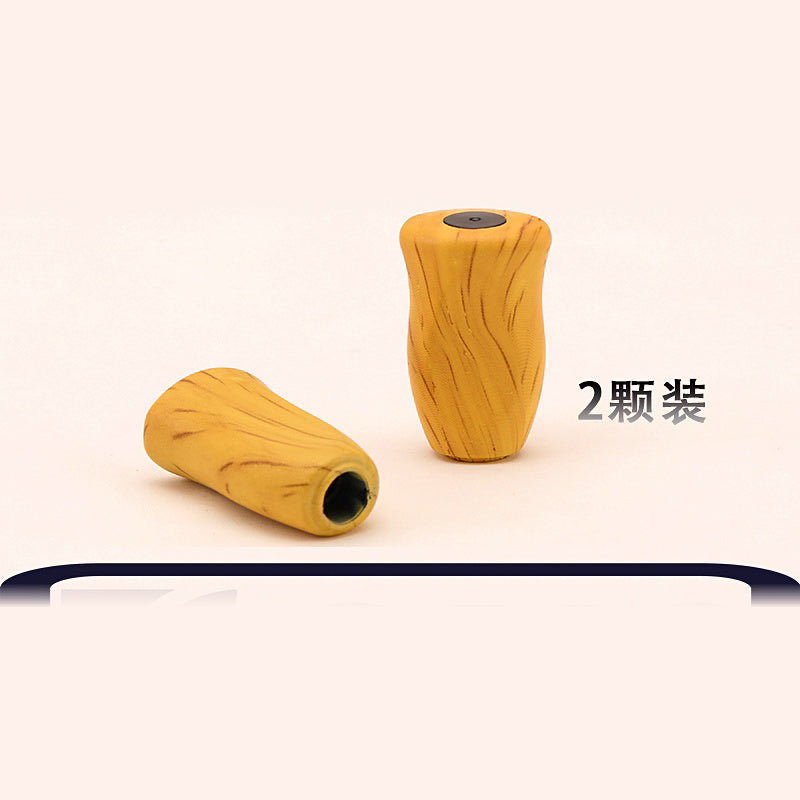

| Style | Single Knob · 2-Knob Set · Adapter Kit A · Adapter Kit B · Adapter Kit for Other Reels |
Product Details
| Compatibility | Reels (4mm shaft diameter) |
|---|---|
| Weight | 4.9g |
| Color | Wood grain pattern |
| Item No. | sm-36 |
| Length | 33 mm |
| Height | 20.5 mm |
| Material | Nylon |
Product Parameters
| Item No. | Weight (g) | Length (mm) | Material |
|---|---|---|---|
| sm-36 | 4.9g | 33mm | Nylon |
All parameters are manually measured; slight variations may exist.

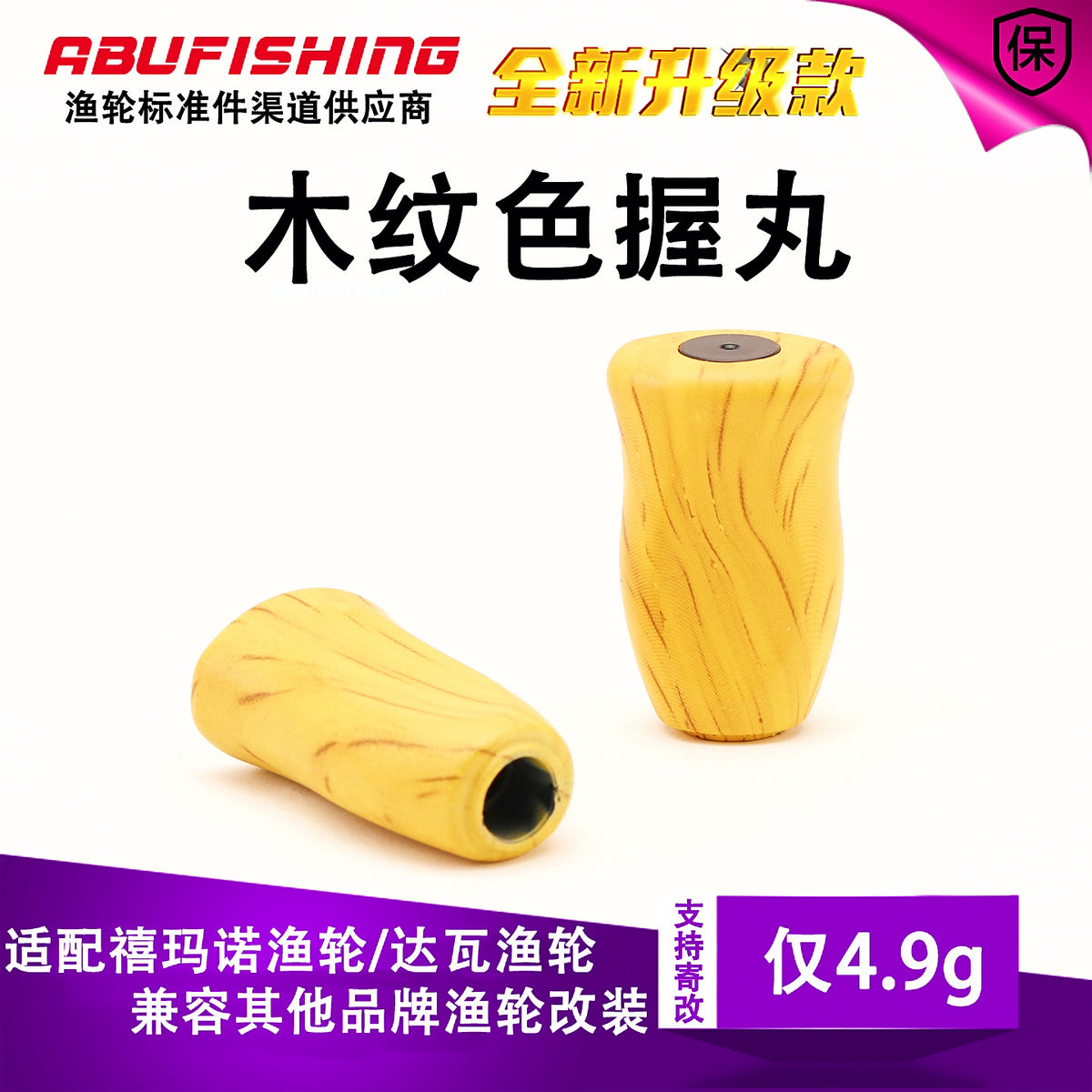

Wood Grain Reel Handle Knob
- Fits fishing reels with 4mm shaft diameter
- Ultralight design, weighing only 4.9g
Wood-grain nylon knob handle - Lightweight and comfortable

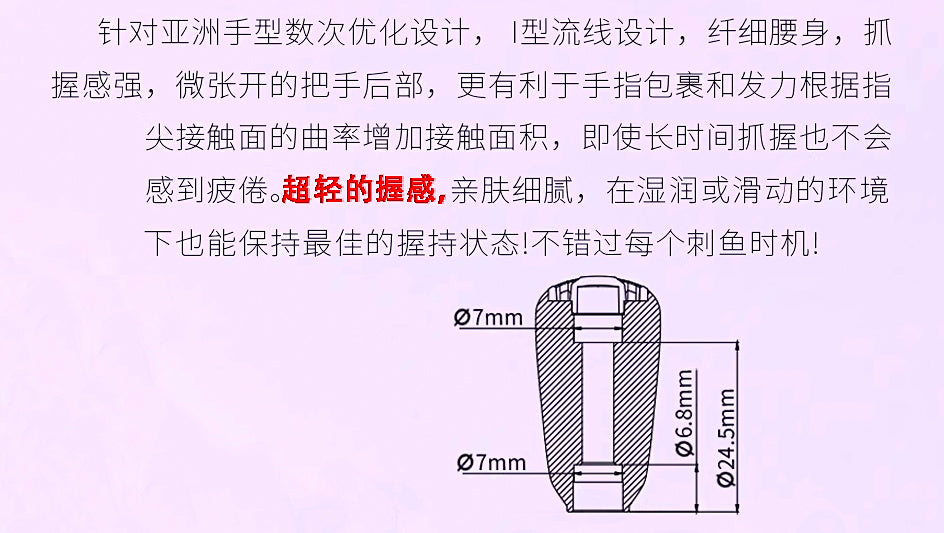

- Optimized for ergonomic grip with an I-shaped streamlined, slim-waist design.
- Flares slightly at the rear for better finger wrap and leverage.
- Curved fingertip contact surface increases contact area to reduce fatigue during long use.
- Ultra-lightweight feel with a skin-friendly, smooth texture.
- Maintains optimal grip even in wet or slippery conditions.
Product Parameters
- Item No.: sm-36
- Weight: 4.9g
- Length: 33mm
- Height: 20.5mm
- Material: Nylon
- Note: Manual measurement, slight margin of error may exist.

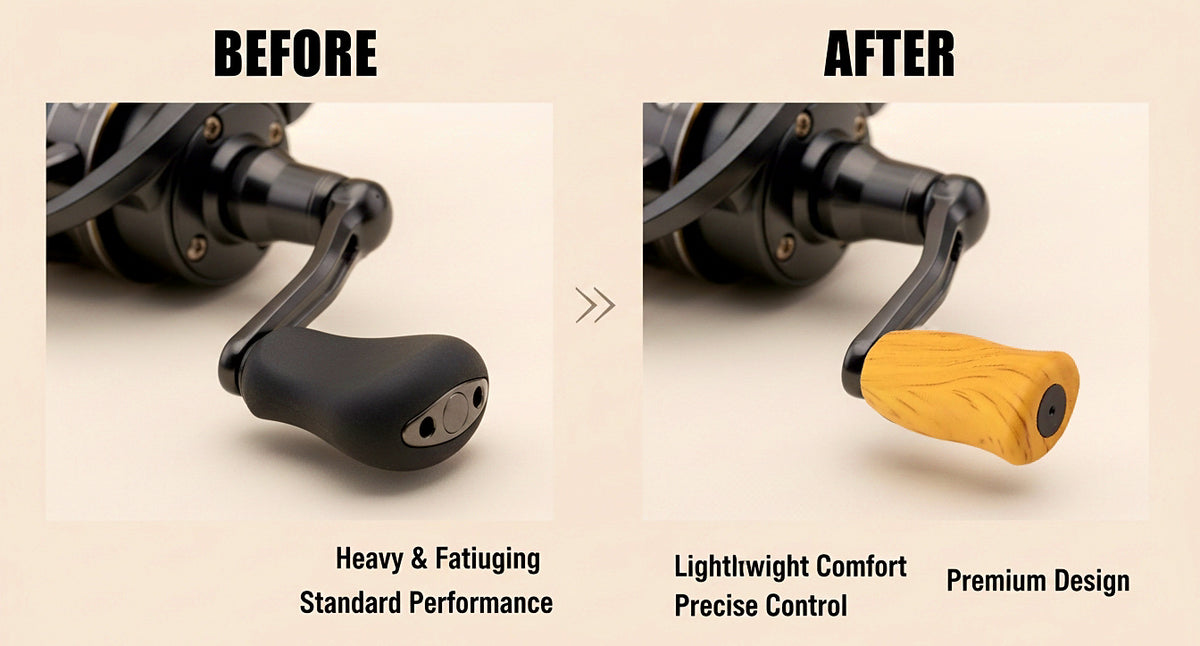

Handle Knob Upgrade
- Lightweight comfort and precise control for enhanced fishing performance
- Premium wooden design replacement knob
Installation Diagram
- Diagram 1 (lower shaft installation): Handle arm, shaft, bushing/bearing, bearing, knob, bearing, washer, screw, knob cap.
- Diagram 2 (higher shaft installation): Handle arm, shaft, bearing, knob, bearing, washer, screw, knob cap.
Handle Knob Installation Instructions
- Step 1: Prepare tools and materials including a screwdriver, replacement handle knob, bearings, washers, bushings, and other fittings.
- Step 2: Remove the original handle knob by unscrewing the fixing screw located under the cap on either side.
- Step 3: Install new handle knob fittings in sequence starting with a washer at the base of the handle arm, followed by bushings, sleeves, and bearings as required.
- Step 4: Slide the new knob onto the shaft and align it with the handle arm mounting hole.
- Step 5: Adjust play by tightening the top screw and testing rotation. Add or reduce washer thickness to achieve smooth rotation without excess play.
- Step 6: Securely tighten the top screw and reattach the decorative cap/screw if applicable.
Compatibility Chart
- Compatibility: Aldebaran, ANTARES DC, Bantam, Curado, CQ100-201, Exsense DC, Metanium, SLX DC, Scorpion
- Compatibility: Alphas, Barchetta, Morethan, SALAMANDURA, Steez, TATULA, Zillion, EXIST, AIRITY, CERTATE, PRESSO, LUVIAS, CALDIA LT
Simplified Reel Customization
- Professional R&D and high-end customization according to original reel specifications, offering original-factory compatibility
- Processed with top-tier manufacturing resources for upgraded materials, refined craftsmanship, reliable quality, and higher cost performance
- Hand-inspected and real-reel tested to ensure precise details and optimal performance for anglers
