Specifications
Product specifications
Available options
| Color | Black · Natural Steel |
|---|---|
| Pack Size | 1000 pcs · 100 pcs |
| Size | 3/0 · #14 · 1/0 · #12 · #7 · #5 · #1 · 2/0 · #6 · #10 · #4 · #8 · #3 · #2 |
Product Details
| Material | Brass + 304 Stainless Steel |
|---|---|
| Features | Rust-resistant, Anti-corrosion |
| Color Options | Black, Original |
Swivel Specifications
| Size | #14 | #12 | #10 | #8 | #7 | #6 | #5 | #4 | #3 | #2 | #1 | 1/0 | 2/0 | 3/0 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Length (mm) | 8 | 9 | 10 | 11 | 12 | 12.9 | 14.3 | 15.5 | 16 | 16.8 | 19 | 21 | 23 | 27 |
| Breaking Strength | 10 kg (22 lb) | 13 kg (28.7 lb) | 16 kg (35.3 lb) | 18 kg (39.7 lb) | 22 kg (48.5 lb) | 26 kg (57.3 lb) | 32 kg (70.5 lb) | 36 kg (79.4 lb) | 39 kg (86 lb) | 46 kg (101.4 lb) | 55 kg (121.3 lb) | 68 kg (149.9 lb) | 82 kg (180.8 lb) | 110 kg (242.5 lb) |
| Weight (g) | 0.04 | 0.06 | 0.08 | 0.11 | 0.15 | 0.17 | 0.25 | 0.32 | 0.39 | 0.49 | 0.63 | 0.86 | 1.2 | 1.7 |
| Barrel Outer Diameter (mm) | 1.5 | 1.8 | 2 | 2.3 | 2.5 | 2.8 | 3.1 | 3.4 | 3.7 | 4 | 4.4 | 4.8 | 5.3 | 5.7 |
| Ring Wire Diameter (mm) | 0.45 | 0.5 | 0.55 | 0.6 | 0.65 | 0.7 | 0.75 | 0.8 | 0.85 | 0.9 | 1 | 1.1 | 1.3 | 1.5 |
| Ring Inner Diameter (mm) | 2.1 | 2.3 | 2.5 | 2.8 | 3.3 | 3.6 | 3.8 | 4.3 | 4.5 | 4.8 | 5.3 | 6 | 6.8 | 7.8 |

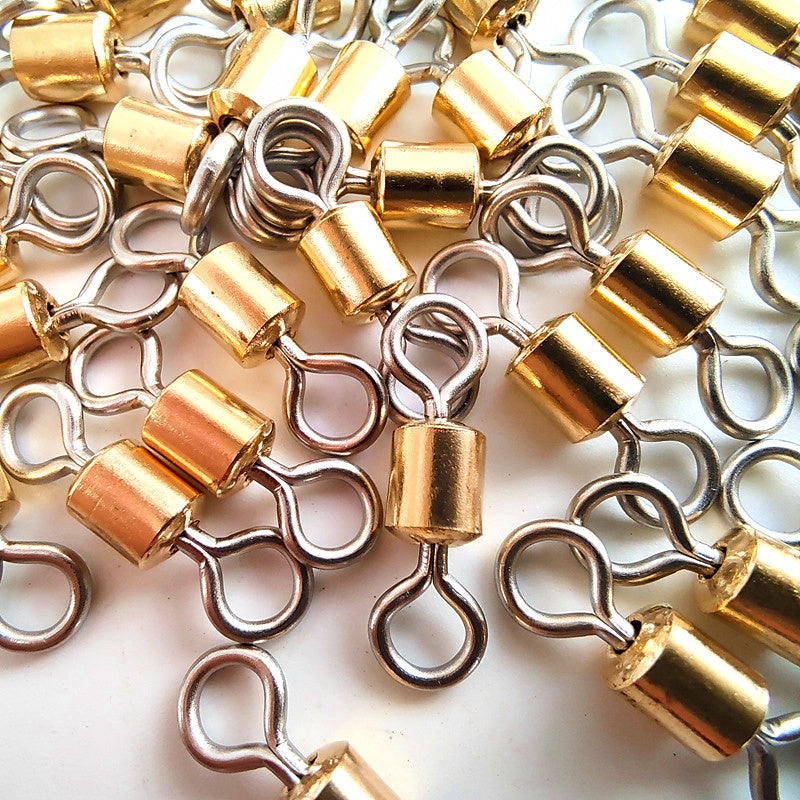

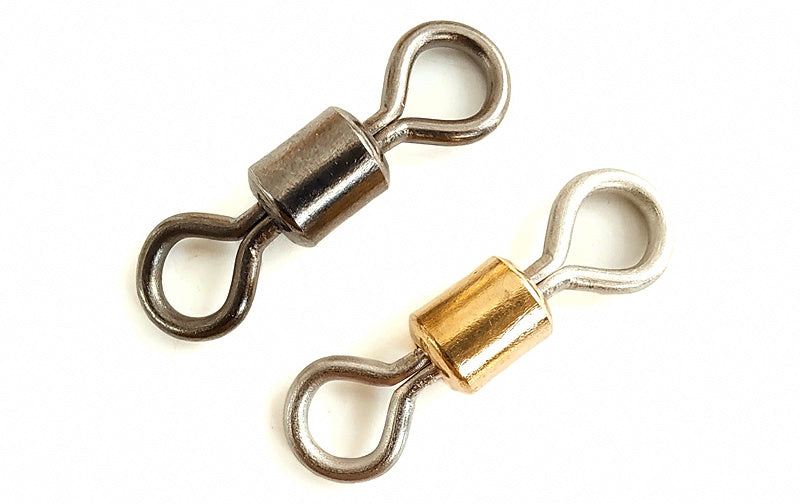

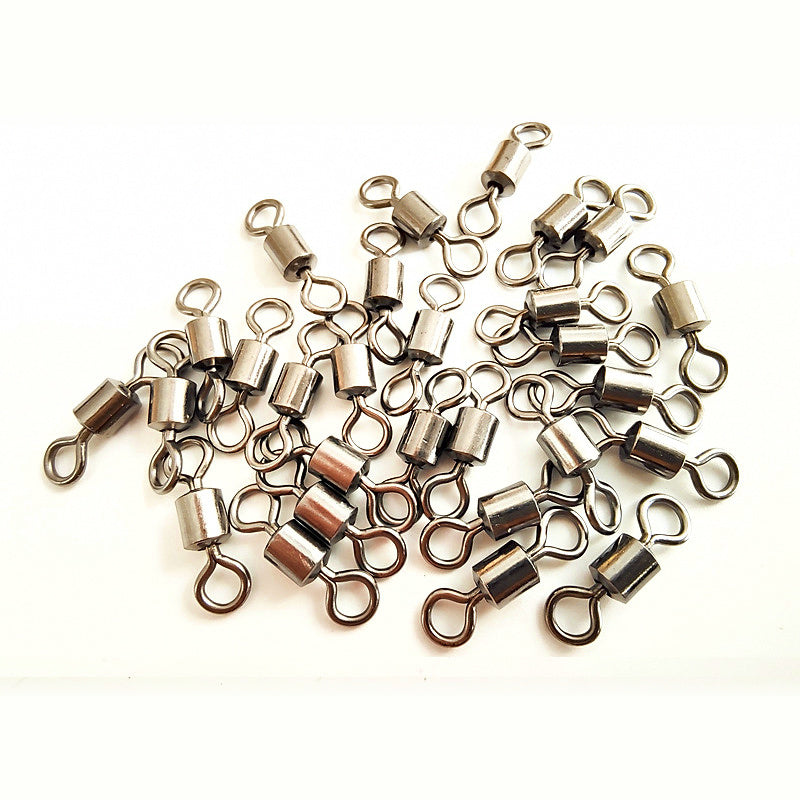

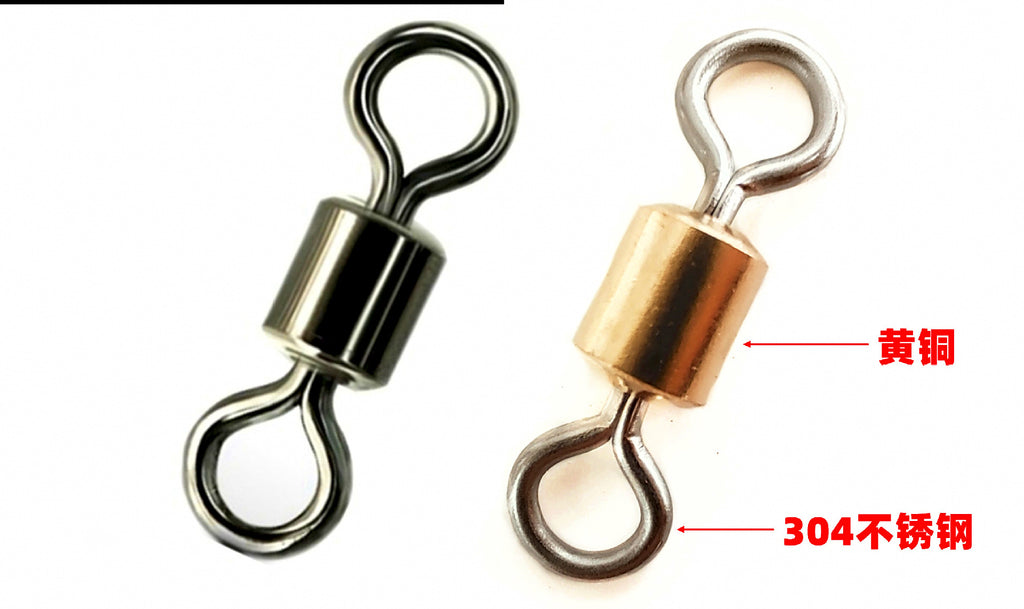

Copper and 304 Stainless Steel Swivels
- Brass center barrel construction
- 304 stainless steel ring eyes for high strength and corrosion resistance
- Available in Black and Original finish
- Rust-proof and anti-corrosion design for long-lasting use in saltwater and freshwater
Fishing Swivels Size & Parameter Chart
- Available in Black and Original Brass finishes across sizes #14 to 3/0.
- Comprehensive specification chart includes dimensions, weight, and breaking strength in kg/lb.
Fishing Swivels
- Brass barrel swivel and dark nickel barrel swivel options
- Brass construction
- Permanently rust-resistant
- Stainless steel barrel swivels
