Specifications
Product specifications
Available options
| Spool | Plastic Spool · Metal Spool |
|---|---|
| Color | Blue · Red · Purple · Black · Red/Black · Dark Black · Purple/Black · Gold/Black · White/Black · Blue/Black · Red Pattern |
| Hand | Left Hand · Right Hand |
Product Details
| Product Box Size | 13.5 * 11 * 6.5 cm |
|---|---|
| Outer Carton Size | 58.5 * 29 * 35 cm |
| Packaging Quantity | 50 pcs / carton |
| Type | Long-casting baitcasting reel |
| Application | Versatile / All water types |
| Target Level | Beginner recommended |
| Brake System | Double-row magnetic brake |
| Max Drag | 8 kg (17.6 lb) |
| Gear Ratio | 7.2:1 high speed |
| Feature | Fast retrieve, backlash prevention |
| Models Available | Metal model / Plastic model |
| Main Gear Material | Zinc Alloy |
| Pinion Gear Material | Brass |
| Overall Length | 13 cm |
| Handle Length | 11 cm |
| Reel Height | 4.8 cm |
| Braking System | 10-Magnet Magnetic Brake |
| Bearings | Imported Bearings |
| Product Type | All-round Baitcasting Reel (Metal Spool) |
| Weight | 203 g (Spool: 20 g) |
| Color Options | Black Gold / Black / Black White / Purple / Red / Purple / Blue Black |
| Brake Positions | 12 Settings |
| Main Material | Aluminum Alloy |
| Hand Retrieve | Left/Right Hand Optional |
| Line Capacity | 0.23 mm - 180 m / #2.0, 0.28 mm - 150 m / #3.0, 0.30 mm - 110 m / #3.5 |
| Target Fish Species | Snakehead, Bass, Black Carp, Culter, etc. |
| Product Name | Versatile Baitcasting Reel (Plastic Spool) |
| Brake Settings | 12 levels |
| Target Species | Mandarin fish, bass, snakehead, culter, etc. |
| Drag System | Plastic star drag knob |
- Product Box Size: 13.5 * 11 * 6.5 cm
- Outer Carton Size: 58.5 * 29 * 35 cm (50 pcs/carton)

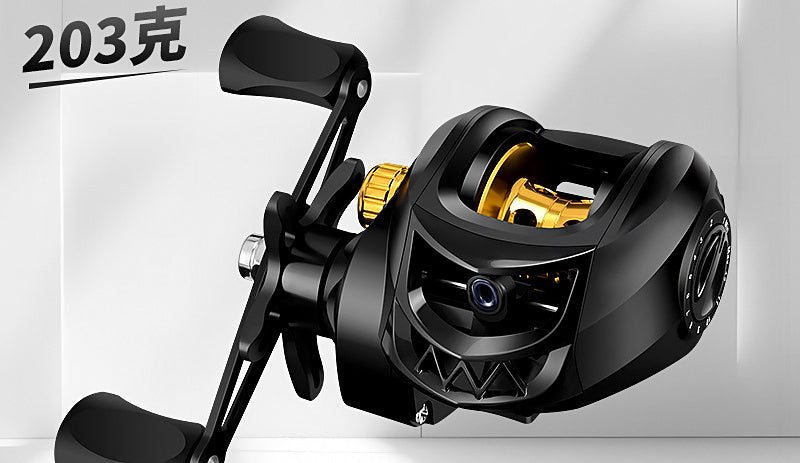

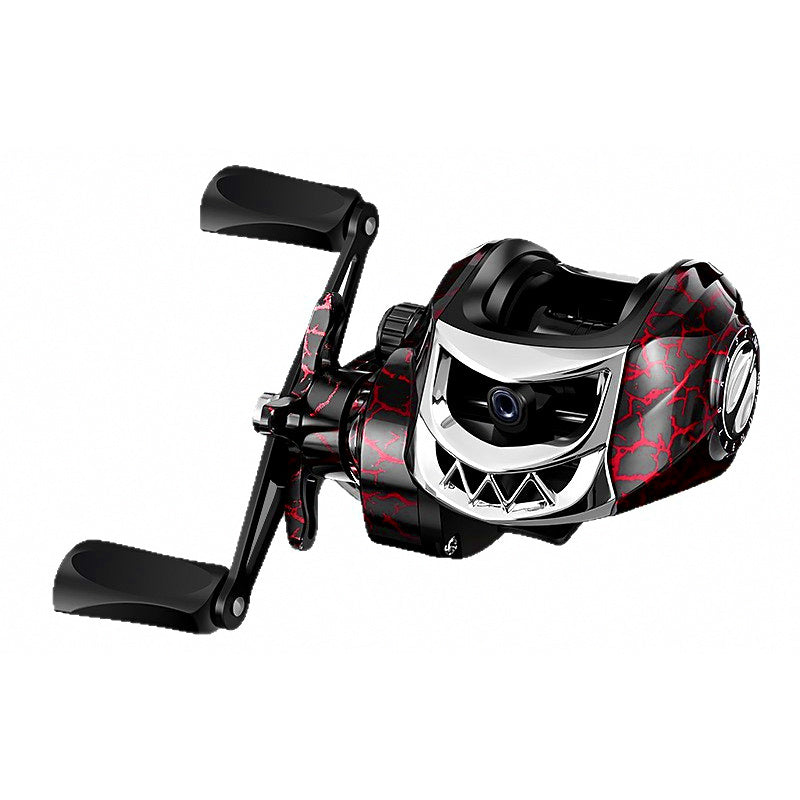

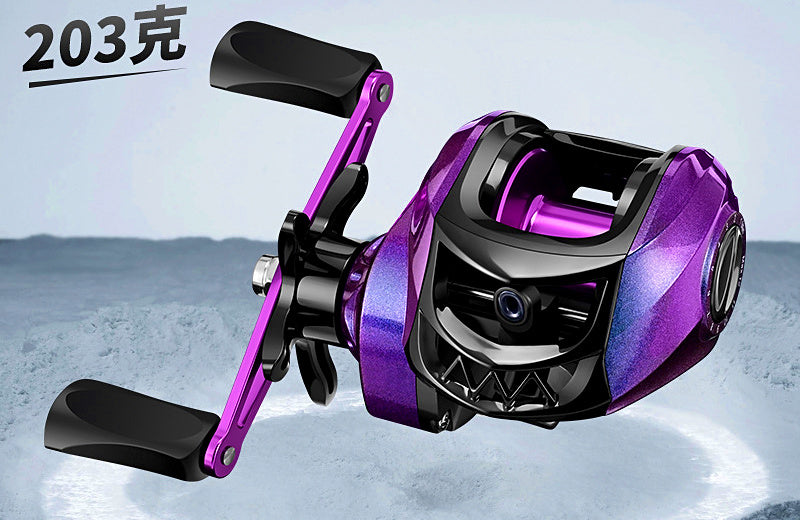

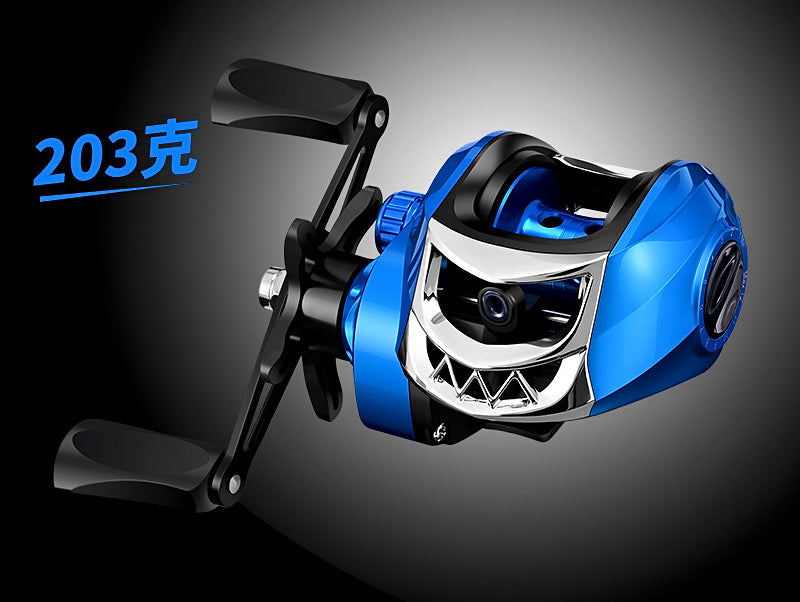

Versatile Long-Casting Baitcasting Reel
- Beginner-recommended, suitable for all water types
- Double-row magnetic brake system / 8 kg (17.6 lb) drag capacity
- 7.2:1 high gear ratio for fast retrieve / backlash prevention
Baitcasting Reel Options
- Baitcasting reel
- Metal model and plastic model available
Product Parameters
- Smooth long casting baitcasting reel
- Dimensions: 13 cm overall length x 11 cm handle length x 4.8 cm height
- Metal baitcasting reel featuring zinc alloy main gear and brass pinion gear
- Note: All measurements are manually taken with slight tolerance; please refer to the actual product
10-Magnet Braking System
- Enhanced braking force
- Features imported bearings
- Available color options: Black Gold, All Black, Black White, Purple, Red Black, Patterned Purple
Baitcasting Reel Specifications
- Metal spool version shown; plastic version features zinc alloy main and pinion gears.
- Suitable for snakehead, bass, culter, and black carp.
Baitcasting Reel with 10 Magnetic Brake Beans
- 10 magnetic brake beans for enhanced braking power
- Available in Black, Blue Black, Red Black, and Black Purple
Fine-Tuning Spool Options
- Suitable target fish: Mandarin fish, bass, snakehead, culter, etc.
- 15g Purple Spool: Plastic line cup, designed for micro mandarin fish or light lure long-distance casting.
- 20g Black Spool: Metal line cup, designed for micro mandarin fish or light lure long-distance casting.
- Features 12-stage fine adjustment to prevent line backlash.
Double-Row Magnetic Brake System
- Smooth and effortless casting without backlash
- Features 10 magnetic brake beans for enhanced stability
12-Speed Magnetic Brake System & Plastic Star Drag Knob
- 12-speed magnetic brake system adjustable according to lure weight
- Gears 1–3: Long-casting mode, suitable for heavy lures
- Gears 3–6: All-around mode, suitable for various general lures
- Gears 6–12: Beginner mode, suitable for strong winds and headwind conditions
- Plastic star drag control for smooth and flexible drag adjustment during fish fighting
