Specifications
Product specifications
Available options
| Size | Size 00 · Size 0 · Size 1 · Size 2 · Size 3 · Size 4 · Size 5 · Size 6 · Size 7 · Size 8 |
|---|---|
| Pack | 1 Piece · 50 Pack · 10,000 Pack |
Product Details
| Product Name | Lure Flattened Double Split Ring |
|---|---|
| Material | Stainless Steel |
| Quantity | 50 PCS/pack |
| Size Range | #00 to #8 |
| Features | Suitable for lures and rig assemblies; wide application; line-friendly |
Product Specifications
| Size | #00 | #0 | #1 | #2 | #3 | #4 | #5 | #6 | #7 | #8 |
|---|---|---|---|---|---|---|---|---|---|---|
| Outer Diameter (mm) | 3.7 | 4.4 | 5.1 | 5.6 | 6.3 | 6.9 | 7.7 | 8.5 | 9.8 | 10.6 |
| Inner Diameter (mm) | 2.6 | 3.0 | 3.7 | 4.0 | 4.6 | 5.0 | 5.5 | 6.0 | 6.9 | 7.5 |
| Wire Diameter (mm) | 0.5 | 0.6 | 0.7 | 0.7 | 0.8 | 0.9 | 1.0 | 1.2 | 1.2 | 1.4 |
| Breaking Strength (kg) | 6 | 8 | 11 | 14 | 17 | 28 | 33 | 37 | 43 | 49 |
*The above data are manually measured; slight variations may occur.

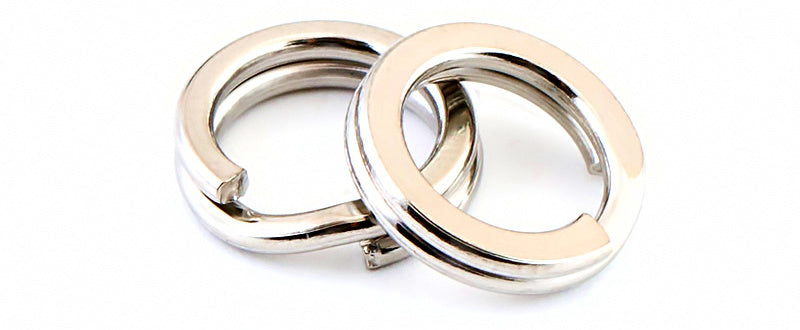

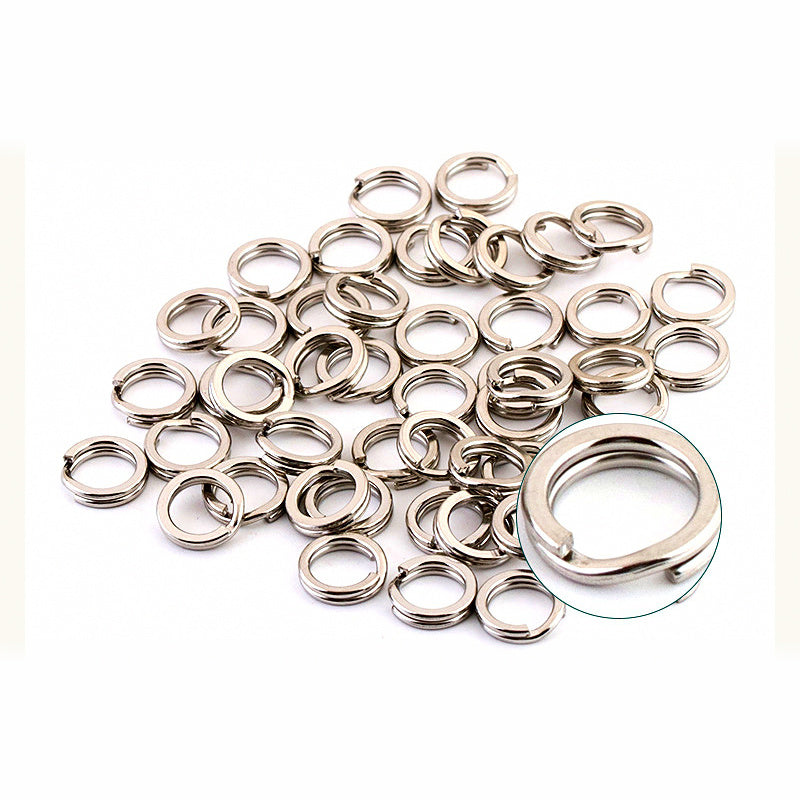

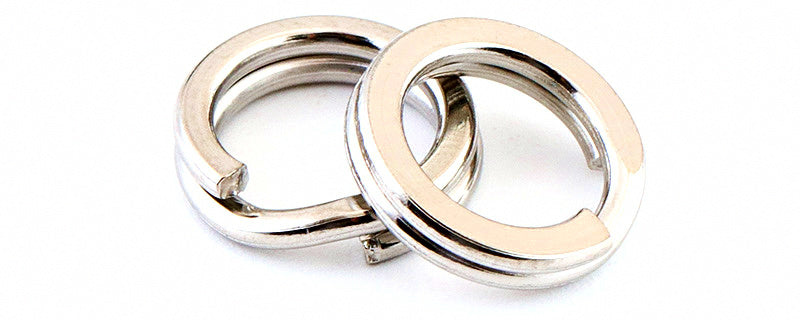

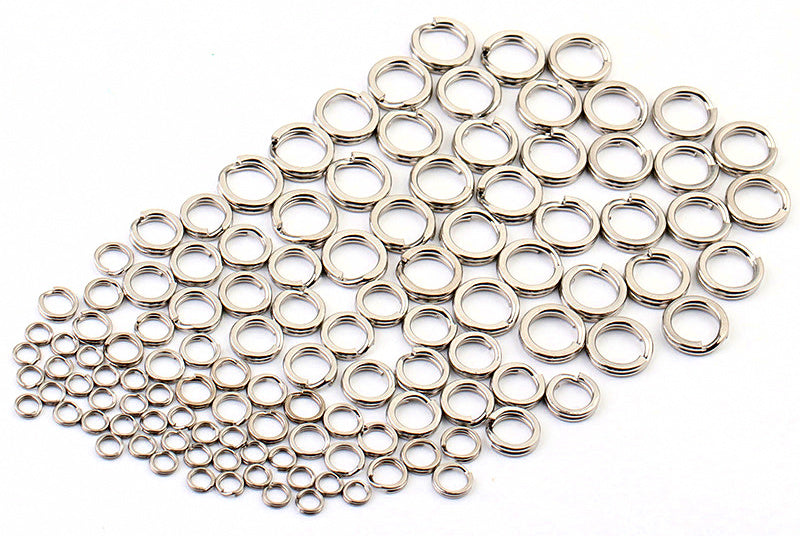

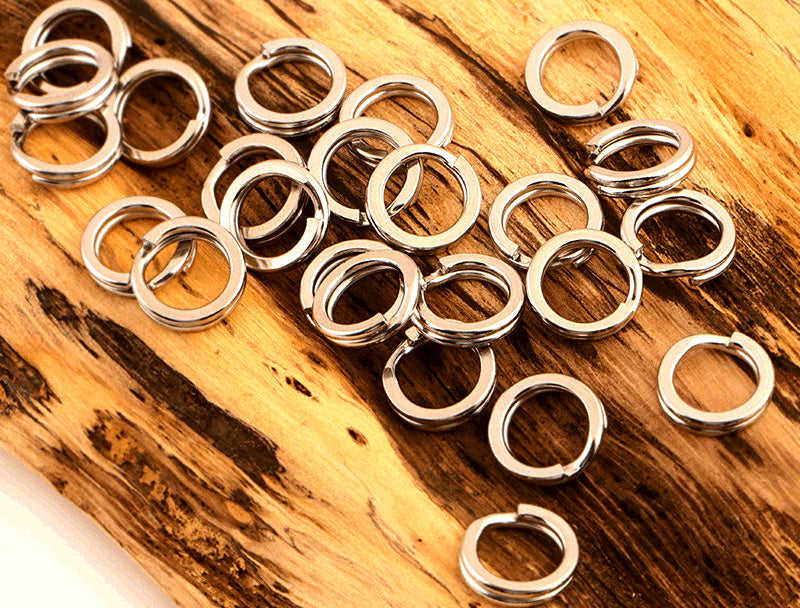

Heavy-Duty Flattened Double Split Rings
- Made of durable stainless steel with high tensile strength, wear resistance, and corrosion resistance.
- Flattened cut-mouth design provides a flat profile, increases strength, and prevents line abrasion.
- Finely polished smooth finish ensures smooth movement without damaging fishing line.
- Versatile split rings suitable for lure rigging, rig assembly, bank fishing, freshwater lure fishing, and saltwater fishing.
