Specifications
Product specifications
Available options
| Size | Size 8 (22 mm / 0.87 in) - 50 pcs · Size 12 (18 mm / 0.71 in) - 50 pcs · Size 3/0 (59 mm / 2.3 in) - 50 pcs · Size 14 (17 mm / 0.67 in) - 50 pcs · Size 1/0 (42 mm / 1.65 in) - 50 pcs · Size 3 (34 mm / 1.34 in) - 50 pcs · Size 5 (29 mm / 1.14 in) - 50 pcs · Size 4/0 (67 mm / 2.64 in) - 50 pcs · Size 10 (20 mm / 0.79 in) - 50 pcs · Size 4 (29.5 mm / 1.16 in) - 50 pcs · Size 2/0 (51 mm / 2 in) - 50 pcs · Size 1 (41 mm / 1.61 in) - 50 pcs · Size 6 (26.5 mm / 1.04 in) - 50 pcs · Size 7 (25 mm / 0.98 in) - 50 pcs · Size 2 (35.5 mm / 1.4 in) - 50 pcs |
|---|
| Size | Total Length (mm) | Swivel Length (mm) | Snap Length (mm) | Snap Max Width (mm) | Breaking Strength (kg) | Recommended Fishing Method |
|---|---|---|---|---|---|---|
| 3/0 | 59 | 27.5 | 34 | 10.5 | 48 | Casting rod / Saltwater / Explosive rig |
| 2/0 | 51 | 24.5 | 29 | 8.7 | 41 | Casting rod / Saltwater / Explosive rig |
| 1/0 | 42 | 20 | 24 | 7.5 | 33 | Casting rod / Saltwater / Explosive rig |
| 2 | 35.5 | 17 | 20 | 6.3 | 28 | Casting rod / Saltwater / Explosive rig |
| 4 | 32 | 15 | 18 | 5.9 | 23 | Casting rod / Saltwater / Explosive rig |
| 6 | 26.5 | 12.5 | 15 | 4.9 | 17 | Taiwan style commercial pond (big game) |
| 8 | 24.5 | 10.5 | 15 | 4.9 | 11 | Freshwater lure fishing |
| 10 | 21 | 9.5 | 13 | 4.4 | 10 | Long casting method |
| 12 | 20.5 | 9 | 13 | 4.4 | 8 | Taiwan style commercial pond (big game) |
| 14 | 18 | 8.2 | 11 | 4 | 3 | Freshwater lure fishing |
Note: Measured manually, slight variations may exist.

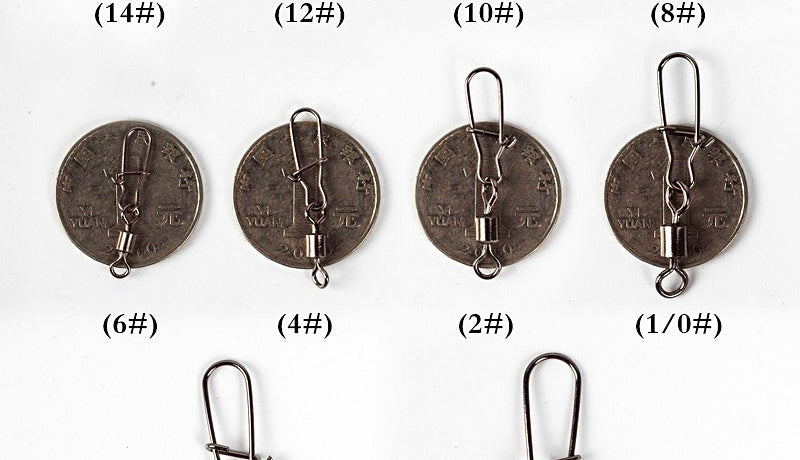

- Size comparison against a Chinese 1 Yuan coin (diameter 25 mm / ~1 inch)

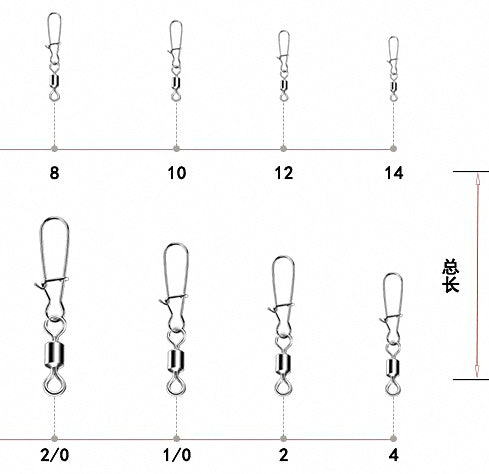

Swivel with Snap Dimensions
- Diagram illustrates total length, snap length, swivel length, and maximum width measurements.
- Available sizes shown: #6, #8, #10, #12, #14 and larger sizes 3/0, 2/0, 1/0, #2, #4.
Fishing Snap Swivel
- Fine Workmanship: Easy and fast connection, suitable for soft plastics, hard lures, jig heads, spoons, hand pole lines, sea fishing rigs, and lure fishing setups.
- Smooth Swivel Action: Strong pull capacity, turns smoothly even under high tension.
- Wide Versatility: Compatible with multiple fishing methods.
