Sea Fishing Float Rig Set, Round Tail, 13 Sizes

Specifications

Product specifications

Color	Multicolor Pink · Orange Black · All Pink · Yellow Black
Size	2B (0.55/0.75 g load, up to 3 m) · 3B (0.75 g load, up to 3 m) · 4B (0.95 g load, up to 3 m) · 0.5 (1.20 g load, up to 3 m) · 0.8 (1.88 g load, 3-5 m) · 1.0 (3.00 g load, 5-10 m) · 1.5 (3.75 g load, 10-15 m) · 2.0 (5.62 g load, 10-15 m) · 2.5 (7.50 g load, 10-15 m) · 3.0 (9.37 g load, 15 m+) · 4.0 (11.25 g load, 15 m+) · 5.0 (15.0 g load, 15 m+) · 6.0 (18.75 g load, 15 m+)

Product Name	Awa Float Set
Material	ABS Material
Color Options	Color Pink / All Pink / Orange Black / Yellow Black
Features	Long-casting design, stable float body, non-water-absorbent
Finish	Premium waterproof paint

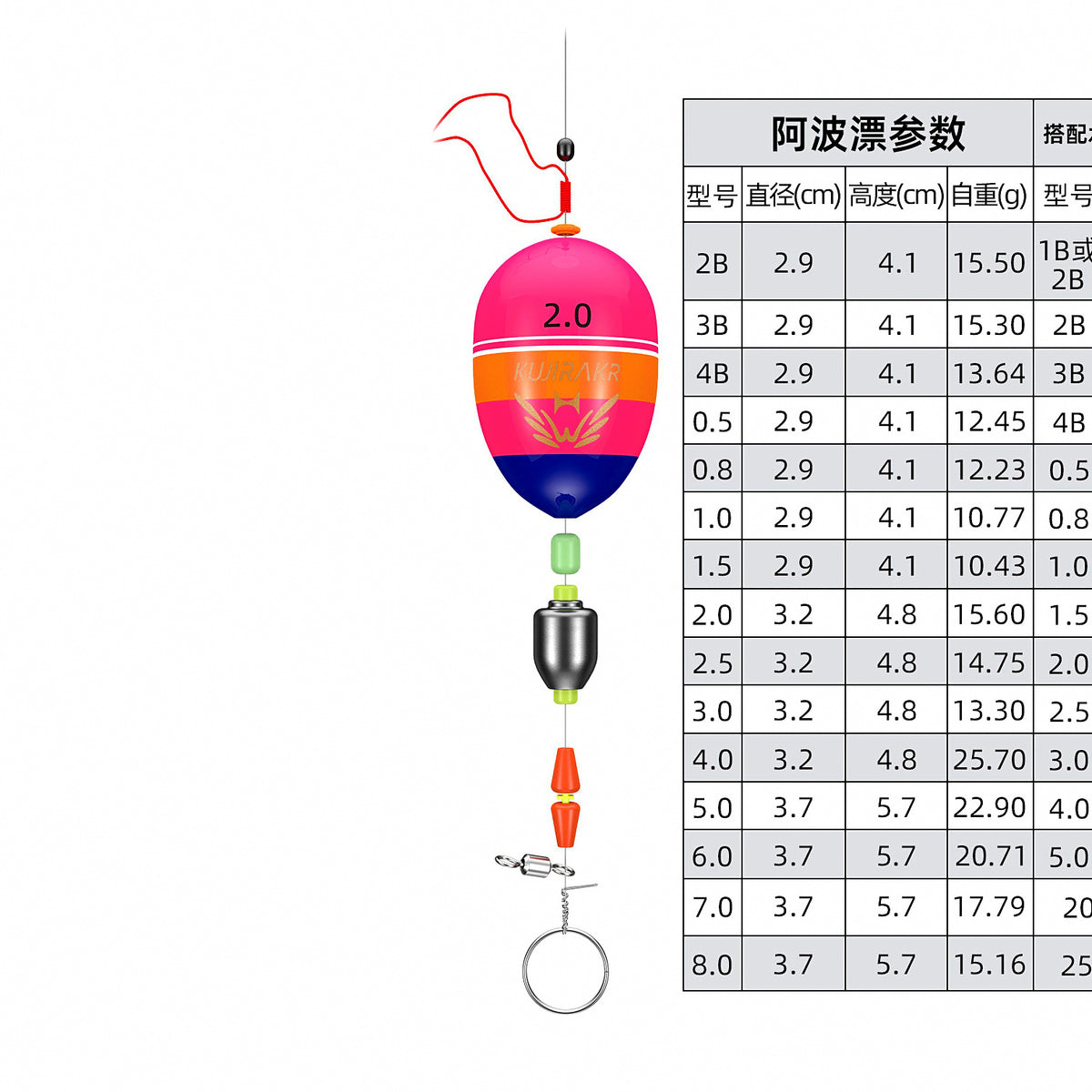

Model	Diameter (cm)	Height (cm)	Weight (g)	Matching Sinker/Rig Model	Buoyancy Rating (g)	Glow Stick Diameter (mm)	Suitable Water Depth (m)
2B	2.9	4.1	15.50	1B or 2B	0.552 / 0.75	3.0+4.5	Within 3m
3B	2.9	4.1	15.30	2B	0.75	3.0+4.5	Within 3m
4B	2.9	4.1	13.64	3B	0.95	3.0+4.5	Within 3m
0.5	2.9	4.1	12.45	4B	1.20	3.0+4.5	Within 3m
0.8	2.9	4.1	12.23	0.5	1.88	3.0+4.5	Within 3-5m
1.0	2.9	4.1	10.77	0.8	3.00	3.0+4.5	Within 5-10m
1.5	2.9	4.1	10.43	1.0	3.75	3.0+4.5	Within 10-15m
2.0	3.2	4.8	15.60	1.5	5.62	4.5	Within 10-15m
2.5	3.2	4.8	14.75	2.0	7.50	4.5	Within 10-15m
3.0	3.2	4.8	13.30	2.5	9.37	4.5	15m+
4.0	3.2	4.8	25.70	3.0	11.25	4.5	15m+
5.0	3.7	5.7	22.90	4.0	15.0	4.5	15m+
6.0	3.7	5.7	20.71	5.0	18.75	4.5	15m+
7.0	3.7	5.7	17.79	20g Sinker	-	4.5	15m+
8.0	3.7	5.7	15.16	25g Sinker	-	4.5	15m+

Note: The above data are measured manually from sample sampling, slight errors exist, please understand.

Cotton line knot: Adjust position on main line to control fishing depth
Semi-circular stopper: Floats with the float until stopped by the cotton knot
Float (Tsuromu / Apo float): Used to observe strike signals
Anti-collision bead: Separates the float from components below to prevent collision damage
Subsurface sinker (Suichu): Balances buoyancy and stabilizes the terminal rig
Kala stopper / Kara stick: Prevents the rig from sliding off the main line
Eight-figure swivel (Barrel swivel): Connects main line and leader

Step 1: Remove the space bean from the top of the kit set.
Step 2: Thread the main fishing line through the wire loop at the top of the kit set.
Step 3: Take off the middle section of the stopper stick.
Step 4: Hold the wire loop at the bottom of the kit set and pull all accessories onto the fishing line.
Step 5: Tie the barrel swivel / 8-figure ring, and reattach the stopper stick.
Step 6: Tighten the cotton knot, trim excess line, and the rig setup is complete.
