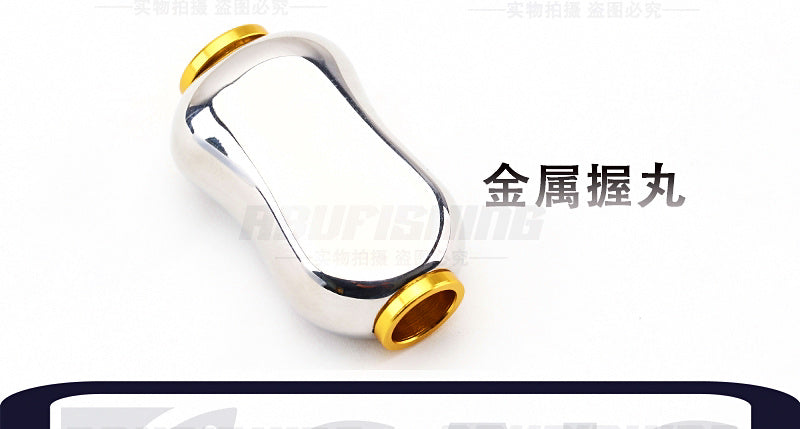

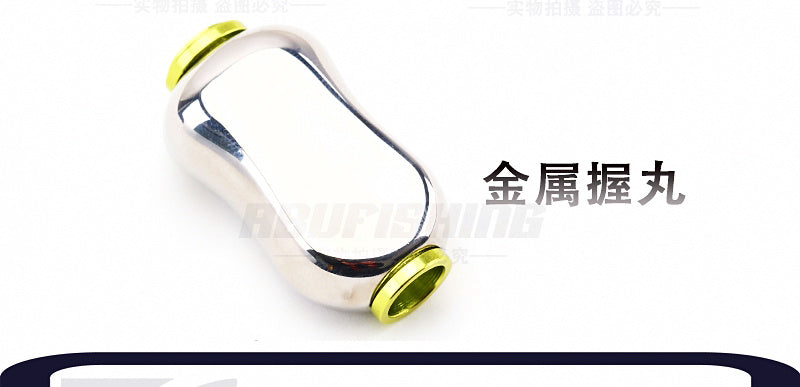

Reel Handle Knob, Stainless Steel, Baitcasting & Spinning

Product Features

• Mirror titanium-plated finish: Corrosion-resistant, suitable for both freshwater and saltwater.
• Smooth curved design: Prevents dirt buildup, easier to clean.
• Slim waist design: Ergonomic shape for a comfortable grip.
• Stainless steel body: Sturdy, durable, and highly damage-resistant.
• Aluminum alloy fittings: Anodized finish with minimal color difference and fade resistance.

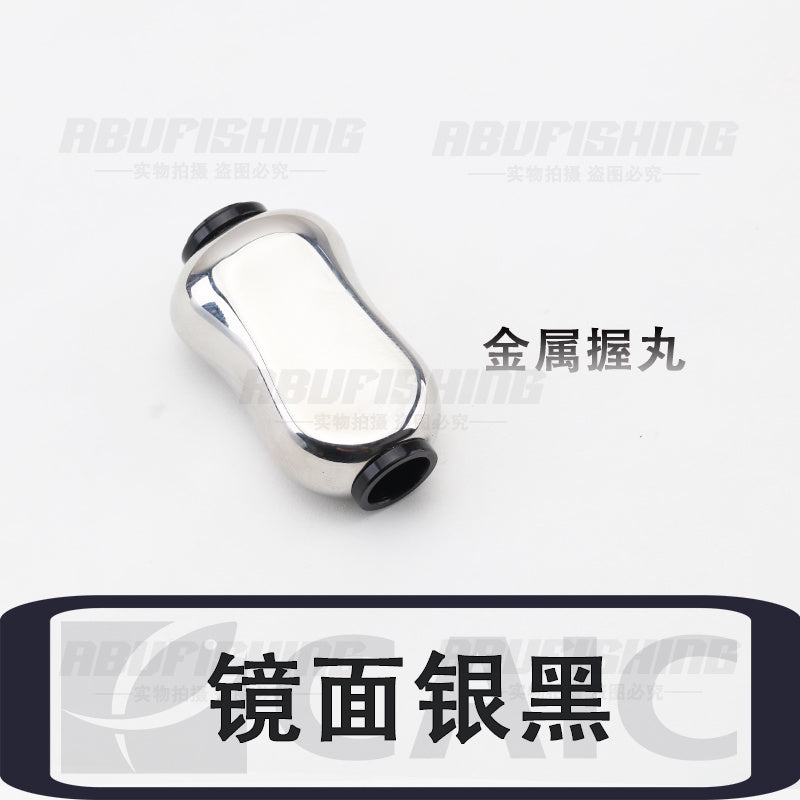

• Available colors: Shiny Silver, Grass Green, Blue Purple, Light Pink, Elegant Purple, Gunmetal Grey, CQ Gold, Silver Red, Silver Black, Silver Blue
• Perfect Ten Series reel knob caps

Titanium-Plated Metal Reel Knob

• Titanium-plated metal construction provides lightweight, comfortable, and highly corrosion-resistant performance
• Ergonomically optimized I-shape streamlined design with a slim waist for enhanced grip
• Slightly flared rear section allows proper finger wrapping and optimal leverage
• Curved fingertip contact surface increases grip area to minimize hand fatigue during long sessions
• Skin-friendly texture ensures a secure, non-slip hold even in wet conditions for precise hooksets
• Dimensions: 24.5 mm length, 6.8 mm outer diameter, 7 mm end openings

• Fits 4mm shaft diameter reel handles
• Dimensions (Length x Width x Thickness): 37.5 x 20.8 x 14.3 mm
• Knob net weight (without accessories): 4.8g
• Knob total weight (with accessories): 7.9g

Installation Diagram (Compatible)

• Compatible with reel handle assemblies
• Dimensions: Shaft length 27.5mm total, 23mm pin length, 3.4mm step length; shaft diameters are 6.8mm, 5mm, and 4mm
• Assembly order (left to right): Shaft pin, Washer, Inner bearing, Handle knob, Outer bearing, Screw, End cap

Compatible Reel Handle Shaft Set

• Includes shaft, washers, bushings, bearings, handle knob, screw, and cap.
• Main shaft dimensions: length 28.3 mm, main length 25.7 mm, stepped end length 1.5 mm.
• Shaft diameters: 4 mm shaft body, 6 mm and 8 mm stepped sections.

Handle Knob Installation Instructions

• Step 1: Prepare tools and materials including a screwdriver, replacement handle knob, bearings, washers, bushings, and other fittings.
• Step 2: Remove the original handle knob by unscrewing the fixing screw located under the cap on either side.
• Step 3: Install new handle knob fittings in sequence starting with a washer at the base of the handle arm, followed by bushings, sleeves, and bearings as required.
• Step 4: Slide the new knob onto the shaft and align it with the handle arm mounting hole.
• Step 5: Adjust play by tightening the top screw and testing rotation. Add or reduce washer thickness to achieve smooth rotation without excess play.
• Step 6: Securely tighten the top screw and reattach the decorative cap/screw if applicable.

Compatibility Chart

• Compatibility: Aldebaran, ANTARES DC, Bantam, Curado, CQ100-201, Exsense DC, Metanium, SLX DC, Scorpion
• Compatibility: Alphas, Barchetta, Morethan, SALAMANDURA, Steez, TATULA, Zillion, EXIST, AIRITY, CERTATE, PRESSO, LUVIAS, CALDIA LT
