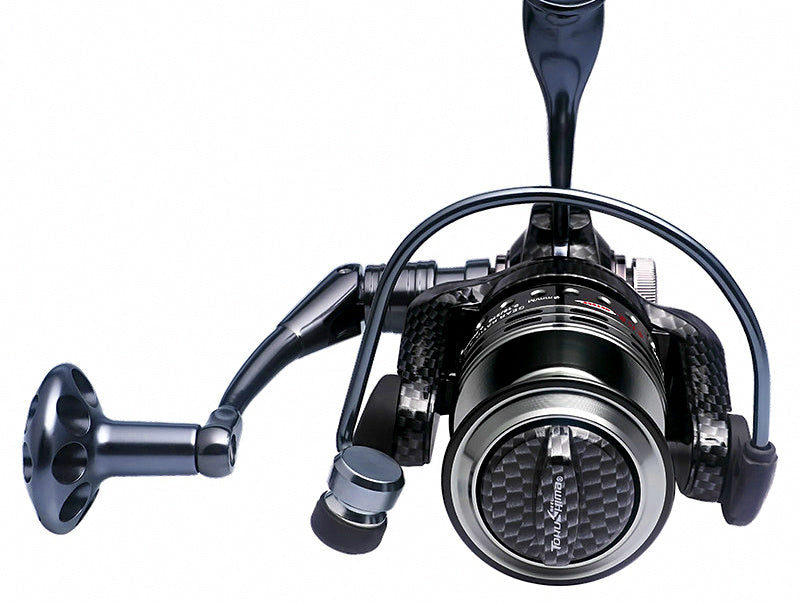

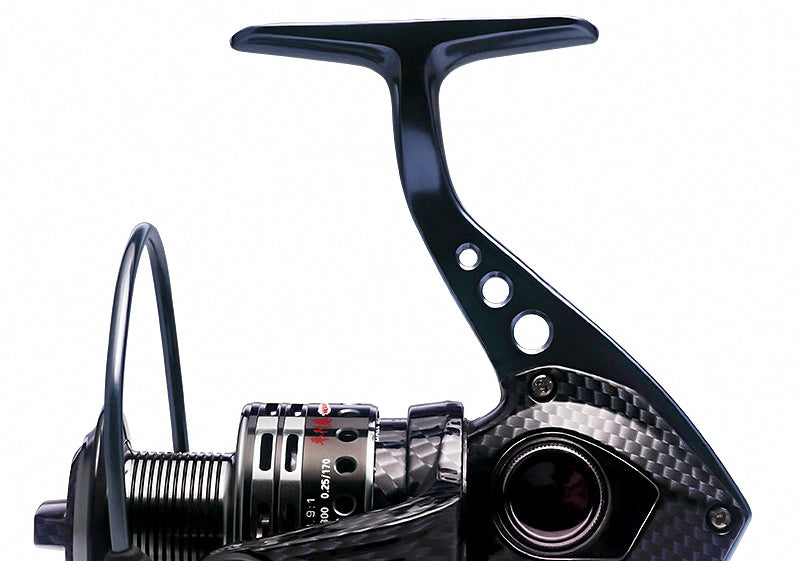

14-Bearing All-Metal Spinning Reel, 1000–7500 Series
$47.92
Specifications
Product specifications
Available options
| Size | 1000 Series · 2000 Series · 3000 Series · 4000 Series · 5000 Series · 6000 Series · 7000 Series · 7500 Series |
|---|
Product Details
| Frame Material | One-piece metal |
|---|---|
| Bearing System | Dual bearing system |
| Bearings | 13+1BB |
| Features | Precision metal bearings, single-sided sealed design |
| Drive Gear Material | #5 Zinc Alloy |
| Main Shaft Material | Brass |
| Model | HK |
| Type | Front Drag Spinning Reel |
| Handle | Interchangeable Left/Right |
| Origin | China |
| Ball Bearings | 13+1BB |
| Grade | First Class |
Specifications
| Model | Color | Bearings | Gear Ratio | Line Capacity (mm/M) |
|---|---|---|---|---|
| 1000 | Black | 13+1BB | 4.9:1 | 0.14/350 0.16/280 0.20/170 |
| 2000 | Black | 13+1BB | 4.9:1 | 0.16/320 0.20/200 0.25/130 |
| 3000 | Black | 13+1BB | 4.9:1 | 0.18/370 0.20/300 0.25/170 |
| 4000 | Black | 13+1BB | 4.9:1 | 0.20/400 0.25/210 0.30/190 |
| 5000 | Black | 13+1BB | 5.5:1 | 0.30/270 0.35/200 0.40/150 |
| 6000 | Black | 13+1BB | 5.5:1 | 0.35/220 0.40/160 0.45/120 |
| 7000 | Black | 13+1BB | 5.5:1 | 0.35/270 0.40/220 0.45/150 |
| 7500 | Black | 13+1BB | 5.5:1 | 0.35/360 0.40/260 0.45/200 |
The above data are manually measured and may have slight errors, which are within the normal range.
One-Piece Metal Body Spinning Reel
- One-piece metal frame support
- Dual bearing system, classic design
Visible Quality and Strong Performance
- One-piece metal stem/body construction
- Thickened metal bail wire
- Non-slip metal spool
- Metal folding handle
- Drag adjustment knob
Internal Construction
- Precision metal bearings
- 13+1BB bearings for smooth and effortless retrieval
- Single-sided sealed design effectively prevents water ingress and aging
Line Roller Added Bearings
- Includes 2 stainless steel metal bearings to reduce line release resistance, allowing smoother output without damaging the fishing line
Large Zinc Alloy Main Gear
- Uses #5 zinc alloy drive gear paired with a brass main shaft to increase strength and toughness, easily handling big game fish
Exclusive Dual Bearing System
- Dual bearing design on the main shaft changes the single point stress to two point stress distribution
- Eliminates severe spool oscillation during heavy or extended use
- Enhances reel impact resistance
Product Parameters
Spinning Reel Dimensions
- 1000 & 2000 Series: Top width 7 cm, height 12 cm, foot length 10 cm, stem height 6 cm.
- 3000 Series: Top width 7.5 cm, height 13.8 cm, foot length 10.5 cm, stem height 6.3 cm.
- 4000 Series: Top width 8 cm, height 13.8 cm, foot length 10.5 cm, stem height 6.3 cm.
Spinning Reel Dimensions by Series
- 5000 Series: Top Spool Width 8.5 cm, Height 16.5 cm, Foot Length 12.5 cm, Stem Height 6.6 cm
- 6000 Series: Top Spool Width 9.0 cm, Height 16.5 cm, Foot Length 12.5 cm, Stem Height 6.6 cm
- 7000 Series: Top Spool Width 9.5 cm, Height 16.5 cm, Foot Length 12.5 cm, Stem Height 6.6 cm
- 7500 Series: Top Spool Width 9.5 cm, Height 16.5 cm, Foot Length 12.5 cm, Stem Height 6.7 cm
Advanced Fishing Reel Features
- Dual Bearing System: Ensures smooth operation during extended use and prevents reel head wobbling.
- Spherical Gear Design: Made with precision-cut alloy for high pressure resistance and superior smoothness compared to standard gears.
- One-Piece Metal Frame: High-strength alloy construction provides durable support, preventing breakage when fighting large fish.
