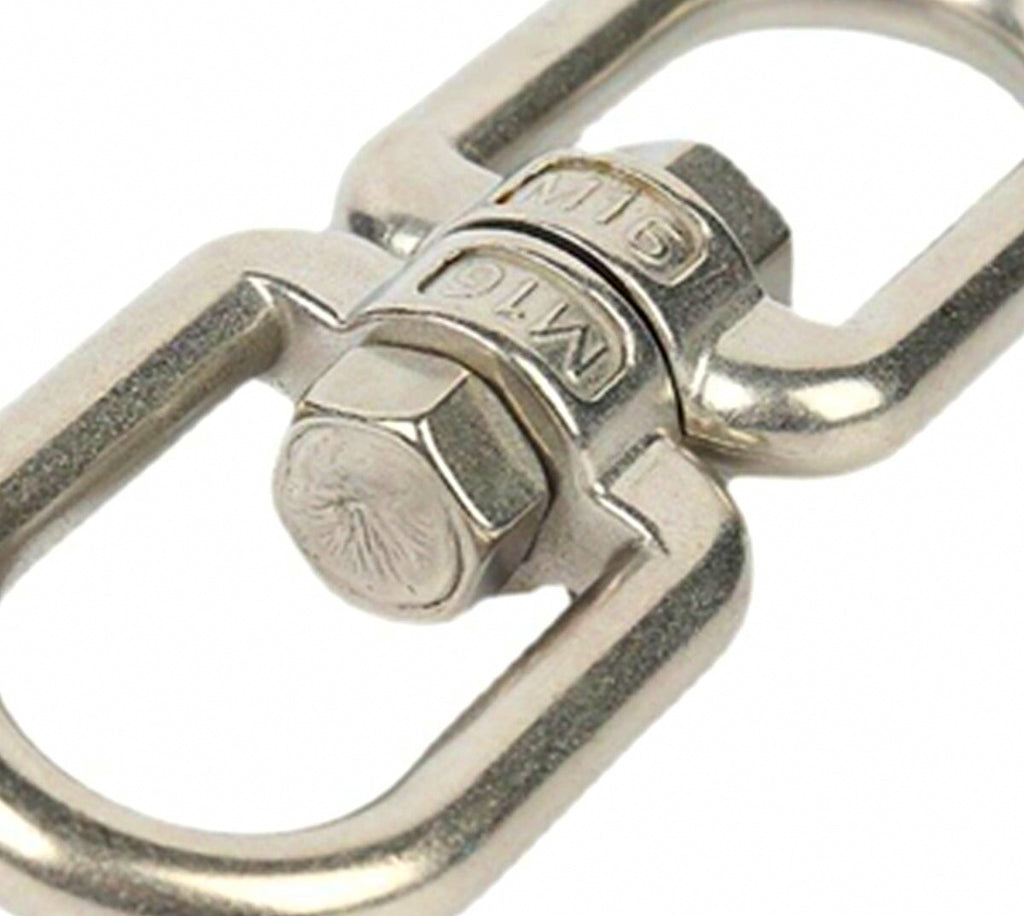

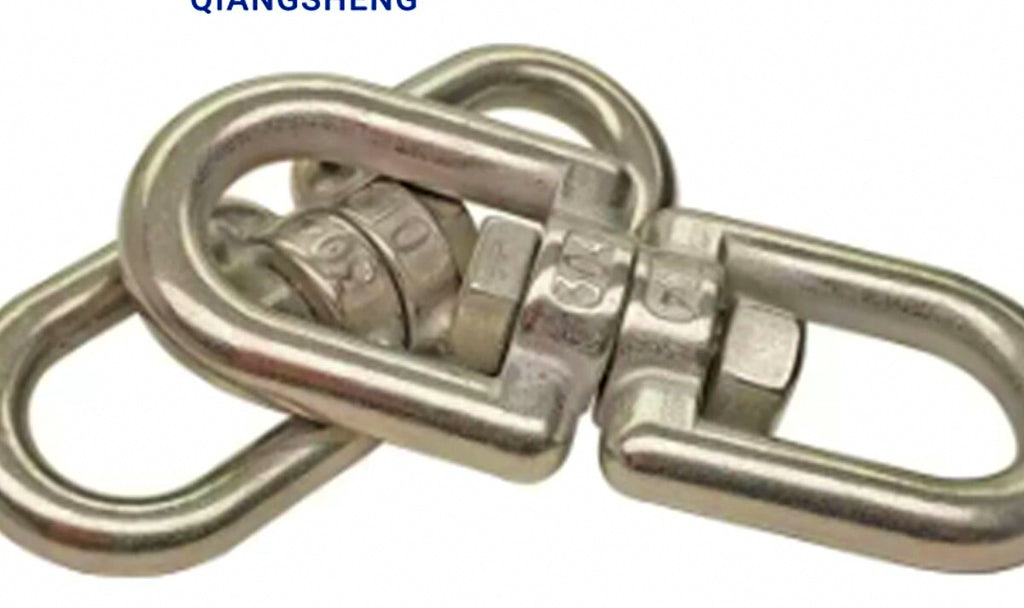

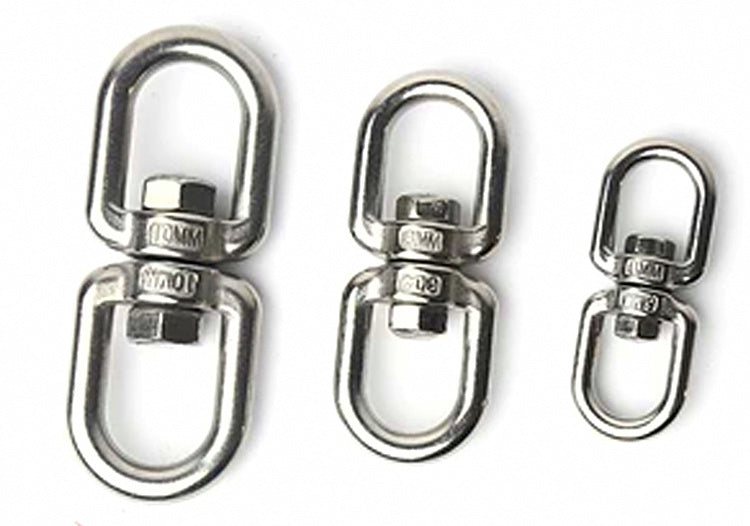

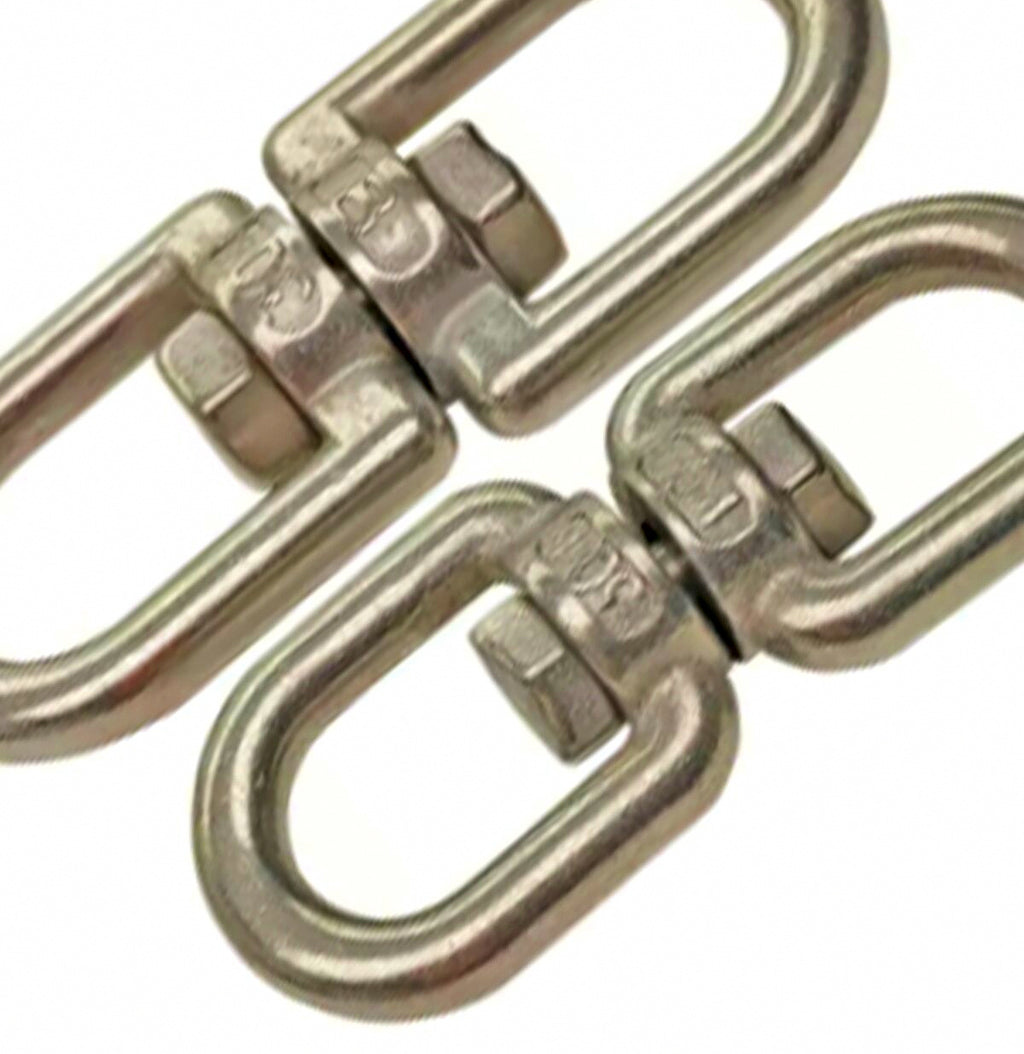

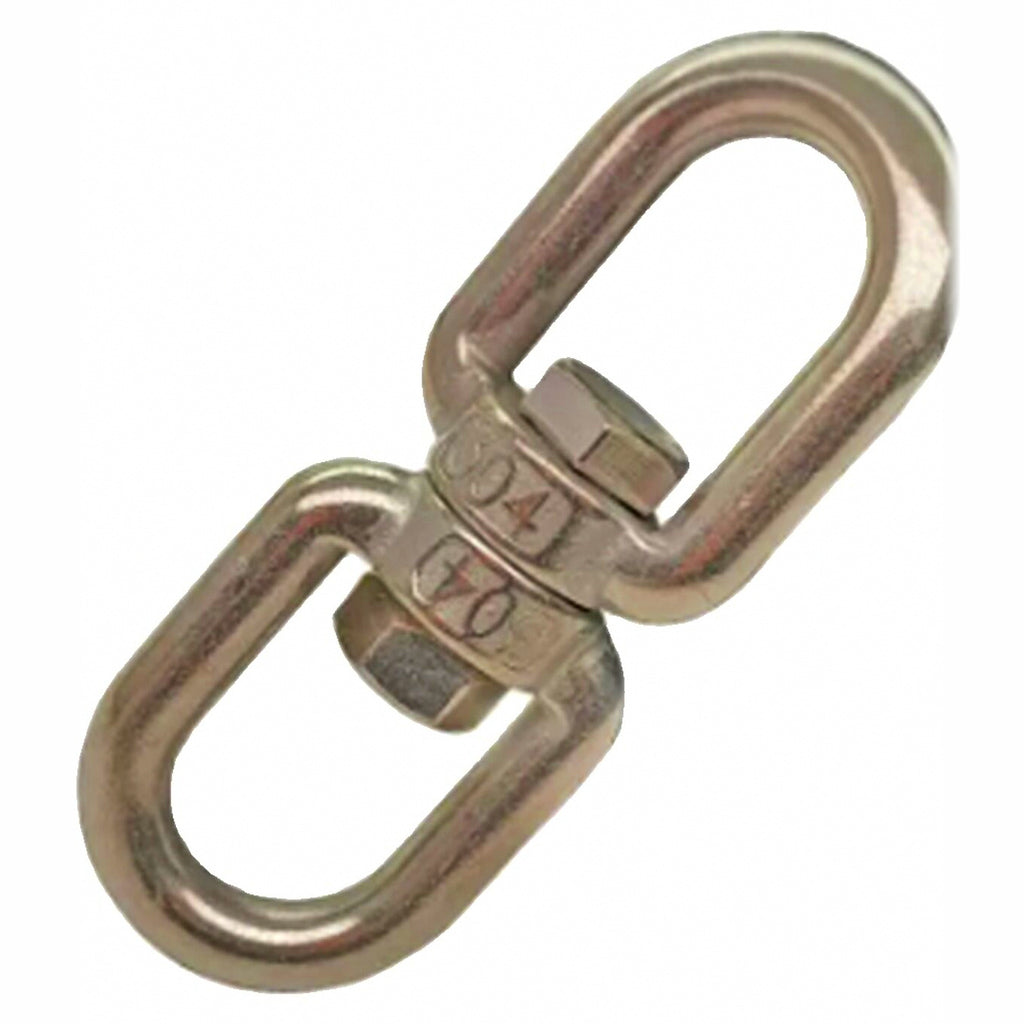

304 Stainless Steel Figure-8 Swivel, Sizes M4–M32
$0.55
Specifications
Product specifications
Available options
| Size | M4 · M5 · M6 · M8 · M10 · M12 · M14 · M16 · M18 · M20 · M22 · M25 · M28 · M32 |
|---|---|
| Pack | 1 pc · 100 pcs · 50 pcs |
Product Details
| Plant Area | 2000+ m² |
|---|---|
| Annual Sales | 6 million+ units |
| Company Employees | 50+ |
| Professional Production Equipment | 30+ units |
Swivel Specifications
| Size | A (mm) | B (mm) | C (mm) | D (mm) | Load Capacity (kg) |
|---|---|---|---|---|---|
| M4 | 48.0 | 12.0 | 10.0 | 3.8 | 80.0 |
| M5 | 60.0 | 14.0 | 14.0 | 4.8 | 100.0 |
| M6 | 68.0 | 16.0 | 17.0 | 5.5 | 150.0 |
| M8 | 88.0 | 20.0 | 21.0 | 7.3 | 300.0 |
| M10 | 107.0 | 23.0 | 26.0 | 9.2 | 500.0 |
| M12 | 122.0 | 26.0 | 27.0 | 11.0 | 1000.0 |
| M16 | 179.0 | 38.0 | 44.0 | 15.0 | 1500.0 |
Swivel Size and Load Capacity Specifications
- Dimensions explained: A = total length, B = width, C = inner eye length, D = wire diameter
- Load capacity ranges from 80.0 kg (M4) up to 1500.0 kg (M16)
Why Choose Us - Win-Win Cooperation
- One-stop procurement service with full size range available
- Craftsman quality and massive ready stock for wholesale
- 2,000+ m² plant area, 6M+ annual sales volume, 50+ employees, 30+ professional production equipment
Why Choose Us
- Over 10 years of industry experience
- Quality assurance and durable products
- Direct from source factory with custom support
- Fast shipping and attentive after-sales service
Company Warehouse
- Large-scale corporate warehouse for tackle storage and inventory processing
Production Facilities and Company Environment
- State-of-the-art production machinery and workshop areas
- Professional office space and meeting rooms
Customer FAQ - Stainless Steel Information
- Why 304 stainless steel can be slightly magnetic: 304 is austenitic stainless steel, but cold working converts a small portion into martensite, which is magnetic.
- How to identify 304 stainless steel: Supports 304 testing reagent, chemical/spectrometric analysis, and salt spray testing.
- Common types of stainless steel: 201 is suitable for dry environments (rusts easily in water); 304 is suitable for outdoors/humid environments with strong acid and corrosion resistance; 316 adds molybdenum for enhanced pitting corrosion resistance, ideal for seawater and chemicals.
