UT SERIES · AVAILABLE NOW

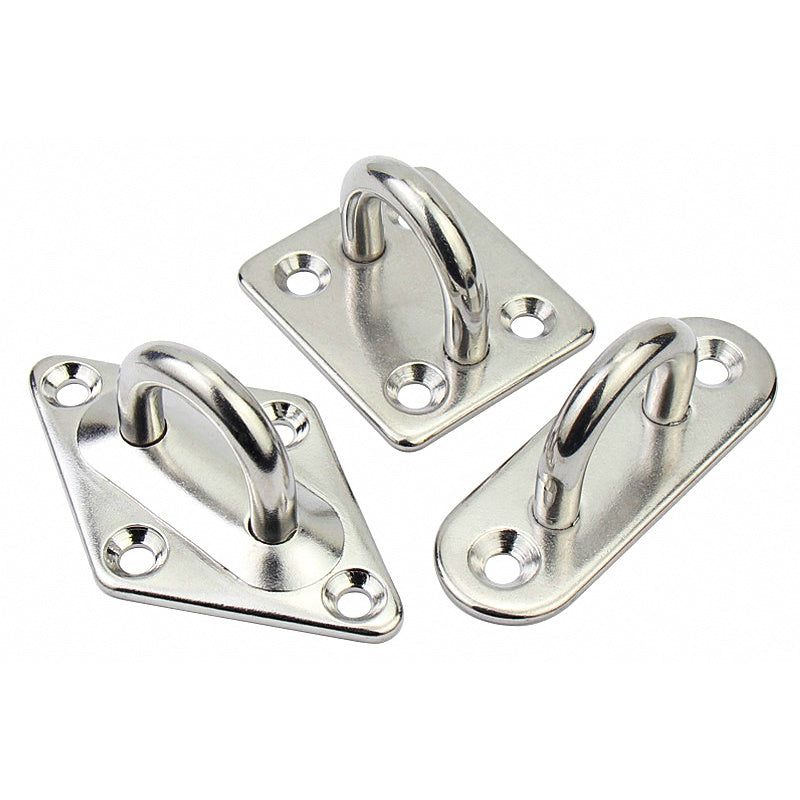

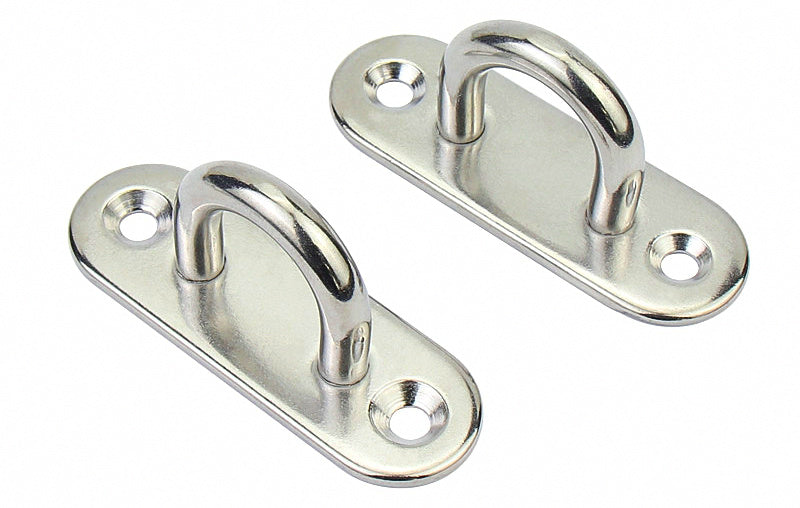

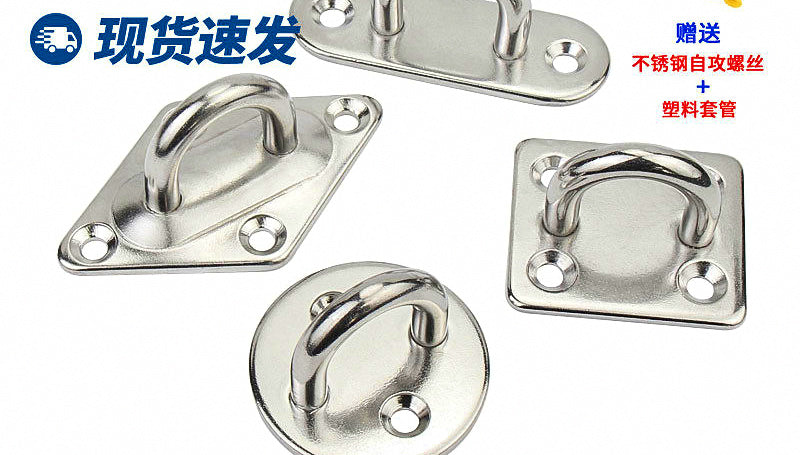

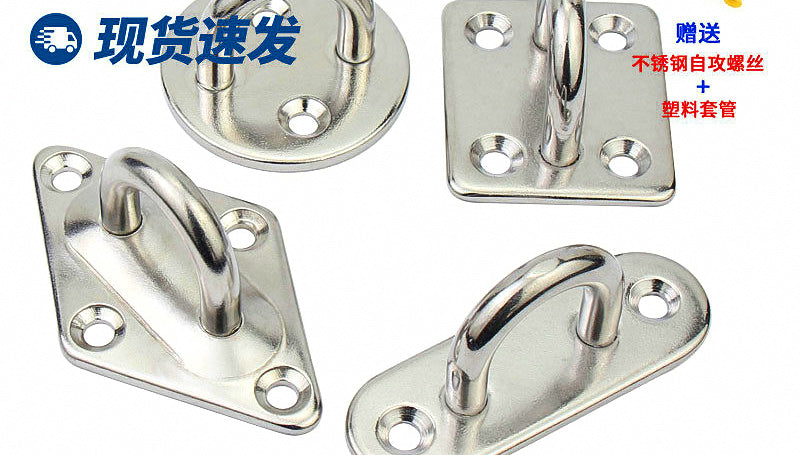

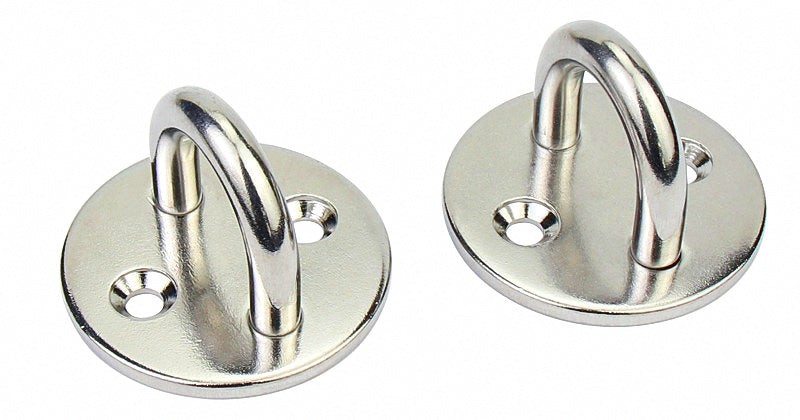

304 Stainless Steel Hanging Hook, Multiple Styles, M5–M12
$2.86
Specifications
Product specifications
Available options
| Style | Standard · Oval · Round · Square · Diamond · Open Round · Open Oval · Round with Ring · Oval with Ring · Square with Ring · Diamond with Ring · Swivel Square · Swivel Square with Ring |
|---|---|
| Size | Standard · M5 · M6 · M8 · M9 · M10 · M12 |
Product Details
| Material | 304 stainless steel, 201 stainless steel, 316 stainless steel, carbon steel, 65Mn spring steel |
|---|---|
| Name | Pad Eye Hook |
| Standard | National Standard |
| Surface Treatment | Untreated |
| Packaging | Plastic Bag / Carton |
Chemical Composition %, max
| Group | C | Si | Mn | P | S | Cr | Mo | Ni | Cu | Characteristics |
|---|---|---|---|---|---|---|---|---|---|---|
| 304-A2 | ≤0.07 | ≤1.0 | ≤2.0 | ≤0.035 | ≤0.03 | 17~19 | ~ | 8~11 | ~ | Moderate work hardening rate, suitable for general cold working and deep drawing, good cold processability, widely used for hex bolts, nuts, and washers. |
| 316-A4 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.035 | ≤0.03 | 17~19 | 1.8~2.5 | 11~14 | ~ | Added molybdenum, corrosion resistance superior to 304, especially suitable for seawater and chemical media. |
Mechanical Properties
| Category | Group | Property Class | Screw Diameter (mm) | Tensile Strength (MPa / mm²) | Specified Non-proportional Elongation (MPa / mm²) | Elongation After Fracture (MPa / mm²) |
|---|---|---|---|---|---|---|
| Austenitic | A2, A4 | 50 | ≤ 39 | 500 | 210 | 0.6d |
| Austenitic | A2, A4 | 70 | ≤ 24 | 700 | 450 | 0.4d |
| Austenitic | A2, A4 | 80 | ≤ 24 | 800 | 600 | 0.3d |
Notes: 1) If nickel content is below 8%, minimum manganese content must be 5%. 2) If nickel content exceeds 8%, minimum copper content is not restricted. 3) If chromium content is below 17%, minimum nickel content is 12%. 4) For austenitic stainless steel with maximum carbon content 0.03%, nitrogen content can reach up to 0.22%. 5) For products with larger diameters, higher carbon content may be present to achieve specified mechanical properties in the manufacturer's instruction manual, but martensitic steel should not exceed 0.12%.
- Assorted stainless steel, carbon steel, and spring steel hardware including screws, bolts, rods, and washers
304 Stainless Steel Pad Eye Hooks
- Heavy-duty 304 stainless steel construction
- Untreated finish
- National standard compliant
- Material chemical composition table including 304-A2 stainless steel grades.
Mechanical Properties & Material Specifications
- Notes include minimum manganese/nickel/chromium requirements and carbon limits for stainless steel grades.
- Mechanical performance table provides tensile strength, non-proportional elongation, and elongation after fracture across property classes 50, 70, and 80.
