UT SERIES · AVAILABLE NOW

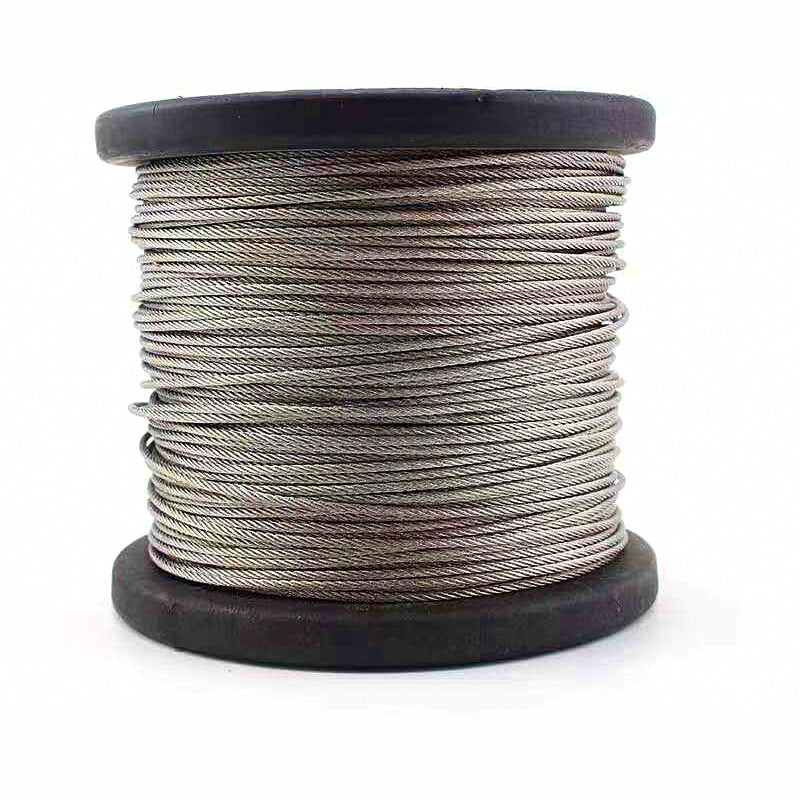

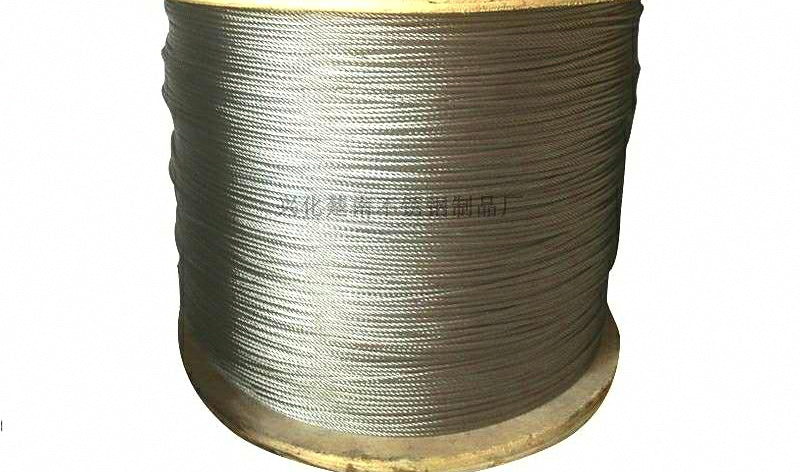

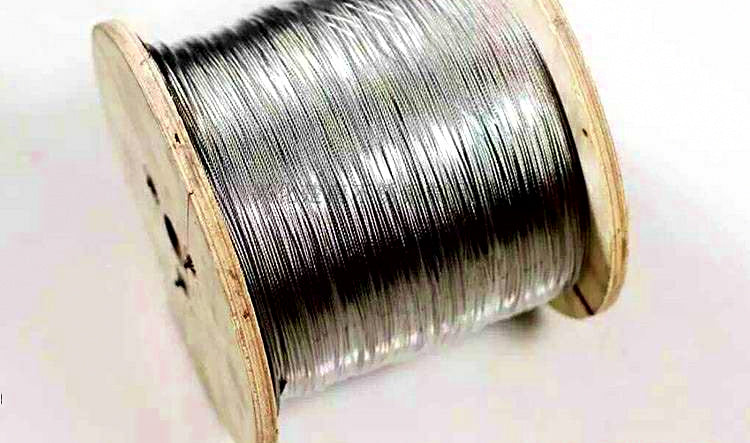

304 Stainless Steel Wire Leader Rope, 0.15–6 mm
$3.68
Specifications
Product specifications
Available options
| Diameter | 0.2 mm (0.008 in) · 0.25 mm (0.010 in) · 0.3 mm (0.012 in) · 0.4 mm (0.016 in) · 0.5 mm (0.020 in) · 0.6 mm (0.024 in) · 0.7 mm (0.028 in) · 0.8 mm (0.031 in) · 1.0 mm (0.039 in) · 1.2 mm (0.047 in) · 1.5 mm (0.059 in) · 2.0 mm (0.079 in) · 2.5 mm (0.098 in) · 3.0 mm (0.118 in) · 4.0 mm (0.157 in) · 5.0 mm (0.197 in) · 6.0 mm (0.236 in) · 0.15 mm (0.006 in) |
|---|---|
| Construction | 1x7 · 7x7 · 7x19 · 1x7 Coated · 7x7 Coated |
| Spool Length | 30 m (98 ft) · 100 m (328 ft) · 50 m (164 ft) · 10 m (33 ft) |
Product Details
| Material | 304 Stainless Steel |
|---|---|
| Features | Waterproof, Rust-resistant, Corrosion-resistant |
| 7x7 Structure | 7 strands, 7 wires/strand (49 wires total) |
| 1x7 Structure | 1 strand, 7 wires |
| 7x19 Structure | 7 strands, 19 wires/strand (133 wires total) |
| Structure | 1x7 (7 strands) |
| Surface | Smooth |
| Construction | 7x7 (49 strands) |
304 Stainless Steel Wire Rope 1*7 (0.1mm-0.6mm)
| Diameter (mm) | Wire Structure | Recommended Load (kg) | Max Load (kg) | Material |
|---|---|---|---|---|
| 0.1 | 1*7 | 0.8 | 1.5 | 304 Stainless Steel |
| 0.2 | 1*7 | 1.2 | 4.5 | 304 Stainless Steel |
| 0.3 | 1*7 | 2.2 | 9.2 | 304 Stainless Steel |
| 0.4 | 1*7 | 3.9 | 15.5 | 304 Stainless Steel |
| 0.5 | 1*7 | 6.2 | 25.5 | 304 Stainless Steel |
| 0.6 | 1*7 | 9.5 | 38 | 304 Stainless Steel |
304 Stainless Steel Wire Rope 7*7 (0.8mm-8mm)
| Diameter (mm) | Wire Structure | Recommended Load (kg) | Max Load (kg) | Material |
|---|---|---|---|---|
| 0.8 | 7*7 | 10 | 46 | 304 Stainless Steel |
| 1.0 | 7*7 | 15 | 63.7 | 304 Stainless Steel |
| 1.2 | 7*7 | 30 | 120 | 304 Stainless Steel |
| 1.5 | 7*7 | 41.75 | 167 | 304 Stainless Steel |
| 2.0 | 7*7 | 73.5 | 294 | 304 Stainless Steel |
| 2.5 | 7*7 | 108.75 | 435 | 304 Stainless Steel |
| 3 | 7*7 | 159.25 | 637 | 304 Stainless Steel |
| 3 | 7*19 | 159.25 | 637 | 304 Stainless Steel |
| 4 | 7*19 | 237.75 | 951 | 304 Stainless Steel |
| 5 | 7*19 | 435 | 1470 | 304 Stainless Steel |
| 6 | 7*19 | 587 | 2880 | 304 Stainless Steel |
| 8 | 7*19 | 1000 | 3760 | 304 Stainless Steel |
- Multi-strand construction
- Requires special handling/usage
- Click to purchase
304 Stainless Steel Miniature Wire Rope
- Material: Premium 304 Stainless Steel (waterproof, rust-resistant, corrosion-resistant).
- 7x7 Structure: 7 strands with 7 wires per strand (49 total wires). Offers higher load capacity and durability; commonly used for diameters under 3mm.
- 1x7 Structure: 1 strand with 7 wires.
- 7x19 Structure: 7 strands with 19 wires per strand (133 total wires). Softer and more flexible; commonly used for diameters over 3mm.
Smooth Surface Wire Leader
- 1x7 construction (7 strands)
Multi-strand Wear Resistant Wire Leader
- 7x7 strand construction (49 total wires) for high strength and durability
Ultra-Soft & Ultra-Fine Wire Leader
- 7x19 strand structure (133 total wires)
- Ultra-fine diameter and extremely flexible soft feel
Product Size & Specifications
- Stainless steel wire rope size charts
- Includes wire diameter, structure, reasonable load capacity, max load capacity, and material details.
Wire diameter size reference guide
- Hair thickness is about 0.1 mm; 0.2 mm is very thin, equivalent to #1.5 fishing line
- Small sewing needle ~ 0.5 mm, paperclip ~ 0.8 mm, clothes rack steel wire ~ 1.5 mm
- Toothpick ~ 2 mm, phone charging cable ~ 3 mm, gel pen refill ~ 4 mm
Versatile Wire Applications
- Suitable for tackle, saltwater fishing, rigging, chandeliers, DIY jewelry, bead stringing, clotheslines, grape trellises, and greenhouse tie-downs.
- Also used for pet leashes, anti-theft wire, shade netting tie wire, flagpole ropes, boat rigging, and medical guide wires.
