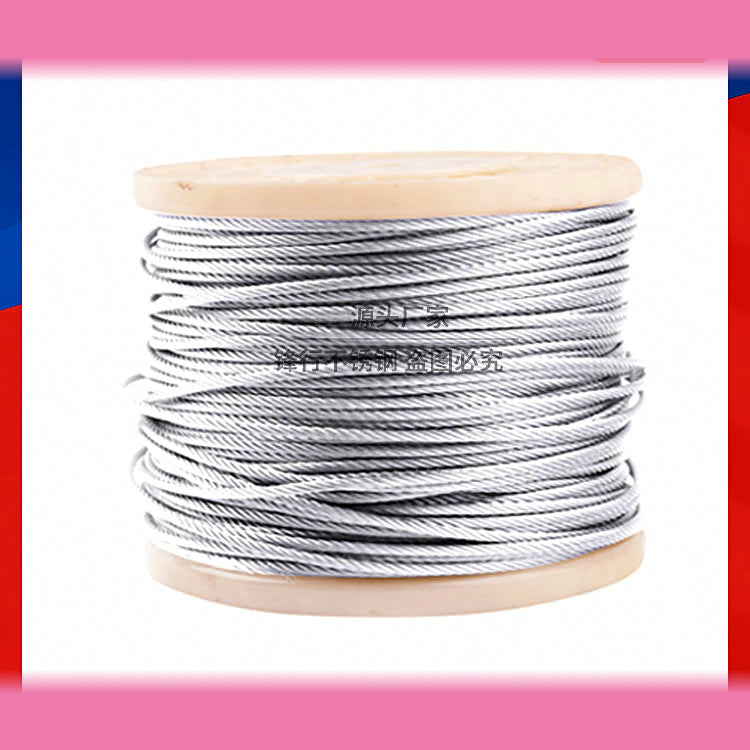

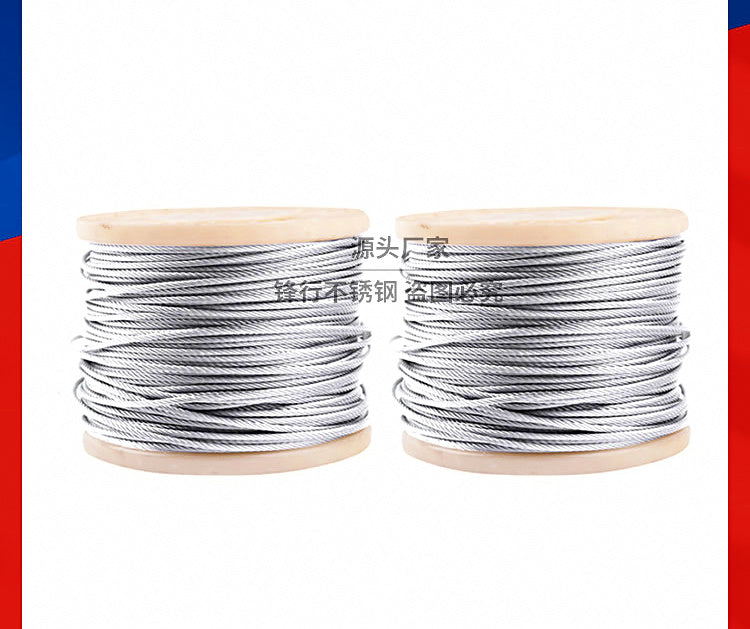

316 Stainless Steel Wire Rope, 1.5–10 mm, 7x7 & 7x19
$1.17
Specifications
Product specifications
Available options
| Diameter | 1.5 mm (0.06 in) · 2 mm (0.08 in) · 2.5 mm (0.10 in) · 3 mm (0.12 in) · 4 mm (0.16 in) · 5 mm (0.20 in) · 6 mm (0.24 in) · 8 mm (0.31 in) · 10 mm (0.39 in) |
|---|---|
| Construction | 7x7 · 7x19 |
| Length | 3 m (9.8 ft) · 5 m (16.4 ft) · 10 m (32.8 ft) · 15 m (49.2 ft) · 20 m (65.6 ft) · 30 m (98.4 ft) · 40 m (131.2 ft) · 50 m (164.0 ft) · 60 m (196.9 ft) · 70 m (229.7 ft) · 80 m (262.5 ft) · 90 m (295.3 ft) · 100 m (328.1 ft) |
Product Details
| Material | 316 Stainless Steel |
|---|---|
| Features | High hardness, rust-resistant, anti-deformation, wear-resistant, corrosion-resistant |
| Product Name | 316 Stainless Steel Wire Rope |
| Application | Industrial fittings |
| Surface Treatment | Natural color |
| Product Standard | National standard (GB) |
| Dimensions | Contact customer service |
Common Accessory Matching Sizes
| Specification (mm) | Aluminum Sleeve | Thimble | U-Clamp | Single/Double Clamp | Turnbuckle Screw |
|---|---|---|---|---|---|
| 1 mm | M1 | M2 | M4 | ||
| 1.2 mm | M1.2 | M2 | M4 | ||
| 1.5 mm | M1.5 | M2 | M2 | M2 | M4 |
| 2 mm | M2 | M2 | M2 | M3 | M5 |
Stainless Steel Wire Rope Specifications (Categorized by Structure)
| Specification | Diameter (mm) | Weight per 100m (kg) | Meters per kg (m) | Recommended Load (kg) |
|---|---|---|---|---|
| 7x7 | 0.6 | 0.145 | 690 | 5.3 |
| 7x7 | 0.8 | 0.259 | 387 | 7.3 |
| 7x7 | 1.0 | 0.405 | 247 | 14 |
| 7x7 | 1.2 | 0.583 | 171 | 20.3 |
| 7x7 | 1.5 | 0.911 | 110 | 31.8 |
| 7x7 | 1.8 | 1.31 | 76 | 45.8 |
| 7x7 | 2.0 | 1.62 | 61 | 56.3 |
| 7x7 | 2.5 | 2.53 | 39 | 88 |
| 7x7 | 3.0 | 3.64 | 27 | 126.8 |
| 7x7 | 4.0 | 6.48 | 15 | 225.3 |
| 7x7 | 5.0 | 10.12 | 9.8 | 352.3 |
| 7x19 | 1.5 | 0.911 | 110 | 29.3 |
| 7x19 | 2.0 | 1.62 | 61 | 52.0 |
| 7x19 | 2.5 | 2.53 | 40 | 81.3 |
| 7x19 | 3.0 | 3.64 | 27 | 117.3 |
| 7x19 | 4.0 | 6.48 | 15.5 | 208.3 |
| 7x19 | 5.0 | 10.12 | 9.8 | 325.8 |
| 7x19 | 6.0 | 14.58 | 6.8 | 469.0 |
| 7x19 | 8.0 | 25.92 | 3.8 | 833.8 |
| 7x19 | 10.0 | 40.5 | 2.4 | 1303.0 |
| 7x19 | 12.0 | 58.32 | 1.71 | 1876.3 |
| 7x19 | 14.0 | 79.38 | 1.26 | 2554.0 |
| 7x19 | 16.0 | 103.68 | 0.96 | 3335.8 |
| 7x19 | 18.0 | 131.22 | 0.76 | 4222.0 |
| 7x19 | 20.0 | 162 | 0.62 | 5212.3 |
| 7x19 | 24.0 | 233.28 | 0.43 | 7505.8 |
| 7x19 | 26.0 | 273.7 | 0.36 | 8806.3 |
316 Stainless Steel Wire Rope
- High hardness and anti-deformation
- Rust-resistant and corrosion-resistant
- Wear-resistant and durable construction
High-Precision 316 Stainless Steel Wire
- Rust-resistant, corrosion-resistant, high-temperature resistant, high hardness, friction-resistant, and non-polluting
- Made from 316 stainless steel with precision processing
- Moisture-proof, wear-resistant, acid-resistant, deformation-resistant, suitable for indoor and outdoor applications

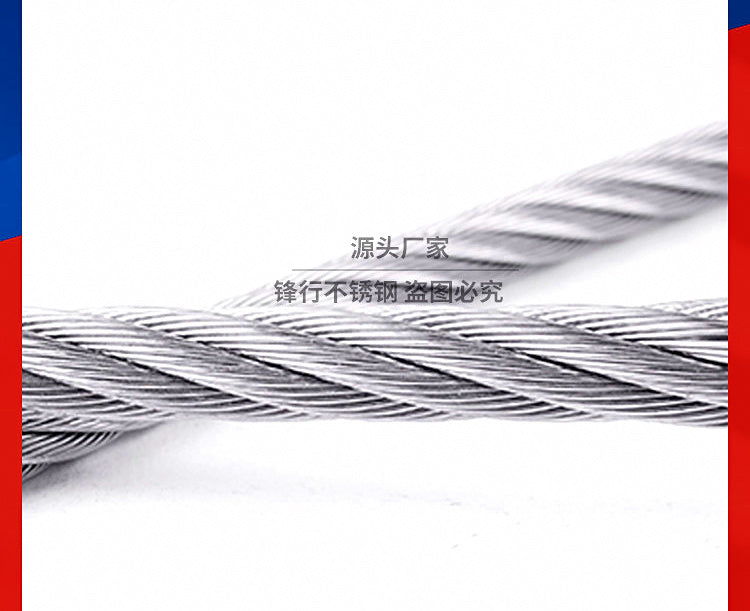

Multi-strand braided wire leader with high load-bearing capacity
- High safety, anti-fraying design, versatile applications

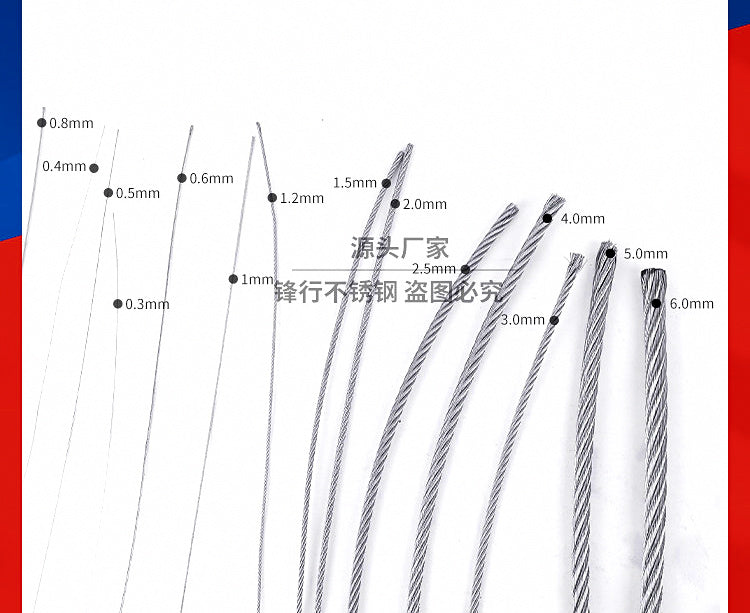

- Available in multiple thickness options from 0.3mm up to 6.0mm
316 Stainless Steel Wire Rope Parameters & Accessory Sizing
- Made of high-grade 316 stainless steel for excellent corrosion resistance.
- Suitable for industrial fittings and various rigging applications.
- Includes recommended accessory sizing chart for aluminum sleeves, thimbles, U-clamps, and turnbuckle screws.
Stainless Steel Wire Rope Specifications
- Material: Stainless Steel Wire Rope
- Structure types available: 7x7 and 7x19 construction
Eco-Friendly Hardware Steel Wire Cable
- High-quality eco-friendly hardware steel wire cable
- Available in various thicknesses and strand configurations
Product Details
- High-quality eco-friendly hardware
- Multi-strand woven steel wire rope with high load-bearing strength and high flexibility
316 Stainless Steel Wire Rope
- Precision crafted and strand-resistant: Processed through at least 4 water tank drawing stages for higher structural stability and strand integrity.
- Made of high-grade 316 stainless steel with excellent corrosion resistance, heat resistance, low-temperature performance, and mechanical durability.
- Resistant to acid, alkali, and corrosion, suitable for both indoor and outdoor applications.

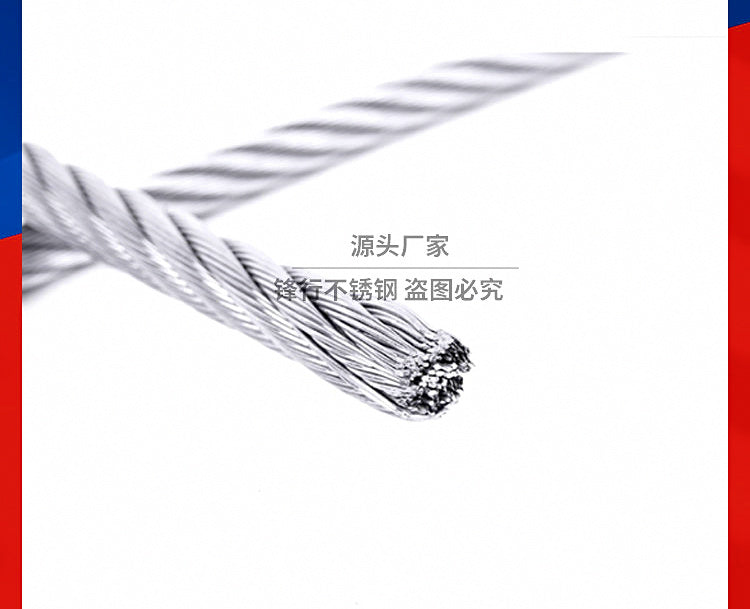

Smooth & Burr-Free Wire Rope
- Indoor and outdoor use with safe, reliable performance.
- Smooth surface without burrs to protect hands.
- Supports real-time monitoring to immediately detect and handle broken wires.
- Includes notice regarding various grades (201, 304, 316L, 310S) and seamless vs. welded tubing types; contact customer service for specific specs and custom lengths.
