UT SERIES · AVAILABLE NOW
All-Metal Saltwater Spinning Reel, Sizes 500–7000
$20.57
Specifications
Product specifications
Available options
| Series | HE · HE Gen 2 |
|---|---|
| Size | 500 · 800 · 1000 · 2000 · 3000 · 4000 · 5000 · 6000 · 7000 |
| Handle Knob | EVA Knob · Metal Knob |
Product Details
| Model | HE 5000 |
|---|---|
| Gear Ratio | 5.2:1 |
| Line Capacity (mm/m) | 0.30/200, 0.35/160, 0.40/100 |
| Product Name | HE Spinning Reel |
| Max Drag | 10 kg |
| Color | Black & Gold |
| Hand Retrieve | Left/Right Interchangeable |
| Suitable Waters | Rivers, Lakes, etc. |
| Suitable Rods | Lure Rod, Surf Rod, etc. |
| 1st Gen HE Shaft Material | Brass |
| 1st Gen HE Bumper Corner | Yes |
| 2nd Gen HE Shaft Material | Zinc Alloy |
| 2nd Gen HE Bumper Corner | No |
| Max Drag (Rated) | 10 kg (22 lb) |
| Max Drag (Tested) | 10.34 kg (22.8 lb) |
| Drag Washer Material | High-quality felt |
Specifications
| Model | Bearings | Gear Ratio | Weight (g) | Line Capacity (mm/m) |
|---|---|---|---|---|
| HE500 | 12 | 5.2:1 | 140 | 0.15/120 0.18/100 0.24/60 |
| HE1000 | 12 | 5.2:1 | 202 | 0.15/180 0.18/160 0.24/100 |
| HE2000 | 12 | 5.2:1 | 211 | 0.15/200 0.18/180 0.28/100 |
| HE3000 | 12 | 5.2:1 | 224 | 0.18/240 0.20/200 0.34/100 |
| HE4000 | 12 | 5.2:1 | 265 | 0.20/240 0.25/200 0.37/100 |
| HE5000 | 12 | 5.2:1 | 271 | 0.30/200 0.35/160 0.40/100 |
| HE6000 | 12 | 5.2:1 | 363 | 0.35/200 0.40/160 0.50/100 |
| HE7000 | 12 | 5.2:1 | 380 | 0.40/240 0.45/200 0.55/100 |
Line capacity based on standard line diameter for reference.
Product Features
- 10 kg max drag power with wool felt drag washers for handling big game.
- Aviation aluminum alloy spool with bevel design for smooth line release and longer casts.
- Stainless steel main shaft guide, brass main shaft, and zinc alloy gear drive train for powerful performance.
- One-piece body and foot design made from high-strength nylon composite material with curved reel seat for a rock-solid lock.
- CNC metal digital handle, highly sensitive, interchangeable left/right.
- Chrome-plated line roller with high hardness and polished finish, wear-resistant and line-friendly.
Spinning Reel Parameters
- Max Drag: 10 kg
- Color: Black & Gold
- Hand Retrieve: Right / Left Interchangeable
- Suitable Rods: Lure rod, surf rod, etc.
Generation Comparison
- 1st Generation HE: Brass gear shaft with protective bumper corner
- 2nd Generation HE: Zinc alloy gear shaft without bumper corner
Product Structure Breakdown
- Curved reel seat for a snug fit with no wobbling
- Reinforced main body for stability while fighting fish
- Hollowed-out body design for lighter weight
- Adjustable drag knob system, heavy-duty thick bail wire, CNC handle, and comfortable power knob
Lightweight All-Metal Spool
- Lightweight spool design reduces overall weight feel.
- Shifted center of gravity toward the rear improves balance and integration with the rod.
- Reduces fatigue from repetitive casting and enhances overall rod handling.

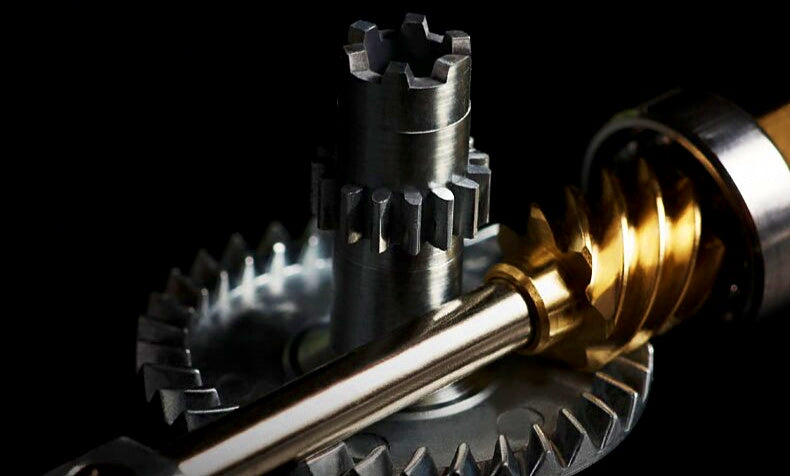

Metal Gear & Brass Main Shaft
- Heavy-duty internal drive system
- Optimized meshing between drive gear and worm shaft
Lightweight Main Shaft
- Lightweight and hard main shaft
- Effortless drive
- Deformation resistant
Product Features
- Lightweight design
- Corrosion-resistant material
- High-strength construction
10 kg Powerful Drag System
- Features high-quality felt washers that absorb water without swelling.
- Delivers smooth, consistent drag force without sticking, making it easy to tackle big game.
- Tested drag force reaches 10.34 kg (22.8 lb) with drag knob fully locked.
- Note: Measured drag value is the force required to pull line out when the drag knob is tightened completely; manual measurements may vary slightly.
