UT SERIES · AVAILABLE NOW

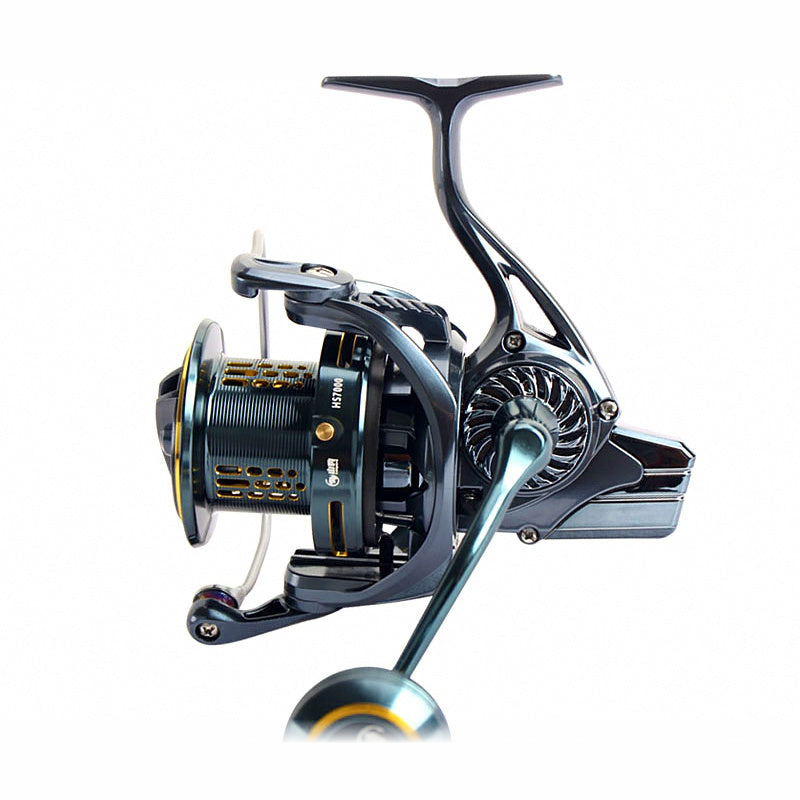

Aluminum Front Drag Spinning Reel, 5000–12000 Sizes
$112.55
Specifications
Product specifications
Available options
| Size | 5000 · 5800 · 6000 · 7000 · 8000 · 10000 · 12000 |
|---|
Product Details
| Body Material | Aluminum-magnesium alloy |
|---|---|
| Weight | 365 g (12.9 oz) |
| Max Drag | 20 kg (44 lb) |
| Size Options | 5000 / 5800 |
| Features | Slanted shallow spool, screw-in handle, worm shaft oscillation system |
| Series | HS Series |
| Drag Power | 25 kg (55.1 lb) |
| Available Sizes | 6000, 7000, 8000, 10000, 12000 |
| Material | Two-Tone Anodized Alloy |
| Spool Type | Angled Lip / Precision CNC Carved Metal Spool |
| Line Roller Type (HS Series) | Ceramic line roller |
| Line Roller Type (TE Master Series) | Metal line roller |
| Handle Type | Screw-in handle |
| Hand Retrieve | Left/right interchangeable |
| Model | Max Drag | Bearings | Weight | PE Line Capacity (mm/m / Line #) | Retrieve per Turn |
|---|---|---|---|---|---|
| TE5000 Medium-Shallow Spool | 20 kg | 12 | 365 g | 0.28mm/#3/170m 0.30mm/#4/140m 0.35mm/#5/105m | 93.3 cm |
| TE5800 Medium Spool | 20 kg | 12 | 365 g | 0.28mm/#3/270m 0.30mm/#4/230m 0.35mm/#5/190m | 93.3 cm |
Model Parameter Table
| Size / Model | Nylon Line Size (# / m) | Nylon Line Diameter (mm / m) | Net Weight (g) | Gear Ratio | Max Drag (kg) | Bearings |
|---|---|---|---|---|---|---|
| 6000 | 5.0-180 6.0-150 8.0-110 | 0.35-180 0.40-150 0.50-110 | 510g | 4.8:1 | 25 | 11+1BB |
| 7000 | 5.0-250 6.0-210 8.0-160 | 0.37-250 0.40-210 0.50-160 | 510g | 4.8:1 | 25 | 11+1BB |
| 8000 | 8.0-170 9.0-150 10.0-140 | 0.35-310 0.40-240 0.50-140 | 620g | 4.8:1 | 25 | 11+1BB |
| 10000 | 8.0-310 9.0-270 10.0-250 | 0.35-550 0.40-420 0.50-270 | 620g | 4.8:1 | 25 | 11+1BB |
| 12000 | 8.0-440 9.0-390 10.0-350 | 0.35-750 0.40-600 0.50-390 | 620g | 4.8:1 | 25 | 11+1BB |
Lightweight Aluminum-Magnesium Alloy Spinning Reel
- Slanted shallow spool with screw-in handle
- Aluminum-magnesium alloy body design
- Lightweight body with worm shaft slow oscillation system for long casting and saltwater fishing
- Weighs only 365 g (12.9 oz)
- Max drag force: 20 kg (44 lb)
- TE Light Anchor Series, available in 5000 and 5800 sizes

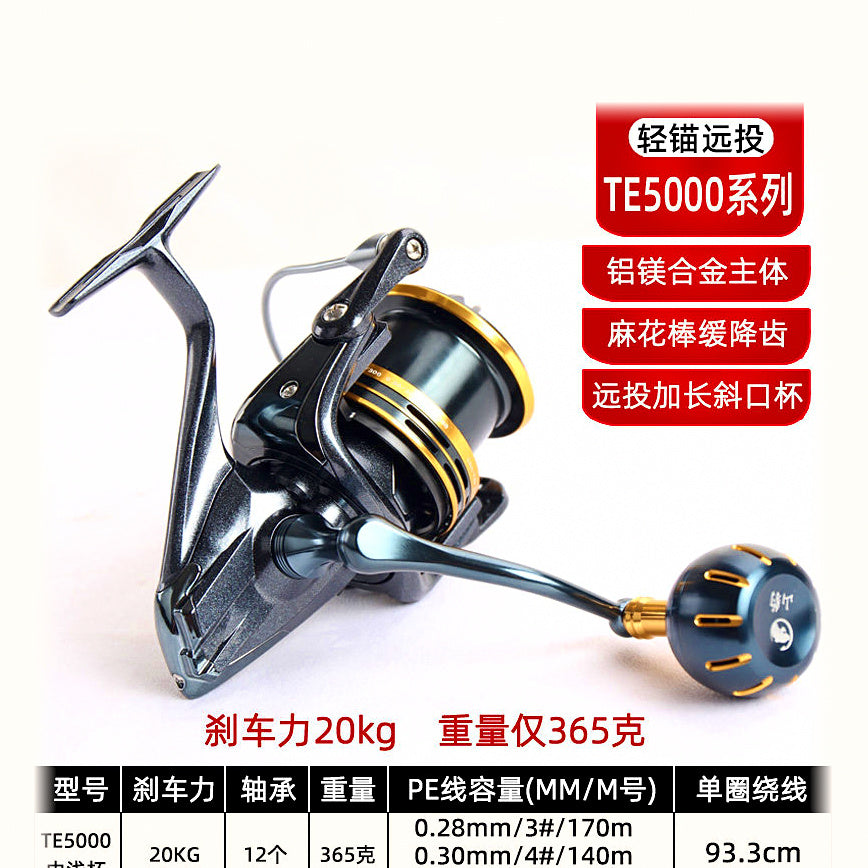

TE Master Light Snagging Reel Series
- Integrated aluminum-magnesium alloy reel foot and base for light weight and high stability.
- Features TE5000 (shallow-medium spool) and TE5800 (medium spool) models.
HS Series Fishing Reel Dimension Specifications
- 6000 Medium-Shallow Spool: Body Height 12.3 cm, Body Length 14.5 cm, Rotor Height 11.2 cm, Foot Length 7.2 cm; Spool Top Diameter 51 mm, Spool Bottom Diameter 61 mm, Spool Height 34 mm
- 7000 Medium Spool: Body Height 12.4 cm, Body Length 14.5 cm, Rotor Height 11.3 cm, Foot Length 7.2 cm; Spool Top Diameter 45.3 mm, Spool Bottom Diameter 61 mm, Spool Height 34 mm
- 8000 Shallow Spool: Body Height 13.5 cm, Body Length 17 cm, Rotor Height 13 cm, Foot Length 7.25 cm; Spool Top Diameter 68.2 mm, Spool Bottom Diameter 78 mm, Spool Height 39.7 mm
- 10000 Medium-Shallow Spool: Body Height 13.5 cm, Body Length 17 cm, Rotor Height 13 cm, Foot Length 7.25 cm; Spool Top Diameter 60 mm, Spool Bottom Diameter 78 mm, Spool Height 40.2 mm
- 12000 Medium Spool: Body Height 13.5 cm, Body Length 17 cm, Rotor Height 13 cm, Foot Length 7.25 cm; Spool Top Diameter 52.2 mm, Spool Bottom Diameter 78 mm, Spool Height 40 mm

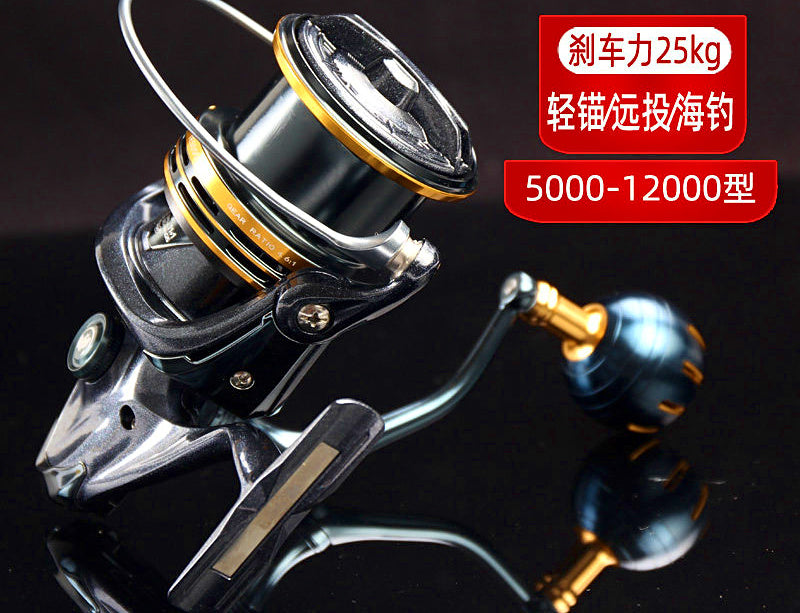

Long-Cast Saltwater Spinning Reel
- Features a bevel shallow spool and a screw-in handle
- Slow oscillation line lay design for smooth casting
- Ceramic line guide and worm-shaft drive system
- Max drag power: 25 kg (55.1 lb)
- Designed for heavy snagging, long-distance surf casting, and saltwater fishing
- Available sizes: 6000, 7000, 8000, 10000, and 12000
Master TE Series Two-Tone Anodized Alloy Spool
- Precision-carved metal spool
- Angled inverted-triangle lip for smooth line release
- Precision craftsmanship with gold-accented bevel design
Spool Options and Specifications
- 6000: Medium-Shallow Spool
- 7000: Medium Spool
- 8000: Shallow Spool
- 10000: Medium-Shallow Spool
- 12000: Medium Spool
HS Upgraded Ceramic Alloy Line Roller
- Reduces friction for fast line release
- Ceramic technology, heat-resistant, and smooth line flow
- HS Series features a ceramic line roller
- TE Master Series features a metal line roller
HS Series Two-Tone Anodized Aluminum Metal Spool
- Precision CNC-carved metal spool for smooth long casting
- Beveled inverted-triangle rim design for smooth line release
Screw-in Handle Design
- Firm handle attachment that won't come loose
- Threaded screw-in handle tightens with use
- HS Series
- Left-hand display shown
- Left and right hand interchangeable
Slow-Drop Oscillation System
- Twisted shaft slow-drop line oscillation design
- Ensures even line winding and smooth line release with precision craftsmanship
