UT SERIES · AVAILABLE NOW
Bottle-Shaped Three-Way Swivel, Size 10 to 5/0 Multi-Pack
$2.55
Specifications
Product specifications
Available options
| Size | 10 · 9 · 8 · 7 · 6 · 5 · 4 · 3 · 2 · 1 · 1/0 · 2/0 · 3/0 · 4/0 · 5/0 |
|---|---|
| Pack Size | 12 pcs · 10 pcs · 8 pcs · 5 pcs |
Product Details
| Grid Size | 5 x 5 mm |
|---|---|
| Size 12# Length | 13.84 mm |
| Size 10# Length | 16.21 mm |
| Size 9# Length | 16.75 mm |
| Size 8# Length | 19.13 mm |
| Material | Composite steel |
| Finish | Electroplated |
| Features | 3-way rotation, rounded chamfered eyes, high strength, line-safe |
| Applicable Waters | Reservoirs, Lakes, Oceans |
3-Way Swivel Specifications
| Size | Ring Wire Dia. (mm) | Total Height (mm) | Total Length (mm) | Single Weight (g) | Breaking Strength (kg) |
|---|---|---|---|---|---|
| #12 | 0.57mm | 8.56mm | 13.84mm | 0.19g | 14kg |
| #10 | 0.59mm | 10.10mm | 16.21mm | 0.26g | 16kg |
| #9 | 0.65mm | 10.59mm | 16.75mm | 0.30g | 17kg |
| #8 | 0.68mm | 11.44mm | 19.13mm | 0.59g | 20kg |
| #7 | 0.79mm | 12.17mm | 20.34mm | 0.62g | 23kg |
| #6 | 0.88mm | 14.74mm | 22.67mm | 0.83g | 27kg |
| #5 | 0.90mm | 14.88mm | 23.89mm | 0.86g | 28kg |
| Size | Wire Dia. | Inner Width | Total Length | Weight | Breaking Strength |
|---|---|---|---|---|---|
| #4 | 0.98mm | 16.08mm | 25.05mm | 1.22g | 30kg |
| #3 | 1.01mm | 16.29mm | 27.28mm | 1.27g | 31kg |
| #2 | 1.03mm | 16.75mm | 27.91mm | 1.33g | 40kg |
| #1 | 1.12mm | 17.48mm | 28.22mm | 1.70g | 48kg |
| 1/0 | 1.19mm | 19.01mm | 31.22mm | 1.93g | 53kg |
| 2/0 | 1.26mm | 20.22mm | 33.44mm | 2.58g | 55kg |
| 3/0 | 1.50mm | 23.25mm | 37.31mm | 3.56g | 60kg |
| 4/0 | 1.57mm | 24.73mm | 39.67mm | 4.41g | 78kg |
| 5/0 | 1.83mm | 26.26mm | 42.89mm | 6.05g | 85kg |
Note: Parameters are manually measured, slight errors are within the normal range, please refer to the actual product received, thank you for understanding.
T-Shape 3-Way Swivel Separator
- Versatile 3-way swivel designed for double hook rigs, dropper rigs, and general rig separation
- Ideal for boat fishing applications
- Strong breaking strength and corrosion-resistant construction
- Full range of specifications available
Product Parameters
- 1:1 scale size comparison grid
- Grid scale reference: 5x5mm
3-Way Crane Swivel Dimension & Specification Chart
- Diagram shows full height and overall length measurements for various swivel sizes.
- Complete size specifications including ring diameter, total height, total length, weight, and breaking strength.

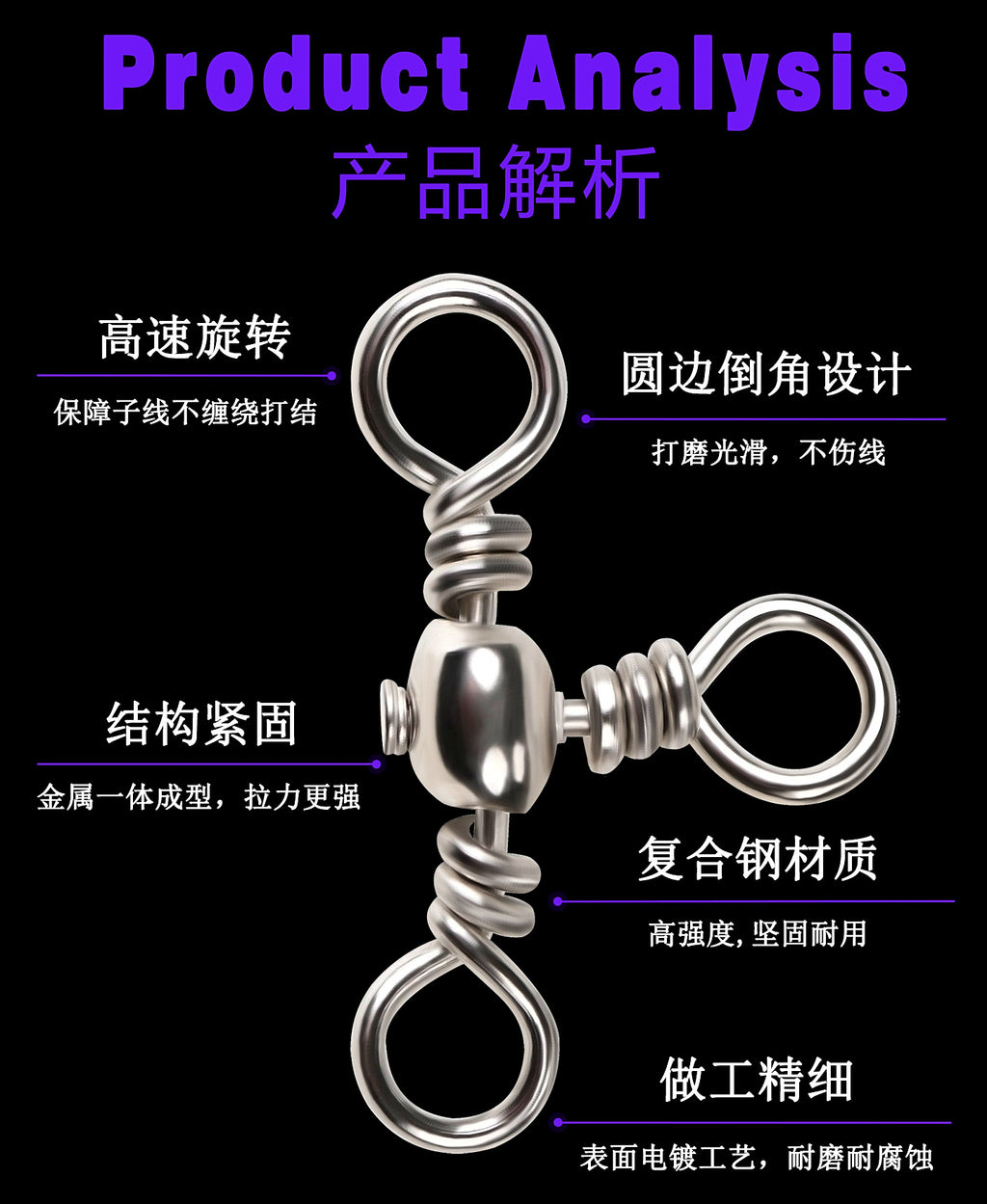

Product Analysis
- Data measured manually; slight variations within normal limits, subject to actual product.
3-Way Fishing Swivel Features
- Rounded Beveled Design: Polished smooth to prevent line damage
- Composite Steel Material: High strength, solid and durable
- High-Speed Rotation: Prevents leader tangling and knotting
- Solid Structure & Fine Craftsmanship: One-piece metal construction with electroplated surface for wear and corrosion resistance
High hardness and strong tensile strength
- Solid construction for heavy-duty use
- High breaking strength, built for big game fishing
Multi-Axis Flexible Rotation Swivel
- High-strength material for pulling big game fish
- 360° flexible rotation prevents line twisting and jamming

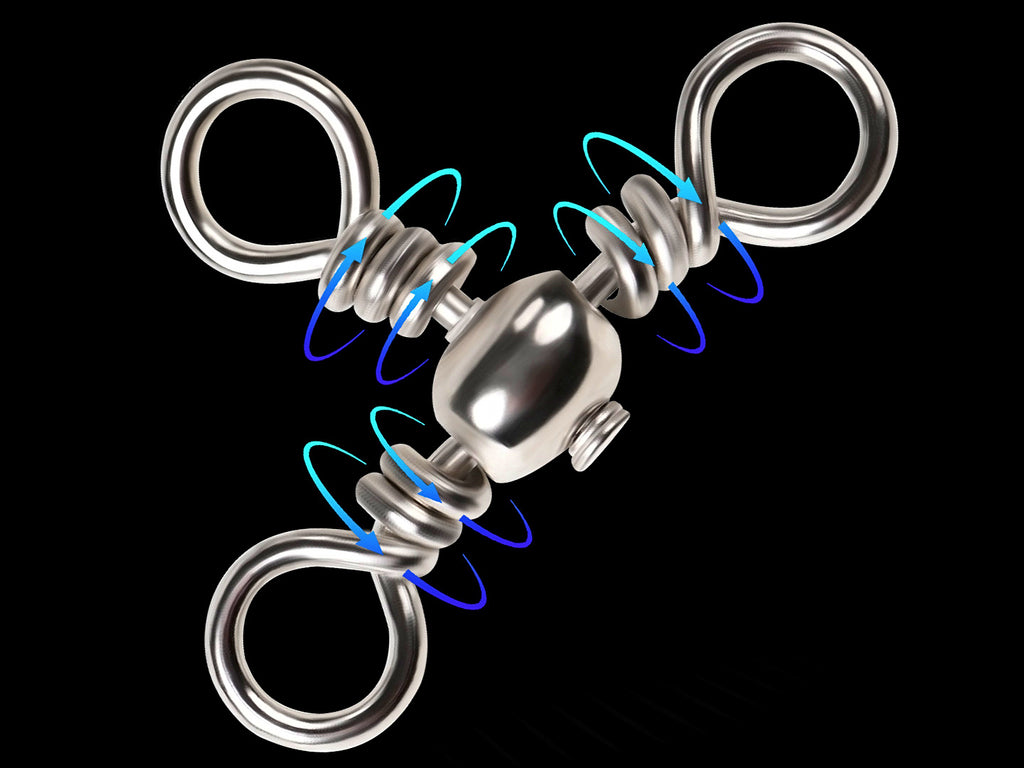

Smooth & Flexible Rotation
- Low friction high-speed flexible rotation releases line twist and prevents line tangles
- Wide application range with durable, deformation-resistant build for smooth fishing

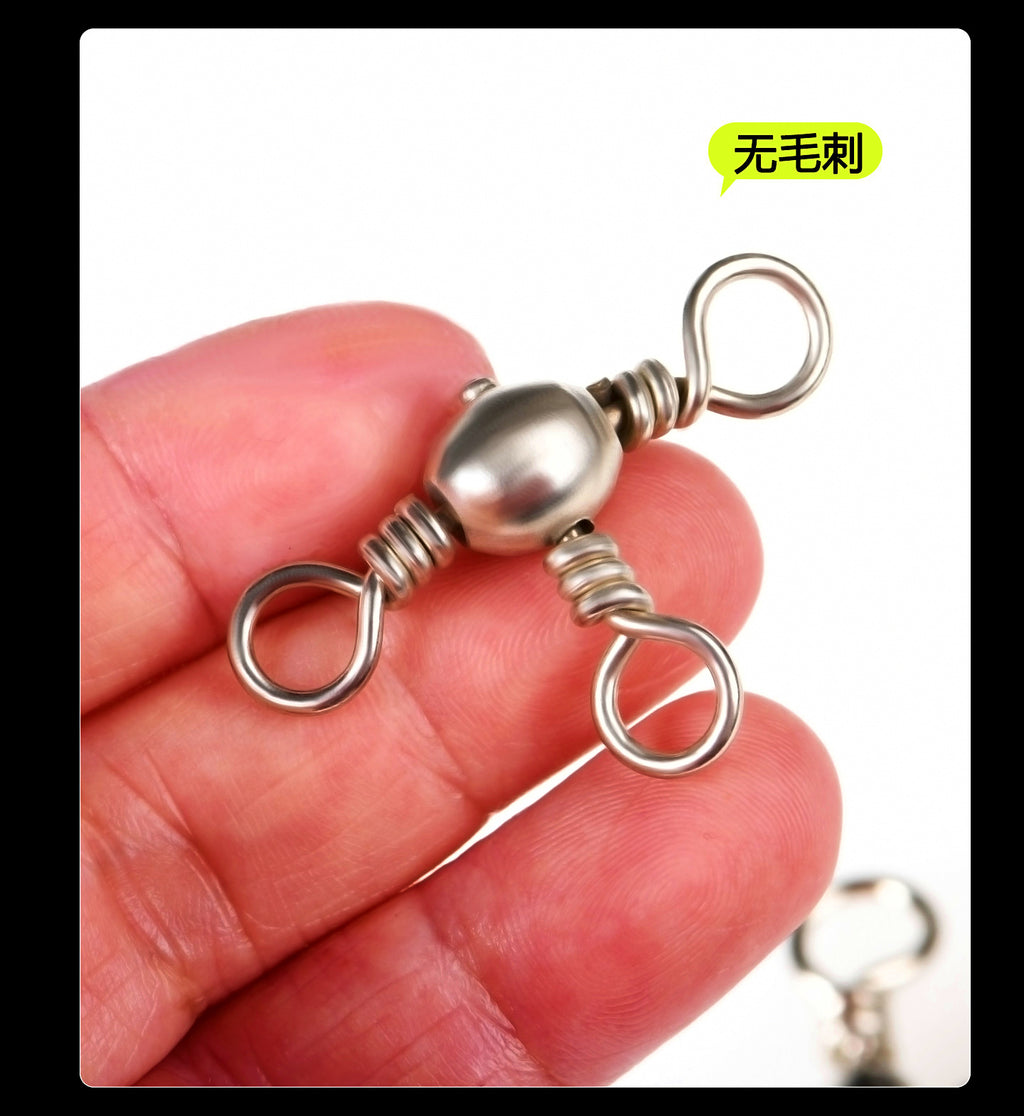

Precision Craftsmanship
- Suitable for reservoirs, lakes, and oceans
- Smooth surface prevents line damage
- Finely polished finish for a comfortable grip and long-lasting durability
- Smooth finish without burrs
