CNC Metal Baitcasting Reel with DC Electronic Brake
$608.15
Specifications
Product specifications
Available options
| Model | B51 Non-Bluetooth · B51-DBC-4 · B100-DBC-4, 7.0:1 · B101-DBC-4 Bluetooth · B201-DBC-4 Bluetooth · B100-DC Bluetooth · B101-DC Bluetooth · B201-DC Bluetooth · B51-MC Magnetic, 8.1:1 · B100 Non-Bluetooth · B51 Bluetooth · 75th Anniversary B51-DBC-2 Bluetooth · 75th Anniversary B51-DBC-1 Non-Bluetooth |
|---|---|
| Color | Gold · Gunmetal · Black · Purple |
| Handle | Right Hand · Left Hand |
Product Details
| Model | B100-DC |
|---|---|
| Brake System | DC electromagnetic brake |
| Lure Weight Range | 1–20 g |
| Spool Material | 7075 One-Piece CNC Machined Aluminum |
| Spool Weight (without magnetic module) | 6.5 g |
| Spool Weight (with magnetic module) | 10.5 g |
| Waterproof Rating | IP68 |
| Saltwater Compatibility | Yes (rinse with fresh water after use) |
| Max Line Exit Angle | ≤29° |
| Frame Type | IMF Integrated All-Metal Frame |
| Machining Process | One-Piece CNC |
| Strength | 30% higher than die-casting |
| Weight | 139 g |
B100-DC Round Baitcasting Reel
- Domestic DC electromagnetic braking round reel
Smart Assistance for a New All-Round Casting Experience
Loong-DC Intelligent Electromagnetic Brake
- Features a response speed more than 10 times faster than traditional DC braking systems.
- Provides finer brake force variation and adjustment control.
- Highly integrated electromagnetic module and advanced power management allow self-charging via electromagnetic energy conversion without external power sources.

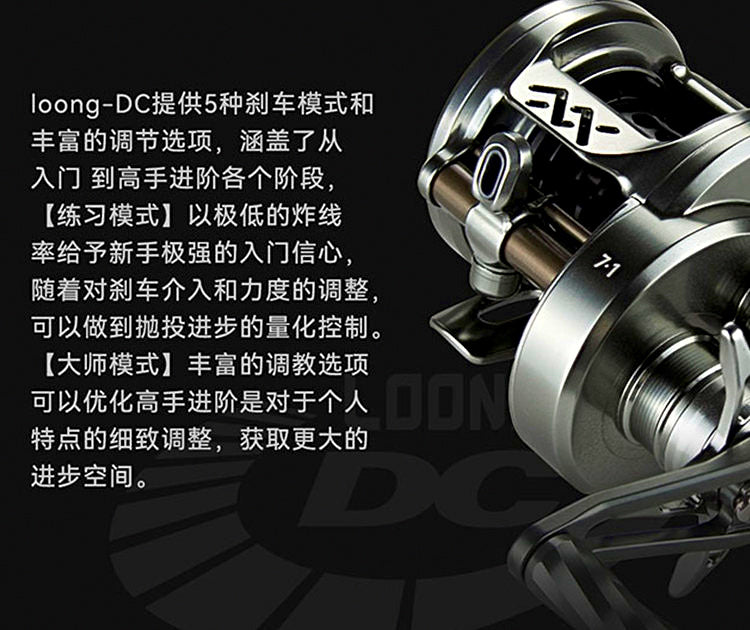

Suitable for Beginners to Advanced Anglers
- loong-DC provides 5 braking modes and rich adjustment options to cover every stage from beginner to expert
- Practice Mode features an extremely low backlash rate, giving beginners great confidence
- As brake intervention and force are adjusted, progress in casting distance can be quantified and controlled
- Master Mode offers rich tuning options for fine adjustments tailored to personal casting styles

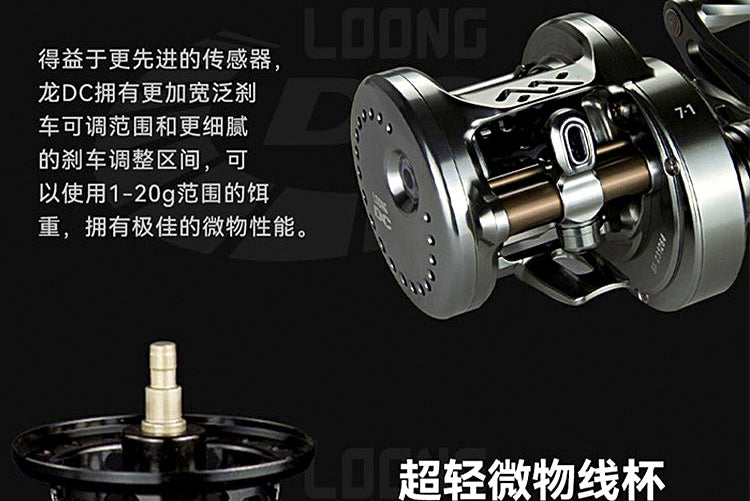

Wide Lure Weight Range Support & Ultra-Light Finesse Spool
- Advanced sensors provide a wider brake adjustment range and finer tuning intervals, supporting lure weights from 1g to 20g with exceptional micro-lure performance.
- Features a 7075 one-piece CNC machined ultra-light micro-lure spool optimized for casting performance.
- Spool weight: 6.5g without magnetic module; 10.5g with magnetic module.
Highly Integrated Waterproof Circuit Board Design
- Features a highly integrated waterproof PCB design achieving IP68 waterproof rating.
- Compatible with saltwater environments (rinse with fresh water promptly after saltwater use).
Self-Charging Design
- No external charging required; the power management system charges automatically during casting.
- Ultra-long standby time with ultra-low power consumption.
- No external charging port needed, ensuring excellent waterproof performance.
Low-Resistance Line Guide
- The line guide is shifted forward with an expanded inner opening to minimize line angle changes.
- Reduces friction resistance on most line types.
- Maximum line exit angle: ≤29 degrees.
148g Ultra-Light IMF Frame
- Integrated all-metal IMF frame integrates reel foot and front cover into the main body frame.
- CNC precision one-piece machining increases strength by 30% over die-casting.
- Ultra-lightweight construction weighs only 139g.
