UT SERIES · AVAILABLE NOW

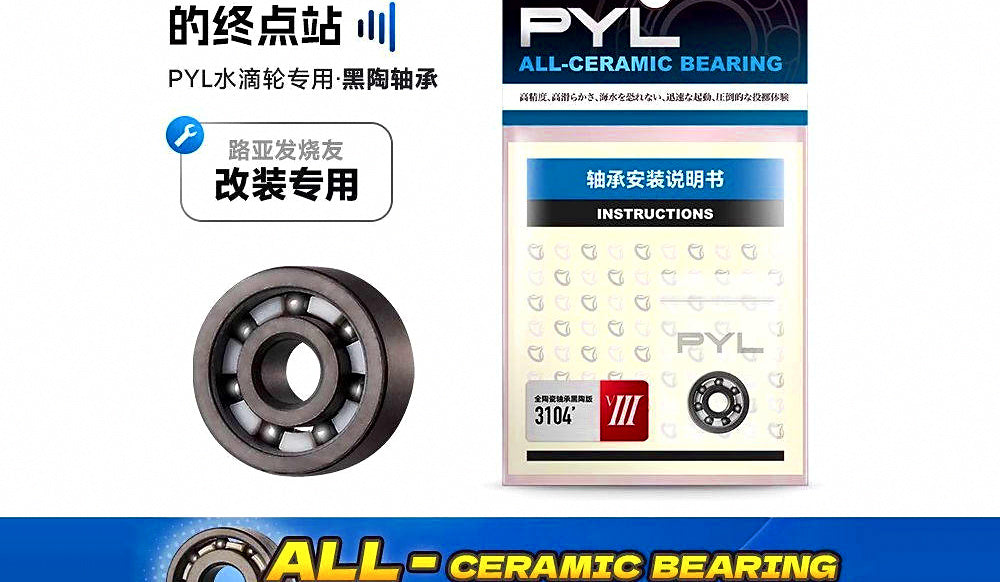

Full Ceramic Reel Bearings for Baitcaster, Black Ceramic
$60.61
Specifications
Product specifications
Available options
| Color | Black Ceramic |
|---|---|
| Pack | Single Bearing · Combo Set |
Product Details
| Type | SiC Ceramic Bearing |
|---|---|
| Application | Baitcasting Reel |
| Component | Full Ceramic Reel Bearings (VIII Black Ceramic Edition) |
| Rings Material | Silicon Nitride |
| Balls Material | SiC Silicon Carbide |
| Weight Reduction | Approx. 45% lighter than VII Pro version |
| Corrosion Resistance | +25% compared to VII Pro version |
| Average Hardness | +40% compared to VII Pro version |
| Suitability | Baitcasting reels / Micro-lure casting (BFS) |
| Product Name | Baitcasting Reel Special Black Ceramic Bearing |
| Material | Silicon Nitride, Silicon Carbide |
| Packaging | Single Piece Bag |
| Quality Grade | P5 Tolerance Precision Grade |
| Applicable Reels | Baitcasting Reels, Round Reels |
| Applicable Brands | ABU, and popular domestic brands |
| Recommended Lure Weight | 0g - 30g |
| Key Features | Ultra-lightweight design, high precision, low clearance, corrosion-resistant |
| Inner / Outer Ring Material | Si3N4 (Silicon Nitride) |
| Ball Material | SiC (Silicon Carbide) |
| Cage / Retainer Material | PEEK / PTFE |
Bearing Specifications
| Size (mm) | Ball Count | Retainer Cage | Weight (g) | Avg Free-Spin Time (m) | Application / Positioning | Recommended Lure Weight (g) |
|---|---|---|---|---|---|---|
| 3x6x2.5 | 8 | PEEK | 0.11 ± 0.01 | 3 ± 1 | Micro-lure | 2-10 |
| 3x7x3 | 7 | PEEK | 0.21 ± 0.01 | 4 ± 1 | Micro-lure / Versatile | 2-15 |
| 3x8x2.5 | 9 | PEEK | 0.25 ± 0.01 | 4 ± 1 | Micro-lure / Versatile | 2-15 |
| 3x8x4 | 6 | PEEK | 0.34 ± 0.01 | 4 ± 1 | Micro-lure / Versatile | 2-15 |
| 3x10x4 | 7 | PTFE | 0.69 ± 0.01 | 5 ± 1 | Versatile | 2-20 |
| 5x10x4 | 8 | PTFE | 0.48 ± 0.01 | 4 ± 1 | Versatile | 2-20 |
| 5x11x4 | 8 | PTFE | 0.68 ± 0.01 | 3 ± 1 | Versatile | 2-20 |
- Baitcasting Reel Dedicated SiC-Ceramic Bearings
- Black Ceramic Bearing
Full Ceramic Bearings for Baitcasting Reels
- Fast spool startup with smooth and stable line release
- Corrosion-resistant for saltwater fishing with high durability
- Micro-lure castability enhanced with high-pitch casting sound
- Constructed with silicon nitride inner/outer rings and SiC ceramic balls, reducing weight by approx. 45% and increasing corrosion resistance by 25% compared to standard version
Baitcasting Reel Black Ceramic Bearings
- Precision black ceramic bearings designed for baitcasting and round reels.
- Made of silicon nitride and silicon carbide.
- P5 tolerance grade precision rating, single-piece bag packaging.
- Compatible with ABU, and popular domestic reel brands.
SiC Ball + Silicon Nitride Inner/Outer Ring Bearing
- High stability, super smooth, designed for ultralight micro lures.
- Improves spool startup responsiveness and casting directional accuracy.
- High precision, low vibration, and corrosion resistant against seawater.
- Recommended lure weight range: 0g to 30g.
Available Sizes and Specifications
- Multiple bearing sizes available for fishing reels
- Features PEEK and PTFE retainer cage options
- Optimized for micro-lure and general fishing applications
Material Breakdown
- Inner/Outer Rings: Si3N4 Silicon Nitride
- Balls: SiC Silicon Carbide
- Retainer / Cage: PEEK / PTFE
- SiC Silicon Carbide: Exceptional chemical corrosion resistance, high strength and hardness, low density, lightweight, superior wear resistance, low friction coefficient, and high-temperature resistance.
- Si3N4 Silicon Nitride: Lightweight, highly wear-resistant, and high hardness—ideal for high rotational speeds and heavy load capacities.
Material Features
- PEEK (Polyetheretherketone): High-temperature resistant, corrosion-resistant, high mechanical strength, and self-lubricating, widely used in automotive, aerospace, and medical fields.
- PTFE (Polytetrafluoroethylene): Known as the 'King of Plastics', formula (C2F4)n. Heat and cold resistant, usable long-term from -180°C to 260°C. Resists acids, bases, and organic solvents. Features extremely low friction coefficient for self-lubrication.
Break the Lure Weight Lower Limit
- Fast-spool startup, micro-lure optimized, low trajectory, and high directivity
- Addictive fingertip control feel
- Tested setup: 21 Alphas + L power rod + #0.8 PE line
