UT SERIES · AVAILABLE NOW
Full Metal Stainless Steel Saltwater Reel, 12 Bearings, 4.8 Ratio
$105.39
Specifications
Product specifications
Available options
| Size | 10000 Shallow Spool · 14000 Medium Spool · 16000 Deep Spool |
|---|
Product Details
| Bearings | 11+1 stainless steel bearings |
|---|---|
| Protection | 124-hour salt spray tested, MPD fully sealed bearings |
| Spool Diameter | 80 mm |
| Model 16000 Line Capacity | #10 line / 430 m |
| Bail Wire Thickness | 4 mm |
| Model | Gear Ratio | Net Weight | Line Capacity (mm/m) |
|---|---|---|---|

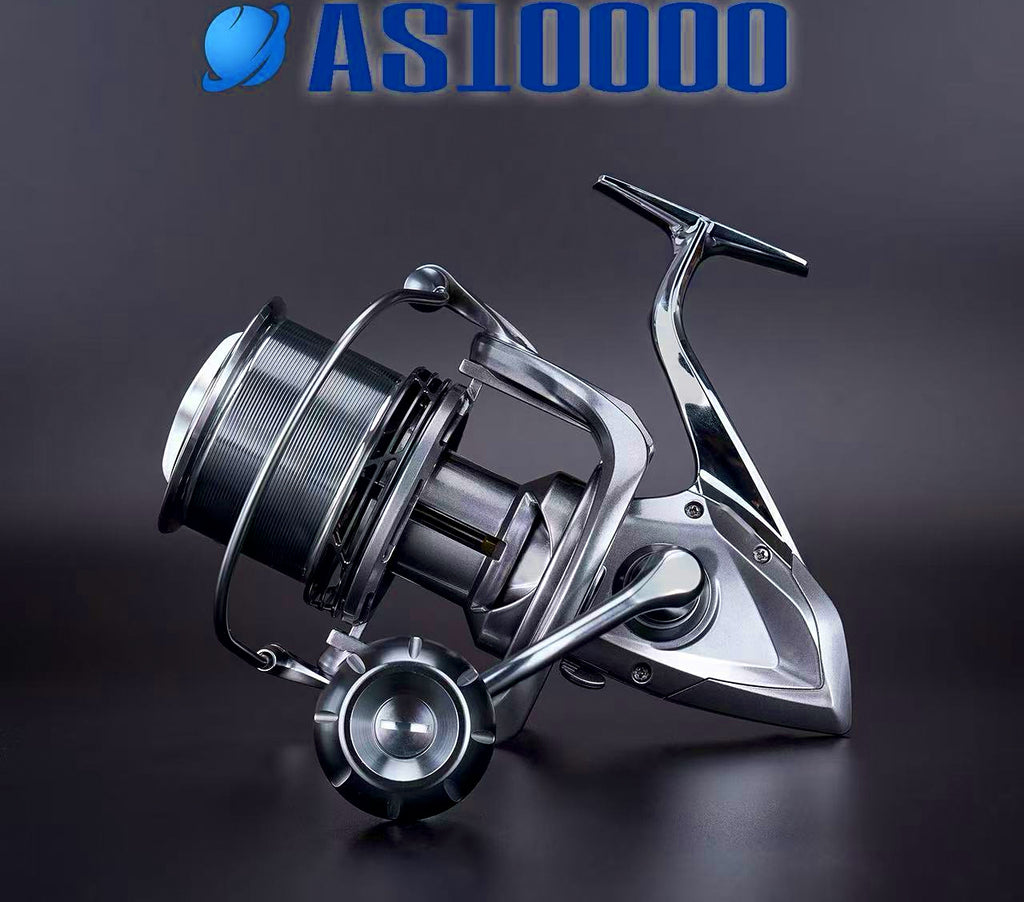

| AS10000 | 4.8:1 | 640g | PE:0.20/900m, 0.23/740m, 0.33/330m |

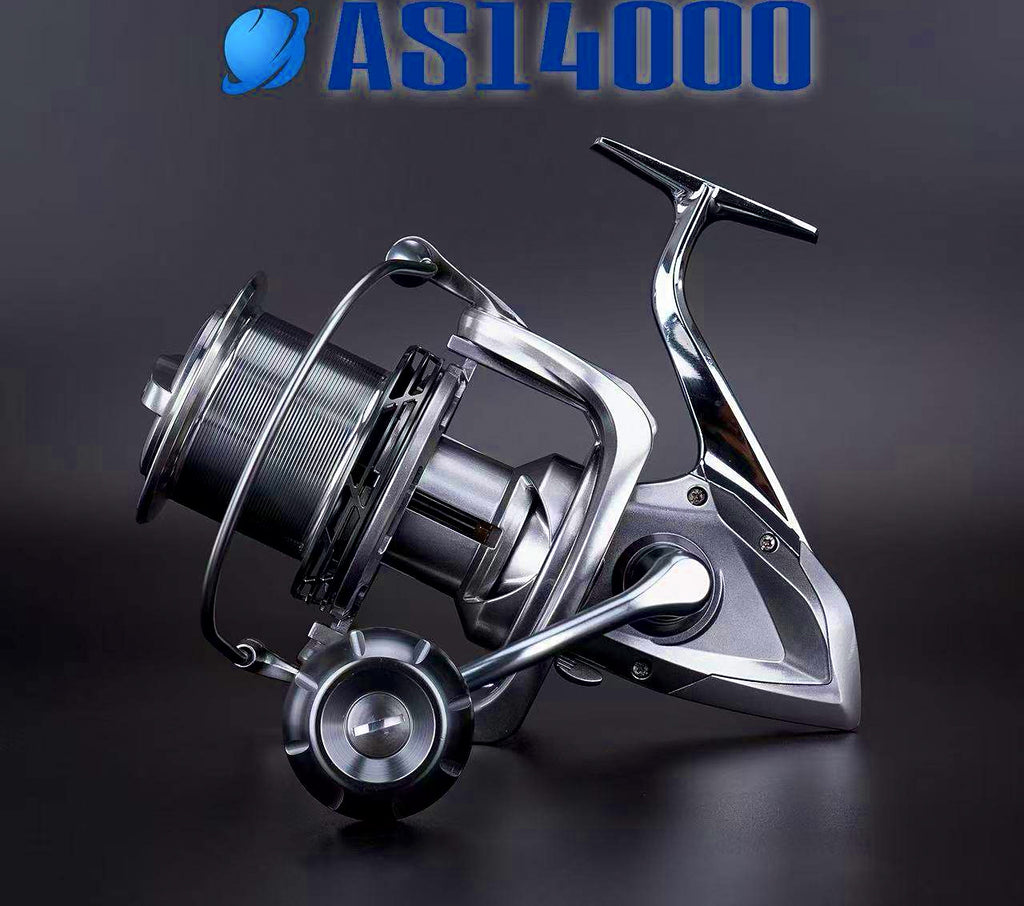

| AS14000 | 4.8:1 | 630g | PE:0.33/690m, 0.40/470m, 0.47/340m |
| AS16000 | 4.8:1 | 625g | PE:0.47/520m, 0.49/480m, 0.52/430m |
AS Internal Structure Breakdown
- Deceleration gear controls parallel line winding
- 304 stainless steel guide rod for precise spiral spooling
11+1 Stainless Steel Bearings
- 124-hour salt spray test passed
- MPD fully sealed bearings
Detachable Replaceable Metal Round Reel Knob
- Detachable and replaceable metal round handle knob design
- Stainless steel inlay on the reel body
- Over-sized and 4X strong handle thread options
- Stainless steel reinforced threads
- Comparison showing enlarged strong model vs. standard model handle thread
Extra Large Line Capacity
- 80mm large diameter spool
- 16000 size holds 430m of #10 main line
Spinning Reel Features
- Laser-engraved markings on spool
- Smooth ceramic line roller
- Heavy-duty 4 mm thick bail wire
Precision Machined Porting
- Features precision-engineered cutout ports on the spool frame for weight reduction
