UT SERIES · PRE-ORDER

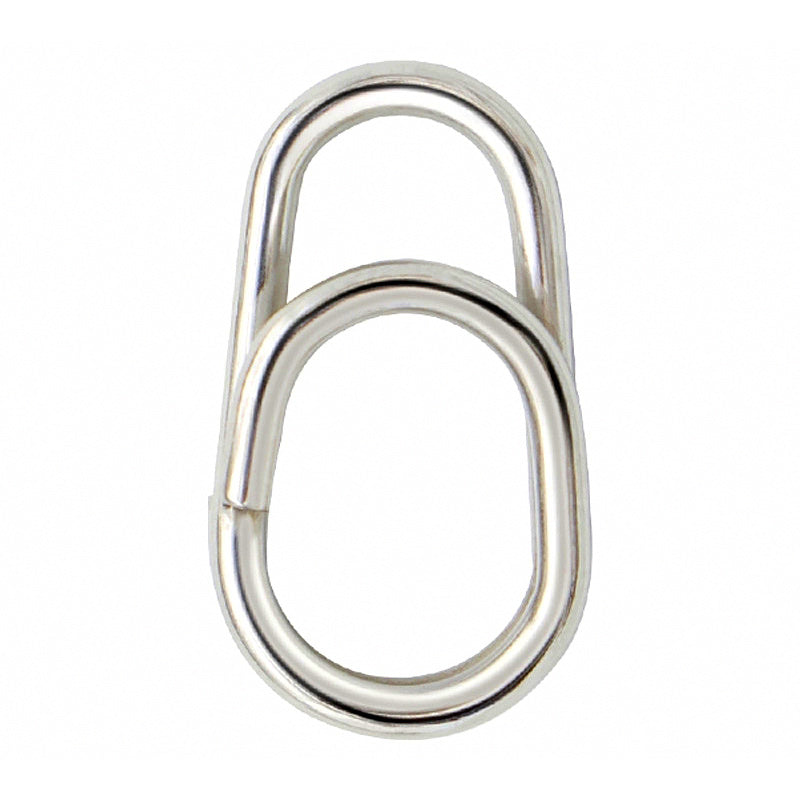

Jig Quick-Change Snap and Snap Swivel, Sizes #0–#8
$1.29
Specifications
Product specifications
Available options
| Style | Quick Snap, 10 pcs · Snap with Swivel, 5 pcs |
|---|---|
| Size | #3 – 66.1 lb (30 kg) · #4 – 88.2 lb (40 kg) · #0 – 26.5 lb (12 kg) · #5 – 110.2 lb (50 kg) · #6 – 154.3 lb (70 kg) · #1 – 39.7 lb (18 kg) · #7 – 198.4 lb (90 kg) · #8 – 209.4 lb (95 kg) · #2 – 55.1 lb (25 kg) · #3 – 70.5 lb (32 kg) · #6 – 149.9 lb (68 kg) · #7 – 180.8 lb (82 kg) · #8 – 198.4 lb (90 kg) |
| Jig Weight | 30–80 g (1.1–2.8 oz) · 60–150 g (2.1–5.3 oz) · 1–15 g (0.04–0.5 oz) · 150–300 g (5.3–10.6 oz) · 250–600 g (8.8–21.2 oz) · 5–25 g (0.2–0.9 oz) · 400–800 g (14.1–28.2 oz) · 800 g and up (28+ oz) · 10–40 g (0.35–1.4 oz) |
Product Details
| Material | 304 Stainless Steel |
|---|
Specifications
| Model | Total Length (mm) | Snap Length (mm) | Snap Inner Diameter (mm) | Bearing Width (mm) | Pull Rating (kg) |
|---|---|---|---|---|---|
| 0# | 20mm | 9mm | 4.5mm | 3.2mm | 12kg |
| 1# | 23mm | 11mm | 4.5mm | 3.5mm | 18kg |
| 2# | 24mm | 11mm | 4.5mm | 4.0mm | 25kg |
| 3# | 27mm | 12mm | 5.0mm | 4.5mm | 32kg |
| 4# | 31mm | 14mm | 6.5mm | 5.2mm | 40kg |
| 5# | 33mm | 17mm | 7.0mm | 6.0mm | 50kg |
| 6# | 40mm | 19mm | 8.0mm | 7.0mm | 68kg |
| 7# | 41mm | 20mm | 9.0mm | 8.1mm | 82kg |
| 8# | 45mm | 21mm | 9.0mm | 9.5mm | 90kg |
Manual measurement, please understand if there is any error.
SPECIFICATION
| Model | Total Length | Inner Diameter 1 | Inner Diameter 2 | Pull Rating |
|---|---|---|---|---|
| #3 | 12mm | 4.9mm | 4.0mm | 30kg (66 lbs) |
| #4 | 14mm | 5.7mm | 5.1mm | 40kg (88 lbs) |
| #5 | 17mm | 6.5mm | 5.6mm | 50kg (110 lbs) |
| #6 | 19mm | 7.5mm | 6.2mm | 70kg (154 lbs) |
| #7 | 20mm | 9.0mm | 7.5mm | 90kg (198 lbs) |
| #8 | 23mm | 10.0mm | 8.0mm | 95kg (209 lbs) |

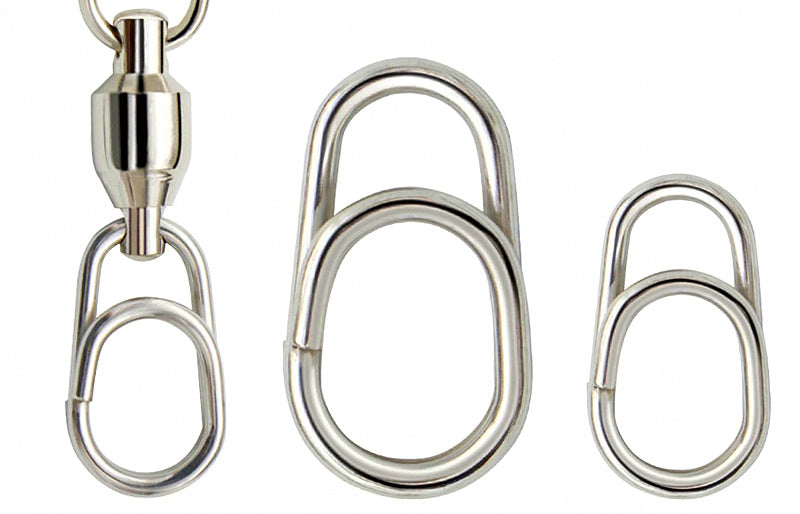

- Quick snap with swivel
- Quick snap
Specifications
- Thickened solid material for high strength
- Manual measurements with slight tolerance possible
Multiple sizes available to meet different weight requirements

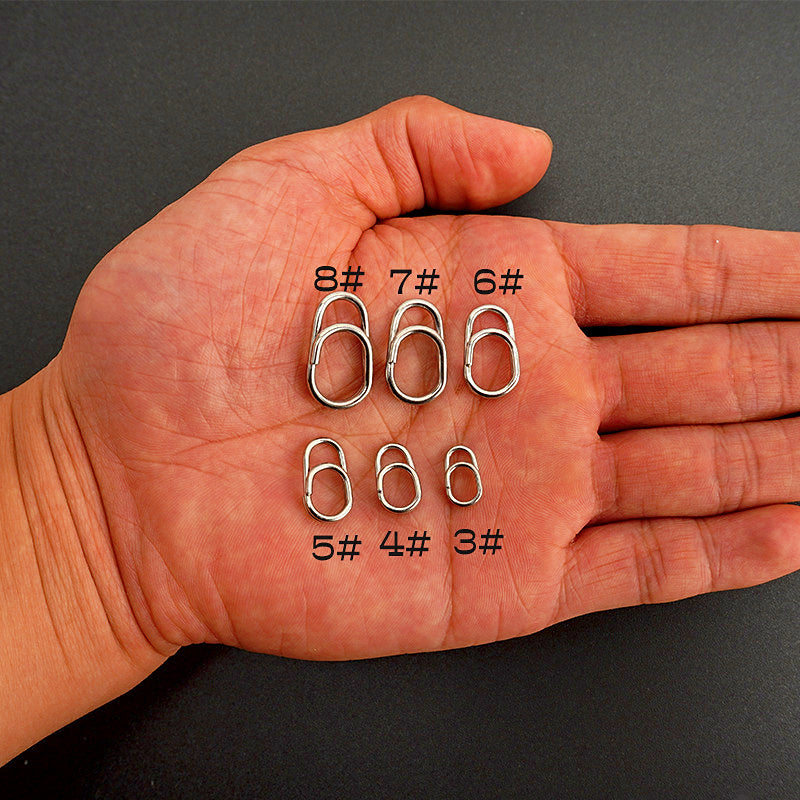

- Sizes range from 0# up to 8#
- Material: 304 Stainless Steel
- Swivel and snap connector attached to lure eye
How to Use
- Instructions for attaching the lure using a snap lock connection.
Removing the Lure
- Step 1: Push up the snap loop to align with the ring.
- Step 2: Slide the ring downward through the snap opening.
- Step 3: Rotate and pull the ring out of the snap.
- Step 4: The lure is successfully detached from the snap.
Snap Lock Dimensions and Load Capacity
- Total length diagram shows overall length and inner diameter measurements for both sides.
- Available in sizes #3 to #8 with pull ratings from 30kg to 95kg.
