Long-Cast Fishing Reel, Shallow Spool, 4.8:1, 12 Bearings
$81.55
Specifications
Product specifications
Available options
| Size | 5500 Shallow Spool · 6000 Shallow Spool · 6500 Shallow Spool |
|---|
Product Details
| Name | DG |
|---|---|
| Gear Ratio | 4.8:1 |
| Material | Metal main body |
| Bearing Count | 11+1 BB |
| Max Drag | 20 kg |
| Main Gear Material | All-copper |
| Drag Power | 20 kg (44 lb) |
| Drive System | Metal gear shaft system, gapless drive |
| Main Gear Option 1 | Brass main gear (heavy drag, durable, high traction) |
| Main Gear Option 2 | Standard gear (single-piece cut) |
| Weight | 435 g (15.3 oz) |
Fishing Reel Specifications
| Model | Drag (kg) | Weight (g) | Line Capacity (mm/M) | Line Capacity (Line No./M) |
|---|---|---|---|---|
| 5500 | 20 | 446 | 0.20/500, 0.23/350, 0.28/250 | 1.5/500, 2.0/350, 3.0/250 |
| 6000 | 20 | 435 | 0.32/270, 0.37/220, 0.45/150 | 4.0/270, 5.0/220, 7.0/150 |
| 6500 | 20 | 437 | 0.37/330, 0.40/250, 0.45/200 | 5.0/330, 6.0/250, 7.0/200 |
* The above parameters are manually measured using nylon line; slight errors may occur.
Strong Body, Easy Long Casting
- Compact snagging/snag-fishing heavy gear
- Tailor-made for anglers seeking high strength and long-distance casting performance
Compact Size, High Performance
- Engineered for anglers seeking maximum strength and long-casting capabilities
Outstanding Quality
- All-metal spool with hollowed design for lightweight performance
- NSQ stainless steel sealed bearing
- Precision-carved brass and stainless steel gear set for smooth rotation
- Dual-bearing system for head stability and reduced wobble
Compact Powerhouse Fishing Reel
- Thickened bail wire for low drag and smooth line output
- Curved metal reel foot resists intense pulls from big fish
- Screw-in CNC metal handle delivers higher torque and power
- Large-diameter drag knob for convenient adjustment; alloy spool prevents deformation under heavy loads
- Ergonomic metal handle knob for comfortable control
Fishing Reel Parameters
- Reinforced long-casting design with metal main body
- Gear ratio: 4.8:1, Bearings: 11+1 BB, Max Drag: 20 kg
- Manual measurements with nylon line may have slight margin of error
Spinning Reel Dimensions and Spool Sizes
- Reel dimensions: Body height 10.9 cm, main reel width 10.8 cm, foot width 6.68 cm, total width 16 cm
- Model 5500: Top spool diameter 47 mm, bottom spool diameter 60 mm, spool height 30.8 mm
- Model 6000: Top spool diameter 40.8 mm, bottom spool diameter 59.5 mm, spool height 31.7 mm
- Model 6500: Top spool diameter 34.7 mm, bottom spool diameter 59.7 mm, spool height 31.7 mm
Super Durable Gapless Drive System
- All-copper main gear for enhanced durability
- 20 kg (44 lb) heavy drag power with strong pressure resistance
- Metal gear shaft system ensures powerful line retrieval

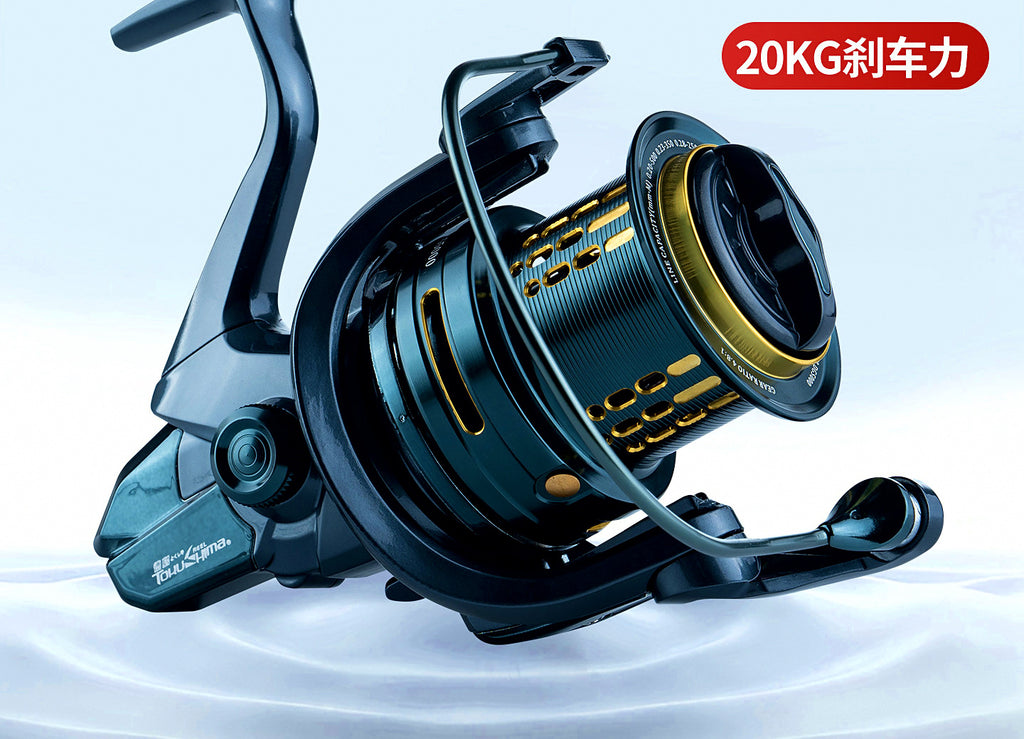

20KG Drag Power Instant Lock
- Brass Main Gear: Heavy-duty drag power, durable, high pressure resistance, and high traction.
- Standard Gear: Single-piece cut construction, standard drag performance.
Internal Structure Diagram
- Worm shaft structure with dampening gear for smooth, strong line retrieval
- High strength and pressure-resistant construction
- Identifies the worm shaft and dampening gear components

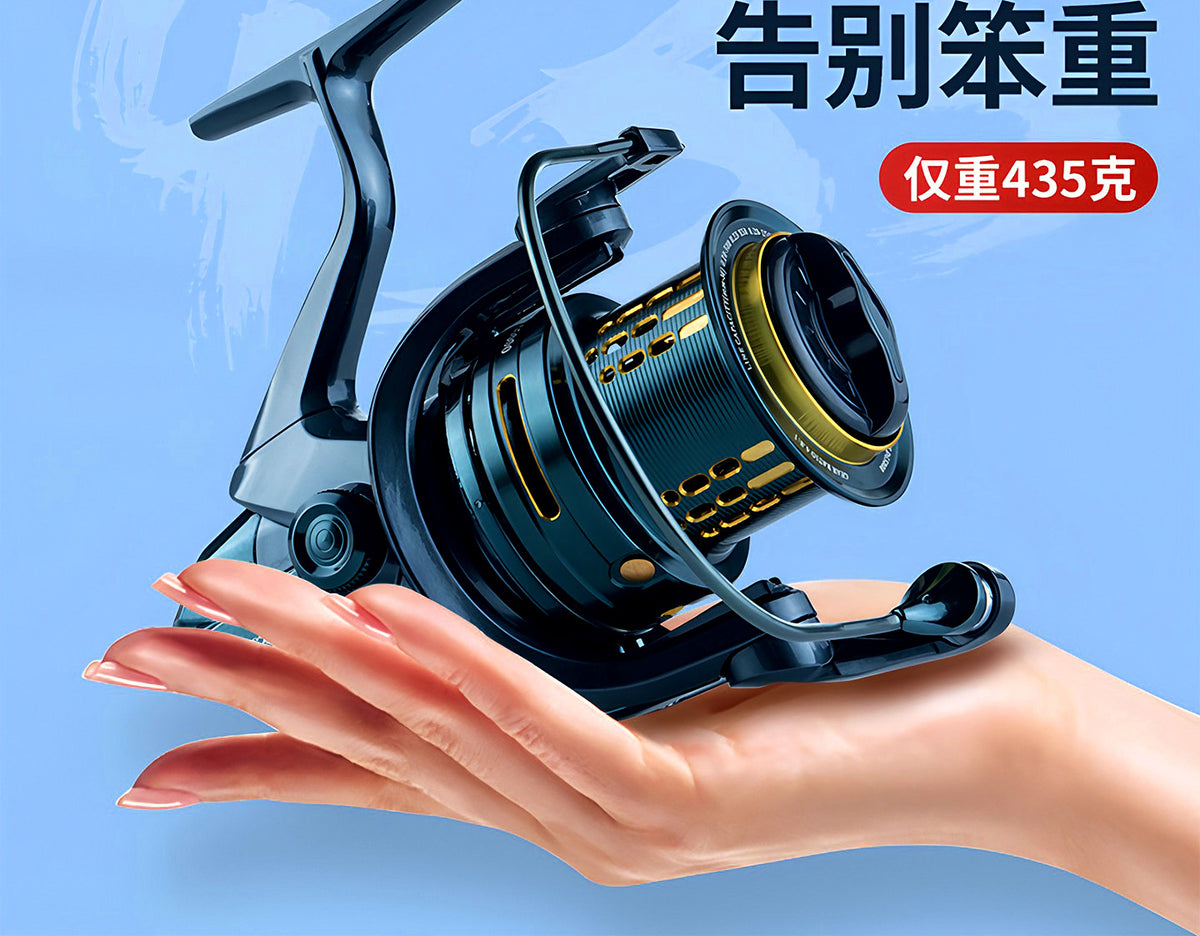

Compact Body & Long Casting
- Lightweight design, weighing only 435 g (15.3 oz)
- Compactly engineered body for effortless long-distance casting and reduced fatigue during extended use
