Long T 3-Way Swivel Connector, 22–45 mm (0.9–1.8 in)

$3.53

Size

10×12 – 22 mm (0.9 in)

8×10 – 25 mm (1.0 in)

6×7 – 28 mm (1.1 in)

4×5 – 33 mm (1.3 in)

2×3 – 38 mm (1.5 in)

1/0×1 – 45 mm (1.8 in)

Pack Size 10 pcs 20 pcs

The details Specifications

Specifications

Product specifications

Available options

Size	10×12 – 22 mm (0.9 in) · 8×10 – 25 mm (1.0 in) · 6×7 – 28 mm (1.1 in) · 4×5 – 33 mm (1.3 in) · 2×3 – 38 mm (1.5 in) · 1/0×1 – 45 mm (1.8 in)
Pack Size	10 pcs · 20 pcs

Product Details

Product Name	American Long T-Type Glow 3-Way Swivel (Extended Type)
Material	Alloy Steel + Glow Material
Color	Metallic + White or Green
Specifications	1012 / 810 / 67 / 45 / 23 / 1/01

Product Specifications

Model	Dimensions (L x H)	Max Strength	Quantity
1/0*1#	45mm*38mm	44kg (97lb)	10 / 20 pcs
2*3#	38mm*33mm	38kg (84lb)	10 / 20 pcs
4*5#	33mm*31mm	30kg (66lb)	10 / 20 pcs
6*7#	28mm*23mm	20kg (44lb)	10 / 20 pcs
8*10#	25mm*21mm	13kg (29lb)	10 / 20 pcs
10*12#	22mm*20mm	10kg (22lb)	10 / 20 pcs

Note: The maximum load capacity is an extreme limit. It is recommended to use within a safe range. Swivel eyes have elasticity, so measurements may vary slightly depending on stretch.

Extended Glow T-Type Swivel

High-speed T-swivel design with glow beads for enhanced fish attraction
Glow beads shine temporarily after exposure to light
Note: Requires light exposure to glow; does not self-illuminate continuously

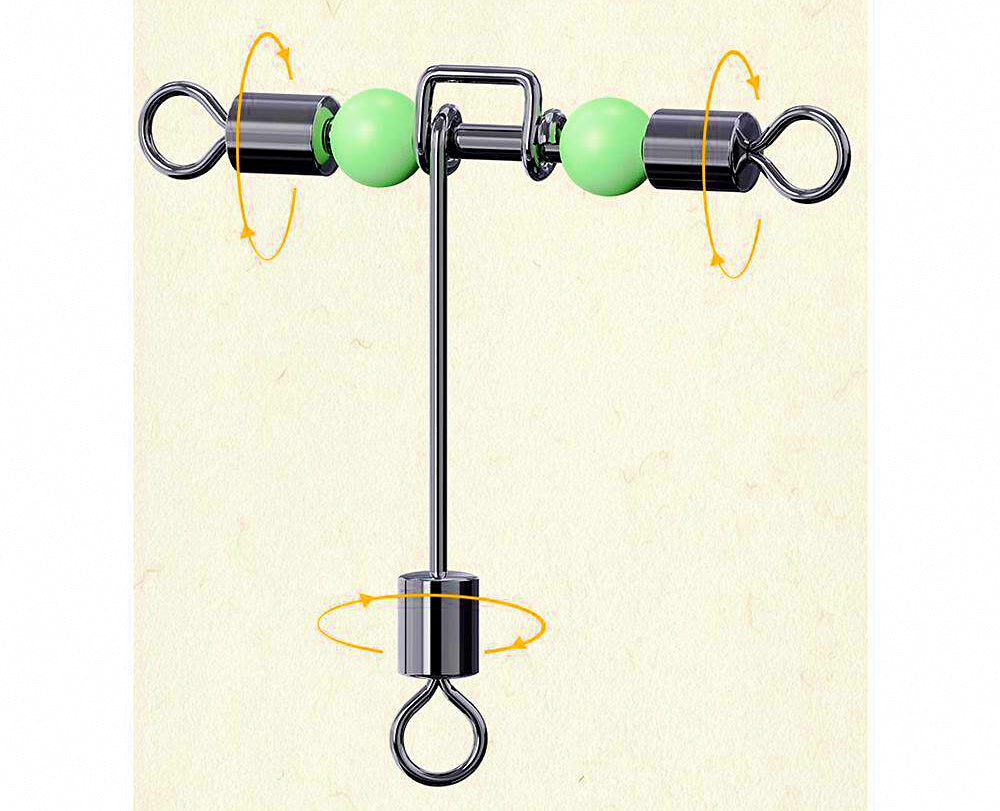

360-Degree High-Speed Rotation

Smooth high-speed rotation, durable and rust-resistant
Rotates 360 degrees smoothly across all three angles

Features & Sizing Guide

Serves as a 3-way line separator and load-bearing connection.
Sizing note: 10*12 is the smallest size; smaller numbers indicate larger sizes.
If using thicker main line or PE braided line, choose a larger size.

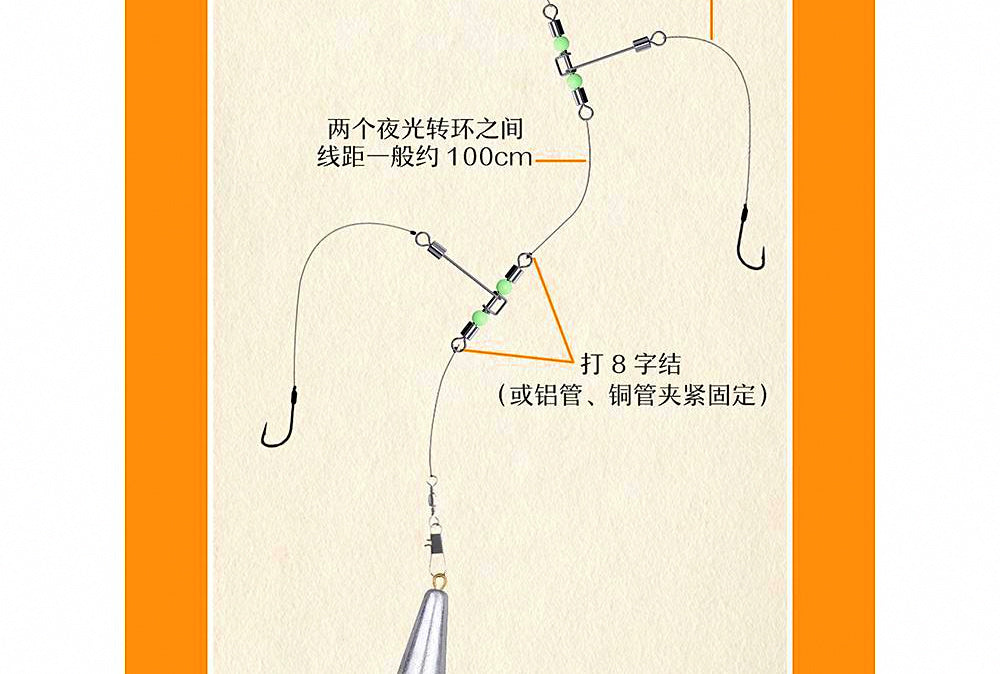

Rigging Instructions

Swivel attached to main line
Leader/snell length approx. 90 cm (35 in)
Distance between two glow swivels approx. 100 cm (39 in)
Secured with figure-8 knots (or aluminum/copper crimp sleeves)

Traditional Saltwater & Boat Fishing Rig Diagram

Rig styles vary based on fishing technique and are for reference only; customize as needed.

Product Details

Caliper size comparison shown at bottom.

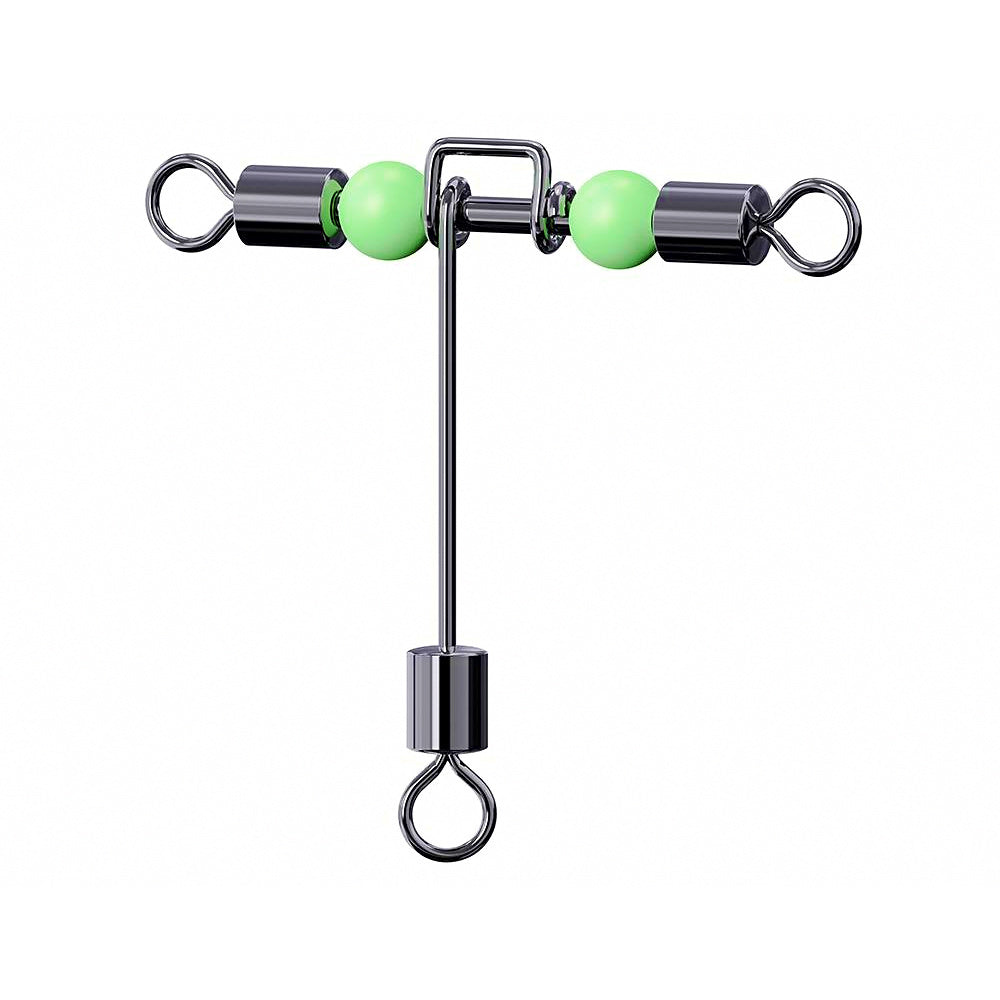

T-Shape Luminous Bead Swivels

Features high-strength swivels with glow-in-the-dark beads for night fishing.
Allows full 360-degree rotation to prevent line twists and tangles.
Swivel eyes have elasticity; slight dimension differences may occur due to flexibility.
Designed primarily for tension and pull force; test product correctly before use.

Product Display

Please pay close attention to product sizes.
Pull rating is laboratory-tested maximum load limit; exceeding it will cause deformation and damage.
Instantaneous force from a fish strike far exceeds its actual weight, so choose appropriate size specifications accordingly.
Glow beads included on T-shape swivel assembly.
