UT SERIES · AVAILABLE NOW

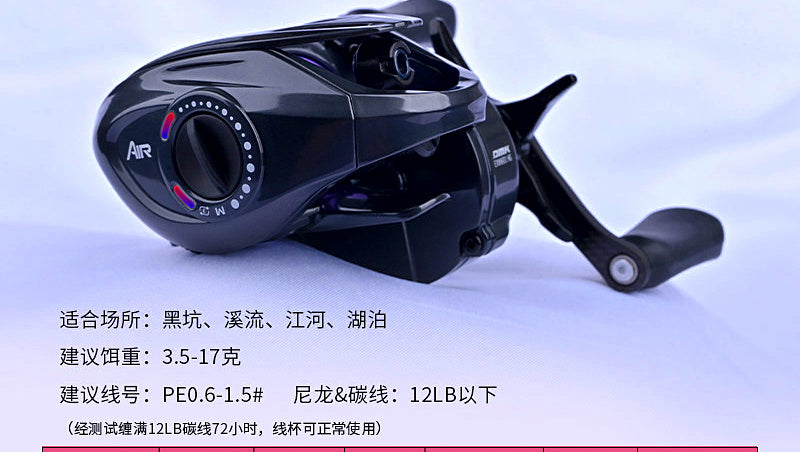

Low Profile Baitcasting Reel, DC Brake, Carbon Frame, 133 g (4.7 oz)
$127.94
Specifications
Product specifications
Available options
| Handle | Left-Hand Handle · Right-Hand Handle |
|---|---|
| Version | Original · Upgraded · Upgraded + Thumb Plate |
| Spool Setup | Dual Spool, Dual System · Single Spool, Single System |
Product Details
| Type | Smart electronic braking baitcasting reel |
|---|---|
| Application | Versatile long-distance casting for small to medium lures |
| Applicable Environments | Commercial ponds, streams, rivers, lakes |
| Recommended Lure Weight | 3.5–17 g |
| Recommended Line Size | PE #0.6–#1.5 / Nylon & Fluorocarbon under 12 lb |
| Testing Note | Spool remains functional after being spooled with 12 lb fluorocarbon line for 72 hours |
| Operating Modes | 3 modes |
| Bare Spool Weight | 2.3 g |
| Assembly Weight | 9.58 g (includes shaft, bearing, pin) |
| Material | 7075 Aviation Aluminum |
| Outer Diameter | 28 mm |
| Core Diameter | 22.6 mm |
| Body Material | Carbon Fiber |
| Side Covers Material | Carbon Fiber |
| Star Drag Material | Carbon Fiber |
| Handle Arm Material | Carbon Fiber |
| Feature | Ultra-lightweight design for fatigue-free fishing |
| Handle Knob Bearing Size | 4 x 7 x 2.5 mm |
| Side Cover Bearing Size | 3 x 7 x 3 mm |
| Tension Knob Bearing Size | 5 x 8 x 2.5 mm |
| Spool Bearing Size | 5 x 10 x 4 mm |
| Spool Material | Spool Weight | Lure Weight | Line Capacity |
|---|---|---|---|
| Hard Aluminum | 4.8g | 1-15g | 0.6#-135m 0.8#-110m 1.0#-90m |
EXW601 HG Specifications
| Model | Gear Ratio | Max Drag | Bearing | Winding Length | Weight | Line Capacity (PE) |
|---|---|---|---|---|---|---|
| EXW601 HG | 7.6:1 | 4 kg | 11+1 | 66 cm | 133 g | 0.8#-180m 1.0#-140m 1.2#-120m |
*Parameters are manually measured and calculated, please refer to the actual product.
Comparison between Xingrui PLUS and Xingrui AIR
| Specification | EXB601 XG (PLUS) | EXW601 HG (AIR) |
|---|---|---|
| Model | EXB601 XG | EXW601 HG |
| Smart Brake | Single Mode | Three Modes |
| Gear Ratio | 8.5:1 | 7.6:1 |
| Bearings | 11+1 | 11+1 |
| Max Drag | 4 kg | 4 kg |
| Winding Length | 74 cm | 66 cm |
| Frame Material | N60 (Nylon 6) | Carbon Fiber |
| Main Gear Material | Aluminum Alloy | Aluminum Alloy |
| Line Capacity | 0.8#-180m 1.0#-140m 1.2#-120m | 0.8#-180m 1.0#-140m 1.2#-120m |
| Retail Price | 399 | 499 |
DMK Popular Baitcasting Reel Specifications Comparison
| Model | Qingshuang Xingrui PLUS | Qingshuang Xingrui AIR | Qingshuang Heiwushi | Yinchi Changxiang PLUS | Yinchi Zhixiang PLUS | Yinchi Zhixiang PRO | Yinchi Elite |
|---|---|---|---|---|---|---|---|
| Brake System | Electromagnetic (Single Mode) | Electromagnetic (3 Modes) | Electromagnetic (Single Mode) | Electromagnetic (Dual Mode) | Electromagnetic (5 Modes) | Electromagnetic (5 Modes) | AIM Adaptive Magnetic Brake |
| Gear Ratio | 8.5:1 | 7.6:1 | 8.5:1 | 8.5:1 | 8.5:1 | 8.5:1 | 8.5:1 |
| Bearings | 11+1 | 11+1 | 11+1 | 11+1 | 11+1 | 11+1 | 11+1 |
| Max Drag | 4 kg | 4 kg | 5 kg | 5 kg | 5 kg | 5 kg | 5 kg |
| Max Line Retrieve per Turn | 74 cm | 66 cm | 74 cm | 74 cm | 74 cm | 74 cm | 74 cm |
| Frame Material | N60 (Nylon 6) | Carbon Fiber | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy |
| Main Gear Material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy |
| Line Capacity | #0.8 - 180m #1.0 - 140m #1.2 - 120m | #0.8 - 180m #1.0 - 140m #1.2 - 120m | #0.8 - 180m #1.0 - 140m #1.2 - 120m | #0.8 - 180m #1.0 - 140m #1.2 - 120m | #0.8 - 180m #1.0 - 140m #1.2 - 120m | #0.8 - 180m #1.0 - 140m #1.2 - 120m | #0.8 - 135m #1.0 - 140m #1.2 - 120m |
| Weight | 142 g | 133 g | 146 g | 146 g | 146 g | 146 g | 139 g |
| Line Guide | Ceramic Tapered Line Guide | Ceramic Tapered Line Guide | Patented Ultra-Thin Line Guide | Patented Ultra-Thin Line Guide | Patented Ultra-Thin Line Guide | Patented Ultra-Thin Line Guide | Patented Ultra-Thin Line Guide |
| Lure Weight Range | 3.5–17 g | 3.5–17 g | 3.5–17 g | 1–20 g | 1–20 g | 1–20 g | 1–15 g |
Manual measurement data may have slight errors; please refer to the actual product.
Includes Free AIM Light Bait Adaptive Magnetic Brake Side Cover and Shallow Spool Set
- Lightweight aluminum construction designed for finesse/BF (bait finesse) lures
Versatile Long-Casting Smart Baitcasting Reel for Small & Medium Lures
- Features MIIEC smart electronic braking chip system for advanced control and long casting
- Designed for all-around long-distance casting with small to medium lures
EXW Rice EC Brake Adjustment
- Knob (旋钮): Central adjustment dial on the reel side plate
- Indicator Light (指示灯): LED status light indicator
- Brake Setting Adjustment (档位调节): Outer ring dial for adjusting magnetic/electronic brake levels
Digital Brake Control Fishing Reel Features & Modes
- Stepless micro-adjustment brake force for versatile control.
- Long Cast / Wild Fishing Mode: Maximum distance performance, suitable for lightweight lures; flashing color lights indicator.
- Night Silent Mode: Turns off lights and reduces electronic noise, increases brake force at end of cast without thumbing spool; no light indicator.
- Boat / Commercial Pond Mode: High-frequency stable short-to-medium distance braking; green light indicator.
- Easy mode switching via brake knob during casting.
- Suitable fishing environments: Commercial ponds, streams, rivers, and lakes.
Reaching New Heights in Performance
- Pioneering a new era of smart fishing reels
- One reel with 3 operating modes for versatile casting options
- Easy mode switching via knob rotation to suit different casting habits and conditions
Lightweight Low-Inertia Spool
- Designed to reduce moment of inertia and improve casting performance and distance.
- Machined from high-strength 7075 aviation aluminum alloy with ultra-thin walls to minimize weight without compromising strength.
- Requires less braking force and allows lightweight lures to accelerate instantly to top speed for accurate target placement.
- Bare spool weight: 2.3 g (0.08 oz).
- Total assembly weight: 9.58 g (0.34 oz) (includes main shaft, bearing, and pin).
- Spool core diameter: 22.6 mm; outer diameter: 28 mm.
Split Short-Shaft Design
- Zero-shaft design allows the spool to rely solely on bearings at both ends for support, eliminating friction from a spool shaft and achieving smooth rotation.
- Two-segment split main shaft effectively reduces casting vibration and noise while improving casting stability and distance.
Carbon Fiber Main Body & Side Covers
- Carbon fiber star drag and carbon handle arm
- Ultra-lightweight design for fatigue-free long fishing sessions
11+1 Zero-Gap Bearing System
- Delivers an ultra-smooth retrieve feeling
- Includes 4 stainless steel double-shielded bearings
- Includes 7 high-speed stainless steel bearings
- Includes 1 stainless steel one-way clutch bearing
