Round Baitcasting Reel with Titanium Handle Arm

$275.43

Retrieve Hand Left-Hand Retrieve Right-Hand Retrieve

Gearing 7 Ratio, Brass Gear 8 Ratio, Aluminum Gear

Handle Arm Titanium Arm In Box Titanium Arm Pre-Installed

Specifications

Product specifications

Retrieve Hand	Left-Hand Retrieve · Right-Hand Retrieve
Gearing	7 Ratio, Brass Gear · 8 Ratio, Aluminum Gear
Handle Arm	Titanium Arm In Box · Titanium Arm Pre-Installed

Frame Material	All-Metal
Type	Long-Casting Baitcasting Reel
Body Material	High-strength aluminum alloy
Features	High gear protection, distortion-resistant frame, smoother retrieve
Recommended Scenarios	Fishery ponds, pay lakes, urban rivers, reservoirs
Recommended Lure Weight	5–30 g
Recommended PE Line Size	#1.5–#3.0
Recommended Fluorocarbon Line	Under 22 lb
Body Weight	176 g ± 1 g
Spool Material	Aluminum alloy
Combined Assembly Weight	8.83 g
Bare Spool Weight	3.77 g
Line Capacity	PE #1.5-180m, #2.0-140m, #2.5-110m, #3.0-100m
Max Drag	7 kg (15.4 lb)
Gear Ratio	8.5:1
Brake System	Wing-rotary brake system
Bearings	11+1
Drag System	3rd Gen drag alarm/clicker system
Total Spool Weight (with bearing + shaft)	8.83g
Spool Weight (bare)	3.77g
Spool Outer Diameter	34mm
Material	Aluminum Alloy
Design	6-Point Drag Star Wrench

Rotary brake system for precise drag control
DMK Lingjie series exclusive ergonomic TPE handle knobs
Innovative customized high-hardness line guide material for smoother line release
Lightweight and high-strength carbon fiber handle arm
Precision dual-bearing support system for smooth rotation

Suitable scenarios: Fishery ponds, commercial pay lakes, urban rivers, reservoirs
Recommended lure weight: 5–30 g
Recommended line size: PE #1.5–#3.0, Fluorocarbon line under 22 lb
Reel body weight: 176 g ± 1 g
Spool material: Aluminum alloy (Combined weight: 8.83 g, Spool weight: 3.77 g)
Line capacity: #1.5 - 180 m, #2.0 - 140 m, #2.5 - 110 m, #3.0 - 100 m
Max drag: 7 kg (15.4 lb)
Gear ratio: 8.5:1
Braking system: Wing-rotary magnetic brake system
Bearings: 11+1
Drag sounder: 3rd Generation drag clicker system

New custom material applied for higher hardness and doubled smoothness
Features a custom material line aperture and dual line guide rails for smoother casting and line release

Dual Brake Modes: Switch easily between fixed brake and adaptive dynamic brake with a simple pull-and-turn action to suit different casting habits and conditions.
Fixed Brake: Applies continuous braking power from the moment the lure is released until it hits the water, suppressing spool speed and preventing backlash.
Adaptive Dynamic Brake: Provides optimal braking force during the initial cast to prevent overrun, then reduces braking as wind resistance slows the lure mid-flight—extending the tail end of the trajectory for maximum casting distance.

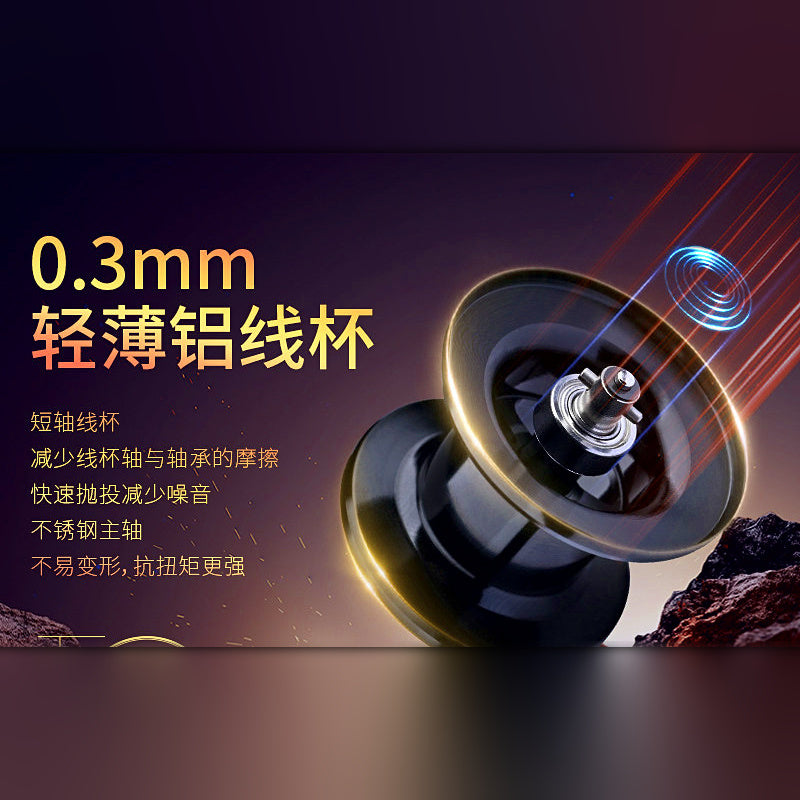

Short shaft design reduces friction between the spool shaft and bearing
Smooth, quiet casting with reduced noise
Stainless steel main shaft resists deformation and provides higher torque resistance
Spool weight with bearing and shaft: 8.83g
Spool weight alone: 3.77g

Metal material used for both ends of the spool and main side covers, precision CNC-machined to integrate with the metal body frame.
Provides strong, precise spool support, reduces casting noise, and improves overall smoothness and stealth.
Ensures tight gear mesh between main and pinion gears, significantly extending gear service life.
Suppresses body flex and wobble to protect delicate gear teeth and deliver ultra-smooth retrieve feel.
Structurally optimized through mechanics testing and analysis, combining precision die-casting and CNC machining for increased strength with reduced weight.

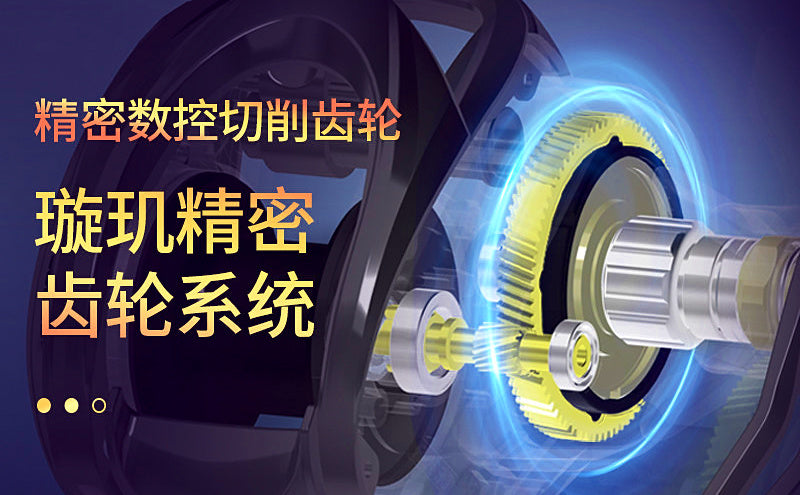

Xuanji precision gear system enhances overall gear strength and durability.
Pinion gear is crafted from hard copper alloy with superior mechanical properties.
Main gear uses 7075 aviation aluminum precision-machined with industry-grade HAMAI gear hobbing machines and imported hobs.
Ensures smooth cranking performance perfectly integrated with the reel body.
