Safety Pin Snaps with Figure-8 Ring, Sizes 14–3/0
$8.80
Specifications
Product specifications
Available options
| Size | Size 14 (15 mm / 0.59 in) · Size 12 (17 mm / 0.67 in) · Size 10 (20 mm / 0.79 in) · Size 8 (22 mm / 0.87 in) · Size 6 (26 mm / 1.02 in) · Size 4 (30 mm / 1.18 in) · Size 2 (35.5 mm / 1.40 in) · Size 1/0 (42 mm / 1.65 in) · Size 2/0 (51 mm / 2.01 in) · Size 3/0 (59 mm / 2.32 in) |
|---|---|
| Pack Size | 50 pcs · 20 pcs |
Product Details
| Quantity | 20-50 pcs per pack |
|---|---|
| Product Name | Heavy-Duty Snap |
| Size/Model | Multiple Sizes Available |
| Material | High-Quality Metal |
| Packaging | Boxed |
| Size Range | #14 to 3/0 (left to right) |
Swivel Parameters
| Size | Length (mm) | Breaking Strength (kg) |
|---|---|---|
| 4/0 | 69 | 53 |
| 3/0 | 59 | 47 |
| 2/0 | 51 | 38 |
| 1/0 | 43 | 33 |
| #1 | 40 | 33 |
| #2 | 36 | 28 |
| #3 | 34 | 28 |
| #4 | 30 | 23 |
| #5 | 29 | 23 |
| #6 | 26 | 17 |
| #7 | 25 | 17 |
| #8 | 22 | 11 |
| #10 | 20 | 11 |
| #12 | 17 | 8 |
| #14 | 15 | 3 |
Note: Data is manually measured and may have slight errors. For reference only, please refer to the actual product.
| Model | Total Length (mm) | Figure-8 Ring Length (mm) | Snap Length (mm) | Snap Max Width (mm) | Breaking Strength (kg) | Recommended Fishing Method |
|---|---|---|---|---|---|---|
| 3/0 | 59 | 27.5 | 34 | 10.5 | 48 | Casting Rod / Sea Fishing / Explosive Rig |
| 2/0 | 51 | 24.5 | 29 | 8.7 | 41 | Casting Rod / Sea Fishing / Explosive Rig |
| 1/0 | 42 | 20 | 24 | 7.5 | 33 | Casting Rod / Sea Fishing / Explosive Rig |
| 2 | 35.5 | 17 | 20 | 6.3 | 28 | Casting Rod / Sea Fishing / Explosive Rig |
| 4 | 32 | 15 | 18 | 5.9 | 23 | Casting Rod / Sea Fishing / Explosive Rig |
| 6 | 26.5 | 12.5 | 15 | 4.9 | 17 | Taiwan Fishing (Commercial Pond Big Game) |
| 8 | 24.5 | 10.5 | 15 | 4.9 | 11 | Freshwater Lure Fishing |
| 10 | 21 | 9.5 | 13 | 4.4 | 10 | Long-Cast Fishing |
| 12 | 20.5 | 9 | 13 | 4.4 | 8 | Taiwan Fishing (Commercial Pond Big Game) |
| 14 | 18 | 8.2 | 11 | 4 | 3 | Freshwater Lure Fishing |
Note: Purely manual measurement, there may be slight errors!
Swivel with Safety Snap Size & Strength Chart
- Note: Data measured manually, slight variations may exist. Please refer to actual product.
Heavy-Duty Swivel Snaps
- Heavy-duty fishing snaps with integrated swivels
- Available in 20-50 piece packs
Heavy-Duty Snap Swivels
- Smooth swivel rotation with high breaking strength
- Swivels smoothly even under strong tension
- Versatile accessory suitable for various fishing techniques

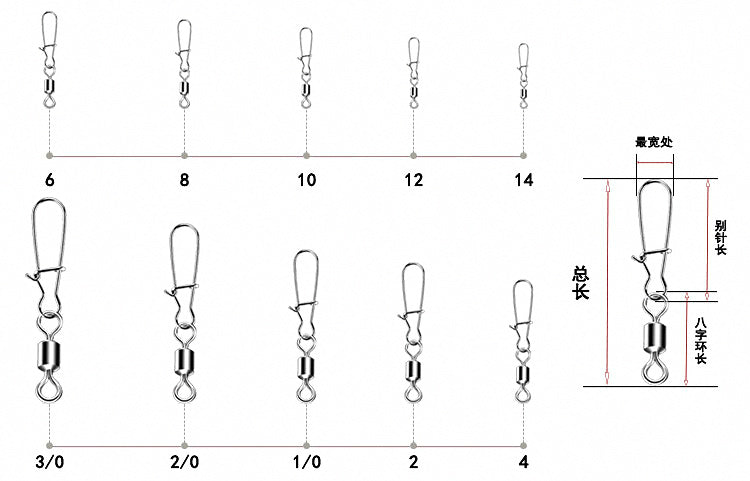

Fishing Swivel with Safety Snap Diagram
- Includes dimensions for total length, snap length, swivel length, and max width.
- Available in sizes 6, 8, 10, 12, 14, 3/0, 2/0, 1/0, 2, and 4.
- Note: Purely manual measurement, there may be slight errors.

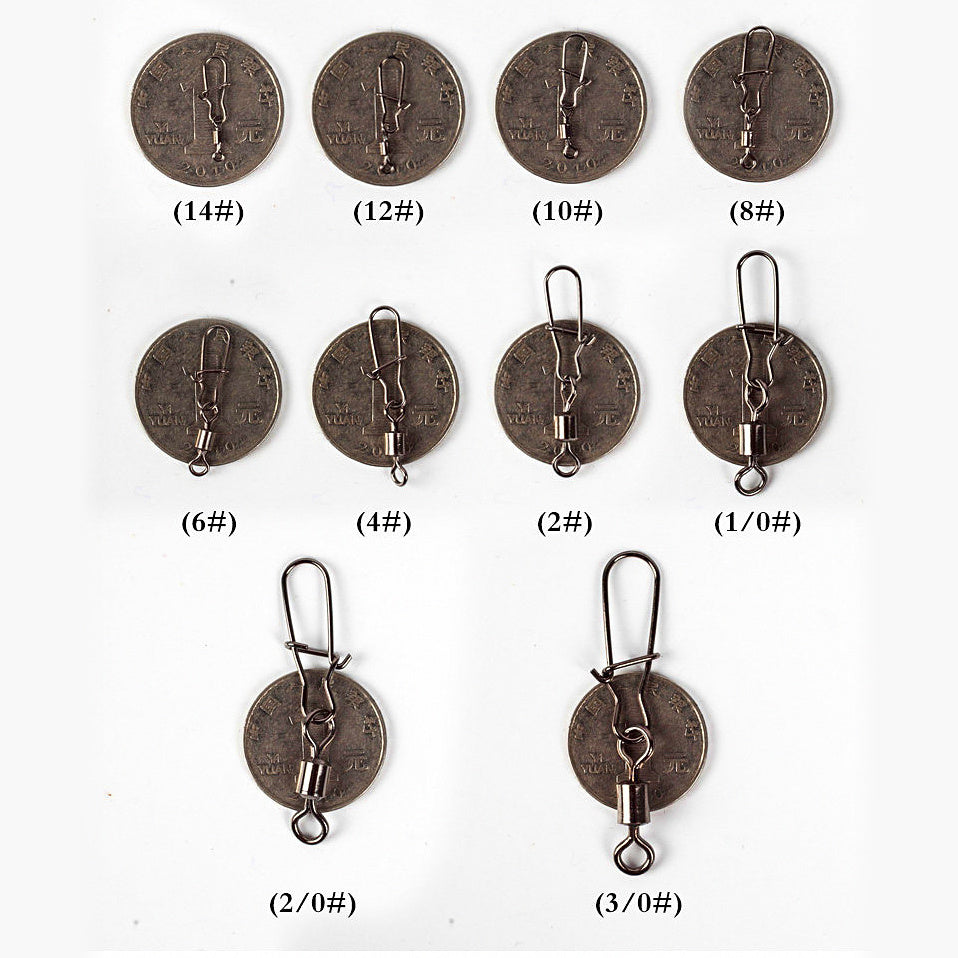

Ruler size comparison
- Size range from #14 to 3/0, shown left to right
Heavy-Duty Snap
- Strictly selected materials crafted for masters
Product Features
- Premium material
- Precision craftsmanship
- High density
- High purity
Snap Swivel Features
- Precision craftsmanship suitable for connecting soft plastics, hard lures, jig heads, spoons, and various rig setups
- Smooth swivel rotation even under heavy load
- Versatile application across multiple fishing techniques
Detail Analysis
- High Load Capacity: Smooth rotation and strong pulling force.
- Maintains flexible rotation even under heavy tension.
Multiple Specifications Available
- Versatile fishing swivels with safety snaps suitable for various fishing methods
- Essential terminal tackle for rig setup
Versatile Applications
- Suitable for quick connections with soft plastics, hard lures, jig heads, spoons, and other tackle connectors.
- Ideal for hand rod rigs, surf/sea fishing rigs, rock fishing rigs, rock fishing lines, and lure fishing setups.
