UT SERIES · PRE-ORDER

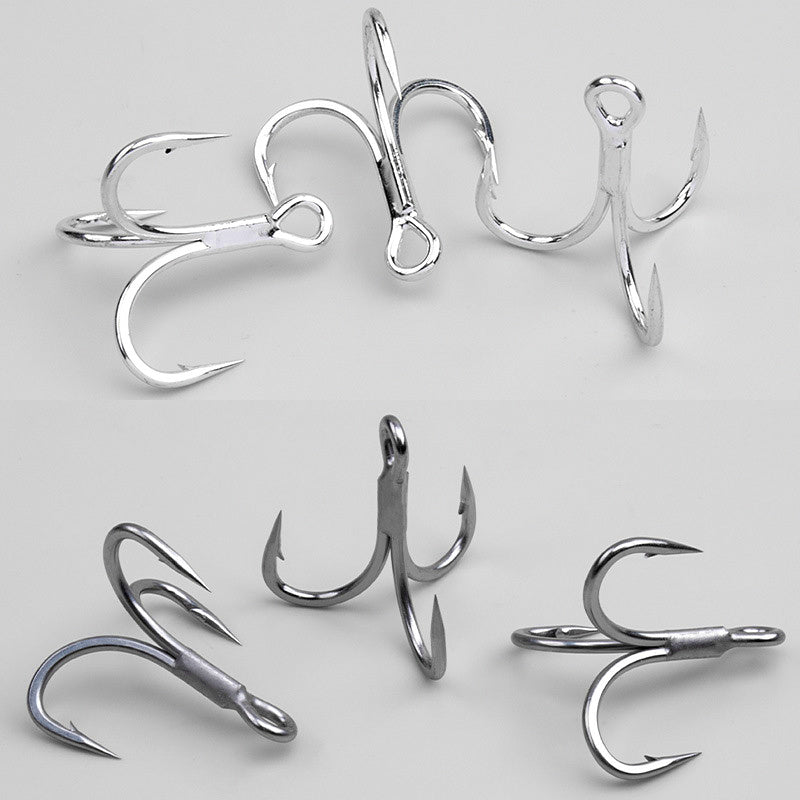

Barbed Treble Hooks, Sizes 8 to 5/0, Tin & Anti-Rust
$0.86
Specifications
Product specifications
Available options
| Color | Anti-Rust (4X) · Matte Tin (3X) · Bright Tin (5X) |
|---|---|
| Size | 1 · 8 · 2/0 · 1/0 · 3/0 · 6 · 5/0 · 4 · 4/0 · 2 |
Product Details
| Finish | Black Nickel (BN) |
|---|---|

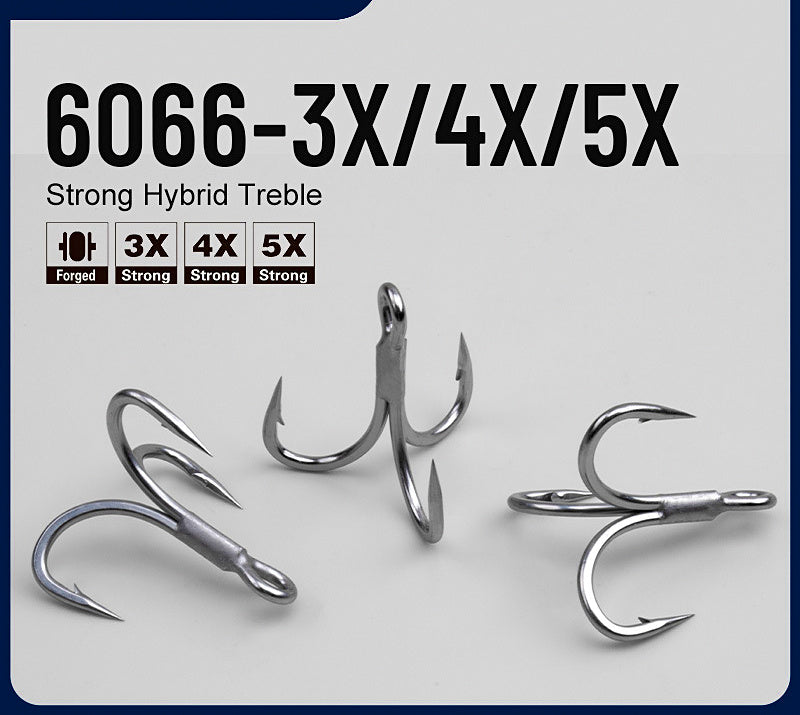

| Model | 6066-4X |
| Type | 4X Strong Hybrid Treble Hook |
| Features | Forged, 5X Strong |
Treble Hook Dimensions and Breaking Strength
| Size | 1 Height (mm) | 2 Total Width (mm) | 3 Gap (mm) | Tensile Strength (kg) |
|---|---|---|---|---|
| #14 | 14mm | 12mm | 5.5mm | 7.0kg |
| #12 | 15mm | 12.5mm | 6mm | 8.0kg |
| #10 | 12mm | 14mm | 6.5mm | 9.3kg |
| #8 | 13.5mm | 15mm | 7mm | 10.6kg |
| #6 | 21mm | 16.5mm | 7.5mm | 10.8kg |
| #4 | 23.5mm | 18.5mm | 9mm | 11.3kg |
| #2 | 27.5mm | 21.5mm | 11mm | 19.0kg |
| #1 | 30mm | 25.5mm | 12mm | 22.0kg |
| 1/0 | 33mm | 28mm | 13mm | 30.6kg |
| 2/0 | 38mm | 33.5mm | 15mm | 50.7kg |
| 3/0 | 41mm | 36mm | 16mm | 71.1kg |
Treble Hook Specifications
| Size | 1 (mm) | 2 (mm) | 3 (mm) | Tensile Strength (kg) |
|---|---|---|---|---|
| #8 | 20mm | 16.5mm | 7.5mm | 12.0kg |
| #6 | 21mm | 17.5mm | 8mm | 14.0kg |
| #4 | 23mm | 19.5mm | 9mm | 17.0kg |
| #2 | 25mm | 21mm | 10.5mm | 25.0kg |
| #1 | 29mm | 24.5mm | 11.5mm | 32.0kg |
| 1/0 | 34mm | 29mm | 13mm | 40.0kg |
| 2/0 | 37mm | 29.5mm | 13.5mm | 52.0kg |
| 3/0 | 39mm | 30.5mm | 14mm | 65.0kg |
| 4/0 | 45mm | 35.5mm | 16.5mm | 85.0kg |
| 5/0 | 50mm | 39.5mm | 18.5mm | 109.0kg |
| Size | 1 (mm) | 2 (mm) | 3 (mm) | Tensile (kg) |
|---|---|---|---|---|
| #4 | 23mm | 19.5mm | 9mm | 27.0kg |
| #2 | 26mm | 22.5mm | 10.5mm | 29.5kg |
| #1 | 29.5mm | 26mm | 12.5mm | 38.9kg |
| 1/0 | 33mm | 29mm | 13mm | 52.7kg |
| 2/0 | 36.5mm | 31mm | 14mm | 67.1kg |
| 3/0 | 40mm | 34mm | 15mm | 80.0kg |
| 4/0 | 49mm | 40.5mm | 18.5mm | 91.2kg |
| 5/0 | 53.5mm | 44mm | 20.5mm | 114.7kg |
- Color: Black Nickel (BN)
Color Code Legend
- BN: Black Nickel
- MT: Matt Tin
- BT: Bright Tin
- UA: Ultra Antirust
- Finish / Coating: BT - Bright Tin, UA - Ultra Antirust
