UT SERIES · PRE-ORDER
All-Metal Slow Pitch Jigging Reel, 4000/5000, Left or Right
$131.69
Specifications
Product specifications
Available options
| Size | 4000 · 5000 |
|---|---|
| Retrieve Hand | Right Hand · Left Hand |
| Line Alarm | With Line Alarm · No Alarm |
Product Details
| Material | All Metal |
|---|---|
| Type | Round Profile / Slow Pitch Jigging Reel |
| Features | Lightweight, High Control |
| Spool Type | U-shaped metal spool with large capacity |
| Level Wind | Synchronized metal level wind |
| Drive Gear & Shaft | Brass |
| Bearings | Stainless steel ball bearings |
| Frame Material | High-precision CNC machined 7009 aluminum |
| Brake System | Centrifugal brake system |
| Components | Metal level wind guide, metal reel foot, metal handle arm, metal round knob |
| Bearing Type | Sealed Stainless Steel Ball Bearing |
| Gear Ratio | 5.1:1 |
| Model WGS-4000 Capacity | PE4-100m, PE5-85m |
| Model WGS-5000 Capacity | PE5-150m, PE6-140m |
| Product Name | Metal Jig Slow Pitch Reel |
| Color | Gold |

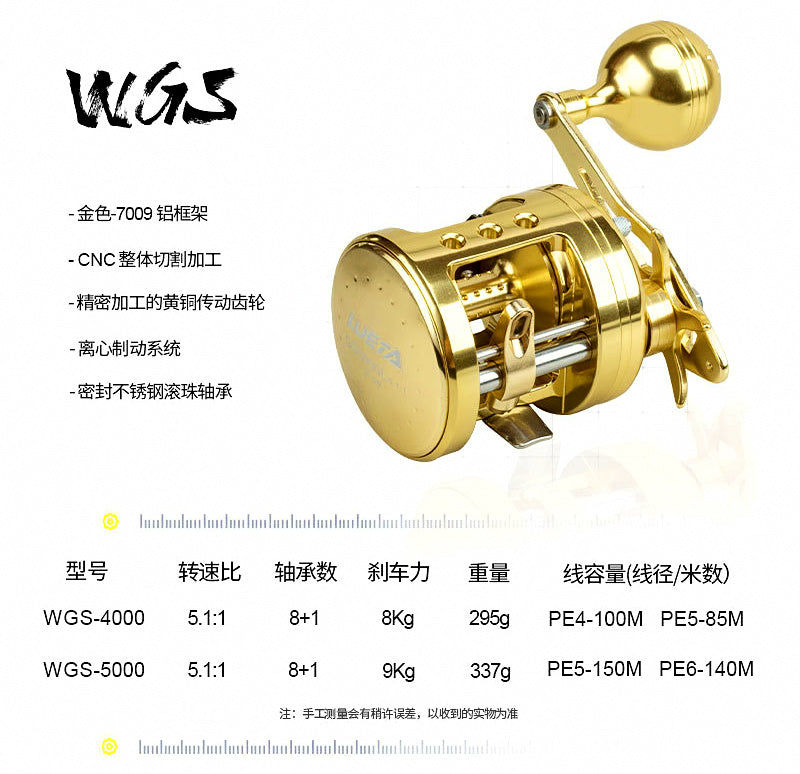

Model Specifications
| Model | Gear Ratio | Bearings | Max Drag | Weight |
|---|---|---|---|---|
| WGS-4000 | 5.1:1 | 8+1 | 8 kg (17.6 lb) | 295 g |
| WGS-5000 | 5.1:1 | 8+1 | 9 kg (19.8 lb) | 337 g |
Line Capacity
| Model | PE Line Capacity |
|---|---|
| WGS-4000 | PE4-100m, PE5-85m |
| WGS-5000 | PE5-150m, PE6-140m |
Note: Manual measurements may have slight errors; please refer to the actual product received.
Slow Pitch Jigging Reel
- Round profile metal jigging reel
- All-metal construction for maximum strength
- Lightweight design with enhanced control
Slow Pitch Jigging Reel Features
- Large capacity U-shaped metal spool increases line capacity.
- Metal synchronized level wind system for smooth, even, and durable line lay.
- Brass main shaft and gears offer high strength, shock resistance, and stable operation.
- Stainless steel ball bearings ensure smooth retrieval, impact resistance, and saltwater corrosion protection.
Metal Jigging Reel Structure Analysis
- High-precision CNC machined 7009 aluminum frame main body
- Metal synchronous level wind guide rail
- Metal reel foot, metal handle arm, and metal round knob
- Centrifugal brake system
High-Strength Metal Reel Foot
- Increased reel foot thickness and strength for improved stability and impact resistance.

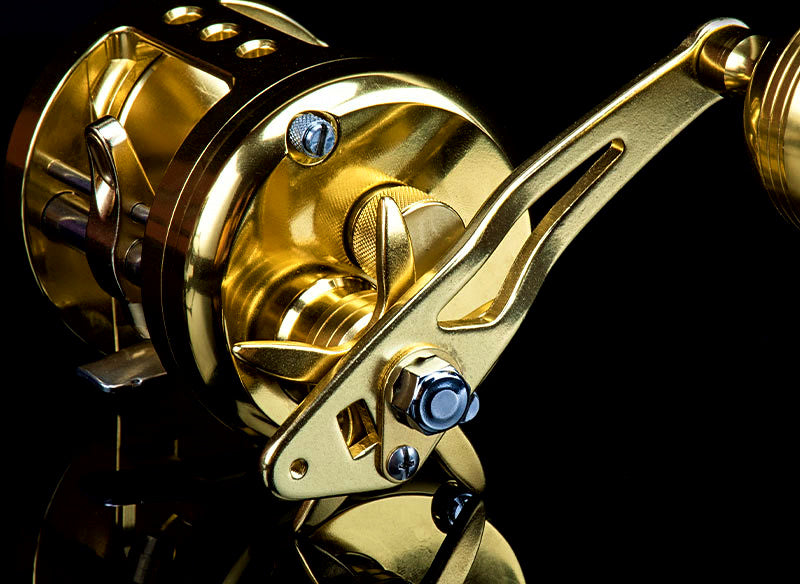

Single Power Handle with Hollow Round Metal Knob
- Metal skeletonized hollow knob designed for higher comfort and control
- Single power handle design concentrates force at one point for easier line retrieval
- Reduces overall reel weight while minimizing potential failure points
Sealed Stainless Steel Ball Bearings
- Features smooth casting, high strength, durability, and saltwater corrosion resistance
- 5.1:1 gear ratio effectively improves fishing efficiency
Metal Synchronous Line Guide
- Smooth and even line lay, fast heat dissipation, safe for line
- Oval metal line outlet
- Line guide moves synchronously with line spool during casting and retrieval
Large Capacity All-Metal Spool
- Thickened spool wall for heavy fish impact resistance
- CNC one-piece forged construction with rust-resistant oxidation treatment

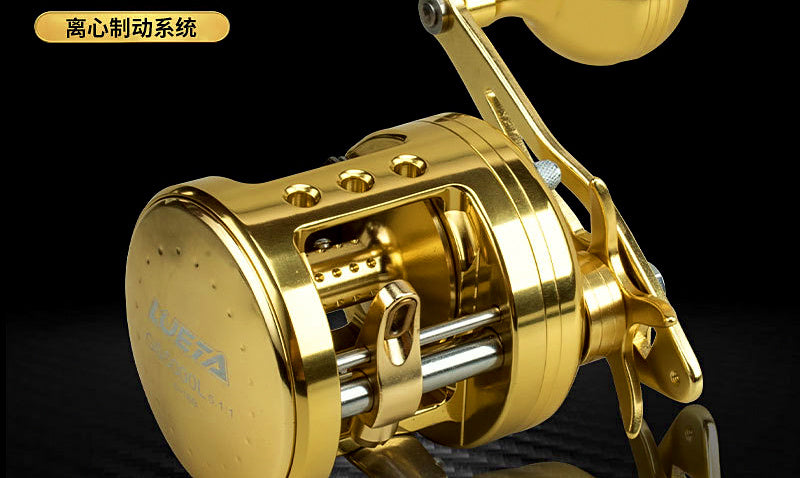

Centrifugal Brake System
- Centrifugal braking system provides uniform and stable pressure for smooth casting.
Core Specifications for Metal Jig Slow Pitch Reel
- Reliable and high quality construction.
- Available in gold color.
