UT SERIES · PRE-ORDER

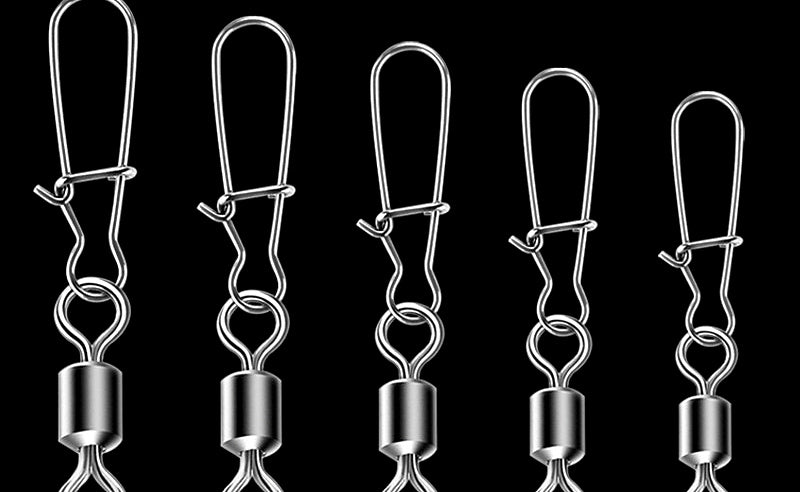

Stainless Steel Fishing Snaps with Figure-8 Ring, Safety Pin Style
$2.40
Specifications
Product specifications
Available options
| Size | #8 · #7 · #14 (smallest) · #12 · #10 · #6 · #5 · #4 · #2 · 1/0 · 2/0 · 3/0 |
|---|---|
| Pack Quantity | 20 pcs · 50 pcs · 100 pcs |
Product Details
| Material | Stainless Steel |
|---|---|
| Type | Swivel with Snap |
| Features | Reinforced 360° smooth swivel |
| Product Name | Reinforced Snap Swivel |
| Available Sizes | 3/0, 2/0, 1/0, #2, #4, #5, #6, #7, #8, #10, #12, #14 |
| Water Layer | All Water Layers |
| Applicable Waters | Rivers, seaside, lakes, reservoirs, streams |
| Applications | Taiwan fishing, saltwater lure, freshwater lure, boat fishing |
| Component | 8-Shape Barrel Swivel |
Snap Swivel Size Chart
| Model | Total Length (mm) | Swivel Length (mm) | Snap Length (mm) | Max Snap Width (mm) | Breaking Strength (kg) | Recommended Fishing Method |
|---|---|---|---|---|---|---|
| #14 | 15.9 | 7.5 | 9.6 | 3.8 | 3–4 | Taiwanes-style pond big game / Freshwater lure fishing |
| #12 | 16.8 | 8.5 | 9.7 | 4.1 | 8–9 | Taiwanes-style pond big game / Freshwater lure fishing |
| #10 | 20.4 | 9.4 | 11.8 | 4.2 | 10 | Taiwanes-style pond big game / Freshwater lure fishing / Surf casting |
| #8 | 21.1 | 10.2 | 12.2 | 4.4 | 11 | Taiwanes-style pond big game / Freshwater lure fishing / Surf casting |
| #7 | 23.9 | 11.3 | 14.7 | 5.2 | 14 | Taiwanes-style pond big game / Freshwater lure fishing / Surf casting |
| #6 | 25.1 | 11.6 | 14.7 | 5.2 | 17 | Taiwanes-style pond big game / Freshwater lure fishing / Surf casting |
| #5 | 28.7 | 13.3 | 16.7 | 5.9 | 20 | Casting rod / Saltwater fishing / Explosive hook rig |
| #4 | 30.8 | 15 | 16.9 | 6.6 | 23 | Casting rod / Saltwater fishing / Explosive hook rig |
| #2 | 34.8 | 16.8 | 19.8 | 7 | 28 | Casting rod / Saltwater fishing / Explosive hook rig |
| 1/0 | 41 | 21 | 22.8 | 8 | 33 | Casting rod / Saltwater fishing / Explosive hook rig |
| 2/0 | 50 | 24 | 28.9 | 8.8 | 41 | Casting rod / Saltwater fishing / Explosive hook rig |
| 3/0 | 59.4 | 27.9 | 34.2 | 11.5 | 48 | Casting rod / Saltwater fishing / Explosive hook rig |
Note: This data is measured manually, slight errors may exist, for reference only.
Smooth Rotation & Strong Pulling Force
- Smooth rotation even under heavy load

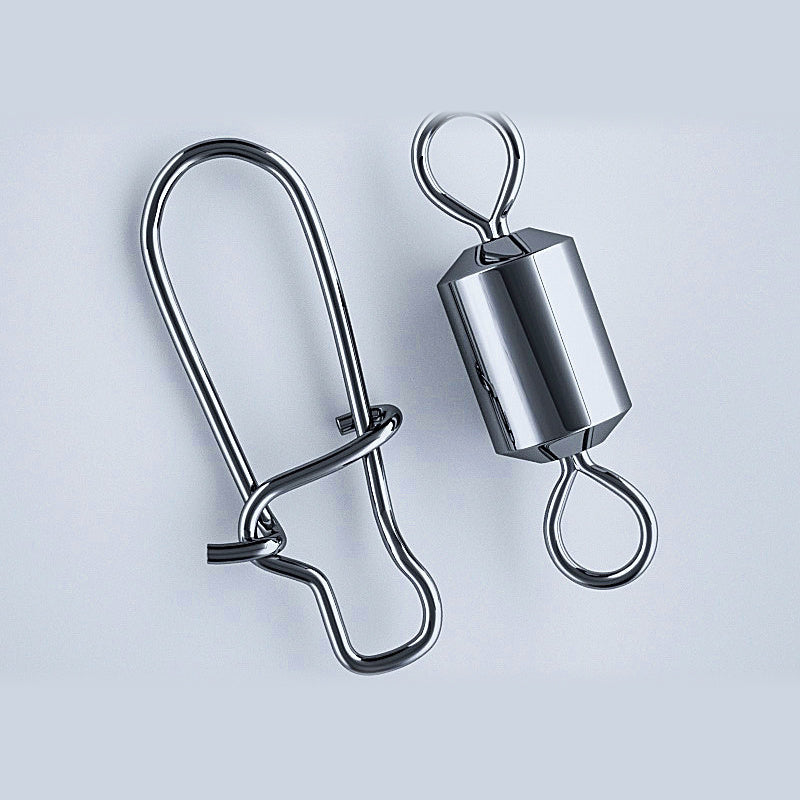

- Stainless steel swivel with safety snap
- Easy to use and durable
Bait Rigging Application & Features
- Compatible with multiple lure types: spoon, minnow, metal jig, pencil, and VIB
- Reduces tangles in water flow for a more natural lure action
- Features a modular design for flexible separation and easy setup
Figure 8 Swivel Main Line Connection Diagram
- Step 1: Pass the main line loop through the figure 8 swivel ring.
- Step 2: Wrap the line back through the loop.
- Step 3: Cinch and adjust the knot neatly.
- Step 4: Pull tight to complete the secure connection.
Product Features
- Rust-resistant stainless steel material
- Reinforced 360° rotation swivel
- Fishing swivel with safety snap sizes and overall length dimensions:
- Size 14#: 15.9 mm; Size 12#: 16.8 mm; Size 10#: 20.4 mm; Size 8#: 21.1 mm; Size 7#: 23.9 mm; Size 6#: 25.1 mm
- Size 5#: 28.7 mm; Size 4#: 30.8 mm; Size 2#: 34.8 mm; Size 1/0#: 41 mm; Size 2/0#: 50 mm; Size 3/0#: 59.4 mm
Reinforced Fishing Snap Swivel Specifications
- Made of durable stainless steel.
- Suitable for all water layers (surface to deep water).
Product Features & Usage
- Applicable Waters: Rivers, seaside, lakes, reservoirs, streams, etc.
- Applications: Taiwan style fishing, saltwater lure fishing, freshwater lure fishing, boat fishing.
- Stainless steel construction, durable and corrosion-resistant, reusable in both salt and fresh water.
- Versatile application with detachable design for high flexibility; polished surface smooth on lines with high-speed rotation to prevent line twisting in currents.
Target Fish Species
- Suitable for topmouth culter, perch, snakehead, elopichthys bambusa, redtail culter, mandarin fish, barbel chub, sharpbelly, catfish, grouper, tilapia, and trout
- Black nickel stainless steel construction for maximum durability and corrosion resistance
- Features selected copper alloy rotating 8-shape swivels for smooth rotation and heavy-duty performance
- Wide range of applications
- 360-degree rotation for smooth movement and minimal drag
