UT SERIES · AVAILABLE NOW

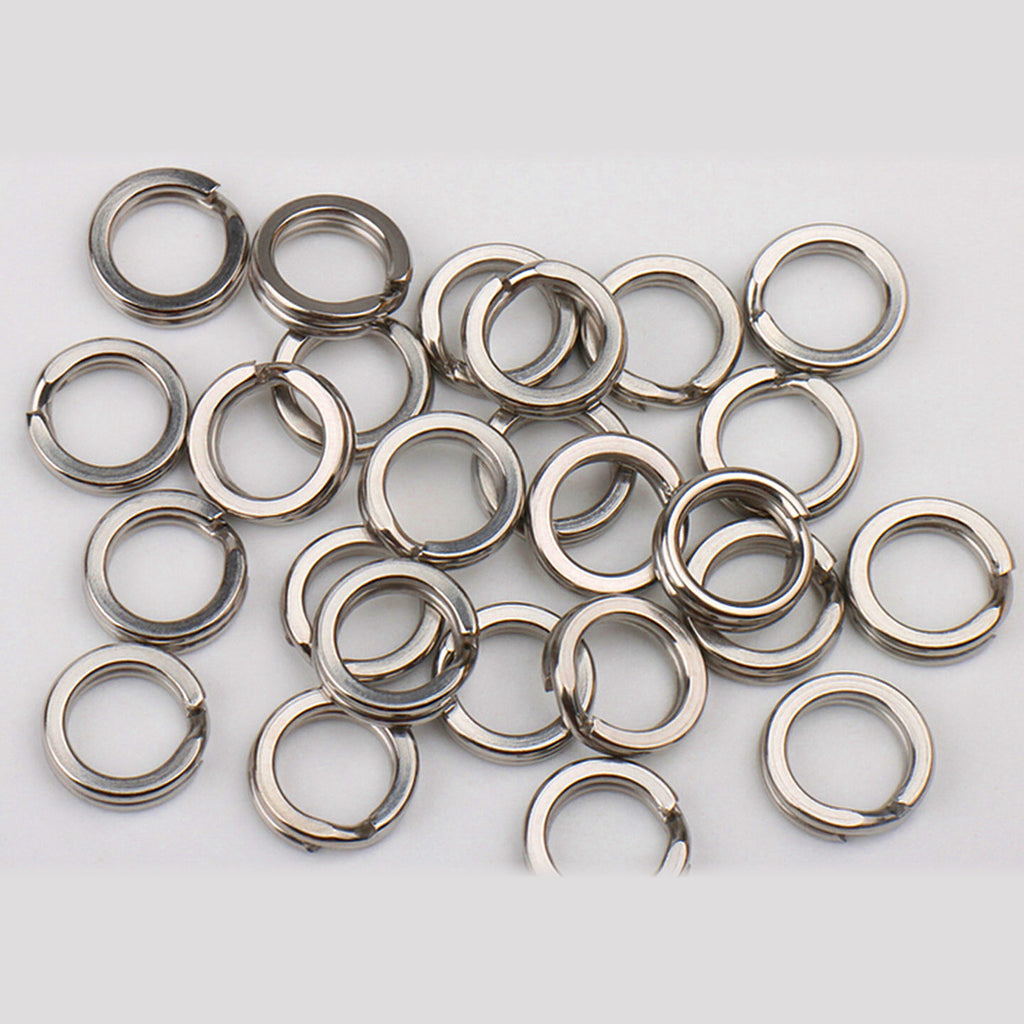

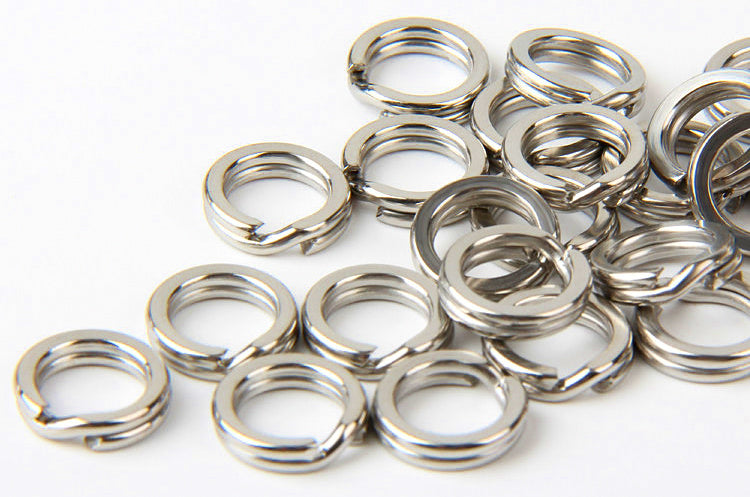

Stainless Steel Flat Split Rings, Sizes #5–#12
$2.57
Specifications
Product specifications
Available options
| Size | #5 (5.3 mm OD / 3.9 mm ID) · #6 (6.0 mm OD / 4.4 mm ID) · #7 (7.0 mm OD / 5.2 mm ID) · #8 (7.8 mm OD / 5.4 mm ID) · #8.5 (8.4 mm OD / 6.1 mm ID) · #9 (9.0 mm OD / 6.4 mm ID) · #10 (10 mm OD / 7.2 mm ID) · #12 (11.4 mm OD / 8 mm ID) |
|---|---|
| Pack Quantity | 50 pcs · 25 pcs · 200 pcs |
Product Details
| Type | Split Ring / Lure Connector Double Ring |
|---|---|
| Features | Reinforced, Flattened Wire |
| Application | Saltwater / Lure Fishing |
| Material | Imported 304 Stainless Steel |
| Strength | +80% Increased Strength |
Product Parameters
| Size | Outer Diameter | Inner Diameter | Breaking Strength | Recommended Lure Weight |
|---|---|---|---|---|
| #5 | 5.3mm | 3.9mm | 13kg | 1-10g |
| #6 | 6.0mm | 4.4mm | 17kg | 10-60g |
| #7 | 7.0mm | 5.2mm | 28kg | 40-120g |
| #8 | 7.8mm | 5.4mm | 35kg | 100-200g |
| #8.5 | 8.4mm | 6.1mm | 40kg | 120-250g |
| #9 | 9.0mm | 6.4mm | 45kg | 150-300g |
| #10 | 10mm | 7.2mm | 49kg | 200-600g |
| #12 | 11.4mm | 8mm | 63kg | 300-1000g |
Breaking strength measured at the single wire section for accurate results.
Heavy-Duty Flattened Split Rings for Saltwater Lure Fishing
- Designed for saltwater and lure fishing connectors
- Reinforced heavy-duty wire construction
- Flattened profile for enhanced strength and durability
80% Strength Enhancement
- Made from imported 304 stainless steel
- Heavy-duty split ring design
PRODUCT DETAILS
- Breaking strength is measured at the single-wire section for accurate and realistic data.
Forged Split Rings
- Imported 304 stainless steel, forged and flattened for extra strength

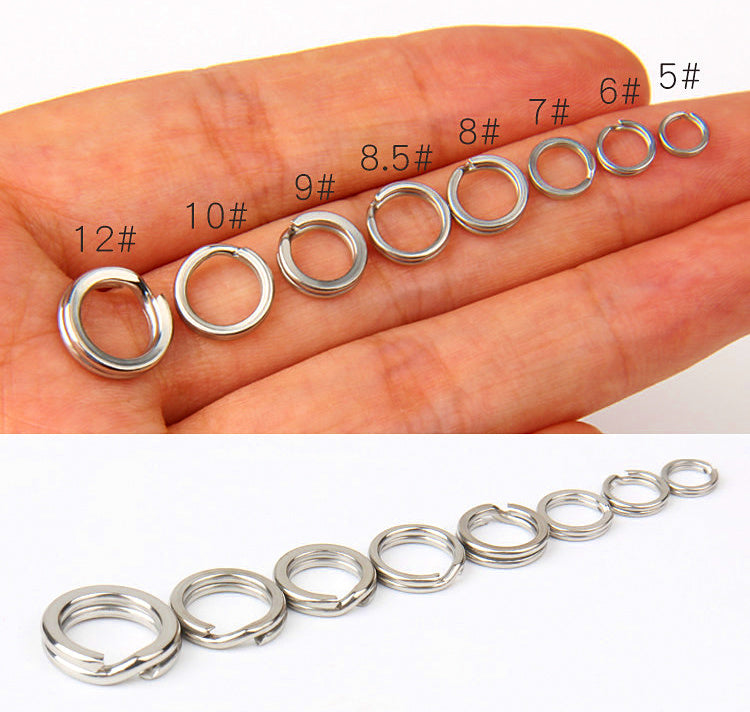

1:1 Scale Product Dimensions
80% Increased Strength
- How to achieve an 80% strength increase? Made with imported-grade 304 stainless steel
304 Stainless Steel Split Rings
- Material: 304 Stainless Steel
- Note: 304 stainless steel is non-magnetic, but may develop slight magnetism during manufacturing and processing.
