UT SERIES · AVAILABLE NOW
Ultralight Fast Action Lure Rod, 2-Piece Carbon, 5'0"–6'0"
$57.57
Specifications
Product specifications
Available options
| Length | 5 ft 0 in (1.53 m) · 5 ft 6 in (1.68 m) · 6 ft 0 in (1.83 m) |
|---|---|
| Handle | Pistol Grip · Straight Handle |
| Package | Rod Only · Combo, Left-Hand Reel · Combo, Right-Hand Reel |
Product Details
| Guide Ring Material | Silicon Nitride |
|---|---|
| Frame Material | Titanium Alloy |
| Blank Material | Toray small 4-axis carbon fiber |
| Guide Frame Material | Titanium alloy |
| Titanium + Silicon Nitride Guide Set Weight | approx. 2.8 g |
| Fuji K + SiC Guide Set Weight | approx. 4.2 g |
| Test Set Sizes | #16, 8H, 5.5M, #5, #14 (4 pcs), 4-1.8 Tip Top |
| Material | Silicon Nitride (SiN) Ceramic |
Guide Ring Material Comparison
| Property | SiN Ring (Silicon Nitride) | "O" Ring | ALCONITE | SiC | TORZITE |
|---|---|---|---|---|---|
| Vickers Hardness Hv (GPa) | 15~16 | 12~14 | 13~15 | 22~24 | 13~15 |
| Specific Gravity | 3.23 | 3.8 | 4.2 | 3.2 | 3.3 |
| Thermal Conductivity (W/m·K) | 46.815 | 13 | 11 | 60 | 27 |
| Bending Strength (MPa) | 849 | 300 | 440 | 540 | 1020 |
Silicon Nitride guide ring data from China National Center for Quality Inspection and Testing of Building Materials; Fuji guide ring data from 2024 Official Fuji Catalog.
Titanium Alloy & Silicon Nitride Technology
- Features silicon nitride guide rings
- Built with lightweight titanium alloy frames
- Constructed with Toray small 4-axis carbon fiber cloth
- Series name: Virtuoso
Full Titanium Alloy Guides
- Crafted with a full set of titanium alloy guides, offering significantly lighter weight compared to stainless steel frames with SiC rings.
- Reduces overall rod weight and load feeling for effortless casting.
- Features titanium alloy and logo stampings on the guide frame.
Weight Comparison of Fishing Rod Guide Sets
- Titanium Frame + Silicon Nitride Ring Set: approx. 2.8 g
- Fuji K Frame (P Polished Silver White) + SiC Ring Set: approx. 4.2 g
- Tested Set Configuration: #16, 8H, 5.5M, #5, 4x #14, and 4-1.8 tip top guide
- Note: Manual measurement data for reference only

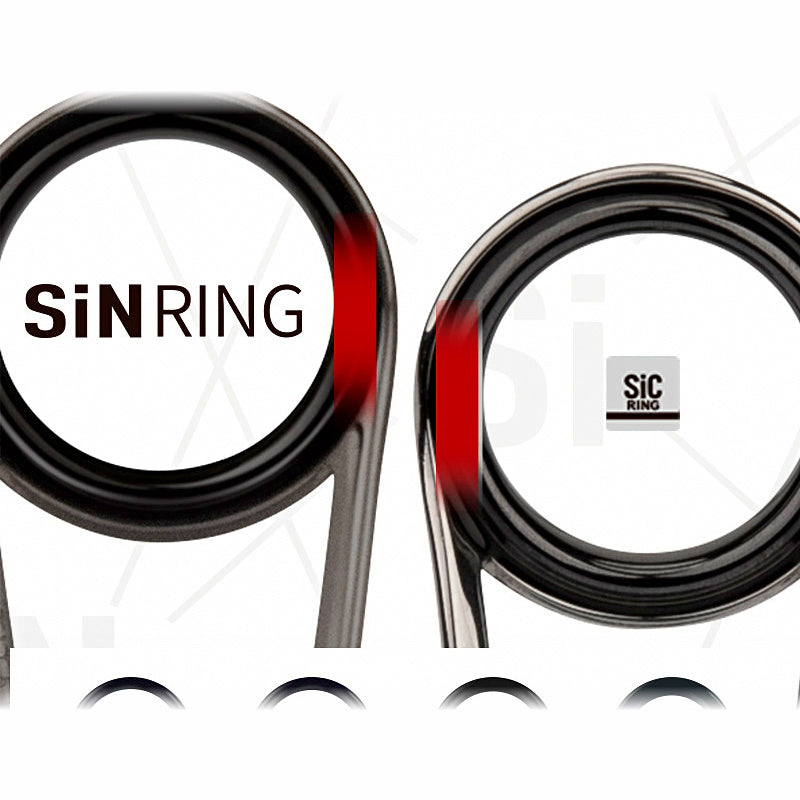

Silicon Nitride (SiN) Guide Ring
- Made of the same material as Fuji TZ guide rings.
- Features thin wall, high hardness, light weight, excellent heat dissipation, and corrosion resistance.
- Resists wear and scratching from frequent use, ensuring smooth casting and line retrieval.
Guide Ring Material Performance Comparison
- Key features: High temperature resistance, thermal shock resistance, acid and alkali resistance, corrosion resistance, high hardness, wear resistance, low density, and low thermal expansion coefficient.
- Silicon Nitride guide ring data measured by National Building Materials Quality Inspection and Test Center; Fuji data from 2024 Fuji Official Catalog.
Performance Test Report & Production Equipment Display
- Includes performance testing reports and inspection certificates.
- Displays advanced production facilities, including 10MPa gas pressure sintering equipment, high-precision CNC machining equipment, and precision ball grinding equipment.
Manufacturing Process
- High-purity nano powder
- 300MPa isostatic pressing molding
ISO Management System Certification
- Certified Quality Management System conforming to GB/T 19001-2016 / ISO 9001:2015
- Certified Occupational Health and Safety Management System conforming to ISO 45001:2018
- Certifications cover the design, development, and production of ceramic components and fishing gear parts
