UT SERIES · AVAILABLE NOW
Stainless Ball Bearing Snap Swivel, Sizes 1–6
$4.46
Specifications
Product specifications
Available options
| Size | #1 – 44 lb (20 kg) · #2 – 55 lb (25 kg) · #3 – 77 lb (35 kg) · #4 – 110 lb (50 kg) · #5 – 143 lb (65 kg) · #6 – 176 lb (80 kg) |
|---|---|
| Pack Size | 5 Pack · 50 Pack |
Product Details
| Material | Reinforced high-quality 304 stainless steel |
|---|---|
| Feature | Built-in 6 steel balls for high-speed rotation |
| Type | Dual Ball Bearing Swivel with Snap |
| Features | Corrosion-resistant, Ultra-smooth high-speed rotation, Heavy-duty |
Product Parameters
| Model | #1 | #2 | #3 | #4 | #5 | #6 |
|---|---|---|---|---|---|---|
| Total Length (mm) | 25 | 30.5 | 32.1 | 36.5 | 40 | 44.5 |
| Weight (g) | 0.7 | 1.12 | 1.37 | 2.05 | 2.83 | 4.41 |
| Single Ring Diameter (mm) | 0.9 | 0.9 | 1 | 1.2 | 1.42 | 1.6 |
| Pull Rating (kg) | 20 | 25 | 35 | 50 | 65 | 80 |
| Snap Length (mm) | 13 | 16.3 | 16.3 | 19.3 | 19.3 | 22.2 |
| Snap Width (mm) | 6.5 | 8.3 | 8.3 | 10 | 10 | 11.8 |
| Snap Wire Diameter (mm) | 0.8 | 1 | 1 | 1.2 | 1.2 | 1.4 |
Product Parameters
| Model | Total Length (mm) | Weight (g) | Ring Diameter (mm) | Breaking Strength (kg / lb) | Snap Length (mm) | Snap Width (mm) | Snap Wire Diameter (mm) |
|---|---|---|---|---|---|---|---|
| #1 | 25 | 0.7 | 0.9 | 20 kg (44 lb) | 13 | 6.5 | 0.8 |
| #2 | 30.5 | 1.12 | 0.9 | 25 kg (55 lb) | 16.3 | 8.3 | 1 |
| #3 | 32.1 | 1.37 | 1 | 35 kg (77 lb) | 16.3 | 8.3 | 1 |
| #4 | 36.5 | 2.05 | 1.2 | 50 kg (110 lb) | 19.3 | 10 | 1.2 |
| #5 | 40 | 2.83 | 1.42 | 65 kg (143 lb) | 19.3 | 10 | 1.2 |
| #6 | 44.5 | 4.41 | 1.6 | 80 kg (176 lb) | 22.2 | 11.8 | 1.4 |
Manual measurements may have a 1–3 mm error; please refer to the actual product.
80% Strength Increase
- How to achieve an 80% strength increase? Made with reinforced high-quality 304 stainless steel

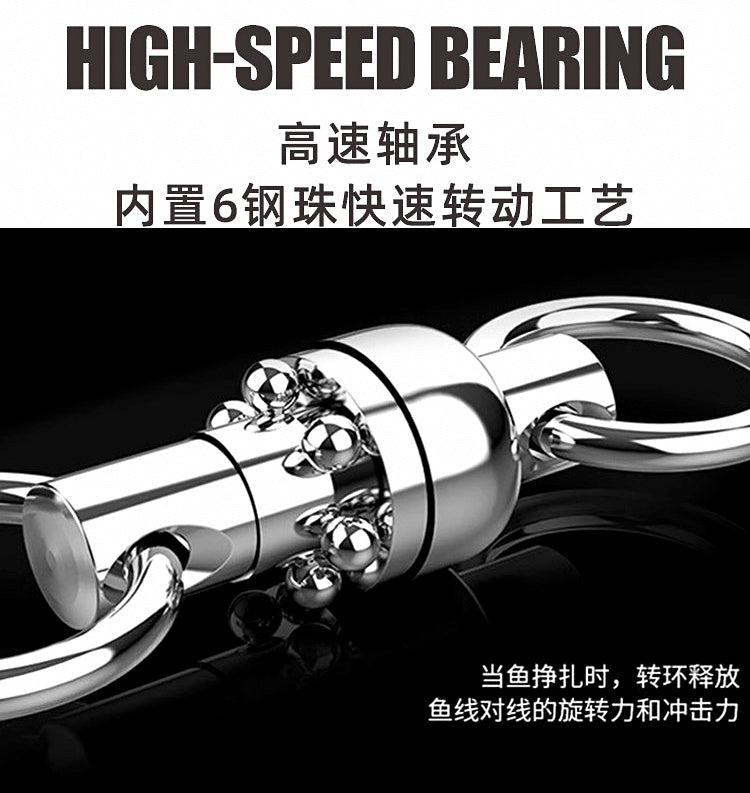

High-Speed Bearing Swivel
- Built-in 6 stainless steel ball bearings for smooth, fast rotation
- Relieves line twist and absorbs rotational tension and shock when fish struggle
Dual-Bearing High-Speed Swivel with Quick-Snap
- Can be installed by hand
- Features ball-bearing dual swivels combined with a quick-connect snap clip
Product Parameters

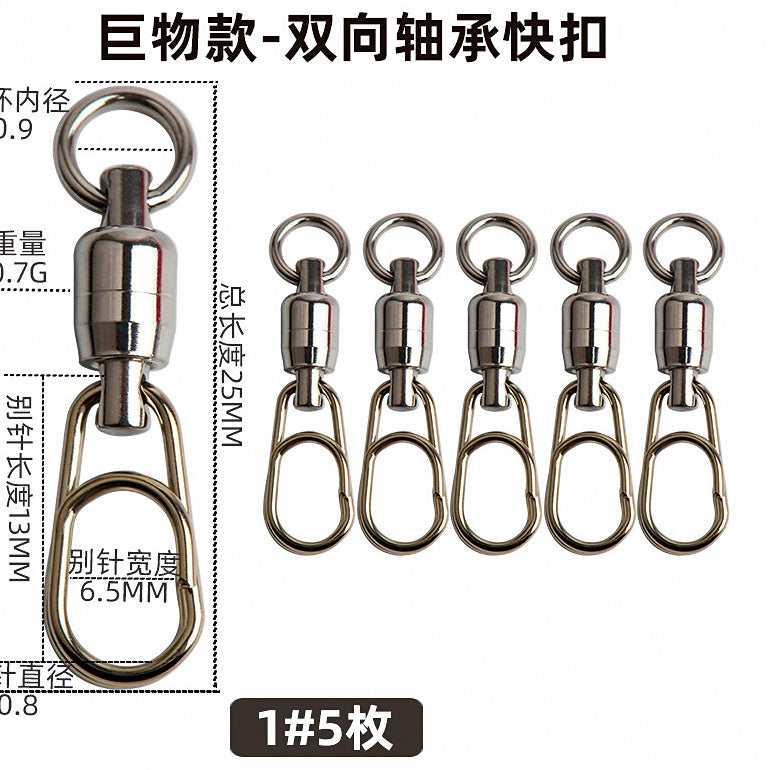

- Swivel with snap dimensions diagram including ring diameter, weight, total length, snap length, snap width, and snap wire diameter.
- Two-way big game high-speed bearing snap
Big Game Two-Way High-Speed Bearing Swivel with Snap
- Export-grade 304 stainless steel construction
- Heavy-duty non-slip design
- Dual ball bearing construction for ultra-smooth rotation and corrosion resistance
Swivel with Safety Snap Parameters
- Diagram annotations: Ring Diameter, Swivel Weight, Total Length, Snap Length, Snap Width, Snap Wire Diameter.
80% Increase in Strength
- Made from reinforced high-quality 304 stainless steel
